ES-120A 2wires: Fail-Secure & Fail-Safe(default: Fail-safe)
ES-120B 5wires: With signal output
>Input voltage: DC12V [24V customized]
>Working current: 240mA
>Withstand thrust: 400KG
>Product material: stainless steel + zinc alloy
>Product size: 124X43X32mm
Brand:
S4AItem NO.:

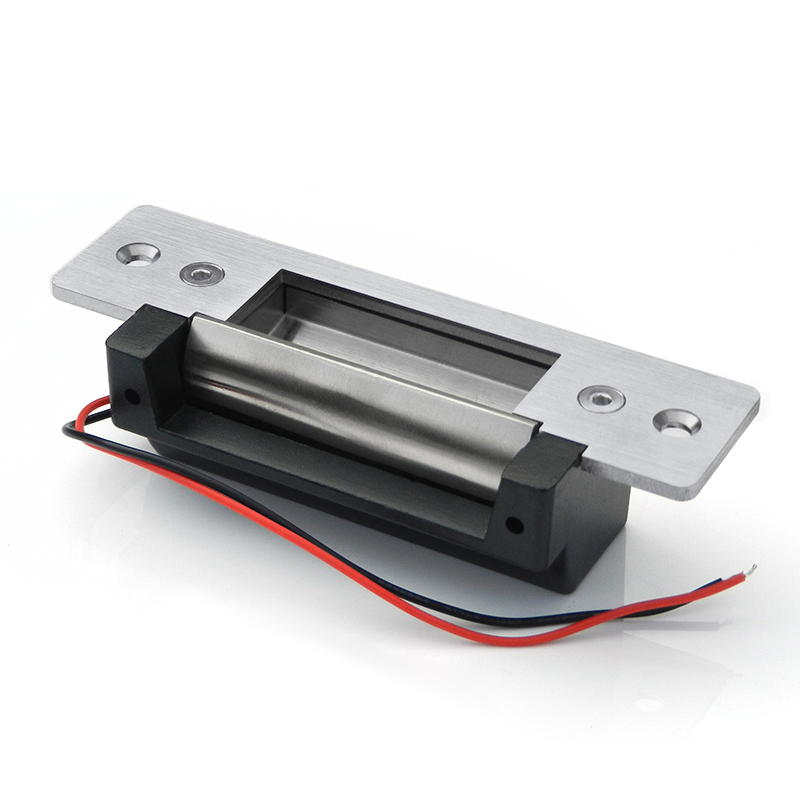

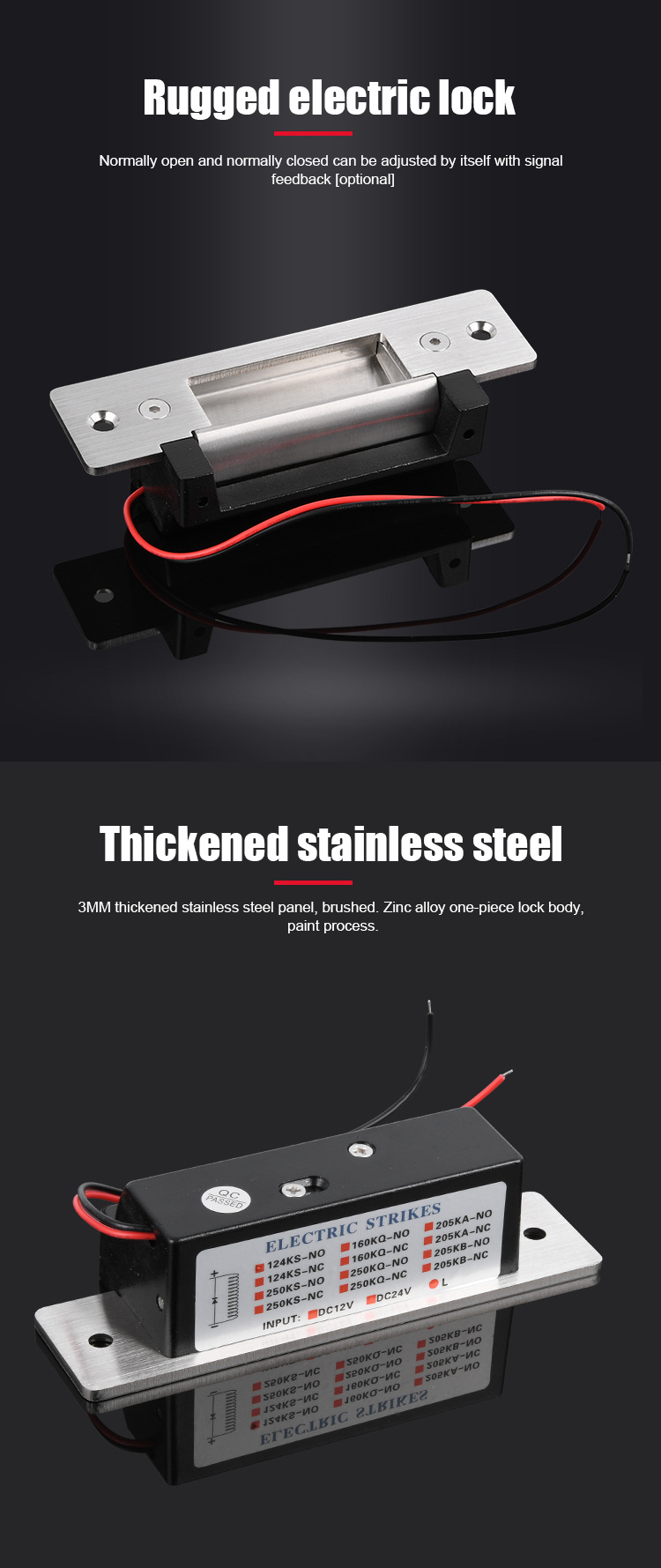

ES-120ANSI standard Heavy-Duty Electric Strike lock
Model No.: ES-120A, 120B

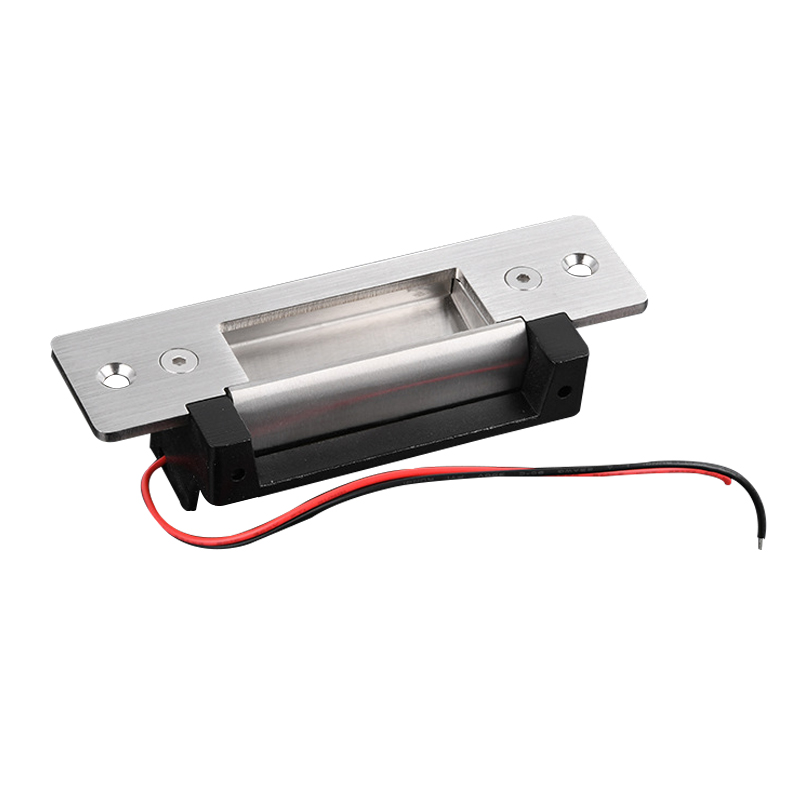

ES-120A 2wires: Fail-Secure & Fail-Safe(default: Fail-safe)

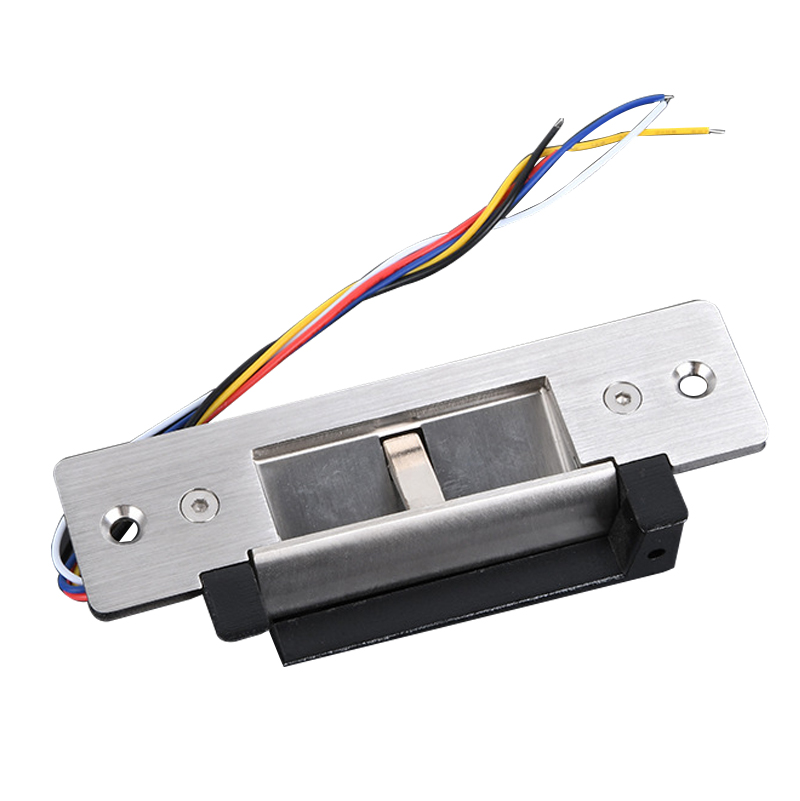

ES-120B 5wires: With signal output
Input voltage | DC12V (24V customized) |
Working current | 240mA |
Withstand thrust | 400KG |
Product material | stainless steel + zinc alloy |

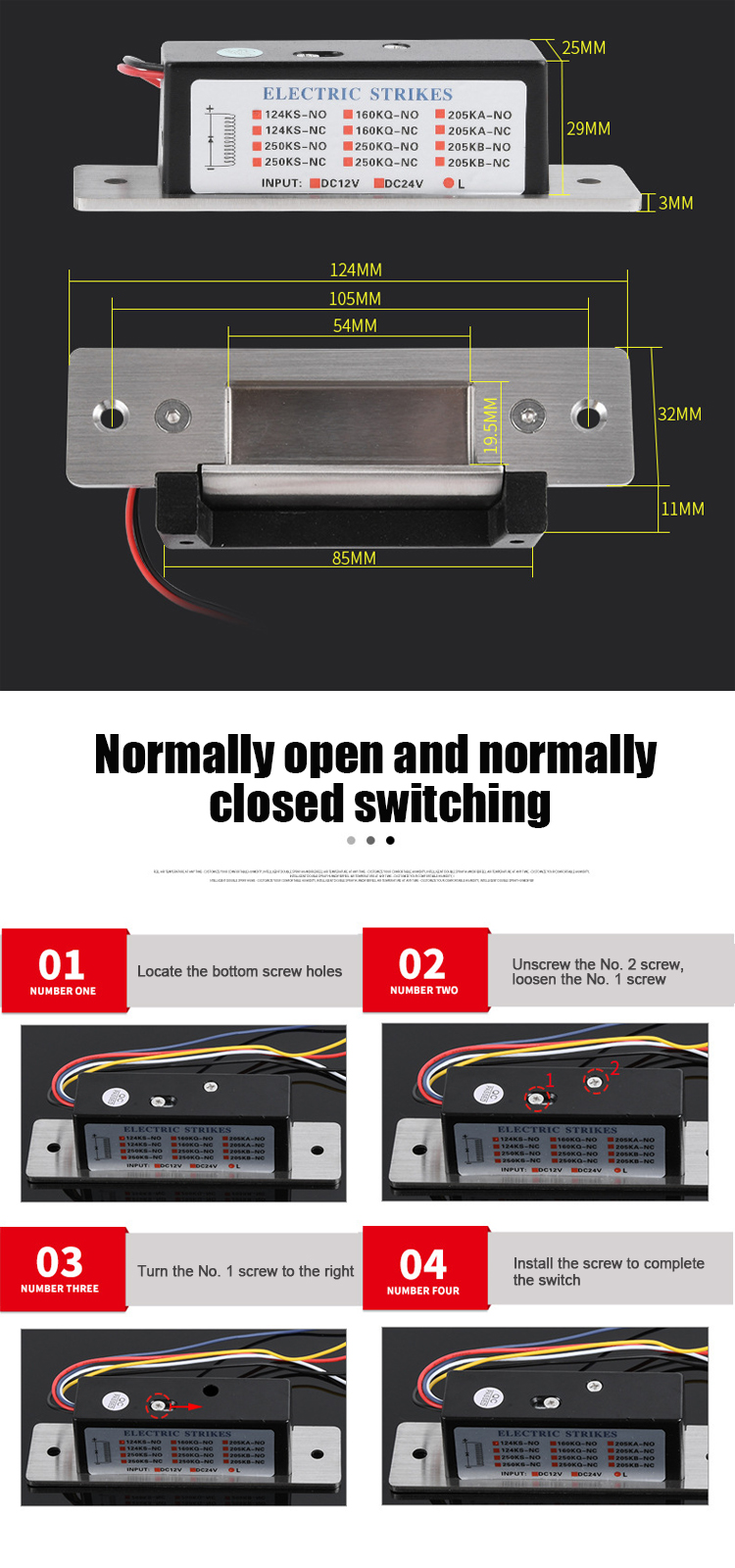

Product size | 124X43X32mm |
Signal feedback | normally open normally closed signal (optional) |
Opening direction | regardless of direction |
Door opening method | 90° door opening |
Applicable environment | -10~+55°C (14~131F) |
Scope of application | all occasions used with mechanical lock tongue |
Specifications | Standard/Signal |
Product weight | 0.4KG |

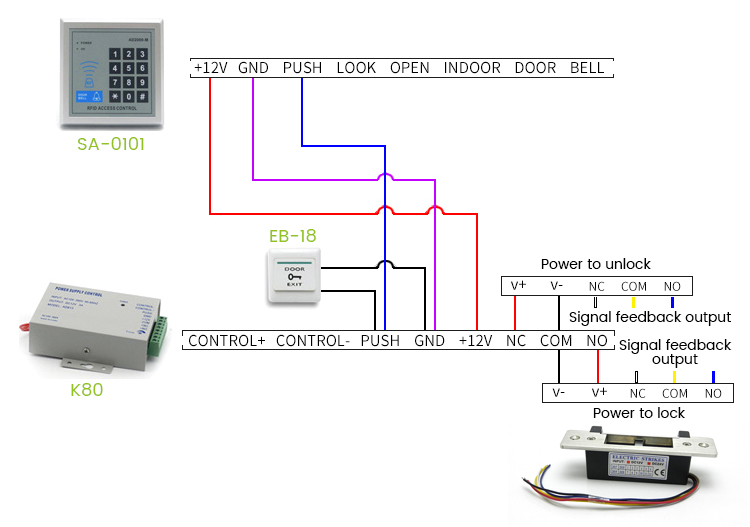

V+ port | Red line | |
V-port | Black line | V+V- is 12V power supply control |
NO port | White line | |
COM port | Yellow line | Close trigger NO/COM output door magnetic signal |
NC port | Blue line | Door open trigger NC/COM output door magnetic signal |
Ansi Standard Heavy Duty Electric Strike Lock | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
ES-120A | 70pcs | 23.38KG | 54x31x22cm |
ES-120B | 70pcs | 23.38KG | |
S4A Datesheet_Ansi Standard Heavy Duty Electric Strike Lock
ES-100A: Fail-secure type (Power to unlock)ES-100B: Fail-safe type (Power to lock)> Lock Size: 150Lx39.5Wx28H(mm)> Bolt structure: Stainless Steel> Holding Stength: 800kg> Voltage: 12VDC> Current: 450mA(ES-100A) 200mA(ES-100B)
ES-110A: Fail-secure type (Power to unlock)ES-110B: Fail-safe type (Power to lock)> Lock Size: 250Lx25Wx34H(mm)> Strike Struiture: Stainless Steel> Holding Force: 400kg> Voltage: DC12V> Current: 240mA(ES-110A) 120mA(ES-110B)
ES-130A: Fail-secure type (Power to unlock)ES-130B: Fail-safe type (Power to lock)> Lock Size: 149Lx28Wx34H(mm)> Bolt structure: Stainless Steel> Holding Stength: 250kg> Voltage: 12VDC> Current: 240mA(ES-130A) 120mA(ES-130B)
ES-140A: Fail-secure type (Power to unlock)ES-140B: Fail-safe type (Power to lock)> Lock Size: 149Lx28Wx31H(mm)> Strike Struiture: Stainless Steel> Holding Force: 250kg> Voltage: DC12V> Current: 240mA(ES-140A) 120mA(ES-140B)
> Lock Size: 110Lx25Wx31.5H(mm)> Strike Struiture: Zinc die-casting> Holding Stength: 600kg> Voltage: DC12V> Current: 700mA
> Lock Size: 250Lx25Wx31H(mm)> Strike Struiture: Zinc die-casting> Holding Stength: 500kg> Voltage: DC12V> Current: 700mA
>Operating Voltage:DC12V (24V optional)>Working current:240mA>Product Size:124X43X32mm
> Panel: Aluminium magnesium alloy> Finger Capacity: 170pcs> Password Capacity: 20group> Mifare Card Capacity: 80 group With touch-screen LED display> Work with 8.4V lithium battery> Working temperature: -30° ~ 50° range> Built in 9V USB emergency power
