ES-130A: Fail-secure type (Power to unlock)
ES-130B: Fail-safe type (Power to lock)
> Lock Size: 149Lx28Wx34H(mm)
> Bolt structure: Stainless Steel
> Holding Stength: 250kg
> Voltage: 12VDC
> Current: 240mA(ES-130A)
120mA(ES-130B)
Brand:
S4AItem NO.:

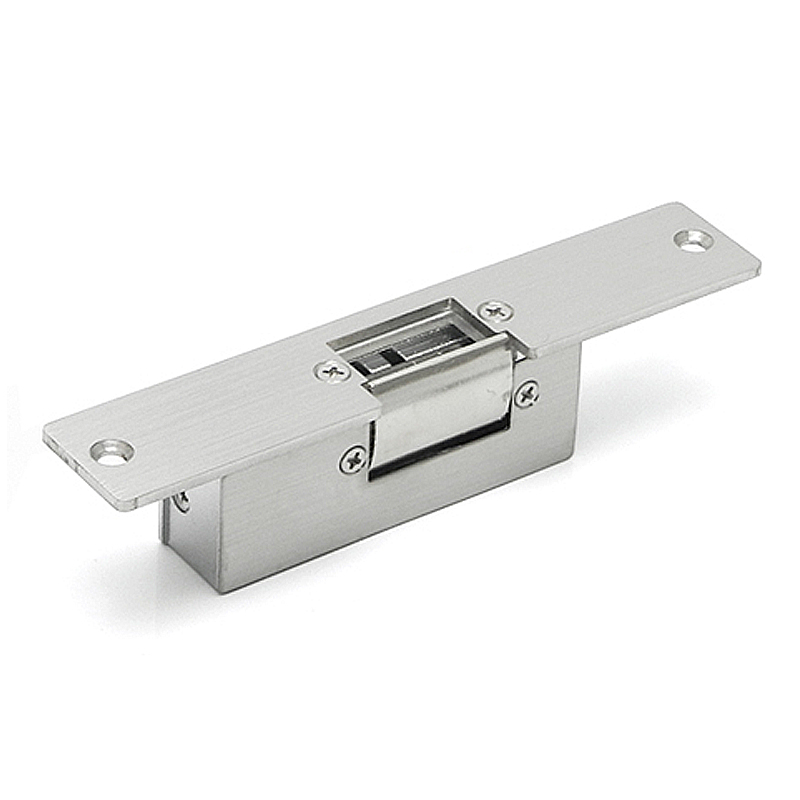

ES-130Narrow-type Electric Strike lock
Model No.: ES-130A, 130B
ES-130A: Fail-secure type (Power to unlock)
ES-130B: Fail-safe type (Power to lock)
Lock Size | 149x28x34mm |
Holding Strength | 250kg |
Bolt structure | Stainless Steel |
Voltage | 12VDC |
Current | 240mA(ES-130A) / 120mA(ES-130B) |
Surface Temperature | Within +20°C |
Suitable Temperature | -10°C~25°C(14°F-131°F) |
Face plate Housing | Painted Steel |
Bolt Housing | Stainless steel,Draw the Polishing of silk |
Function | Built-out MOV |
Suitable For | Wooden Door, Metal Door, PVC Door |
Opening Mode | 90 Degree Swinging Door |
Weight | 0.3kg |
Standard Packing | 60pcs/box |
Narrow-type Electric Strike Lock | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
ES-130A | 50pcs | 15.55KG | 40x29x25cm |
ES-130B | 50pcs | 15.55KG | |
S4A Datesheet_Narrow-type Electric Strike Lock
ES-100A: Fail-secure type (Power to unlock)ES-100B: Fail-safe type (Power to lock)> Lock Size: 150Lx39.5Wx28H(mm)> Bolt structure: Stainless Steel> Holding Stength: 800kg> Voltage: 12VDC> Current: 450mA(ES-100A) 200mA(ES-100B)
ES-110A: Fail-secure type (Power to unlock)ES-110B: Fail-safe type (Power to lock)> Lock Size: 250Lx25Wx34H(mm)> Strike Struiture: Stainless Steel> Holding Force: 400kg> Voltage: DC12V> Current: 240mA(ES-110A) 120mA(ES-110B)
ES-120A 2wires: Fail-Secure & Fail-Safe(default: Fail-safe)ES-120B 5wires: With signal output>Input voltage: DC12V [24V customized]>Working current: 240mA>Withstand thrust: 400KG>Product material: stainless steel + zinc alloy>Product size: 124X43X32mm
ES-140A: Fail-secure type (Power to unlock)ES-140B: Fail-safe type (Power to lock)> Lock Size: 149Lx28Wx31H(mm)> Strike Struiture: Stainless Steel> Holding Force: 250kg> Voltage: DC12V> Current: 240mA(ES-140A) 120mA(ES-140B)
> Lock Size: 110Lx25Wx31.5H(mm)> Strike Struiture: Zinc die-casting> Holding Stength: 600kg> Voltage: DC12V> Current: 700mA
> Lock Size: 250Lx25Wx31H(mm)> Strike Struiture: Zinc die-casting> Holding Stength: 500kg> Voltage: DC12V> Current: 700mA
>Operating Voltage:DC12V (24V optional)>Working current:240mA>Product Size:124X43X32mm
>Power supply 4.5V-6V>Quiescent current<50-65mA
