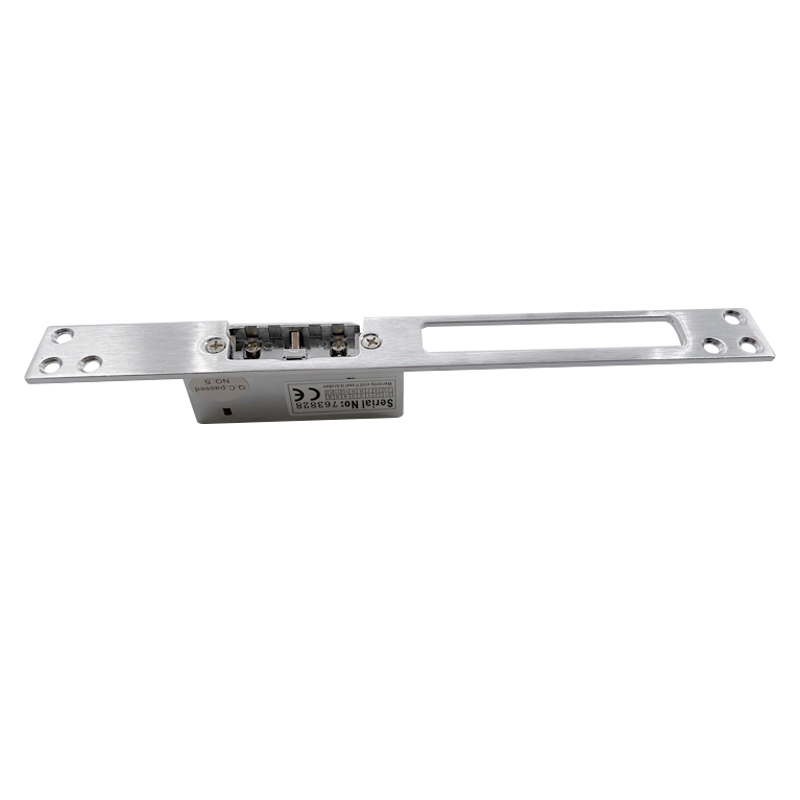

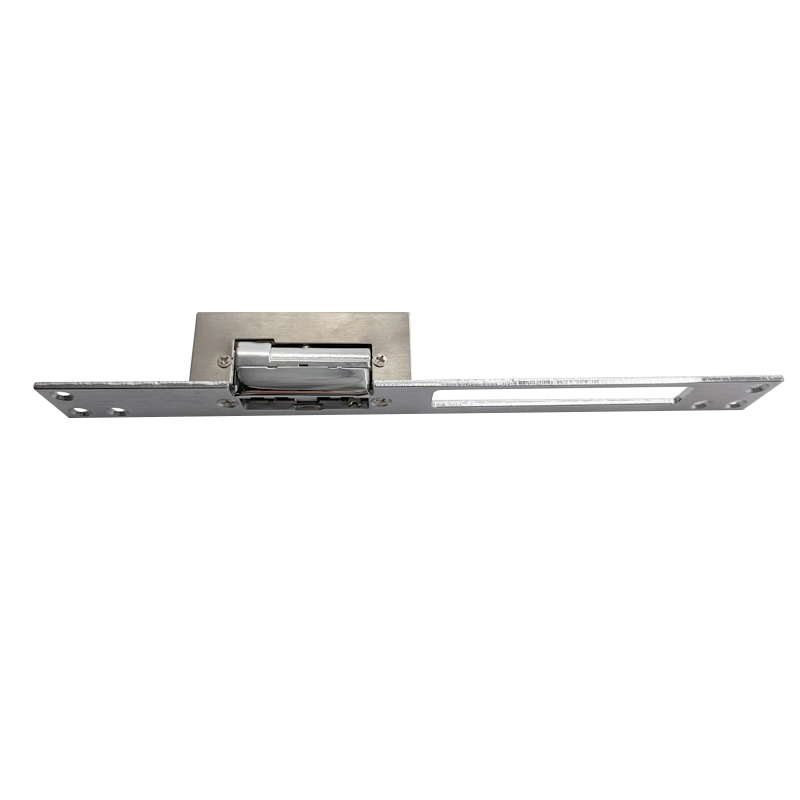

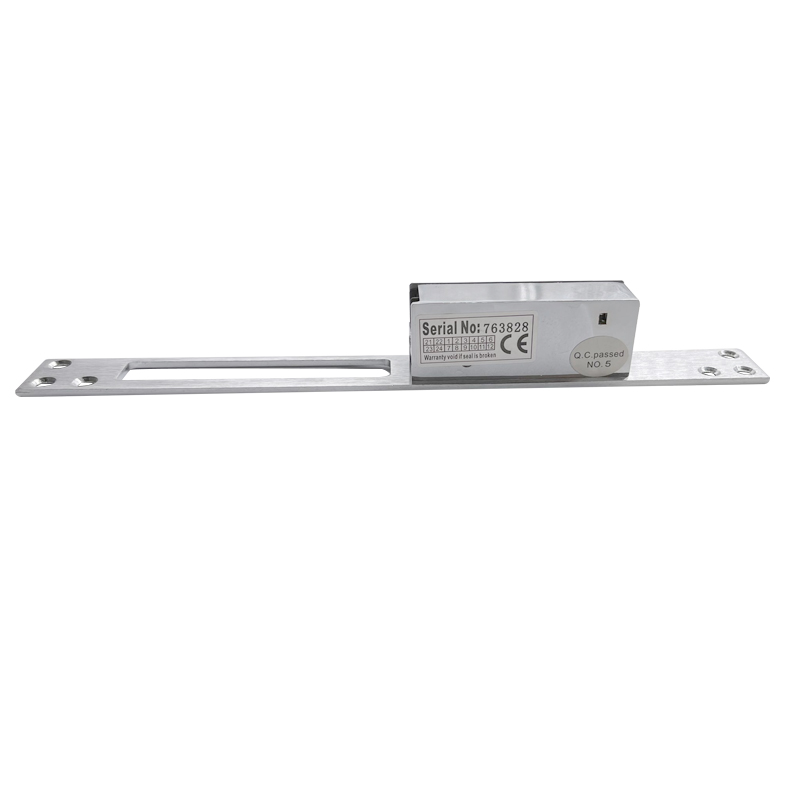

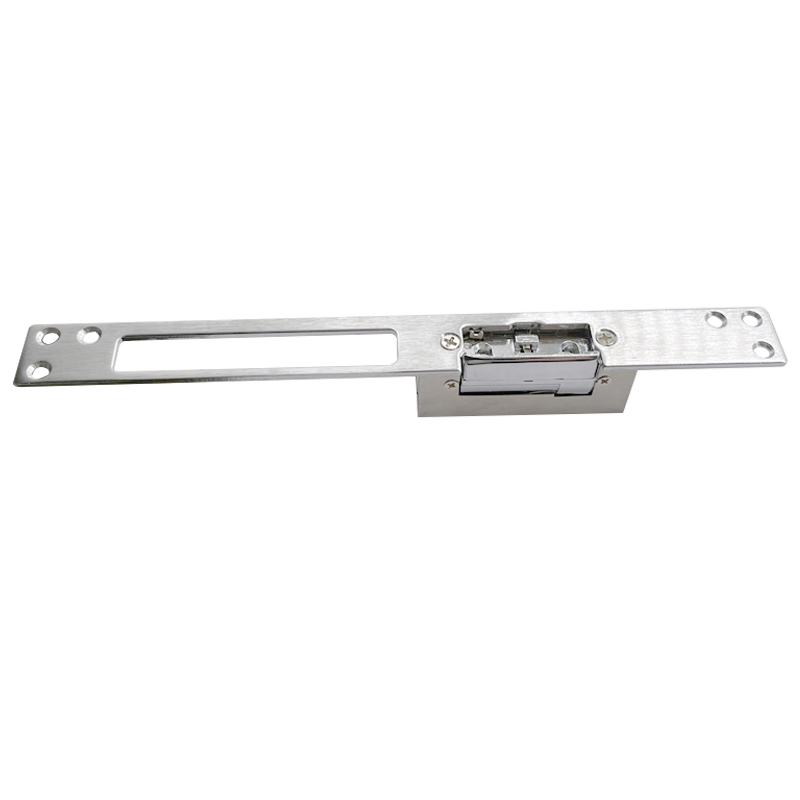

European Narrow-type and Adjustable Electric Strike lock

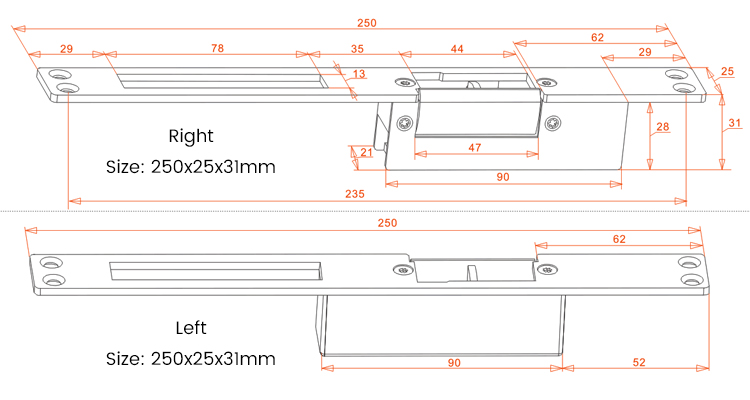

1. Lock Size: 250Lx25Wx31.5H(mm)

2. Strike Structure: Zinc die-casting

3. Holding Strength: 500KG

  • Brand:

    S4A
  • Item NO.:

    ES-160
  • Specifications

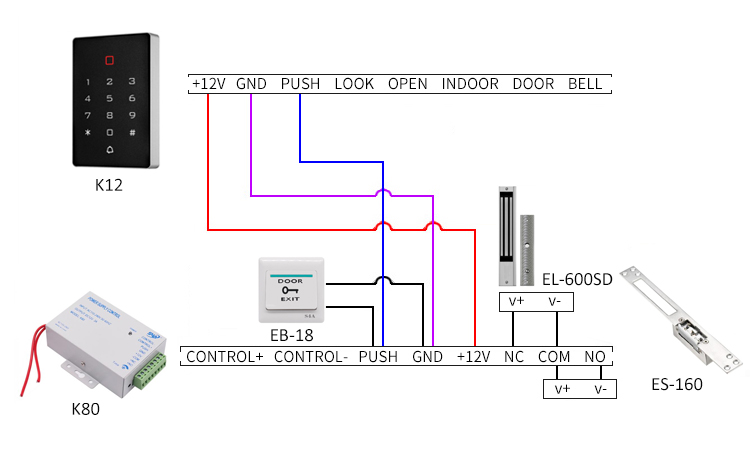

  • Wiring Diagram
  • Package

Item Name: European Narrow-type and Adjustable Electric Strike lock

Model No.: ES-160

Adjustable Electric Strike lock for access control

Suitable Temperature

-10°C~25°C(14°F-131°F)

Faceplate Housing

Surface by coating nickel

Surface

by coating nickel and polishing

Function

Built-out MOV

Suitable For

Narrow Wooden Door, Narrow Metal Door

Opening Mode

90 Degree Swinging Door

Weight

0.3kg

Standard Packing

30pcs/box


European Narrow-type and Adjustable Electric Strike lock


European Narrow-type and Adjustable Electric Strike lock

European Narrow-type and Adjustable Electric Strike lock
