Heavy-Duty Automatic Fence Barrier Gate with 2-Level Security Arm

Anti-Climb Security Fence: The dual-layer fence arm prevents both vehicles and pedestrians from unauthorized entry.
Patented Self-Locking Tech: Features a high-rigidity crank rocker mechanism that automatically locks the arm in place for maximum safety.
Low-Maintenance Reliability: Built with 20% fewer components to significantly reduce mechanical failure and long-term operating costs
  • Brand:

    S4A
  • Item NO.:

    S4A-BG2126
  • Specifications
  • Wiring Diagram
  • Package

Heavy-Duty Automatic Fence Barrier Gate with 2-Level Security Arm

Engineered for high-traffic environments, the S4A-BG2126 combines robust security with intelligent design.
As a professional solution for modern access control, it offers the following core advantages:

Versatile Installation: Features a flexible, adjustable left-and-right mechanism to accommodate any site layout.
Precision Engineering: The compact crank rocker transmission is designed for increased structural rigidity,
ensuring smooth operation and simplified maintenance.

Automatic Self-Locking: For enhanced security, the system automatically engages a self-locking feature whenever
the arm is in a full horizontal or vertical position.

Proven Reliability: Our patented technology utilizes 20% fewer internal components, significantly reducing the risk of defects and long-term wear.
High Visibility: Equipped with an integrated LED status indicator to ensure safe operation and clear signaling for drivers.

Why Choose S4A?
With over a decade of experience in security hardware, we provide comprehensive factory solutions that prioritize reliability.
This barrier gate is a testament to our commitment to high-end engineering and ethical, high-quality production.


Product Parameter Parameter Descr1ption
S4A Model S4A-BG2126
Product Name Parking Barrier Gate

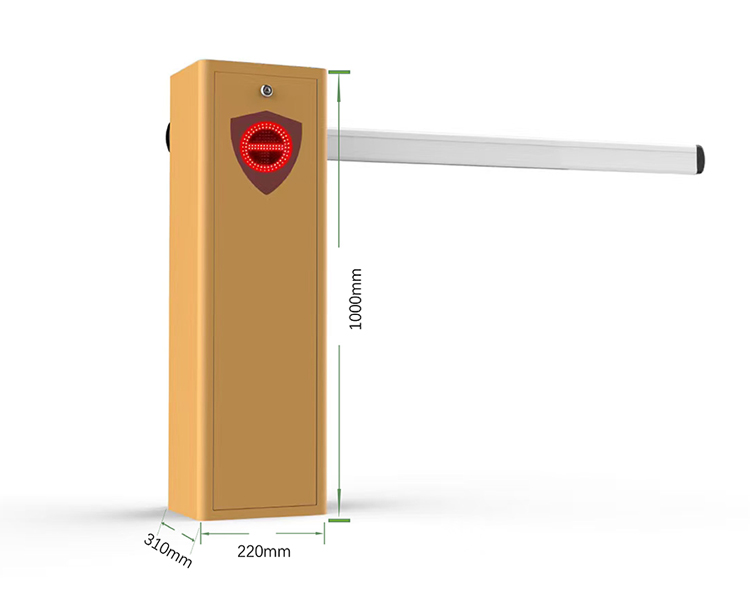

Housing Dimension 220*300*1020mm

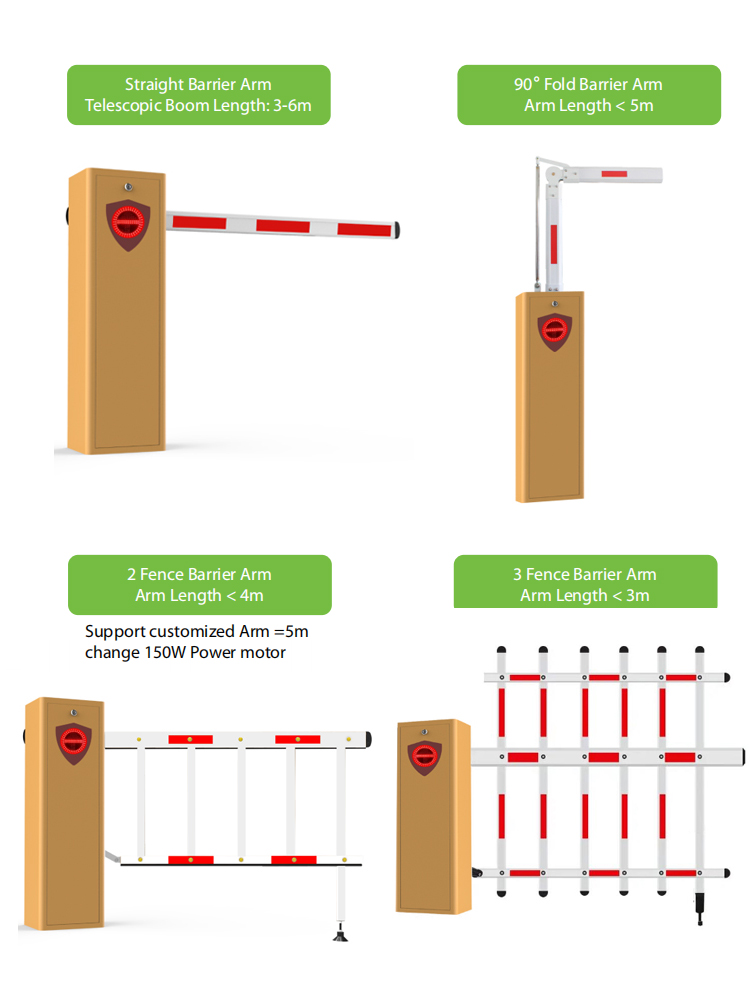

Bar Length folding stick ≤5m, rack staks ≤5m, Straightbar ≤6m
Power Consumption 120W
Power Supply 220V±10% 50Hz
Operating Temperature -30℃~70℃
Operating Humidity 20%~95% No Condensation
Housing Thickness 1.5mm
Body Material Carbon Steel Paint+Baking Finish
Mechanism DC24V Brushless Motor
Opening/Closing Speed 3s
Lifecycle 8 Million Times
Protection Level IP54
Remote Control Range ≤30m
Communication Dry Contact/RS485

 Automatic Fence Barrier Gate
 Automatic Fence Barrier Gate
