> Card type: EM Card
> One relay, 1000 users (990 Normal Users + 10 Visitor Users)
> 3 access modes: Card, PIN, Card + PIN
> PIN length: 4~6 digits
> Anti-tamper alarm
> Waterproof, IP66
> Dimensions: 73x20mm
Brand:
S4AItem NO.:

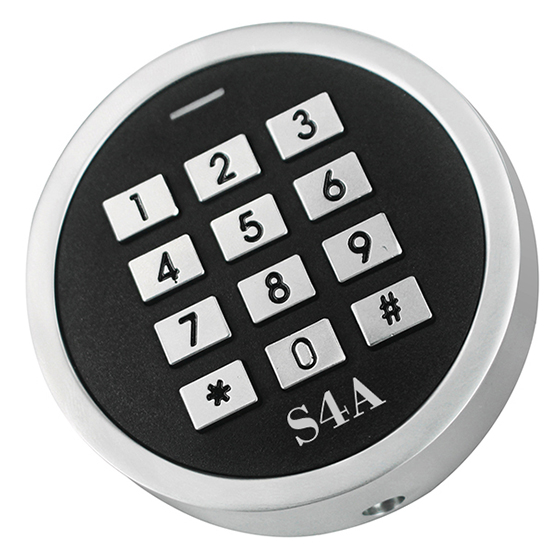

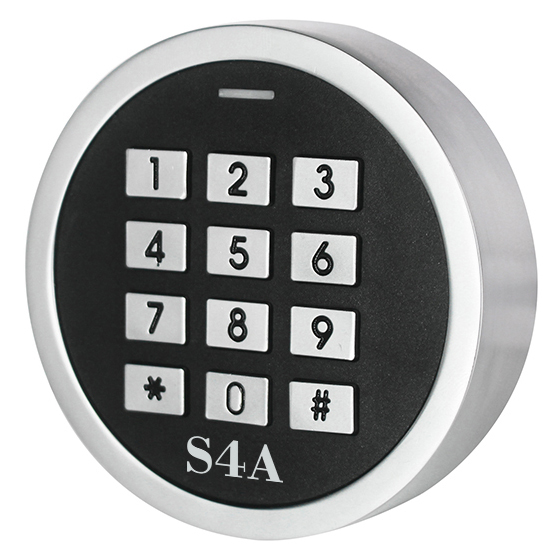

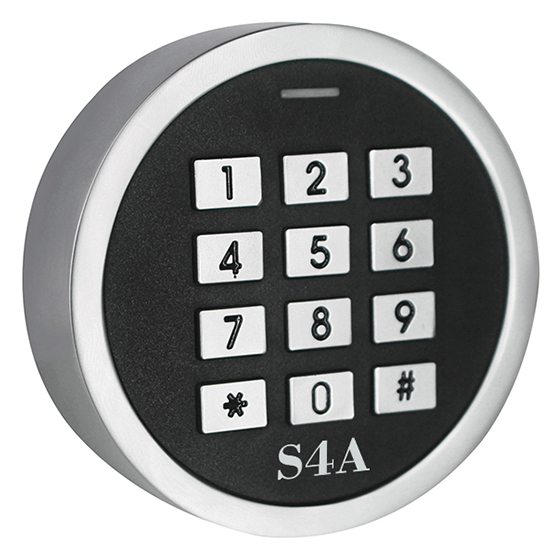

K7Waterproof IP66 Fingerprint access control
Model No.: K7 EM
K7 is a single entry standalone Mini Access Control, easy to install and operate the device, design in as little as 6 wires for mounting. It is waterproof, suitable for outdoor applications.
Features:
> One relay, 1000 users (990 Normal Users + 10 Visitor Users)
> 3 access modes: Card, PIN, Card + PIN
> Card type: 125KHz EM card
> PIN length: 4~6 digits
> Anti-tamper alarm

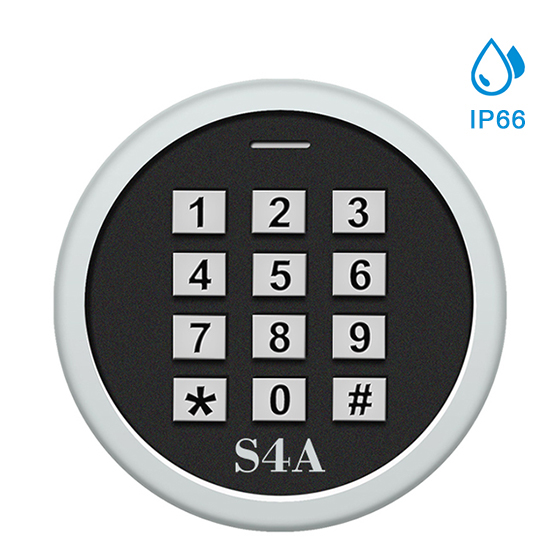

> Waterproof, IP66
> Dimensions: 73x20mm
User Capacity | 1000 Cards/PINS |
Normal Users | 990 |
Visitor Users | 10 |
Operating Voltage | 9~18V DC |
Idle Current | 50mA |
Active Current | 80mA |
Keypad | 12 Keys |
Proximity Card Reader | EM |
Radio Technology | 125KHz EM Card |
Read Range | 2-4 cm |
Wiring Connections | Relay Output, Exit Button |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0-99 Seconds (5 seconds default) |
Lock Output Load | 2 Amp Maximum |
Environment | Outdoor (IP66) |
Operating Temperature | -40℃~ 60℃ (-40°F ~ 140°F) |
Operating Humidity | 10%RH-90%RH |
Physical | Zinc-Alloy Enclosure |
Colour | Silver & Black |

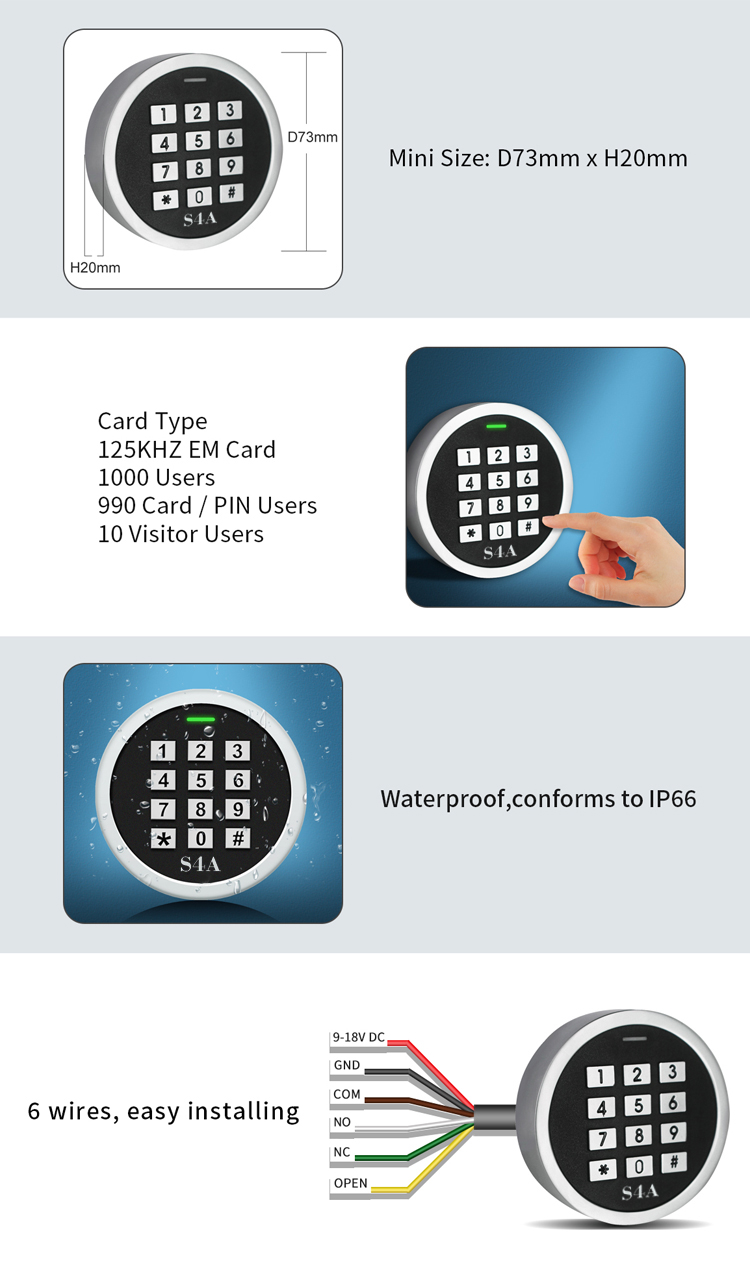

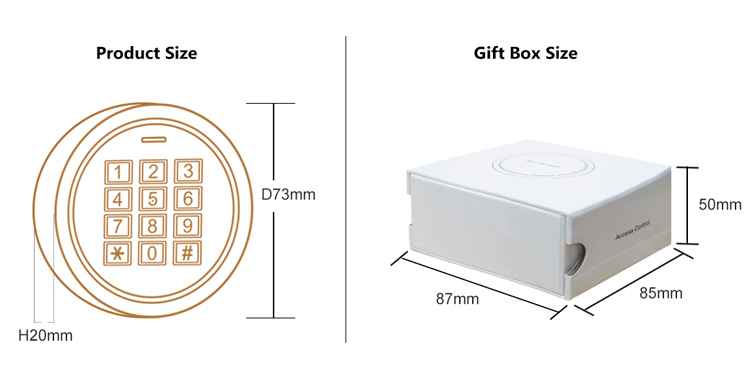

Dimensions | Diameter: 73mm, Thickness: 20mm |
Unit Weight | 185g |
Shipping Weight | 285g |
Installation
> Remove the back cover from the unit
> Drill 2 holes(A, C) on the wall for the screws and one hole for the cable
> Knock the supplied rubber bungs to the screw holes(A, C)
> Fix the back cover firmly on the wall with 4 flat head screws
> Thread the cable through the cable hole(B)

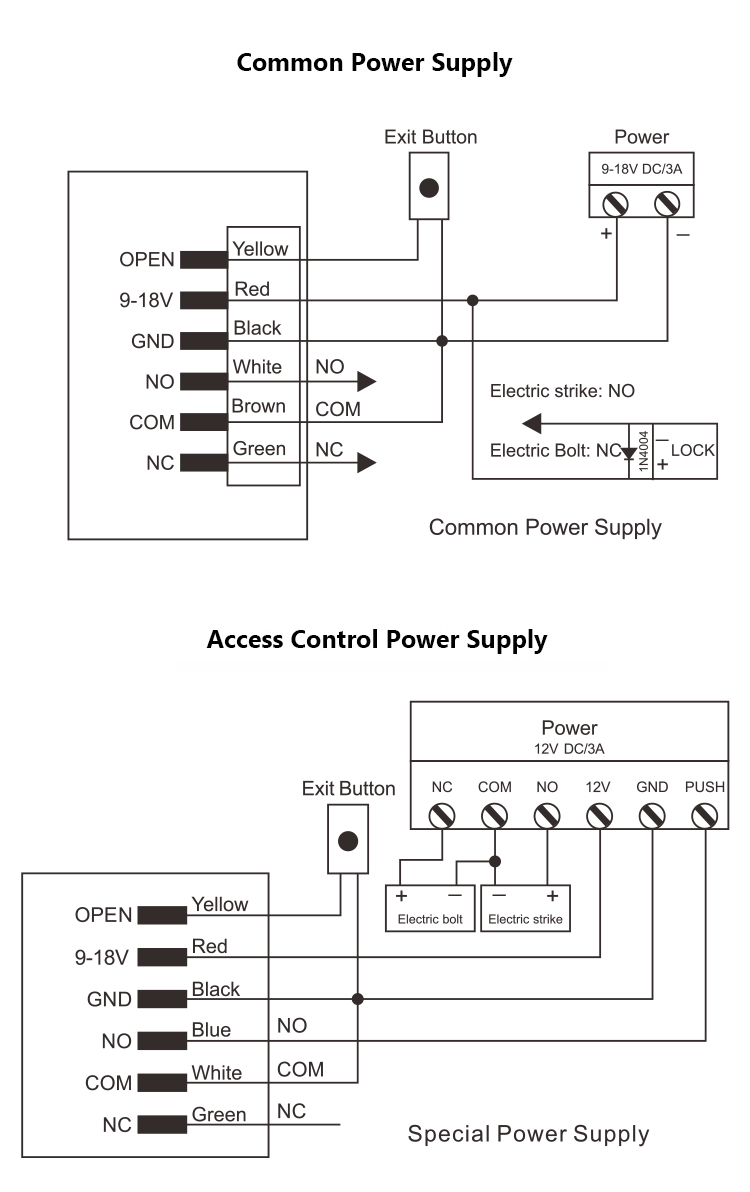

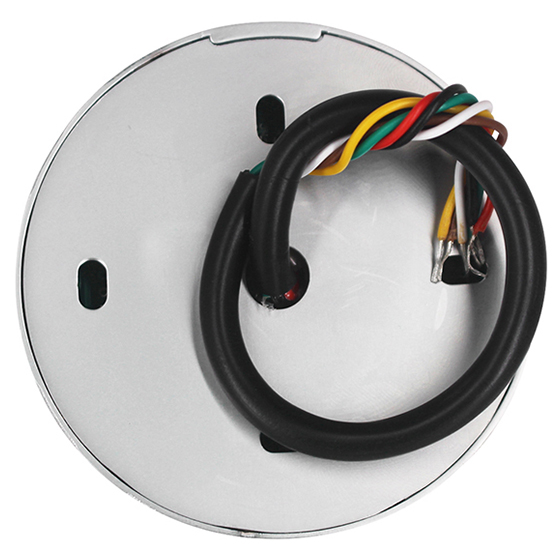

Wiring
Wire Colour | Function | Notes |
Yellow | OPEN | Request To Exit Input(Rex) |
Red | Power + | 9 -18 V DC Regulated Power Input |
Black | GND | Ground |
Blue | NO | Normally Open Relay Output |
White | COM | Common Connection For Relay Output |
Green | NC | Normally Closed Relay Output |
