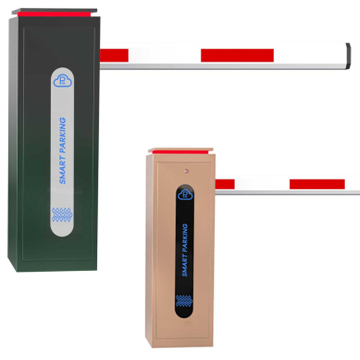

S4A-BG01Automatic Boom Barrier Gate System | Heavy-Duty Parking Entry with Remote Management
"What happens if the barrier arm descends while a vehicle or pedestrian is still underneath?"
Advanced Triple-Layer Safety & Obstacle Detection
At S4A, we recognize that a barrier gate's reliability is measured by its ability to prevent accidents. Our heavy-duty systems are engineered with a multi-tiered safety protocol to ensure 100% protection for both assets and people.
Intelligent Auto-Reverse Technology: The core of our system is a high-precision sensor integrated into the motor controller. If the boom arm encounters even slight resistance during its descent, the system instantly triggers an auto-reverse command, returning the arm to the full upright position.
Dual-Detection Integration (Radar & Loop): We prioritize a "one-stop" system approach. Our barriers seamlessly integrate with ground loop detectors and high-frequency radar sensors. The loop detector senses the metal mass of the vehicle, while the radar provides a secondary safety curtain for pedestrians or non-metallic objects, ensuring the arm stays open until the path is entirely clear.
Patented Self-Locking Security: For models like the S4A-BG2126, our patented crank rocker transmission provides a mechanical self-lock when the arm is horizontal or vertical. This prevents the arm from "drifting" or being forced down, maintaining a rigid and predictable safety barrier at all times.
High-Visibility LED Status Indicators: To further prevent accidents before they happen, our barrier arms are equipped with integrated LED lighting. These change color based on the gate's status, providing clear visual cues to drivers in low-light or high-traffic conditions, significantly reducing the likelihood of accidental impact.
By combining these hardware features with our 10 years of industrial manufacturing experience, we provide a parking entry solution that balances high-speed efficiency with absolute peace of mind.
| Controller Specifications | |
| Input voltage | 24V |
| Rated/peak current | 8A / 30A |
| Applicable motor | Brushless DC motor |
| Applicable motor power | ≤200W |
| Human-machine interface | 3-digit LED, 5-digit button |
| Communication interface | RS232/RS485 |
| Hardware protection | Overcurrent protection, overvoltage protection, short circuit protection |
| Input signal | Open, close, stop, ground sense, anti-smash |
| Output signal | Open in place, close in place dry contact |
| Power-off opening | External 12V 1AH battery |
| Temperature rise | ≤15℃ |
| Controller size | 176.6(H)*103(W)*34(D)mm |
| Working environment temperature | -20℃~55℃ |
| Working environment humidity | 90%, no condensation |
|
|
|
| Basic performance parameters of motor | |
| Rated voltage | 24VDC |
| Number of poles | 10 poles |
| Number of phases | Three phases |
| Hall | 120 degrees |
| Phase resistance | 1.1Ω |
| No-load speed | 2600RPM±%10 |
| No-load current | 1.75 A |
| Load speed | 1800RPM±%10 |
| Load current | 4.16A |
| Input power | 100-200W |
| Torque | 48N.m |
| Reduction ratio | 1/150 |
| Protection level | IP20 (GB4942.1) |
| Adapter rod | ＜6m straight rod |
| Insulation level | Class B |
| Ambient temperature | -30～+65℃ |
| Service life | ＞1 million times |
Anti-Climb Security Fence: The dual-layer fence arm prevents both vehicles and pedestrians from unauthorized entry. Patented Self-Locking Tech: Features a high-rigidity crank rocker mechanism that automatically locks the arm in place for maximum safety. Low-Maintenance Reliability: Built with 20% fewer components to significantly reduce mechanical failure and long-term operating costs
Reliable Performance Under Pressure: Our brushless DC motor and high-torque gear system are rated for over a million cycles, ensuring consistent, maintenance-free operation for even the busiest entry points. Smart Safety & Connectivity: Built-in hardware protections and versatile signal inputs allow for seamless integration with ground sensors and anti-smash systems to prioritize vehicle and pedestrian safety. Uninterrupted Access Control: Designed with an efficient emergency backup interface, the system remains fully operational during power outages to maintain site security without manual intervention.
Built with a heavy-duty motor and a patented crank rocker transmission, our barrier gates deliver exceptionally stable performance and a long service life, even in high-frequency traffic environments. The system features an intelligent control board that supports diverse safety integrations, including 79GHz radar, ground loops, and infrared sensors, to ensure 100% protection for both vehicles and pedestrians.
1: Precision Brushless DC Technology: Powered by a high-efficiency brushless DC motor, the BG01 ensures smooth, quiet, and rapid operation with a long service life suitable for continuous high-traffic environments. 2: Comprehensive Hardware Protection: The advanced controller features built-in overcurrent, overvoltage, and short-circuit protection, guaranteeing stable operation and safeguarding your investment against electrical fluctuations. 3:Seamless Smart Integration: Equipped with RS232/RS485 communication interfaces, this barrier supports a full suite of safety and access signals, including 79GHz radar, ground sensing, and anti-smash protocols for 100% site security
>SC-35-12: 12V3A>SC-35-24: 24V1.5A>SC-60-12: 12V5A>SC-60-24: 24V2.5A>SC-120-12: 12V10A>SC-120-24: 24V5A
Dimension: 80x30x24mm
> Cable Length: 1M> Support: XP, Vista, Win7, Win10, Mac OS> USB port: USB 2.0> Chips: PL2303
>Input:AC/DC 7V-32V>Frequency:433Mhz(Without remote control)
