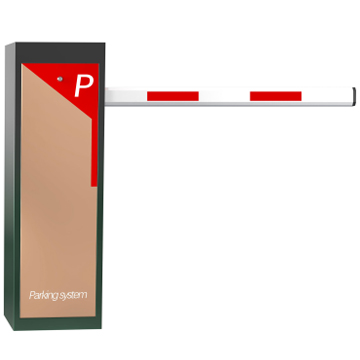

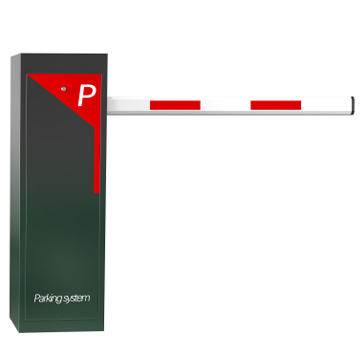

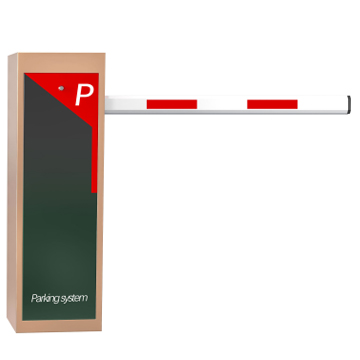

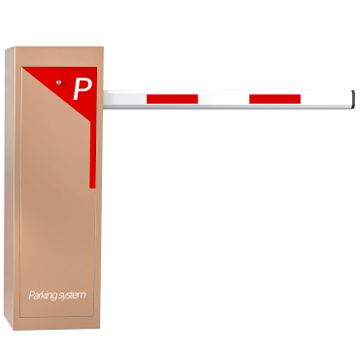

S4A-BG01Intelligent DC Brushless Motor Parking Barrier with Remote Control & RFID Integration
1. Why choose this system?
Precision engineering meets reliable security.
This barrier gate is designed to automate vehicle access with unmatched efficiency, reducing onsite labor costs while providing a premium, high-tech experience for every visitor. It’s the ultimate investment for those seeking a balance of long-term durability and modern aesthetics.
2. Where does it perform best?
Built for high-frequency, all-weather environments.
Commercial & Industrial: Ideal for logistics hubs, factories, and corporate office parks requiring 24/7 heavy-duty operation.
Residential Communities: Perfect for gated neighborhoods and luxury apartments where quiet, smooth operation is a priority.
Public Infrastructure: Highly adaptable for hospital parking, shopping malls, and toll stations integrated with LPR or RFID systems.
3. Competitive Advantages
Unrivaled Lifespan: Powered by a high-torque DC brushless motor, our system is rated for over 1 million cycles, ensuring years of maintenance-free service.
Advanced Safety Logic: Equipped with intelligent "Auto-Reverse" and anti-smash technology, the system prioritizes the safety of both pedestrians and vehicles.
24/7 Operational Continuity: With low thermal buildup and support for emergency battery backups, your entry point remains fully functional—even during total power outages.
| Controller Specifications | |
| Input voltage | 24V |
| Rated/peak current | 8A / 30A |
| Applicable motor | Brushless DC motor |
| Applicable motor power | ≤200W |
| Human-machine interface | 3-digit LED, 5-digit button |
| Communication interface | RS232/RS485 |
| Hardware protection | Overcurrent protection, overvoltage protection, short circuit protection |
| Input signal | Open, close, stop, ground sense, anti-smash |
| Output signal | Open in place, close in place dry contact |
| Power-off opening | External 12V 1AH battery |
| Temperature rise | ≤15℃ |
| Controller size | 176.6(H)*103(W)*34(D)mm |
| Working environment temperature | -20℃~55℃ |
| Working environment humidity | 90%, no condensation |
|
|
|
| Basic performance parameters of motor | |
| Rated voltage | 24VDC |
| Number of poles | 10 poles |
| Number of phases | Three phases |
| Hall | 120 degrees |
| Phase resistance | 1.1Ω |
| No-load speed | 2600RPM±%10 |
| No-load current | 1.75 A |
| Load speed | 1800RPM±%10 |
| Load current | 4.16A |
| Input power | 100-200W |
| Torque | 48N.m |
| Reduction ratio | 1/150 |
| Protection level | IP20 (GB4942.1) |
| Adapter rod | ＜6m straight rod |
| Insulation level | Class B |
| Ambient temperature | -30～+65℃ |
| Service life | ＞1 million times |

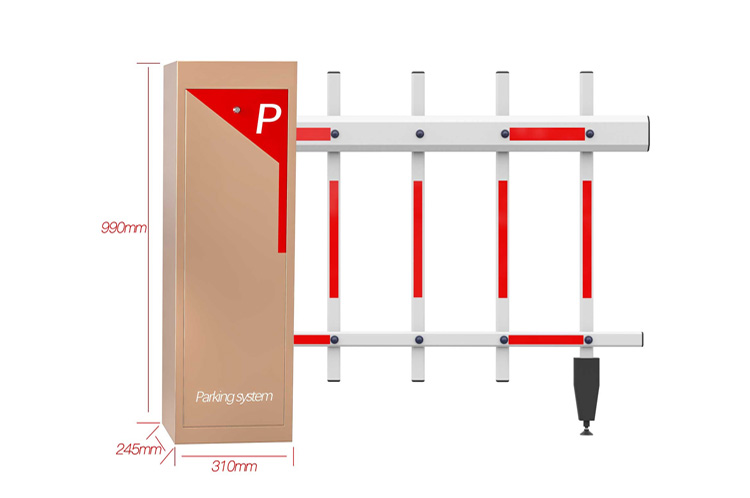

Anti-Climb Security Fence: The dual-layer fence arm prevents both vehicles and pedestrians from unauthorized entry. Patented Self-Locking Tech: Features a high-rigidity crank rocker mechanism that automatically locks the arm in place for maximum safety. Low-Maintenance Reliability: Built with 20% fewer components to significantly reduce mechanical failure and long-term operating costs
1. Heavy‑Duty Motor Control Supports brushless DC motors up to 200W with 8A rated / 30A peak current — delivering reliable starting torque and stable operation even under frequent use. 2. Comprehensive Hardware Protection Built‑in overcurrent, overvoltage, and short‑circuit protection safeguards the system against electrical faults, reducing downtime and maintenance costs. 3. Backup‑Ready & Environmentally Robust External 12V 1AH battery support enables power‑off opening, while the controller operates reliably from −20°C to 55°C at up to 90% humidity (non‑condensing)
Built with a heavy-duty motor and a patented crank rocker transmission, our barrier gates deliver exceptionally stable performance and a long service life, even in high-frequency traffic environments. The system features an intelligent control board that supports diverse safety integrations, including 79GHz radar, ground loops, and infrared sensors, to ensure 100% protection for both vehicles and pedestrians.
1: Precision Brushless DC Technology: Powered by a high-efficiency brushless DC motor, the BG01 ensures smooth, quiet, and rapid operation with a long service life suitable for continuous high-traffic environments. 2: Comprehensive Hardware Protection: The advanced controller features built-in overcurrent, overvoltage, and short-circuit protection, guaranteeing stable operation and safeguarding your investment against electrical fluctuations. 3:Seamless Smart Integration: Equipped with RS232/RS485 communication interfaces, this barrier supports a full suite of safety and access signals, including 79GHz radar, ground sensing, and anti-smash protocols for 100% site security
> Power supply: DC12-24V> Locking start current: 980mA> Quiescent Current: 200mA> Security type: Power on lock
> Card type: EM and HID Card> Metal case, anti-vandal> Waterproof, conforms to IP66> One relay, 1000 users> Wiegand 26~37 bits input & output
Voltage and current: 9~15V100mARelay delay: minimum 1 second, maximum 60 secondsWiegand interface format:WG26~WG80Unlocking rules: any Wiegand signal is fine
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Relay NO/NC/COM output
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
