> Two Accesses: Fingerprint, Pincode
> Waterproof, up to IP66
> Metal Design & Anti-Vandal
> Standalone, one relay
> 1,000 fingerprints, 2,000 PIN users
> Supports 4-6 digits PIN
> Wiegand 26-44 output
> Pulse mode, toggle mode
> Multi fingerprints/PINs access
> Interlock, Support Principal Use
Brand:
S4AItem NO.:
SF2Waterproof IP66 Fingerprint Access Control
Model No.: SF2 Pincode&Finger

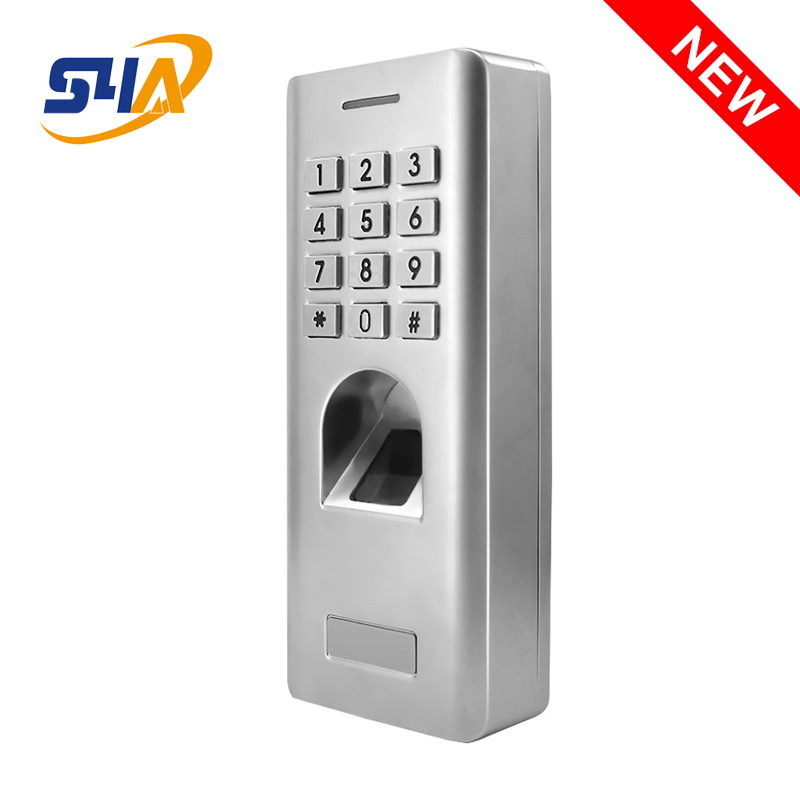

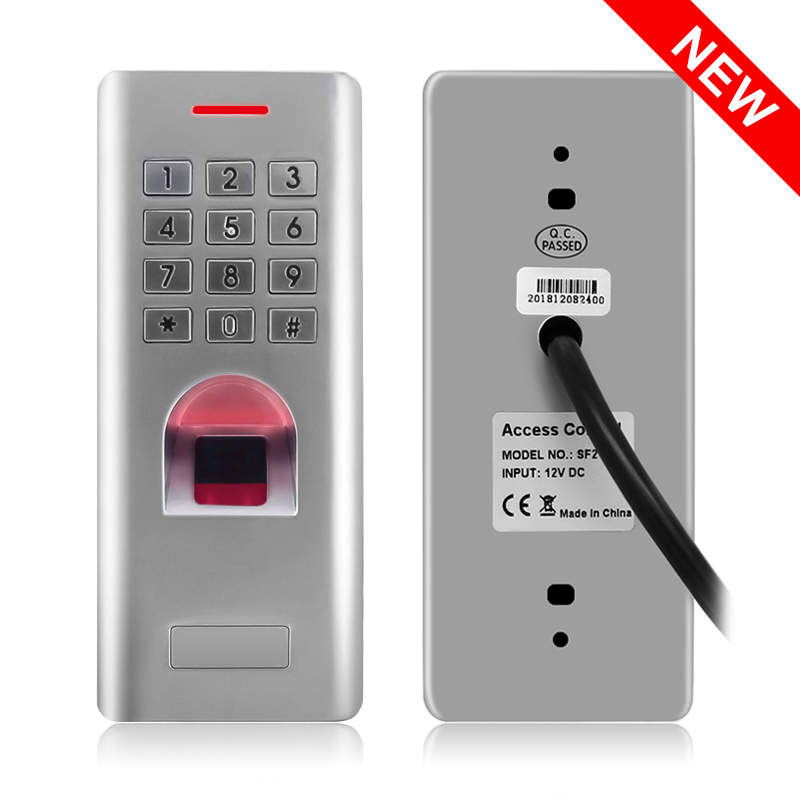

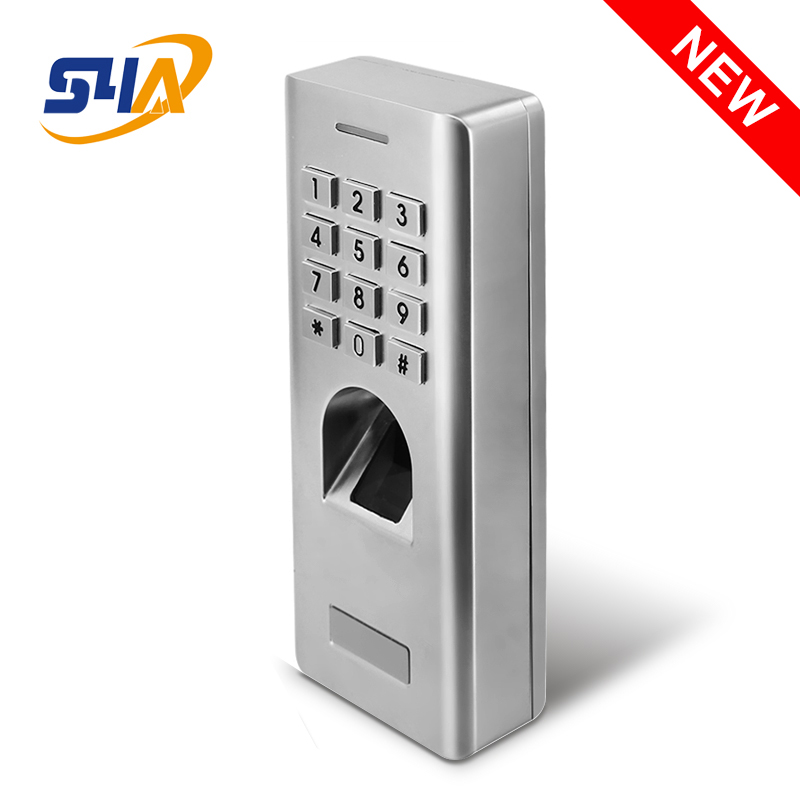

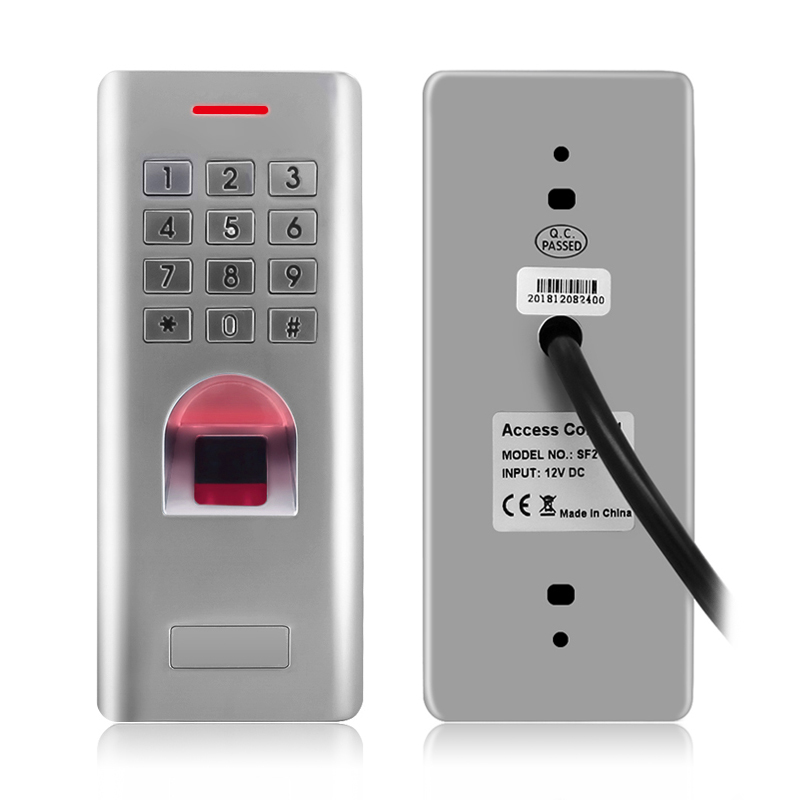

The device is a waterproof metal case standalone fingerprint access control with a keypad.
IP66 waterproof makes it very suitable for outdoor use.
The device supports up to 1000 fingerprint users and 2000 PIN users, with Wiegand 26~44 bits output, it can also work as a slave reader to connect to a 3rd party controller.
The device supports fingerprint access, PIN access, and multi-user access; with an external alarm, door contact, and exit button.
User Capacity | 3,000 |
Fingerprint | 1,000 |
PIN | 2,000 |
Operating Voltage | 12V DC±10% |
Idle Current | ≤45mA |
Active Current | ≤150mA |
Fingerprint Reader | Optical Fingerprint Module |
Resolution | 500DPI |
Identification ime | ≤1S |
FAR | ≤0.01% |
FR | ≤0.1% |
PIN Length | 4~6 digits |

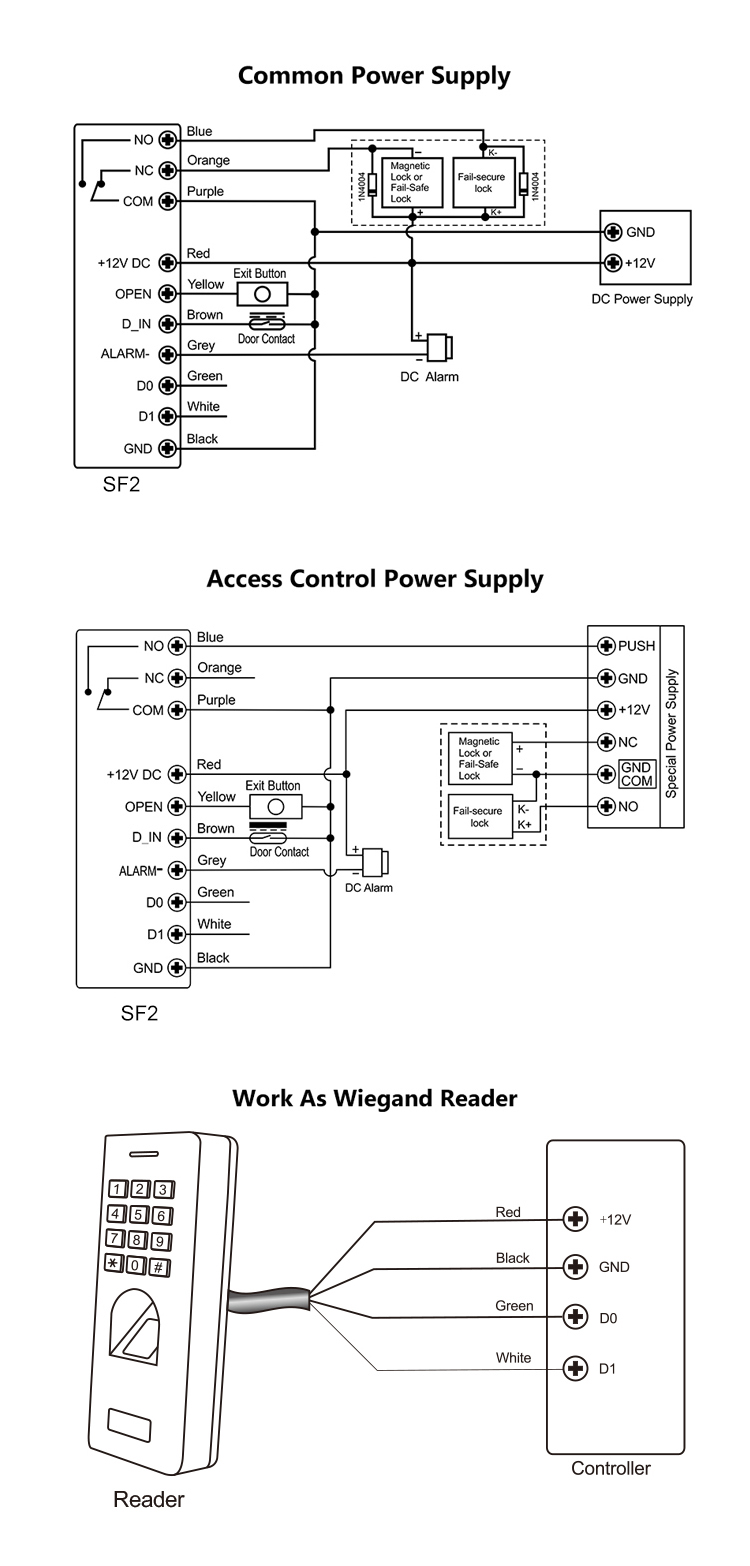

Wiring Connections | Relay Output, Exit Button, DOTL, Alarm, |
Wiegand Output | |
Relay | One (NO, NC, Common) |
Adjustable Relay Output Time | 0-99 Seconds (default: 5 seconds) |
Adjustable Alarm Output Time | 0-3 Minutes (default: 1 minute) |
Lock Output Load | 2 Amp Maximum |
Alarm Output Load | 5 Amp Maximum |
Wiegand Interface | Wiegand 26~44 bits output (default: 26bits) |
Environment | Meets IP66 |
Operating Temperature | -30°C ~ 60°C (-22°F ~140°F) --Default |
-40°C ~ 60°C (-40°F ~140°F) --Optional | |
Operating Humidity | 20%RH-90%RH |
Physical | Zinc-alloy Enclosure |
Surface Finish | Powder Coat |

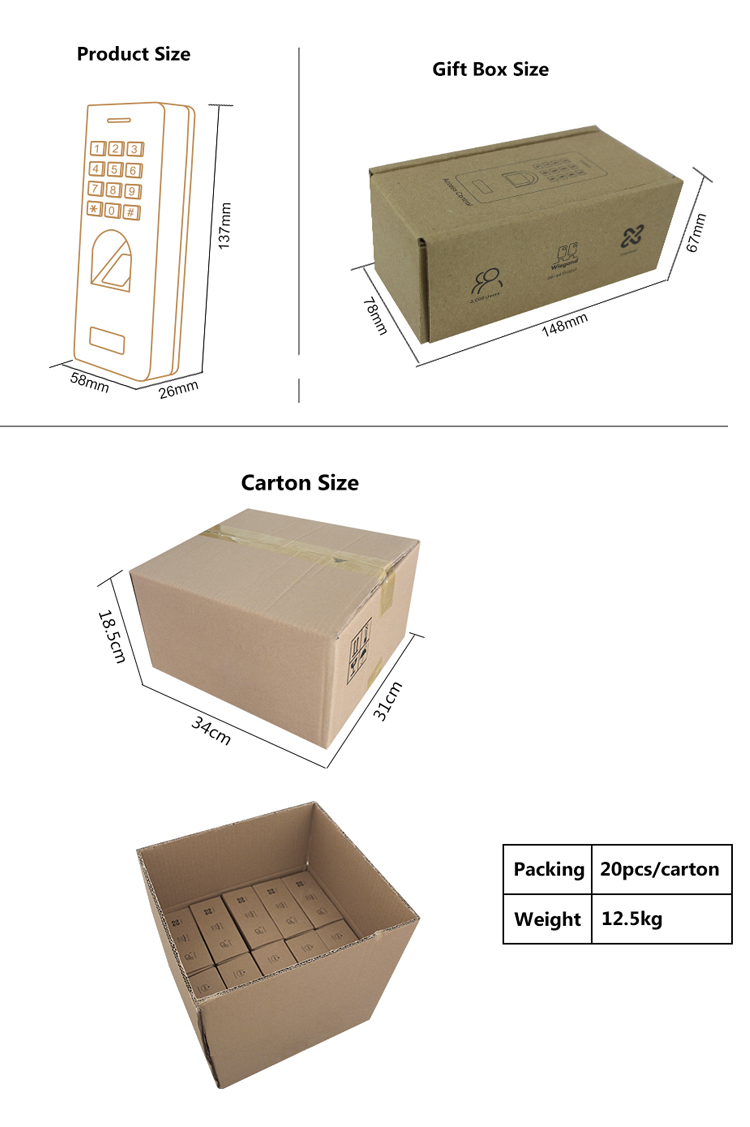

Dimensions | L137 × W58 × D26 (mm) |
Unit Weight | 400g |
Shipping Weight | 500g |
S4A User Manual SF2_Fingerprint Access Control Keypad with Wiegand 26-44bit Interface Support 2000 Users for 125khz RFID Card
