Products
Products
Home /

Standalone Access Control

/

Fingerprint Standalone Control

/Fingerprint Access Controller Keypad Door Lock

New Products

Fingerprint Access Controller Keypad Door Lock

> Card type: EM Card

> Metal case, anti-vandal

> Capacity: 200 fingerprints and 500 cards

> Two accesses: card, fingerprint

> Fingerprint access controller and reader, WG26 Input/output

  • Brand:

    S4A
  • Item NO.:

    F3
  • Specifications

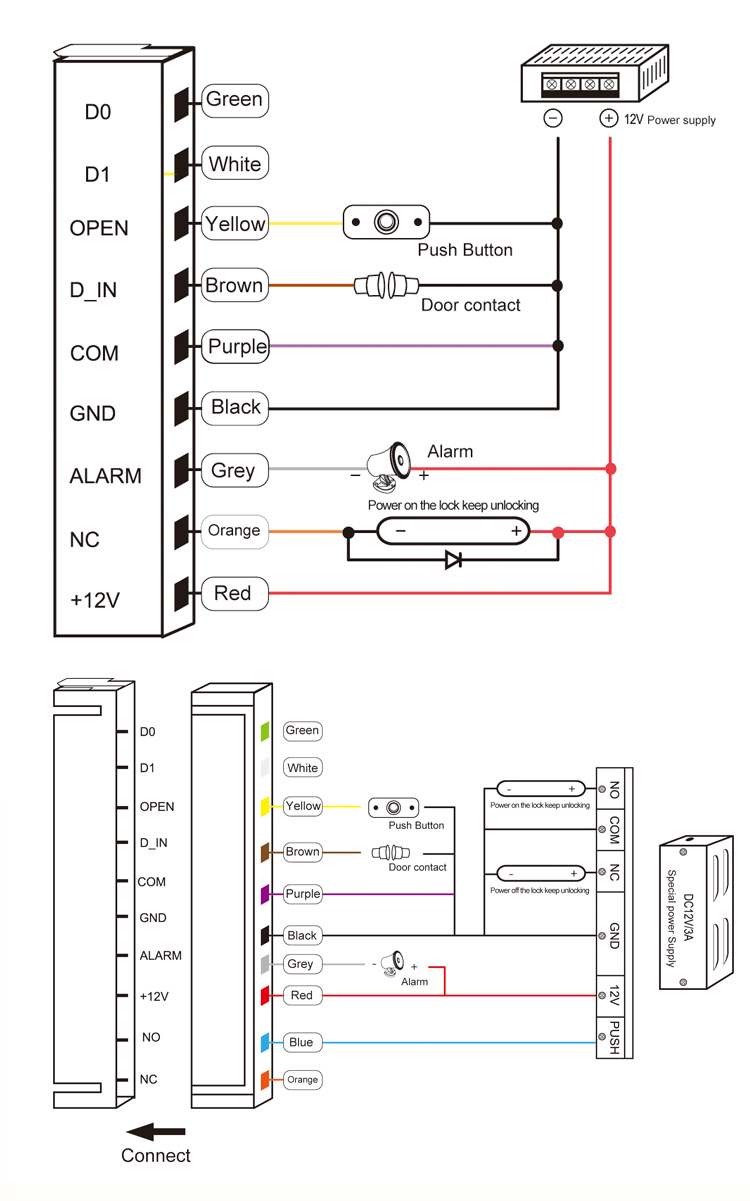

  • Wiring Diagram
  • Package
  • Download

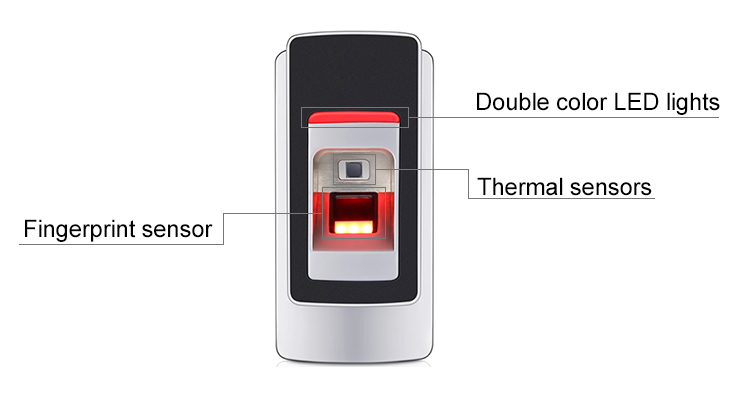

Fingerprint Standalone Access Controller

Model No.: F3 EM


Product feature

> Metal case, anti-vandal

> Fingerprint access controller and reader, WG26 Input/output

> Capacity: 200 fingerprints and 500 cards

> Two accesses: card, fingerprint


Card type

EM

Working voltage

DC12V±10%

Reading Range

3-6cm

Humidity

20% to 90% RH

Door Opening Time

0-99s(Adjustable)

Sleep electricity

≤30mA

Static electricity

≤80mA

Electric lock output

≤3A

Short-circuit Protect

≤100μS

Dimensions

126x61x34mm

Fingerprint Standalone Access Controller

Access Controller Keypad

Fingerprint Standalone Access Controller

Fingerprint Access Controller Keypad Door Lock

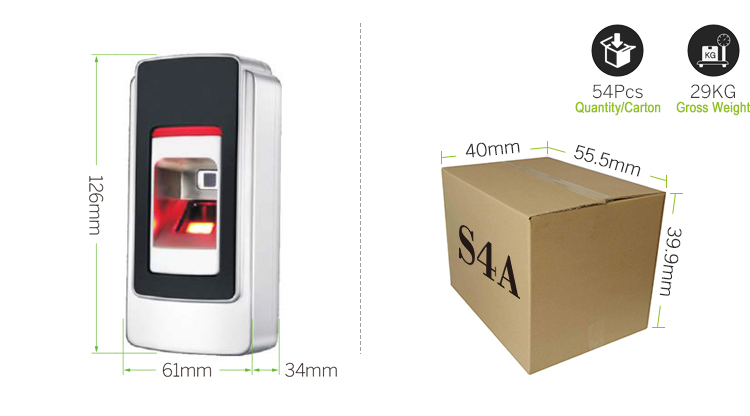

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

F3EM

126x61x34mm

54pcs

29KG

55.5x40x39.9cm

F3EM-W

54pcs

31.2KG

Access Controller Keypad

S4A User Manual F3_Fingerprint Access Controller Keypad Door Lock
