Standalone Keypad Access Control

> Card type: EM, HID, MF, CPU Card

(Factory default: EM 125KHz)

> Metal backlight keypad

> User capacity: 10,000 users

> Dimensions: 135x47x23mm

> Waterproof IP68

  • Brand:

    S4A
  • Item NO.:

    TF2
  • Specifications
  • Wiring Diagram
  • Package
  • Download

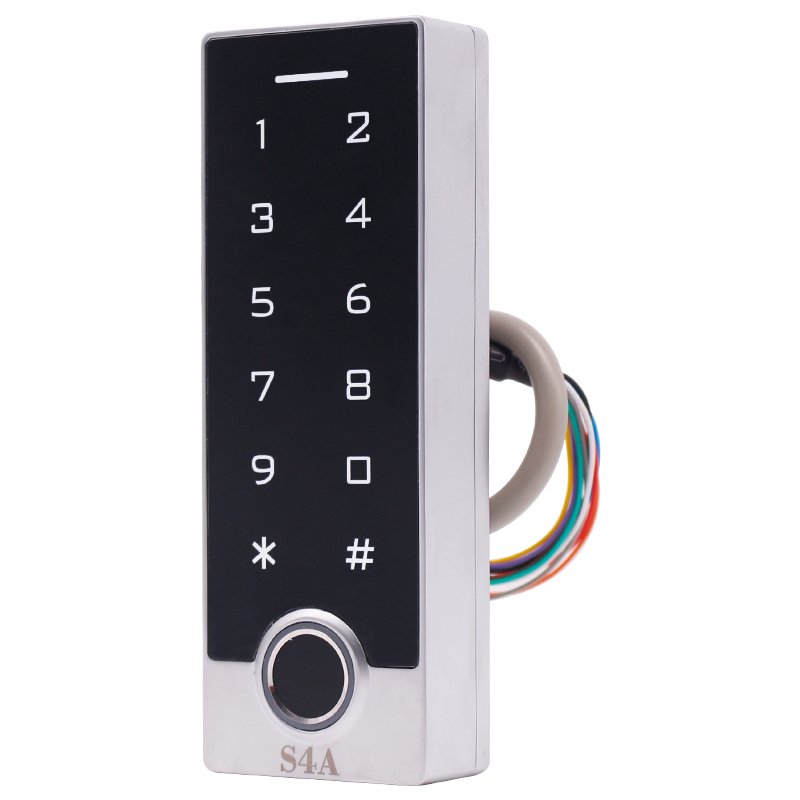

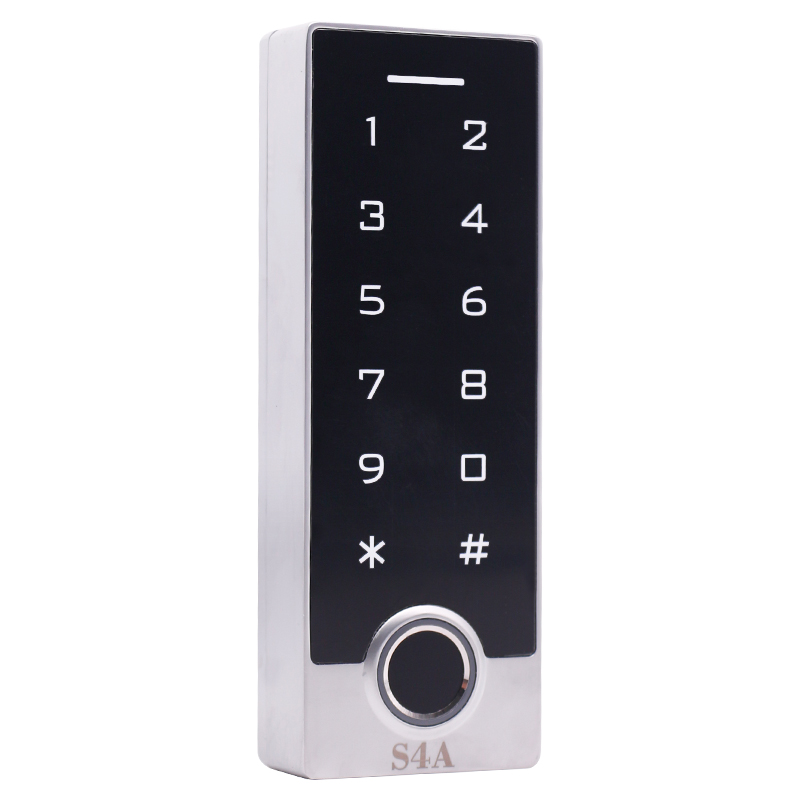

Standalone Keypad Access Control

Model No.: TF2 EM, HID, MF, CPU


This series of products is a new generation of multi-function standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.

It includes card reader mode and standalone access control mode etc.. Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc..


Features:

> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)

> Metal backlight keypad

> Contains card reader mode. The transmission format could be adjusted by user.

> Supports different access ways: Entry by Card + Code or Entry by multi cards

> Support master added a card and deleted the card

> User capacity: 10,000 users


Card type

EM / HID / MF / CPU

User Capacity

10,000 users

Fingerprint Capacity

200

Operating Voltage

DC 12-24V

Standby Current

≤35mA

Operation Current

≤100mA

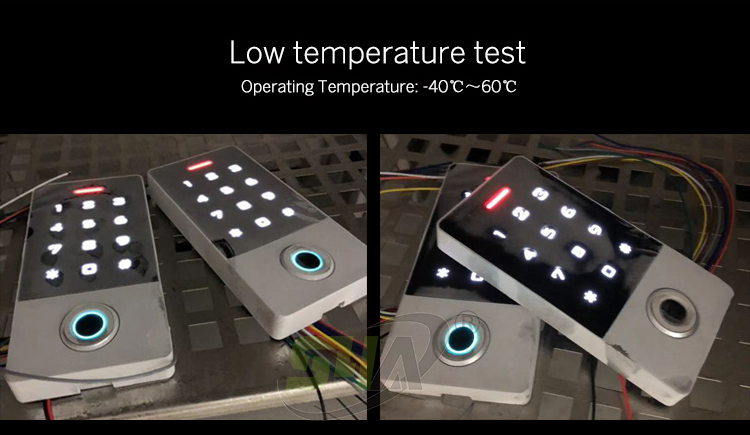

Operating Temperature

-40℃~60℃

Operating Humidity

0%~95%

Waterproof

IP68

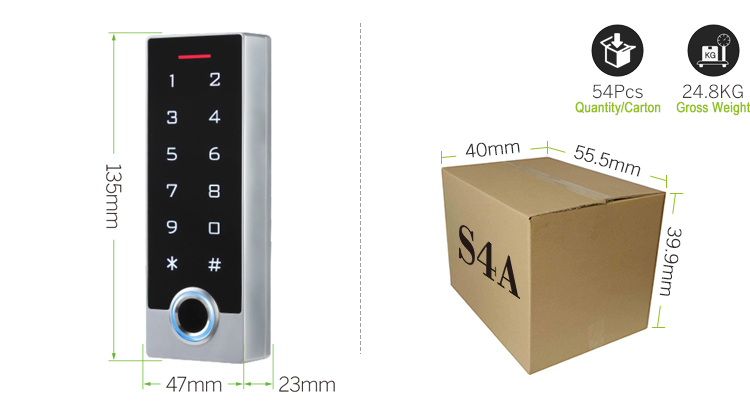

Dimensions

135x47x23mm

Access ways

Fingerprint, card, code, or multiple combination method to access


Keypad Access ControlKeypad Access ControlKeypad Access ControlKeypad Access ControlKeypad Access Control

Keypad Access Control

Waterproof IP68 Fingerprint Standalone Access Control

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

TF2EM-W

135x47x23mm

54pcs

24.8KG

55.5x40x39.9cm

TF2MF-W

54pcs

24.8KG

Keypad Access Control

S4A User Manual TF2_Standalone Keypad Access Control
