Biometric Fingerprint Access Control Systems

> Card type: EM Card

> Metal case, anti-vandal

> Capacity: 1000 fingerprints and 2000 cards

> Two accesses: card, fingerprint

> Fingerprint access controller and reader, WG26 Input / output

  • Brand:

    S4A
  • Item NO.:

    F2
  • Specifications

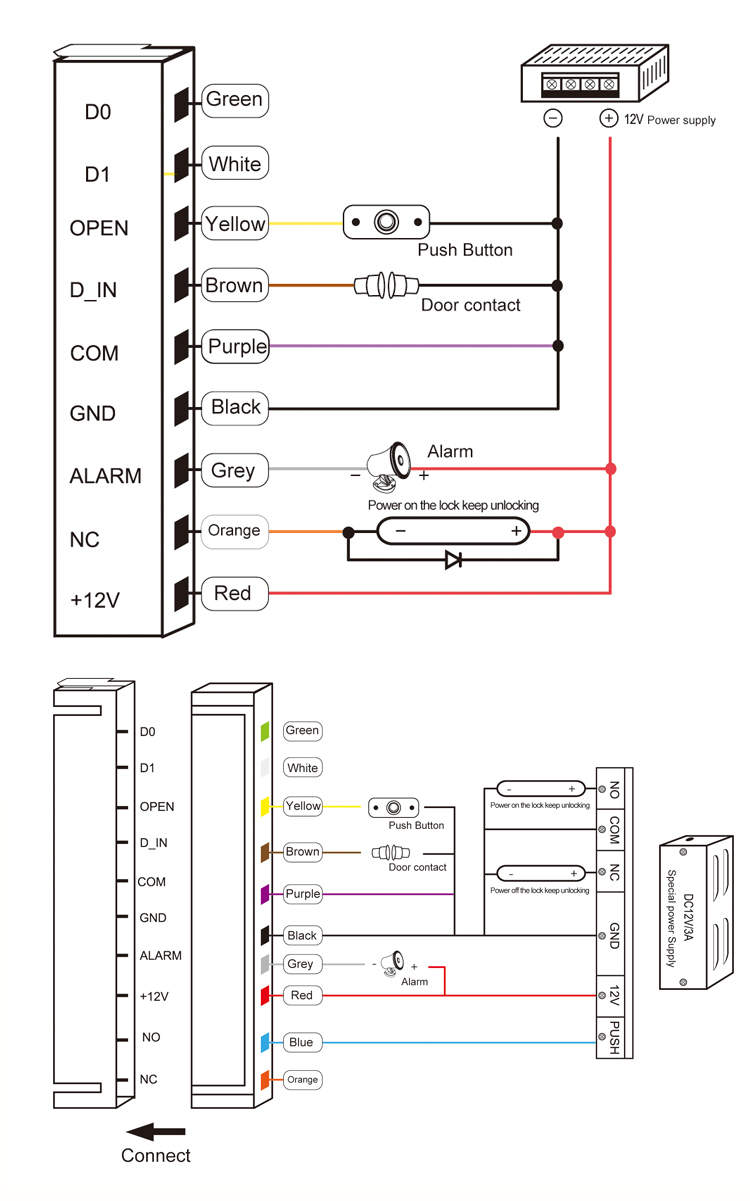

  • Wiring Diagram
  • Package
  • Download

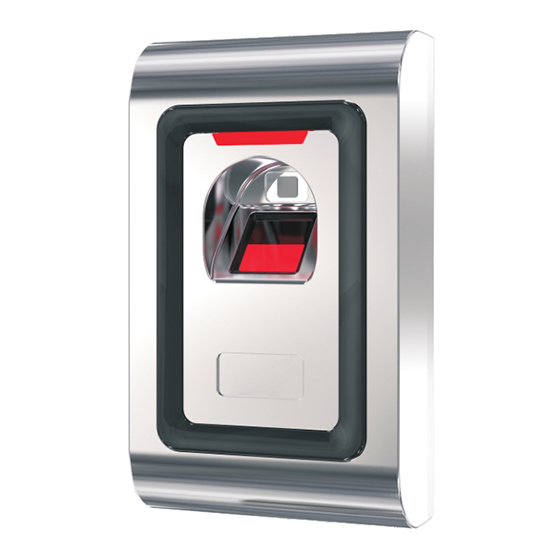

Fingerprint Standalone Access Controller

Model No.: F2 EM


Product feature:

> Metal case, anti-vandal

> Fingerprint access controller and reader, WG26 Input /output

> Capacity: 1000 fingerprints and 2000 cards

> Two accesses: card, fingerprint


Card type

EM

Working voltage

DC12V±10%

Reading Range

3-6cm

Humidity

20% to 90% RH

Door Opening Time

0-99s(Adjustable)

Sleep electricity

≤30mA

Static electricity

≤80mA

Electric lock output

≤3A

Short-circuit Protect

≤100μS

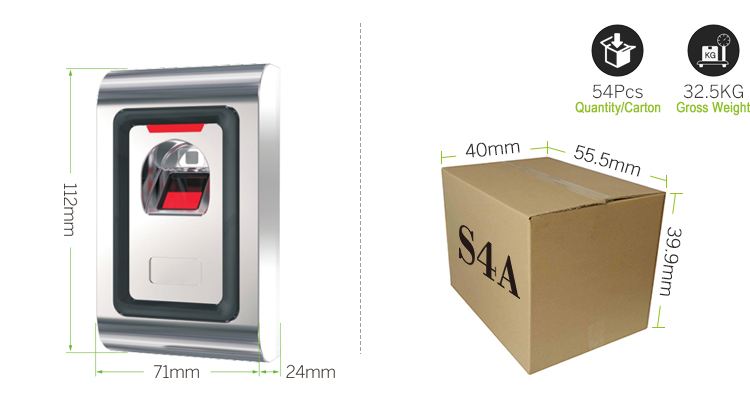

Dimensions

112x71x24mm

Fingerprint Access Control Systems

Fingerprint Standalone Access Controller

Biometric Fingerprint Access Control Systems

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

F2EM

112x71x24mm

54pcs

32.5KG

55.5x40x39.9cm

Fingerprint Access Control Systems

S4A User Manual F2_Biometric Fingerprint Access Control Systems
