Fingerprint Touch-Screen Standalone Access Control

> Card type: EM, HID, MF, CPU Card

(Factory default: EM 125KHz)

> Metal backlight keypad

> User capacity: 10,000 users

> Dimensions: 139x70x22mm

> Waterproof IP68

  • Brand:

    S4A
  • Item NO.:

    TF1
  • Specifications

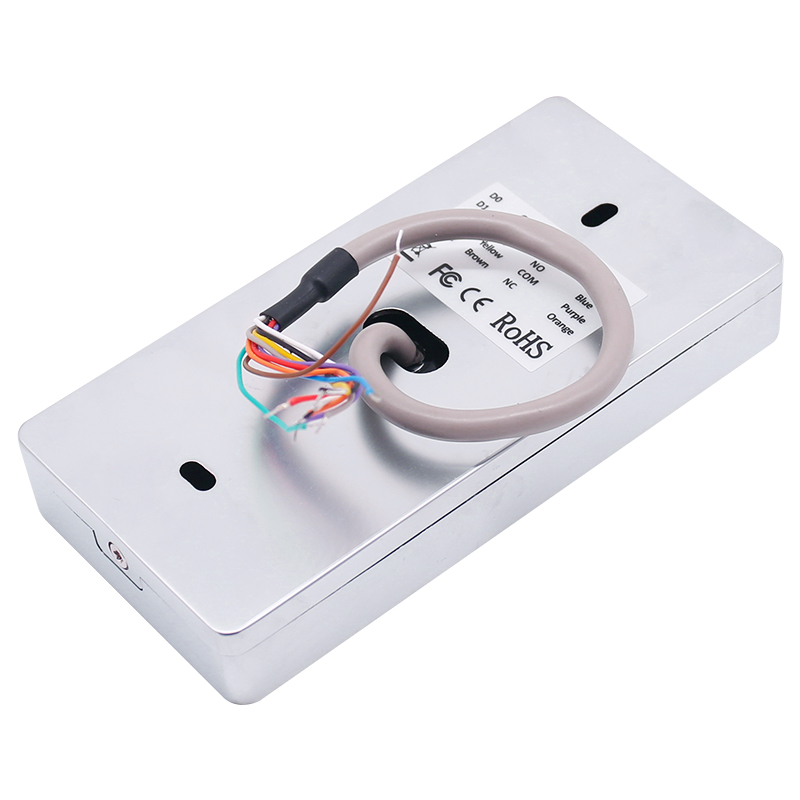

  • Wiring Diagram
  • Package
  • Download

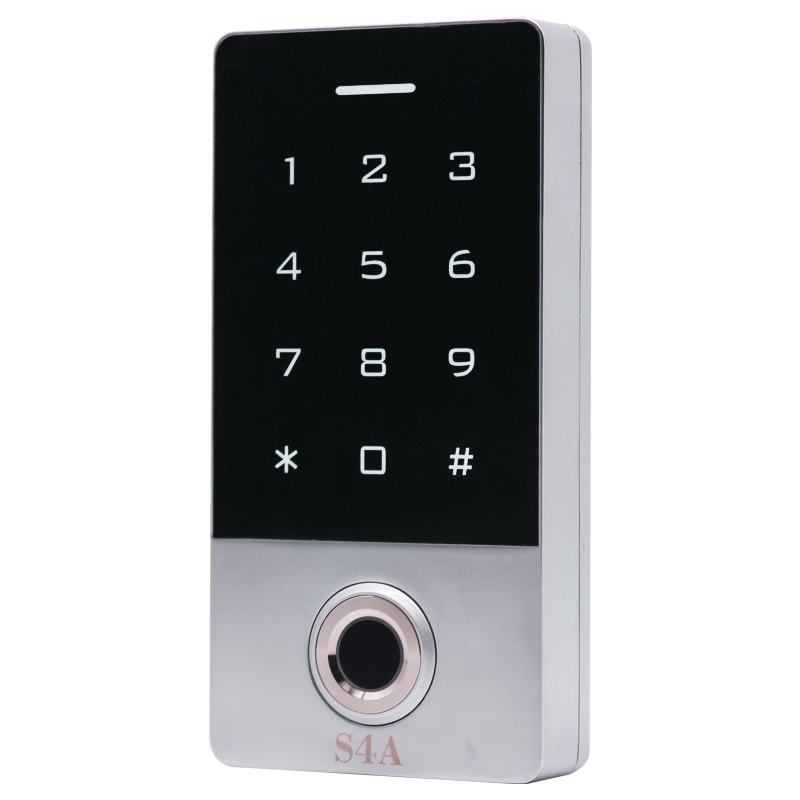

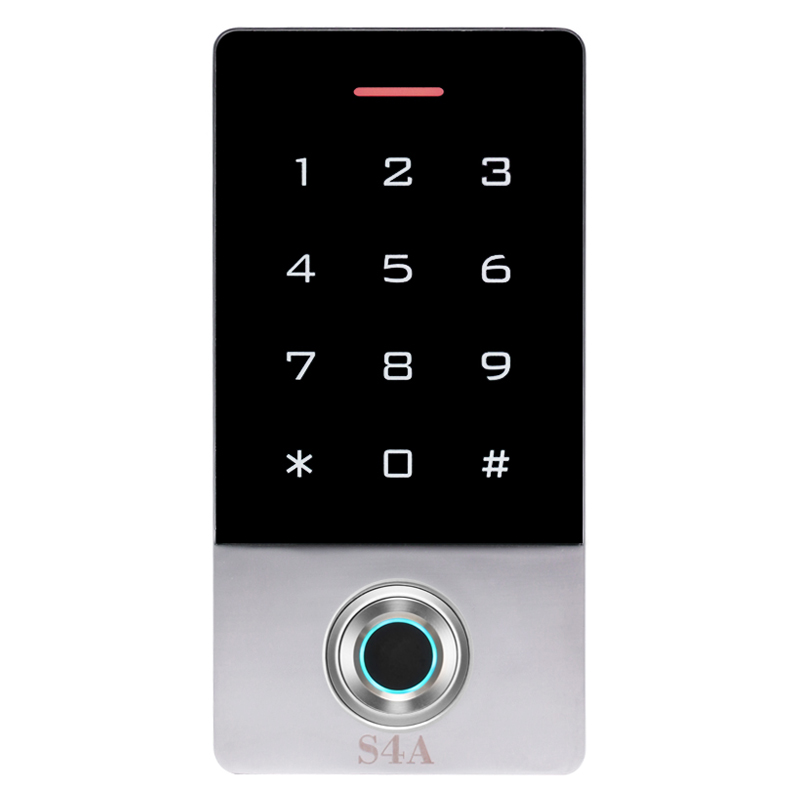

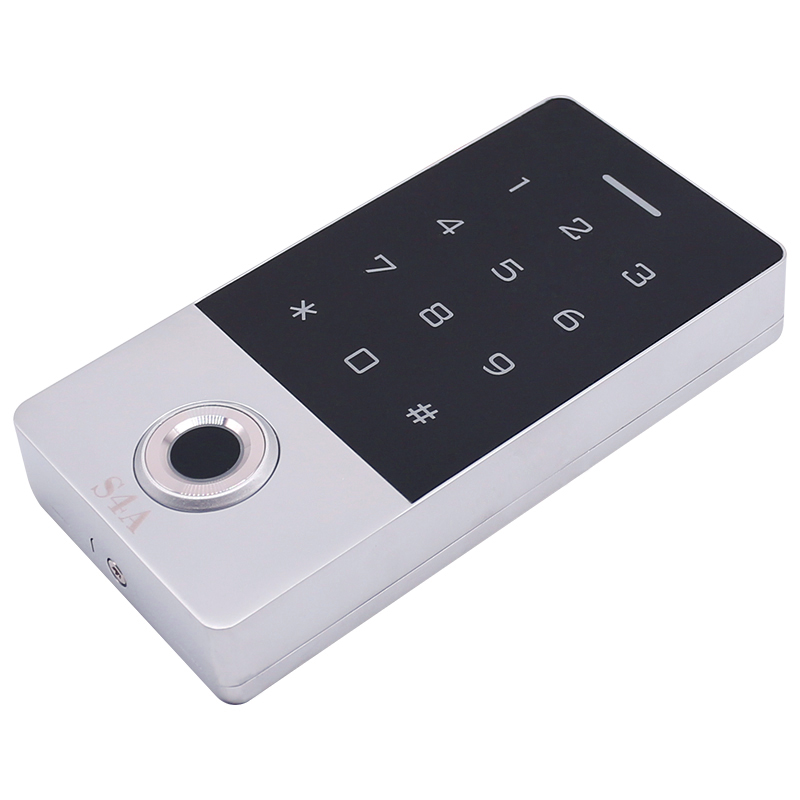

Fingerprint Touch-Screen Standalone Access Control

Model No.: TF1 EM, HID, MF, CPU


This series of products is a new generation of multi-function standalone access control. It adopts a new ARM core 32-bit microprocessor design, which is powerful, stable, and reliable.

It includes card reader mode and standalone access control mode etc.. Its widely applied to different occasions, such as offices, residential communities, villa, bank, and prison, etc..


Features:

> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)

> Metal backlight keypad

> Contains card reader mode. The transmission format could be adjusted by user.

> Supports different access ways: Entry by Card + Code or Entry by multi cards

> Support master added a card and deleted the card

> User capacity: 10,000 users


Card type

EM / HID / MF / CPU

User Capacity

10,000 users

Fingerprint Capacity

600

Operating Voltage

DC 12-24V

Standby Current

≤35mA

Operation Current

≤100mA

Operating Temperature

-40℃~60℃

Operating Humidity

0%~95%

Waterproof

IP68

Dimensions

139x70x22mm

Access ways

Fingerprint, card, code, or multiple combination method to access


Fingerprint Access ControllerFingerprint Access ControllerFingerprint Access ControllerFingerprint Access ControllerFingerprint Access ControllerFingerprint Access Controller

Fingerprint Access Controller

Waterproof IP68 Fingerprint Standalone Access Control

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

TF1EM-W

139x70x22mm

54pcs

31.2KG

55.5x40x39.9cm

TF1MF-W

54pcs

31.2KG

Fingerprint Access Controller

S4A User Manual TF1_Fingerprint Touch-Screen Standalone Access Control
