>Card reader type: ID, IC, NFC fingerprint recognition
>Working voltage: DC12V±10%
>Electric lock output: ≤1A
>Card reading distance: 3-8 cm
>User capacity: 5000 cards, passwords; fingerprints 300
Brand:
S4AItem NO.:
TF1-ASTouch Screen fingerprint Standalone access Controller built in Wiegand output and 10.000users
Model No.: TF1-AS
Features:
>Plastic shell, acrylic panel
>Durable, tamper-proof and vandal-proof
>High and low temperature resistance: high temperature 55°C, low >temperature -35°C
>Anti-magnetic and anti-copy: It can prevent unlocking with strong magnets and anti-copy cards
>300 fingerprints, 5000 card password user storage capacity
>Temporary password and public password can be set
>Data mutual guide and backup
>All-in-one machine, WG26/34 input/output
>Fingerprint, password, card, mobile phone remote, multi-combination unlocking, convenient, quick and more humanized settings
Card reader type | ID, IC, NFC fingerprint recognition |
Working voltage | DC12V±10% |
Electric lock output | ≤1A |
Ambient humidity | 10%- 90% |
Card reading distance | 3-8 cm |
User capacity | 5000 cards, passwords; fingerprints 300 |
Quiescent current | ≤30mA |
Ambient temperature | -35～55℃ |
Output short circuit protection time | ≤100μS |

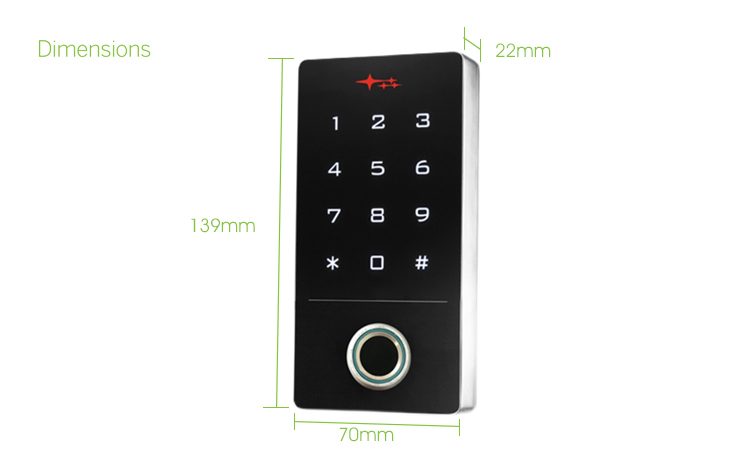

Dimensions | 139x70x22mm |
S4A Datesheet_Touch Screen Fingerprint Standalone Access Controller Built In Wiegand Output And 10.000users
> Card type: EM Card> User Capacity: 2,000> Communication: USB/U Disk> Dimensions: 170x76x20mm
> Card type: EM, HID, MF, CPU Card (Factory default: EM 125KHz) > Metal backlight keypad > User capacity: 10,000 users > Dimensions: 152x60x24mm > Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 152x60x24mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x22mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 135x47x23mm> Waterproof IP68
> Two Accesses: Fingerprin, Pincode> Waterproof, up to IP66> Metal Design & Anti-Vandal> Standalone, one relay> 1,000 fingerprints, 2,000 PIN users> Supports 4-6 digits PIN> Wiegand 26-44 output> Pulse mode, toggle mode> Multi fingerprints/PINs access > Interlock, Support Principal Use
> Two Accesses: Fingerprin, Pincode> Waterproof, conforms to IP66 > Metal case, anti-vandal > One Programming relay output > Multi-color LED Status Display> PIN length: 4~6 digits> Integrated alarm & Buzzer output> Capacitive Fingerprint Sensor>1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
> Two Accesses: Fingerprin, Pincode> Hardware Platform: ARM9> Wiegand: WG26 output> Finger Capacity: 500 users
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
