> Material Selection: High Strength Aluminum, Sandblast Finished
> Suitable for Door: In-swing Door
> Opening Mode: 90° Degrees Door
> Finished for Shell: Anodized aluminum
Brand:
S4AItem NO.:
LB-1200 + ZB-1200500KG LZ Bracket for Inward Doors
Model No.: LB-1200 + ZB-1200

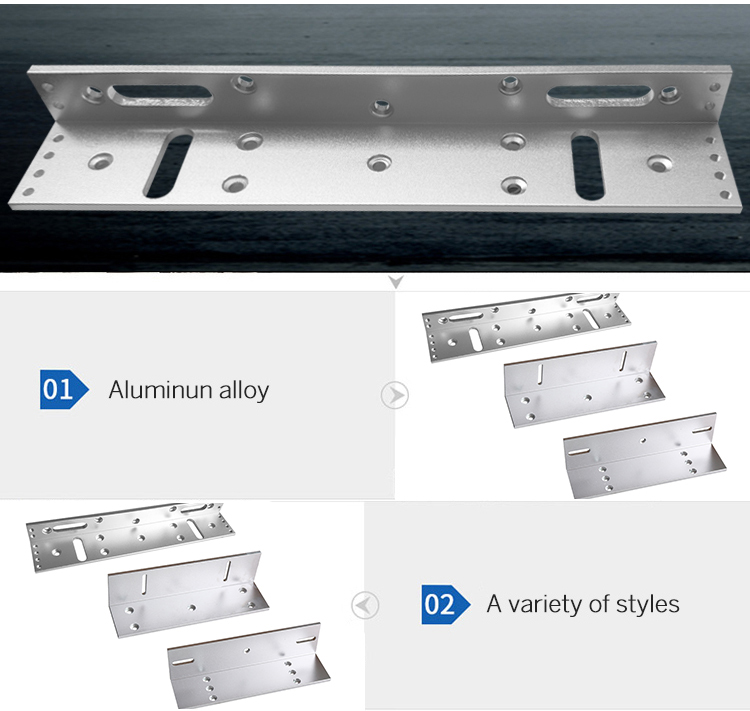

What is LZ Bracket?

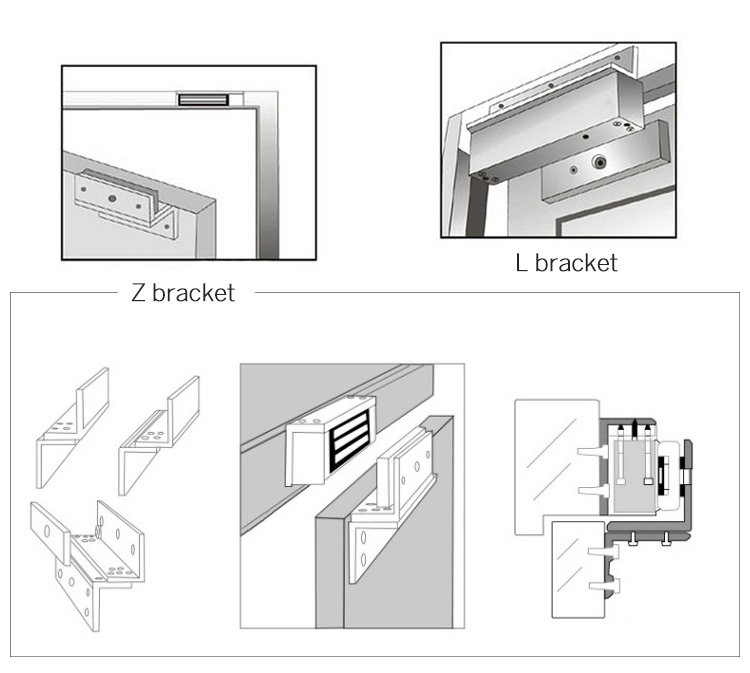

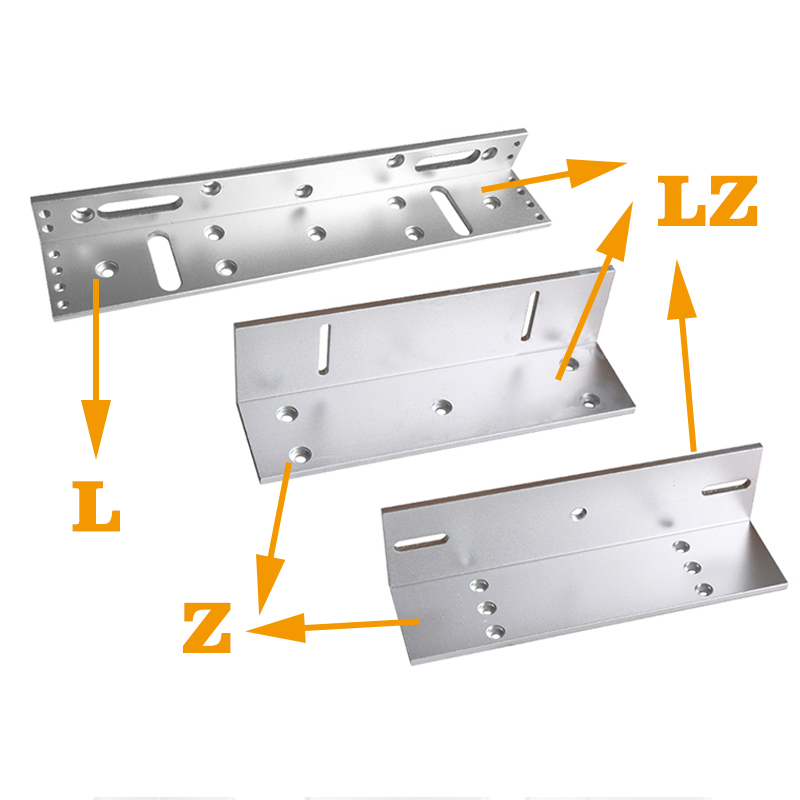

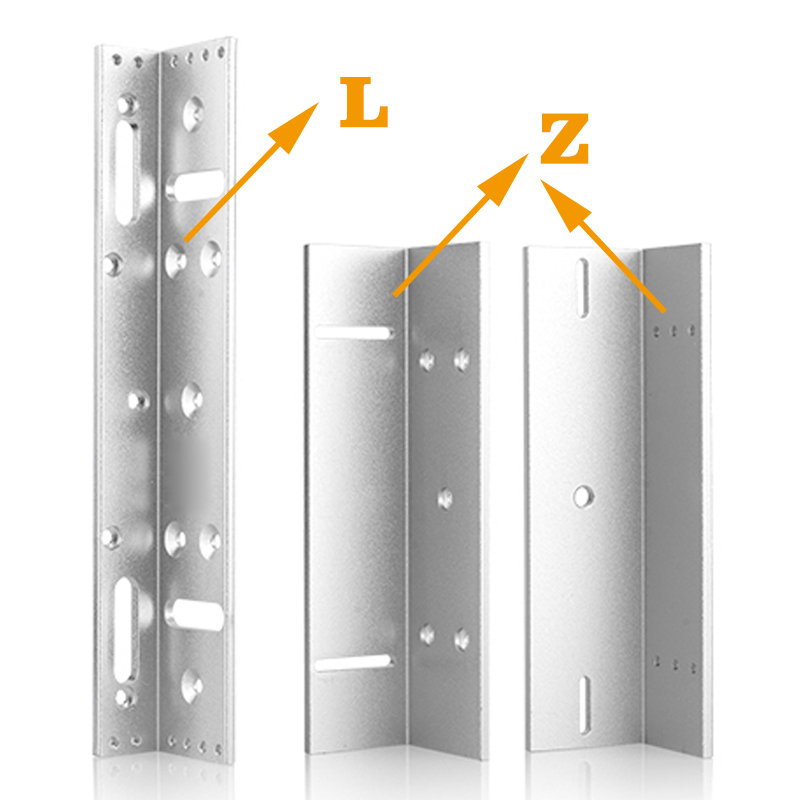

An LZ bracket is an accessory used to mount electromagnetic locks for access control door security. LZ brackets comprise of a combination of 3 brackets used to mount different types of electromagnetic locks and its armature plate.
Model No. | LB-350, LB-600, LB-800, LB-1200 |
Material Selection | High Strength Aluminum, Sandblast Finished |
Suitable for Door | In-swing Door |
Opening Mode | 90° Degrees Door |
Finished for Shell | Anodized aluminum |
Model No. | ZB-350, ZB-600, ZB-800, ZB-1200 |
Material Selection | High Strength Aluminum, Sandblast Finished |
Suitable for Door | In-swing Door |
Opening Mode | 90° Degrees Door |
Finished for Shell | Anodized aluminum |
500KG LZ Bracket for Inward Doors | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
LB-1200 + ZB-1200 | 10pcs | 13.28KG | 44x31x22cm |
S4A Datesheet_500KG LZ Bracket for Inward Doors
> Without indicator lights> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> With LED (Red only) > Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Built in LED and door sensor> Single door 500KG magnetic lock=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Built in LED, door sensor and time delay> Current Draw: 12V/420mA 24V/210mA> 100% Copper material> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> LED, door sensor and Buzzer> Single door EM lock 500KG=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Voltage: DC12V or DC24V> Holding Force: 500KG (1200Lbs)> Current Draw: 12V/420mA 24V/210mA
> EL-W1200S 4Wires> Size: 222Lx62Wx38H(mm)> Armature plate: 195Lx61Wx15H(mm)> Holding Force: 500kg (1200Lbs)> Voltage: DC12V or DC24V
> EL-W1200SD 7Wires> Size: 222Lx62Wx38H(mm)> Armature plate: 195Lx61Wx15H(mm)> Holding Force: 500kg (1200Lbs)> Voltage: 12V & 24V adjustable and door sensor function, NO/NC/COM
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
