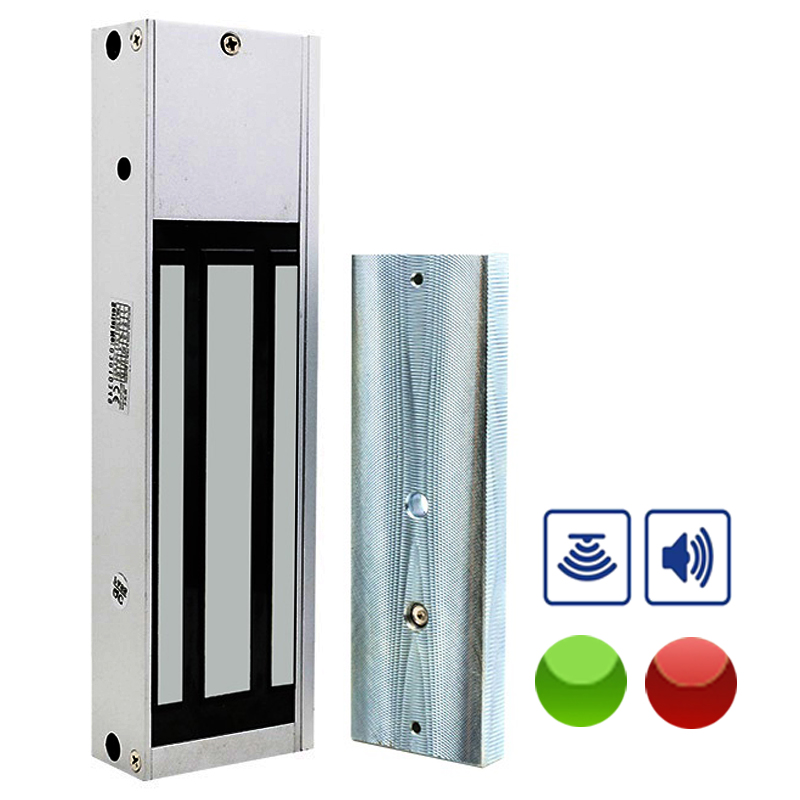

Electromagnet Lock Fail-Safe NC Mode

> LED, door sensor and Buzzer

> Single door EM lock 500KG=1200lbs

> Voltage: DC12V and DC24V(adjustable)

> Holding Force: 500KG(1200Lbs)

  • Brand:

    S4A
  • Item NO.:

    EL-1200SZ
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Single Door 500KG Magnetic Lock

Model No.: EL-1200SZ


What is Electromagnetic Lock?


Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.


EL-1200

Without indicator lights

EL-1200S

With LED (Red only)

EL-1200SD

Built-in LED and door sensor

EL-1200ST

Built-in LED, door sensor, and time delay

EL-1200SZ

LED, door sensor, and Buzzer

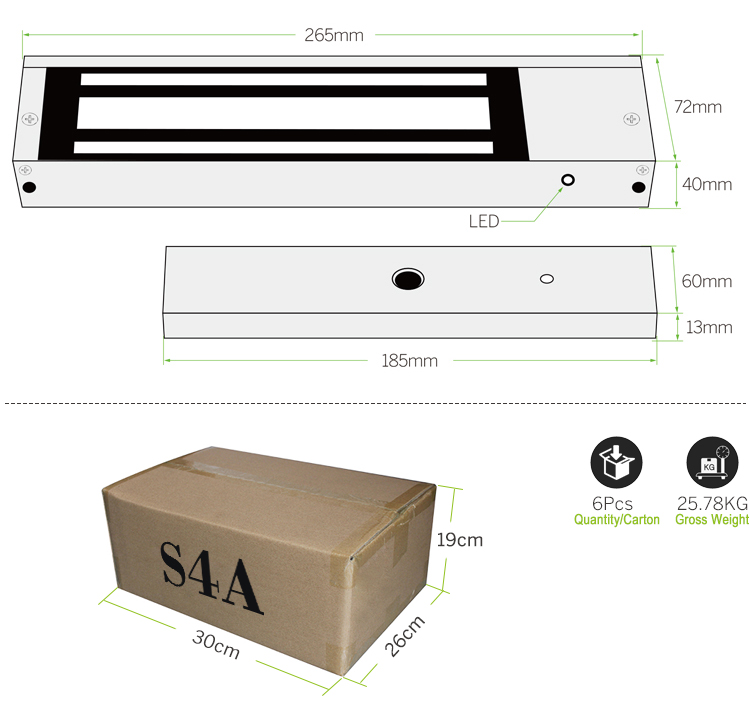

Lock size

265Lx72Wx40H(mm)

Plate

185Lx60Wx13H(mm)

Holding Force

500kg(1200Lbs)

Voltage

DC12V or DC24V (adjustable)

Current Draw

12V/420mA 24V/210mA

Signal Output

Dry Contact, Max Rating of Contact Current 3A

Surface Temp

≤20°C

Operating Temp

-10°C ~ 55°C (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

4.5kg

Standard Packing

4pcs

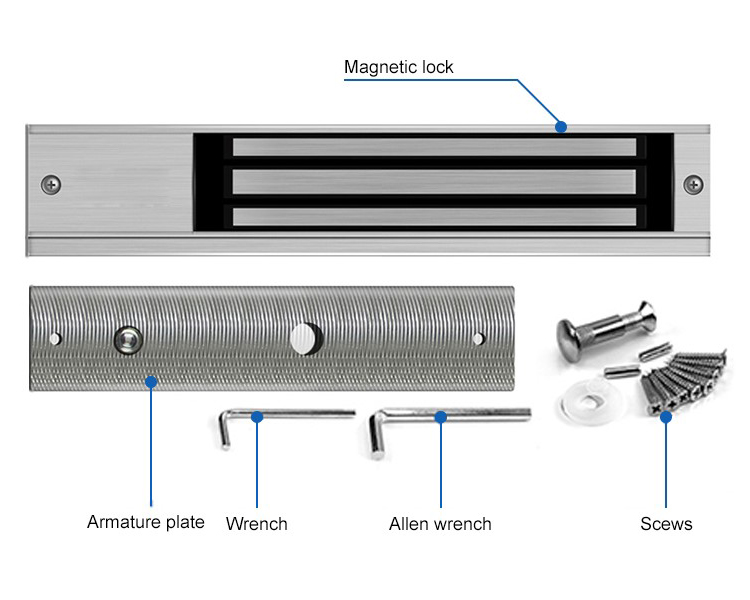

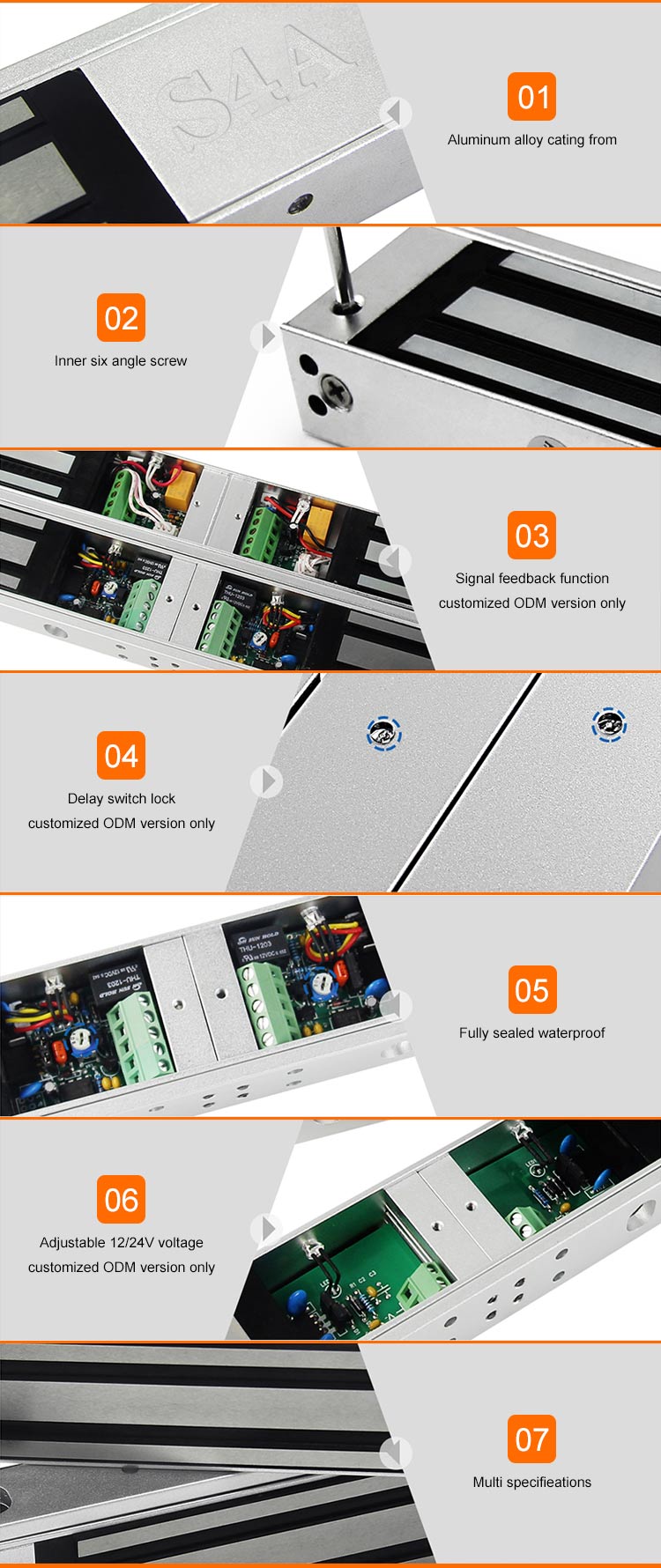

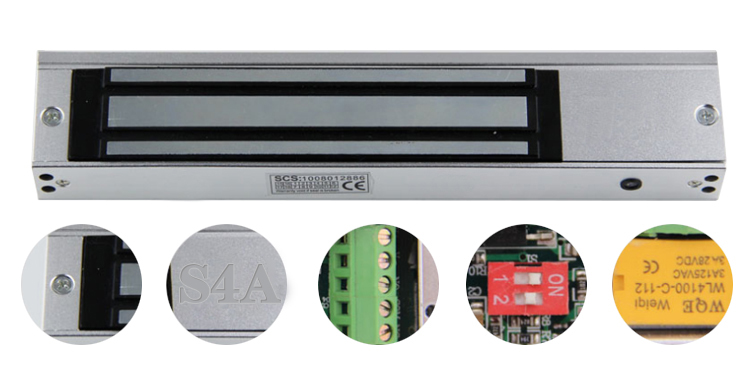

Electromagnetic Door LockElectromagnetic Door LockElectromagnetic Door Lock

Electromagnet lock Fail-Safe NC Mode

Electromagnet Lock Fail-Safe NC Mode

Model No.

Quantity/Carton

Gross Weight

Carton Size

EL-1200SZ

6pcs

25.78KG

30x26x19cm

1100LBs Holding Force Electric Lock

S4A Instruction_EL-1200SZ_Electromagnet Lock Fail-Safe NC Mode
