> Voltage: DC12V or DC24V
> Holding Force: 500KG (1200Lbs)
> Current Draw: 12V/420mA 24V/210mA
Brand:
S4AItem NO.:
EM-1200TMortise Mount Lock 500KG (1000Lbs)
Model No.: EM-1200T
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.

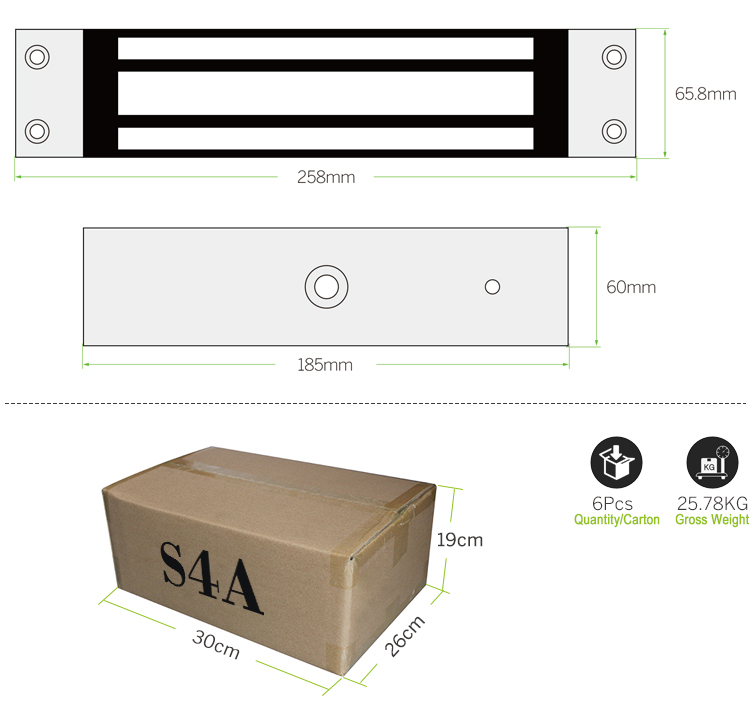

Lock size | 258Lx65.8Wx38.8H(mm) |
Armature Plate | 185Lx60Wx13H(mm) |
Working voltage | DC12V or DC24V |
Current Draw | 12V/420mA 24V/210mA |
Surface Temp | ≤20℃ |
Operating Temp | -10℃ ~ 55℃（14°F-131°F） |
Finishes for shell | Anodized Aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 4.5KG |
Access Door Electromagnetic Locks 500KG (1000Lbs) | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
EM-1200T | 6pcs | 25.78KG | 30x26x19cm |

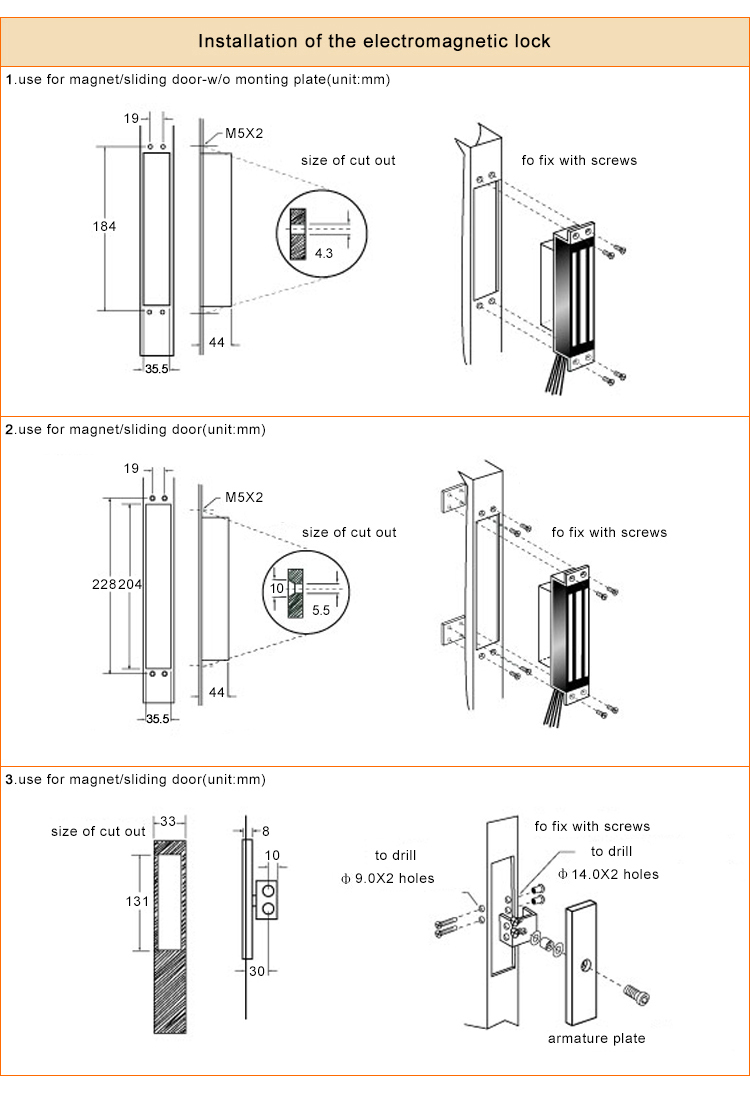

S4A Instruction_EM-1200T_Access Door Electromagnetic Locks 500KG (1000Lbs)

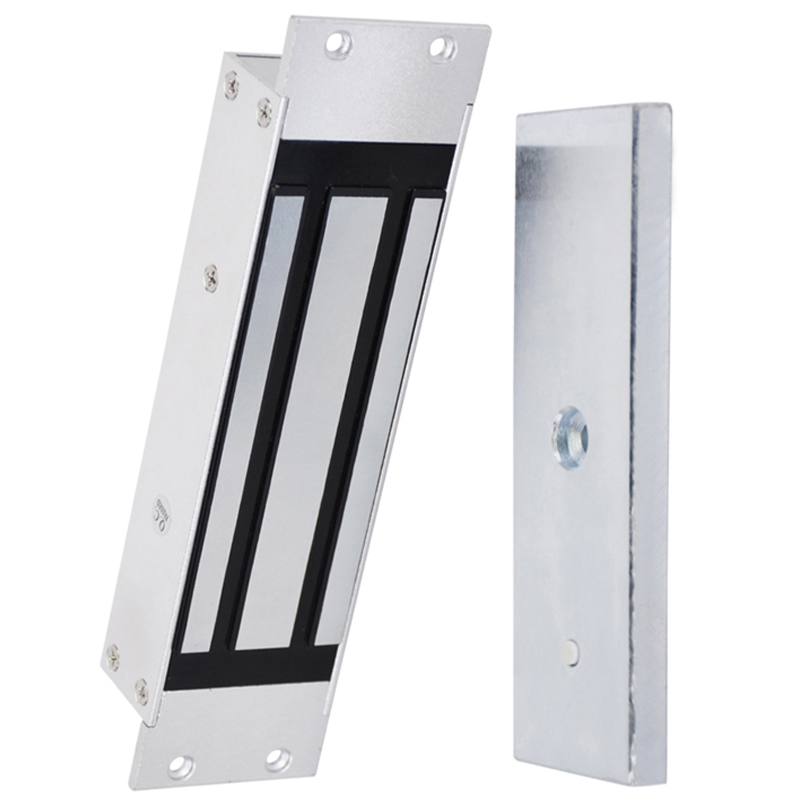

> Without indicator lights> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)

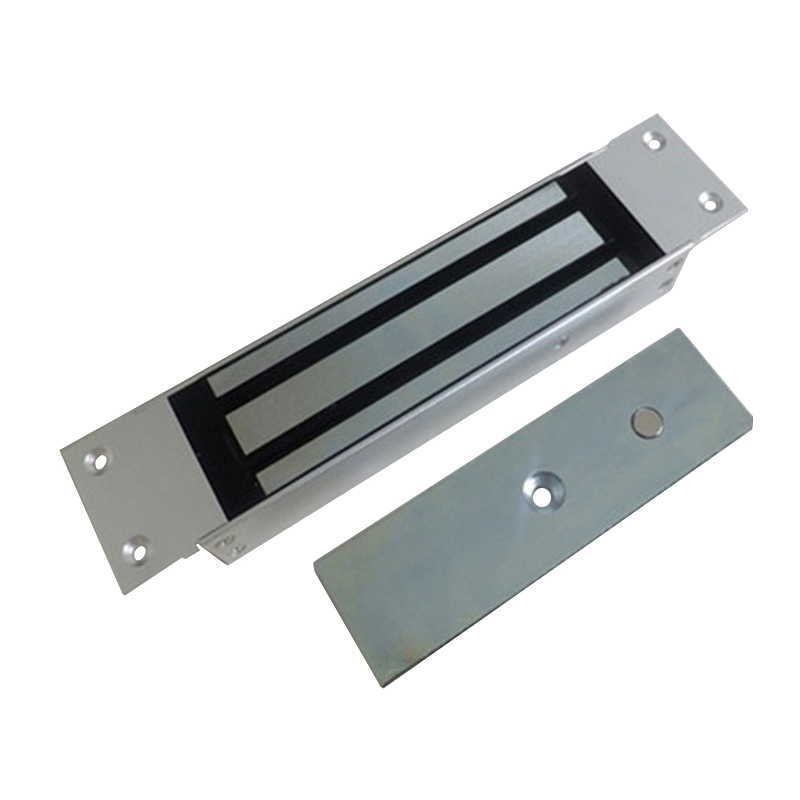

> With LED (Red only) > Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)

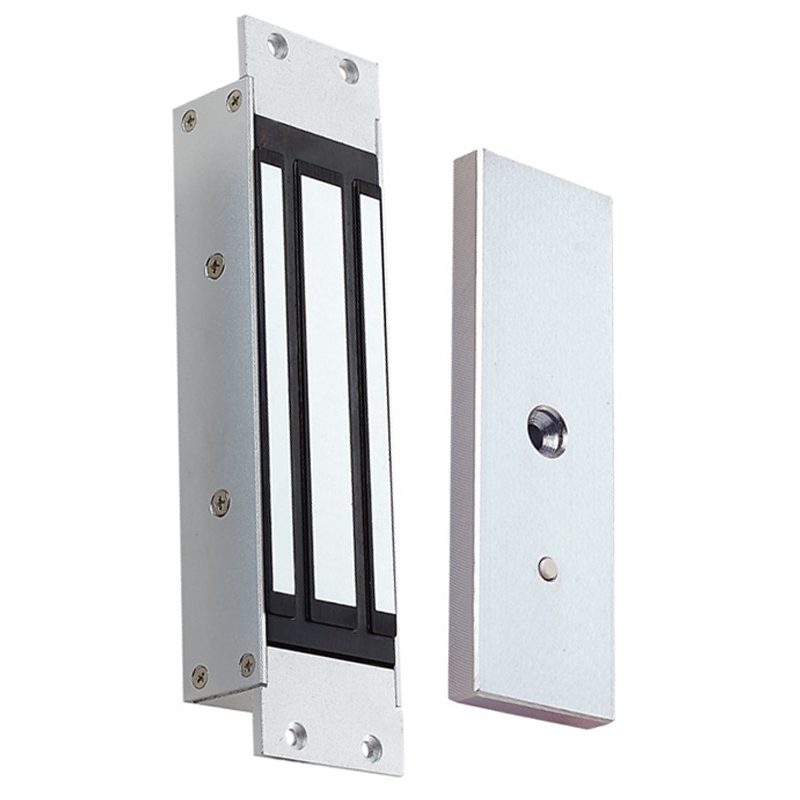

> Built in LED and door sensor> Single door 500KG magnetic lock=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)

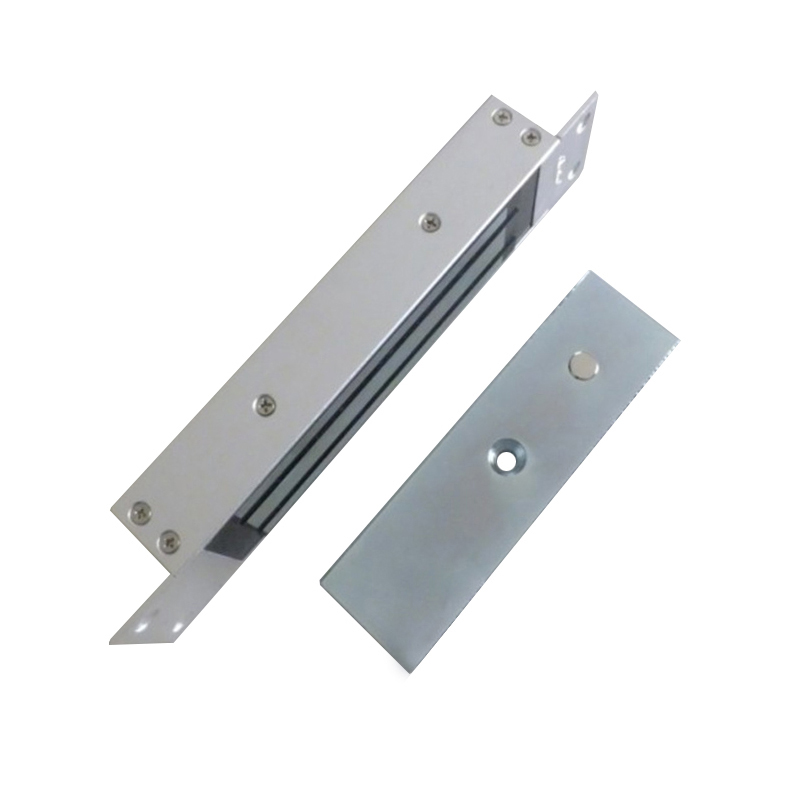

> Built in LED, door sensor and time delay> Current Draw: 12V/420mA 24V/210mA> 100% Copper material> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)

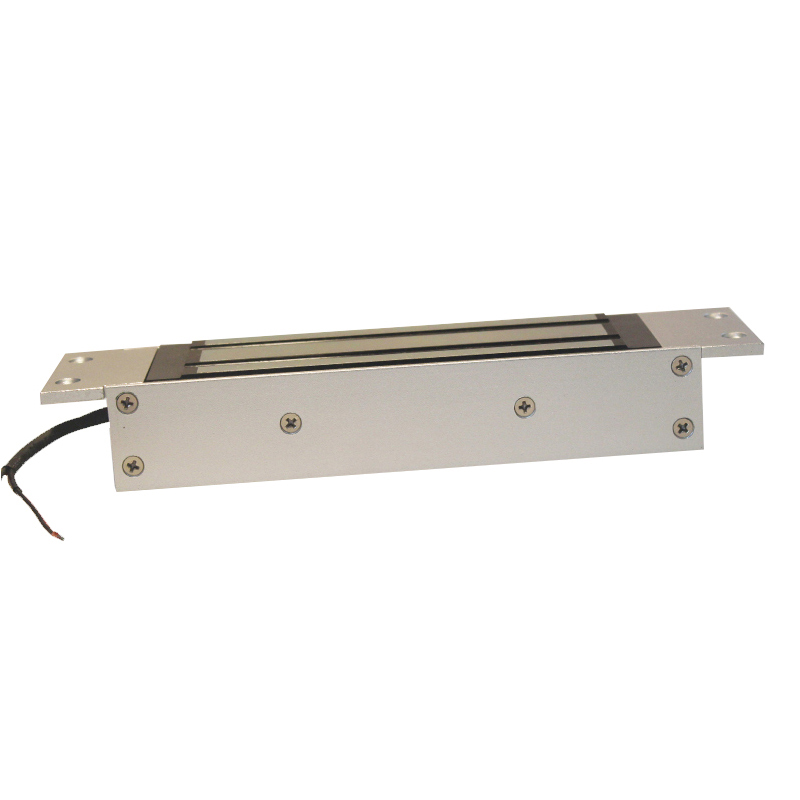

> LED, door sensor and Buzzer> Single door EM lock 500KG=1200lbs> Voltage: DC12V and DC24V(adjustable)> Holding Force: 500KG(1200Lbs)
> Material Selection: High Strength Aluminum, Sandblast Finished> Suitable for Door: In-swing Door> Opening Mode: 90° Degrees Door> Finished for Shell: Anodized aluminum
> EL-W1200S 4Wires> Size: 222Lx62Wx38H(mm)> Armature plate: 195Lx61Wx15H(mm)> Holding Force: 500kg (1200Lbs)> Voltage: DC12V or DC24V
> EL-W1200SD 7Wires> Size: 222Lx62Wx38H(mm)> Armature plate: 195Lx61Wx15H(mm)> Holding Force: 500kg (1200Lbs)> Voltage: 12V & 24V adjustable and door sensor function, NO/NC/COM
