Waterproof Electromagnetic Lock Kit with 7Wires

> EL-W1200SD 7Wires

> Size: 222Lx62Wx38H(mm)

> Armature plate: 195Lx61Wx15H(mm)

> Holding Force: 500kg (1200Lbs)

> Voltage: 12V & 24V adjustable and door sensor function, NO/NC/COM

  • Brand:

    S4A
  • Item NO.:

    EL-W1200SD 7Wires
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Waterproof Electromagnetic Lock with 7Wires

Model No.: EL-W1200SD 7Wires


Dual voltage selectable (12VDC or 24VDC)

304 stainless steel housing

Epoxy sealed electronics and weatherized for indoor and outdoor use

Anti-Residual magnetism designed

Low current consumption

High strength material, anodized aluminum housing

Anti-residual magnetism designed

Durable and silence operation

CE Certificate by European Union


Specification


EL-W1200S 4Wires

12V & 24V adjustable

EL-W1200SD 7Wires

12V & 24V adjustable and door sensor function, NO/NC/COM

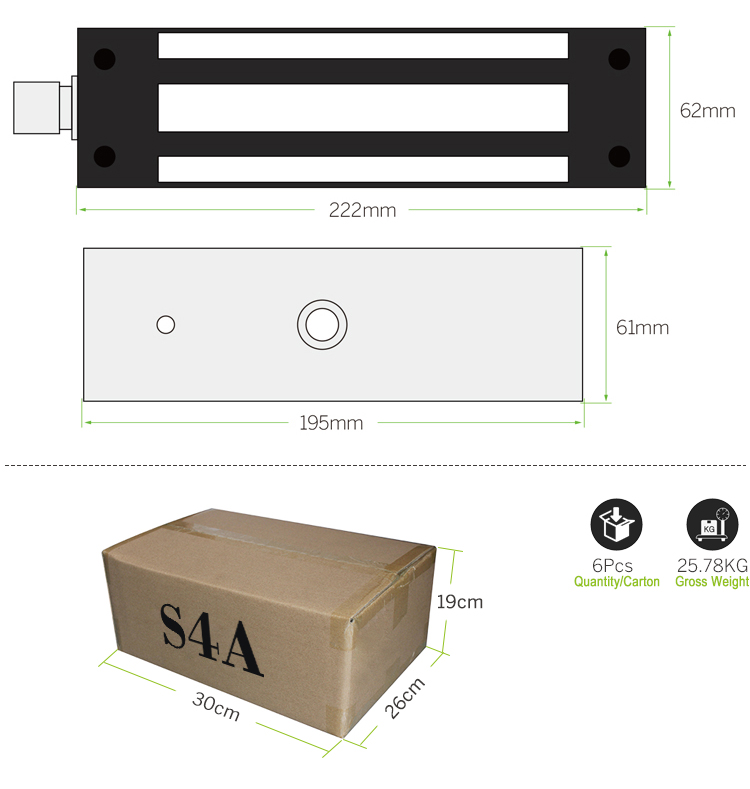

Lock Size

222Lx62Wx38H(mm)

Armature plate

195Lx61Wx15H(mm)

Holding Force

500kg(1200Lbs)

Voltage

DC12V or DC24V(adjustable)

Current Draw

12V/420mA  24V/210mA

Optional Bracket

LZ-W1200

Suitable for

Wooden door, Glassdoor, Metal door, Fireproof door

Surface Temp

≤20°C

Operating Temp

-10℃ ~ 55°C (14°F-131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

4.5kg

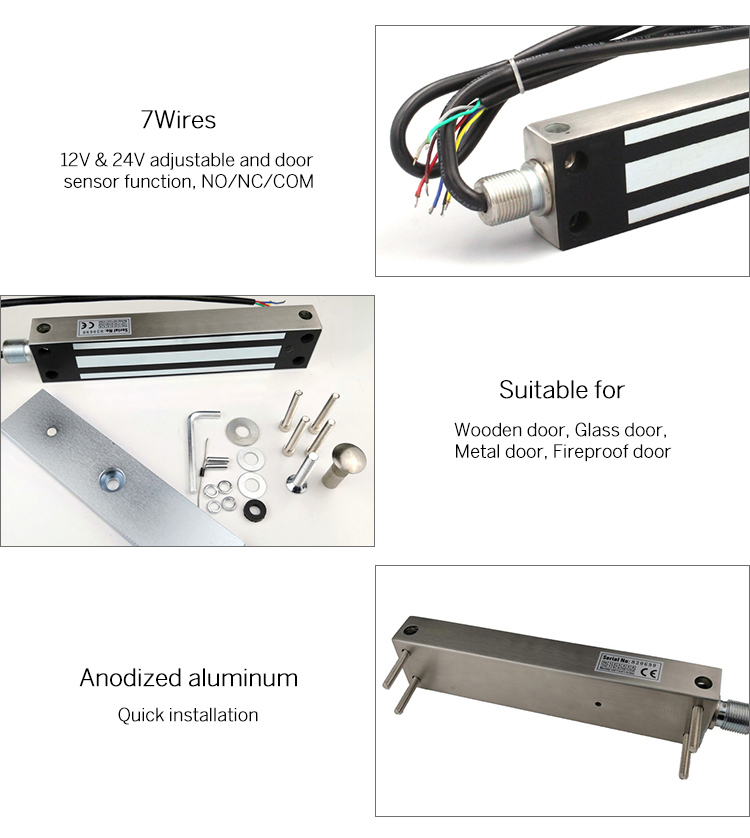

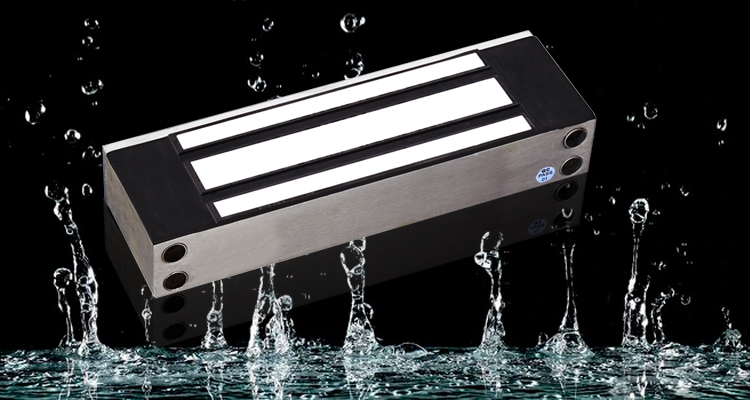

Waterproof electromagnetic lock kitWaterproof electromagnetic lock kit

Waterproof electromagnetic lock kit with 7Wires

Embedded Electromagnetic Lock Series (1200Lbs)

Standard Carton box

Unit Size

Gross Weight /pcs

Gross Weight /Carton

4pcs

222Lx62Wx38H(mm)

4.5kg

18.5KG

Waterproof electromagnetic lock kit with 7Wires

S4A Instruction_EL-W1200SD 7Wires_Waterproof Electromagnetic Lock Kit with 7Wires
