Electromagnetic Lock

/

500KG-1000LBS

/500kg Holding Force Electromagnetic lock

New Products

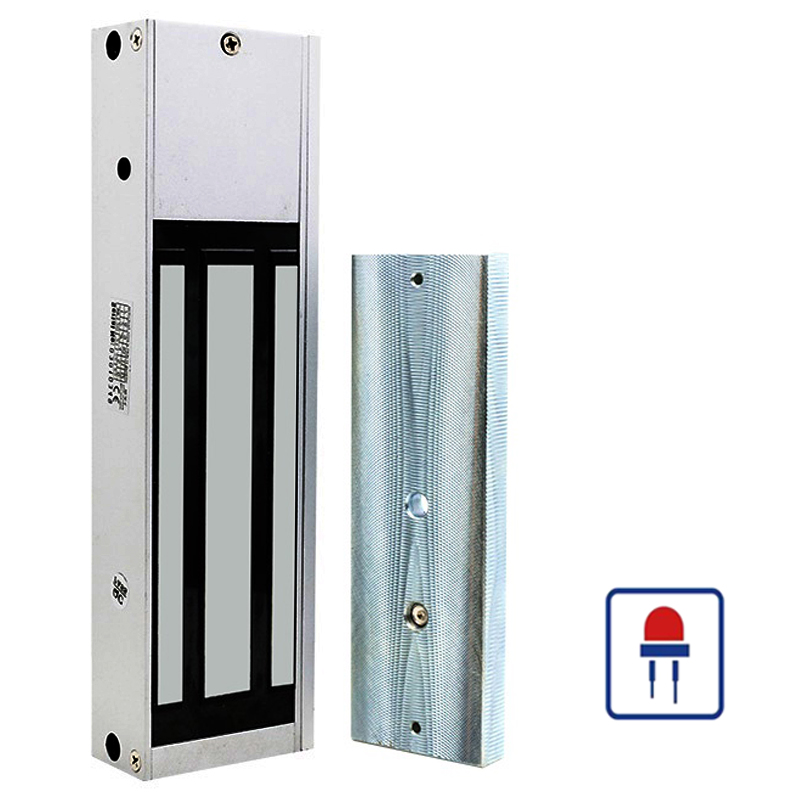

500kg Holding Force Electromagnetic lock

> With LED (Red only)

> Voltage: DC12V and DC24V(adjustable)

> Holding Force: 500KG(1200Lbs)

  • Brand:

    S4A
  • Item NO.:

    EL-1200S
  • Specifications
  • Wiring Diagram
  • Package

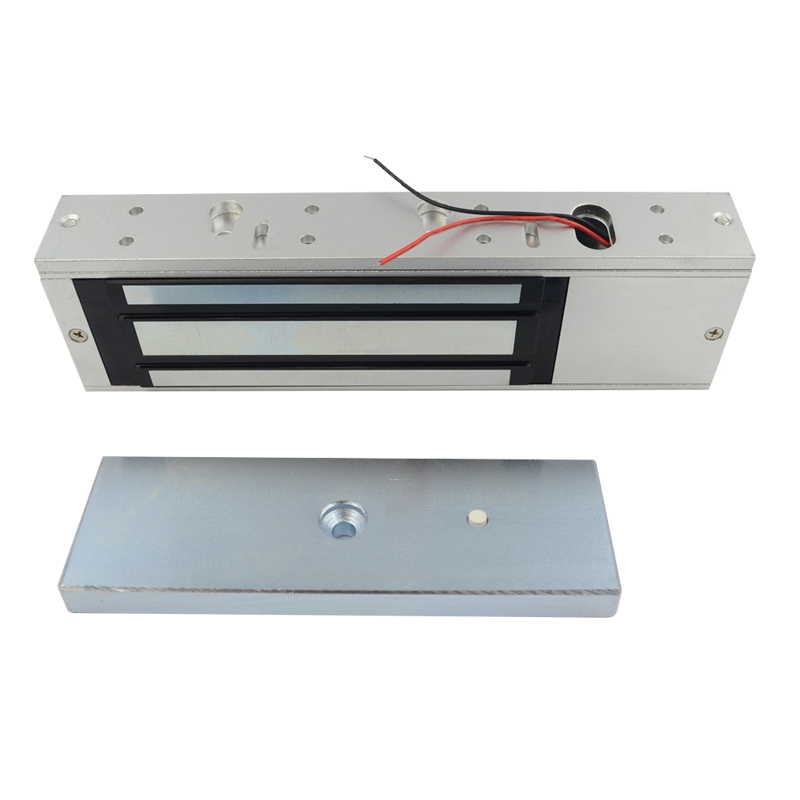

Single door 500KG Magnetic lock

Model No.: EL-1200S


EL-1200

Without indicator lights

EL-1200S

With LED (Red only)

EL-1200SD

Built-in LED and door sensor

EL-1200ST

Built-in LED, door sensor, and time delay

EL-1200SZ

LED, door sensor, and Buzzer

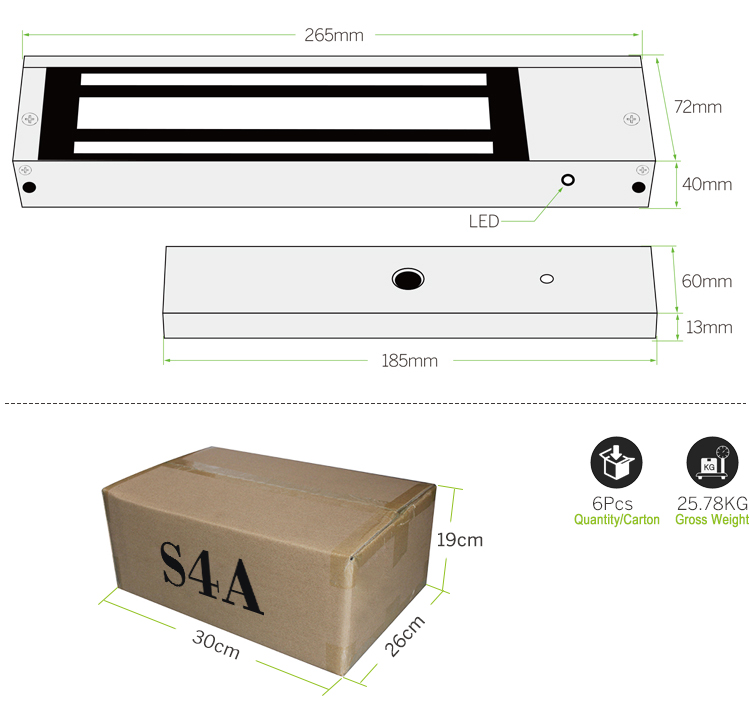

Lock size

265Lx72Wx40H(mm)

Plate

185Lx60Wx13H(mm)

Holding Force

500kg(1200Lbs)

Voltage

DC12V or DC24V (adjustable)

Current Draw

12V/420mA 24V/210mA

Signal Output

Dry Contact, Max Rating of Contact Current 3A

Surface Temp

≤20°C

Operating Temp

-10°C ~ 55°C (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

4.5kg

Standard Packing

4pcs

1000lbs Holding Force Electromagnetic lock1000lbs Holding Force Electromagnetic lock1000lbs Holding Force Electromagnetic lock

500kg Holding Force Electromagnetic lock

Single Electromagnetic Lock Series (1200Lbs)

Standard Carton box

Unit Size

Gross Weight /pcs

Gross Weight /Carton

4pcs

265Lx72Wx40H(mm)

4.5kg

18.5KG

500kg Holding Force Electromagnetic lock
