Lock Bracket for Z

> Material Selection: High Strength Aluminum, Sandblast Finished

> Suitable for Door: In-swing Door

> Opening Mode: 90° Degrees Door

> Finished for Shell: Anodized aluminum

  • Brand:

    S4A
  • Item NO.:

    ZB-1200
  • Specifications
  • Wiring Diagram
  • Package
  • Download

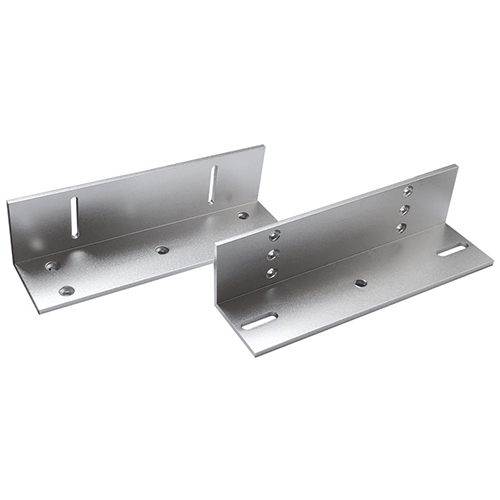

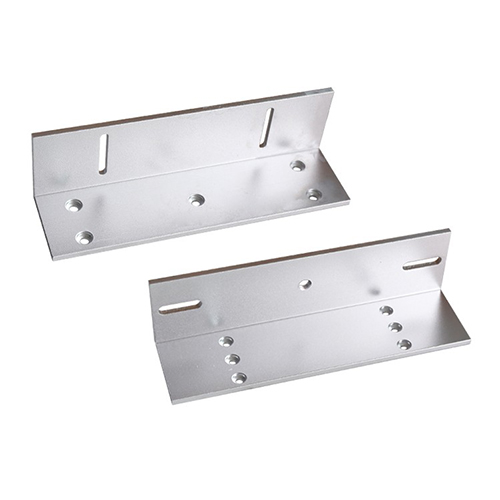

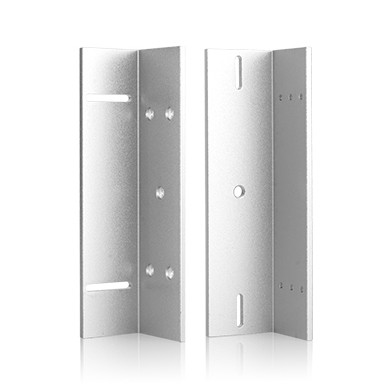

Lock Bracket for Z

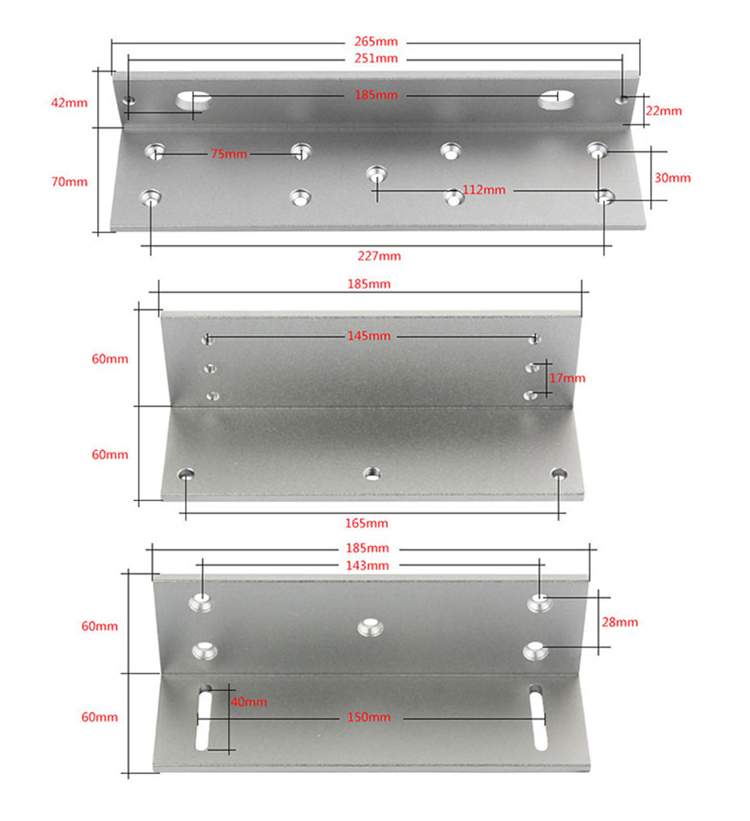

Model No.: ZB-1200

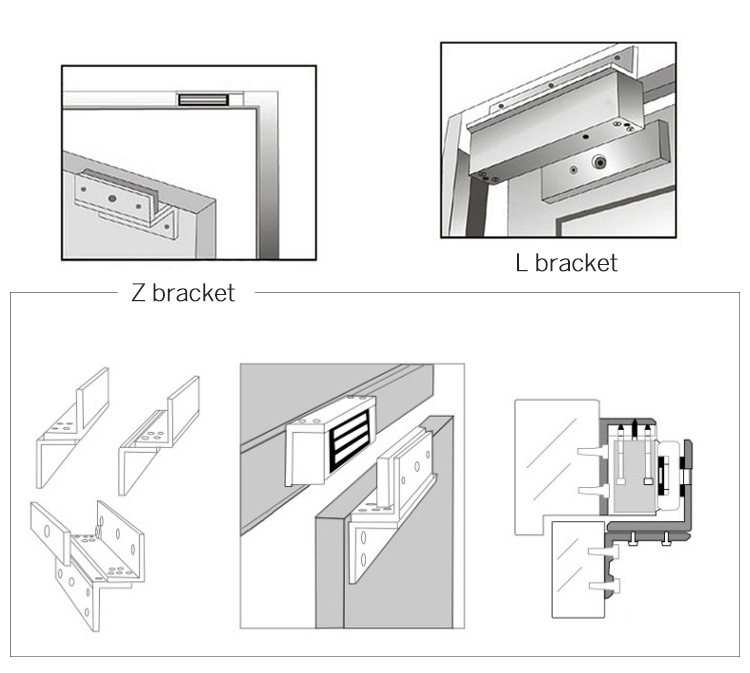

What is Z Bracket?

An Z bracket is an accessory used to mount electromagnetic locks for access control door security.


Model No.

ZB-350, ZB-600, ZB-800, ZB-1200

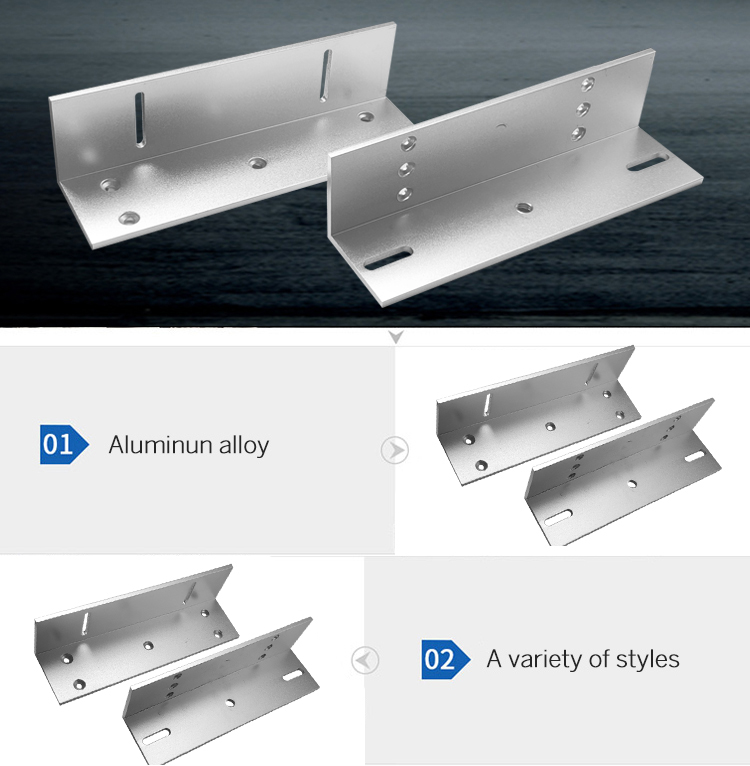

Material Selection

High Strength Aluminum, Sandblast Finished

Suitable for Door

In-swing Door

Opening Mode

90° Degrees Door

Finished for Shell

Anodized aluminum


Lock Bracket

Lock Bracket

Lock Bracket for Z

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

ZB-1200

32 PCS

13.44 KG

23.65 KG

64x35x30 cm



Lock Bracket

S4A Datesheet_Lock Bracket for Z
