> EL-W600SD 7Wires

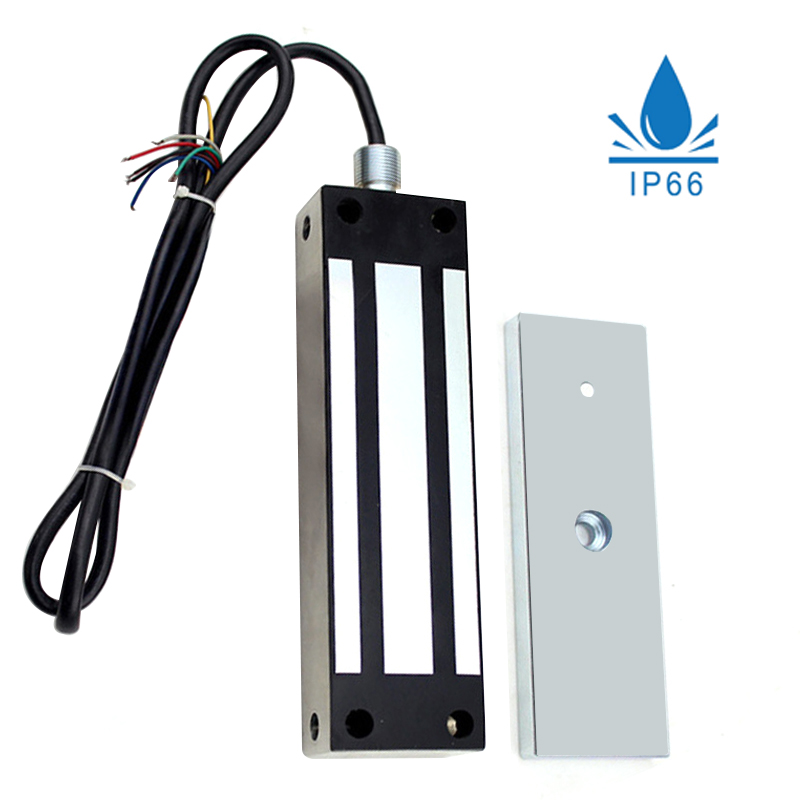

> Waterproof IP66
> Holding Force: 280KG(600Lbs)
> Voltage: 12V & 24V adjustable and door sensor function, NO/NC/COM
> Lock Size: 220Lx47Wx28H(mm)
Brand:
S4AItem NO.:

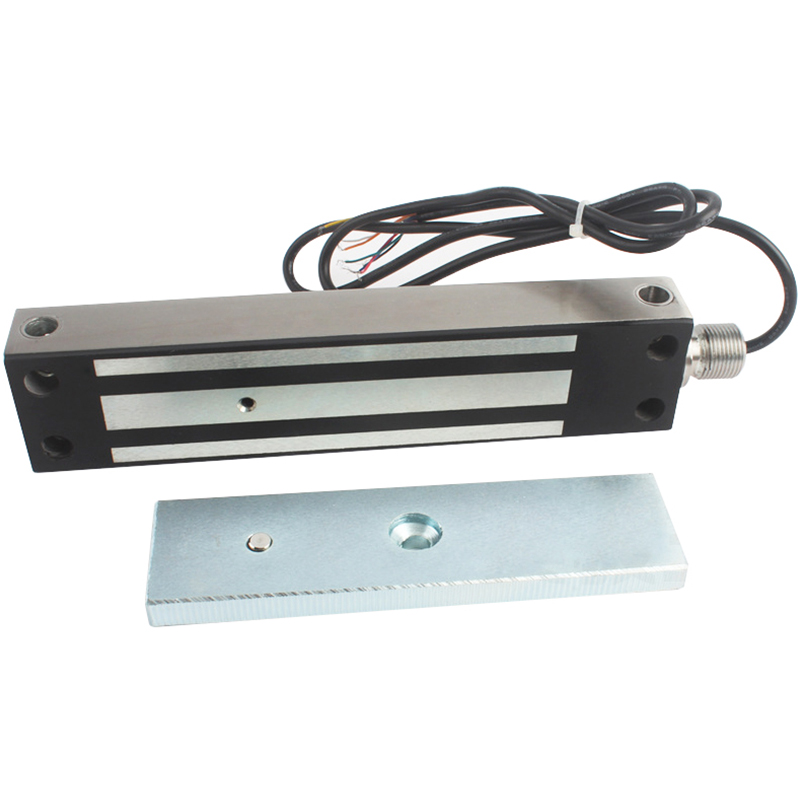

EL-W600SD 7Wires280KG Stainless Steel Waterproof IP66 Door Magnetic Lock with Signal Output and 12V 24V
Model No.: EL-W600SD 7Wires
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
EL-W600S 4Wires | 12V & 24V adjustable |

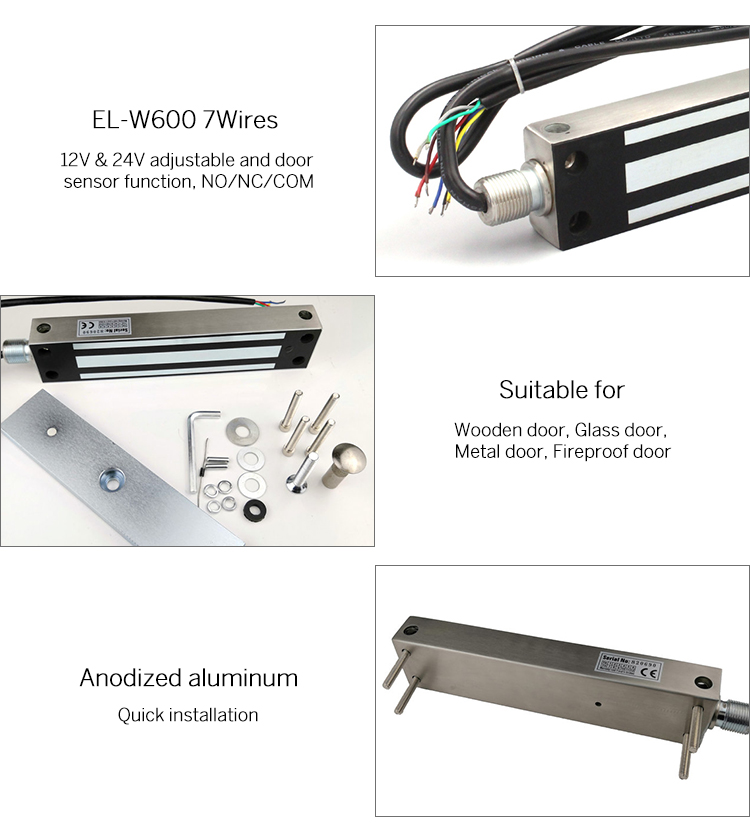

EL-W600SD 7Wires | 12V & 24V adjustable and door sensor function, NO/NC/COM |

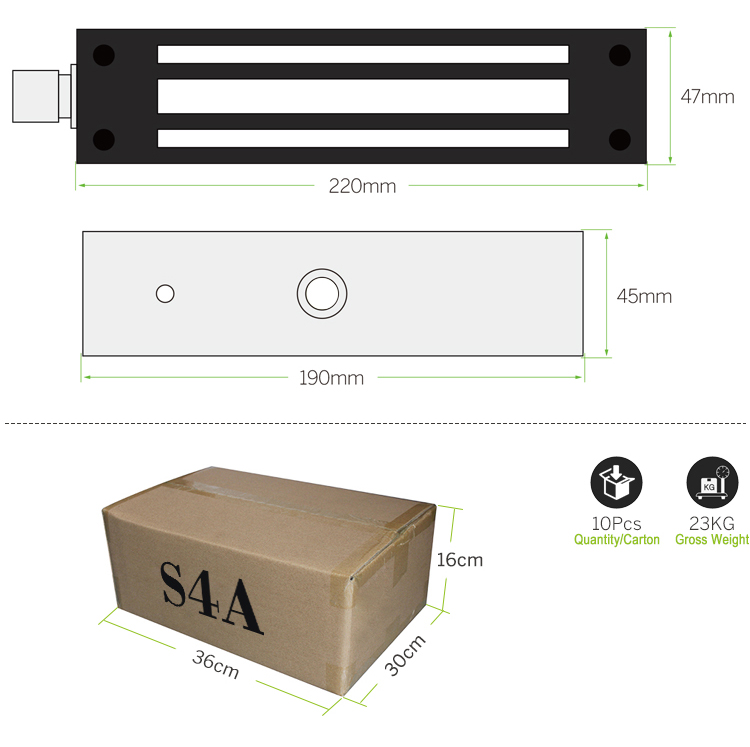

Lock Size | 220Lx47Wx28H(mm) |
Armature plate | 190Lx45Wx13H(mm) |
Holding Force | 280kg(600Lbs) |
Voltage | DC12V or DC24V(adjustable) |
Current Draw | 12V/500mA 24V/250mA |
Optional Bracket | LZ-W600 |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Signal Output | Need to order EL-W600S |
Surface Temp | ≤20°C |
Operating Temp | -10°C ~ 55°C (14°F-131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 2.5kg |
280KG Stainless Steel Waterproof IP66 Door Magnetic Lock with Signal Output and 12V 24V | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-W600S 2Wires | 220x47x28mm | 10pcs | 19.5KG | 30x15x34cm |
EL-W600S 4Wires | 220x47x28mm | 10pcs | 23KG | 36x30x16cm |
EL-W600SD 7Wires | 10pcs | 23KG | ||
S4A Instruction_EL-W600SD 7Wires_280KG Stainless Steel Waterproof IP66 Door Magnetic Lock with Signal Output and 12V 24V
> Without indicator lights> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> With LED (Red only)> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> LED, door sensor> Voltage: DC12V and DC24V> Holding Force: 280KG> Built in LED and door sensor
> Material Selection: High Strength Aluminum, Sandblast Finished> Suitable for Door: In-swing Door> Opening Mode: 90° Degrees Door> Finished for Shell: Anodized aluminum
> Built in LED, door sensor and buzzer> Holding Force: 280KG (600Lbs)> Voltage: DC12V and DC24V> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> LED, door sensor and time delay> Holding Force: 280KG (600Lbs)> Voltage: DC12V and DC24V> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
100% Cooper Material and built-in Standalone access control function> No Need to order standalone control> Connect it with our reader-ID-WG26. then it works> User Capacity: 1364> Voltage: 7-18V
> EL-W600 4Wires> Waterproof IP66> Holding Force: 280KG(600Lbs)> Voltage: DC12V> Lock Size: 225Lx45Wx25H(mm)
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
