Electromagnetic Lock

/

280KG-600LBS

/280KG Electromagnetic Lock With Mortise Mount Door Access Control Lock Door Lock

New Products

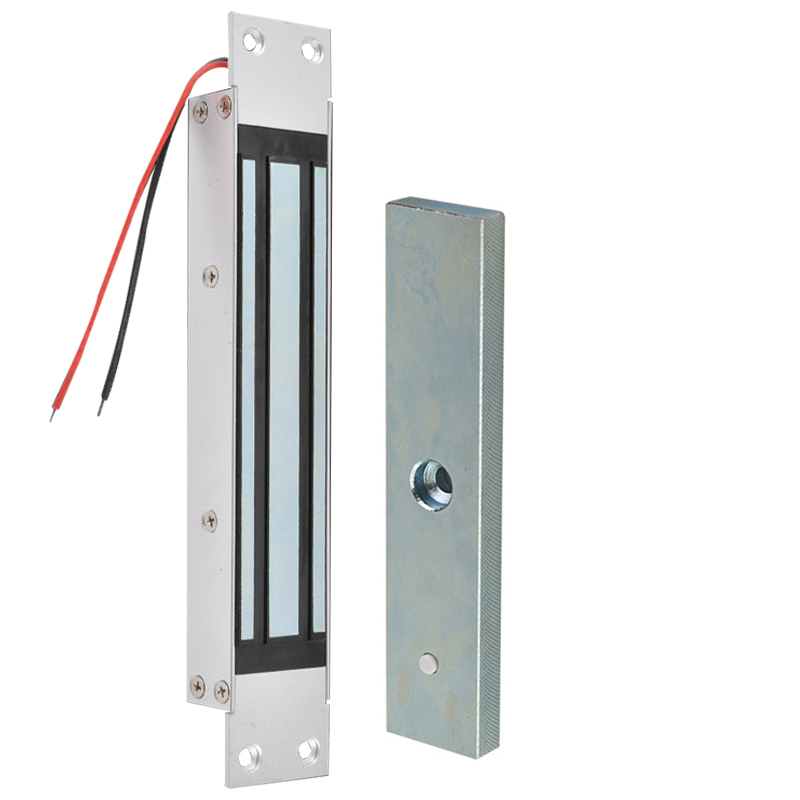

280KG Electromagnetic Lock With Mortise Mount Door Access Control Lock Door Lock

> Without Signal Output

> Voltage: DC12V or DC24V

> Holding Force: 280kg(600Lbs)

> Current Draw: 12V/500mA 24V/250mA

  • Brand:

    S4A
  • Item NO.:

    EM-600T
  • Specifications

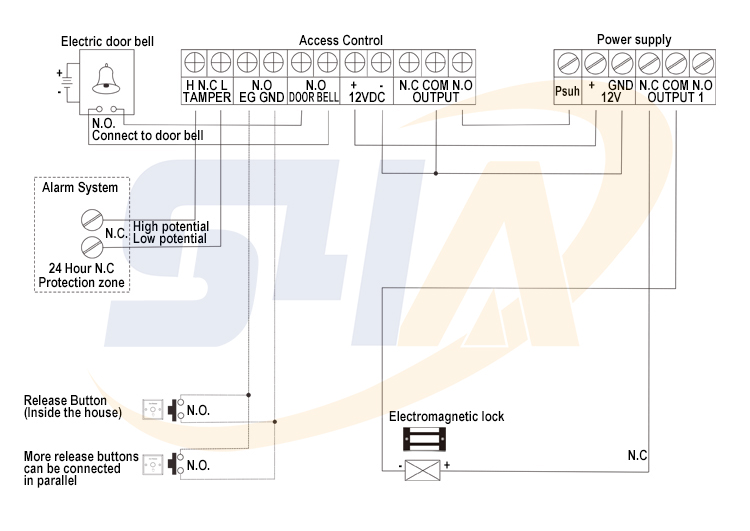

  • Wiring Diagram
  • Package
  • Download

280KG Electromagnetic Lock With Mortise Mount Door Access Control Lock Door Lock

Model No.: EM-600T


EL-600T

Without Signal Output

EL-600TS

With Signal Output

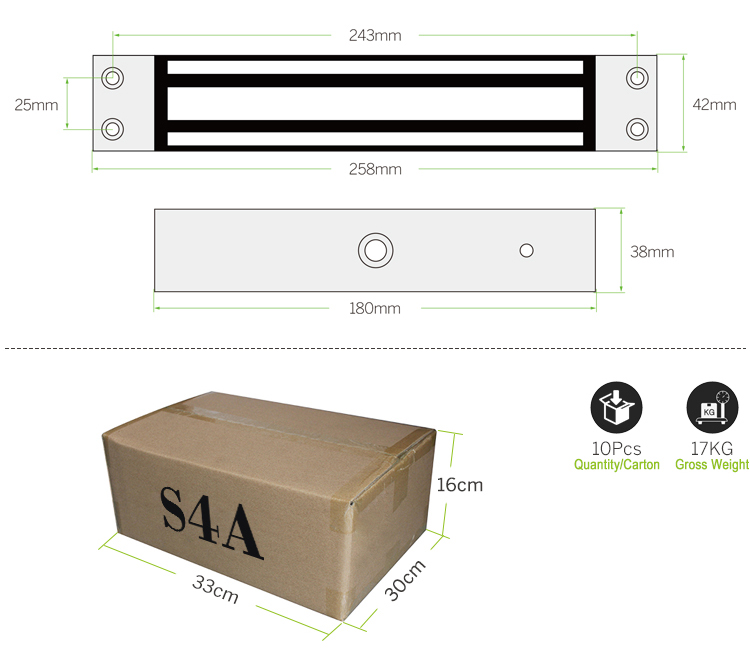

Lock size

258Lx42Wx26H(mm)

Armature Plate

180Lx38Wx11H(mm)

Working voltage

DC12V or DC24V

Current Draw

12V/500mA  24V/250mA

Surface Temp

≤20℃

Operating Temp

-10℃ ~ 55℃(14°F-131°F)

Finishes for shell

Anodized Aluminum

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

1.9KG


mortise lockmortise lock

mortise lock

Mortise mount Electromagnetic Lock Series  (600Lbs)

Standard Carton box

Unit Size

Gross Weight /pcs

Gross Weight /Carton

10pcs

 258LX42Wx26H(mm)

2kg

20.5KG

mortise lock
