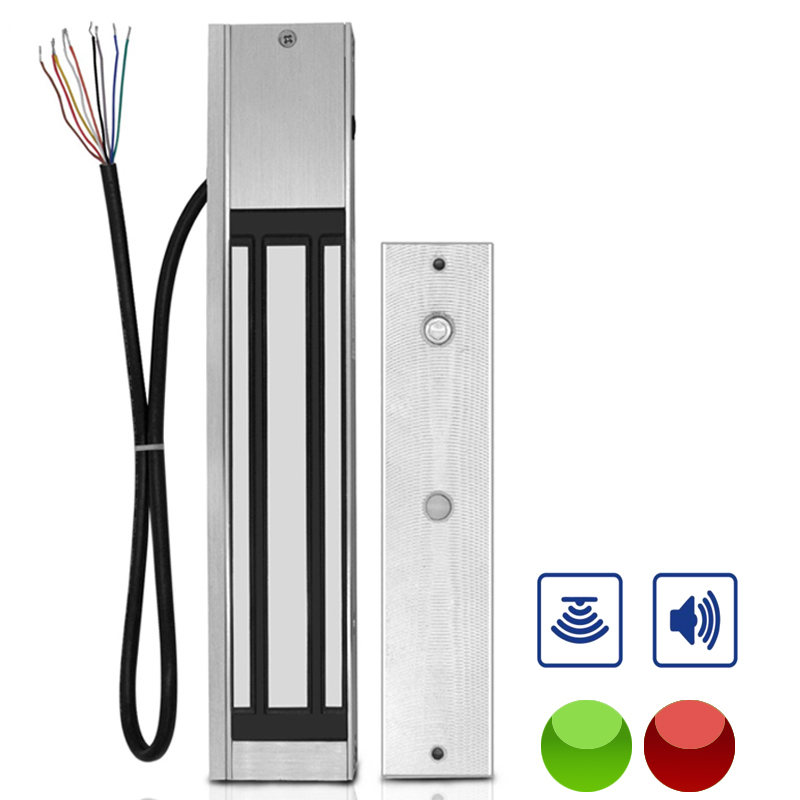

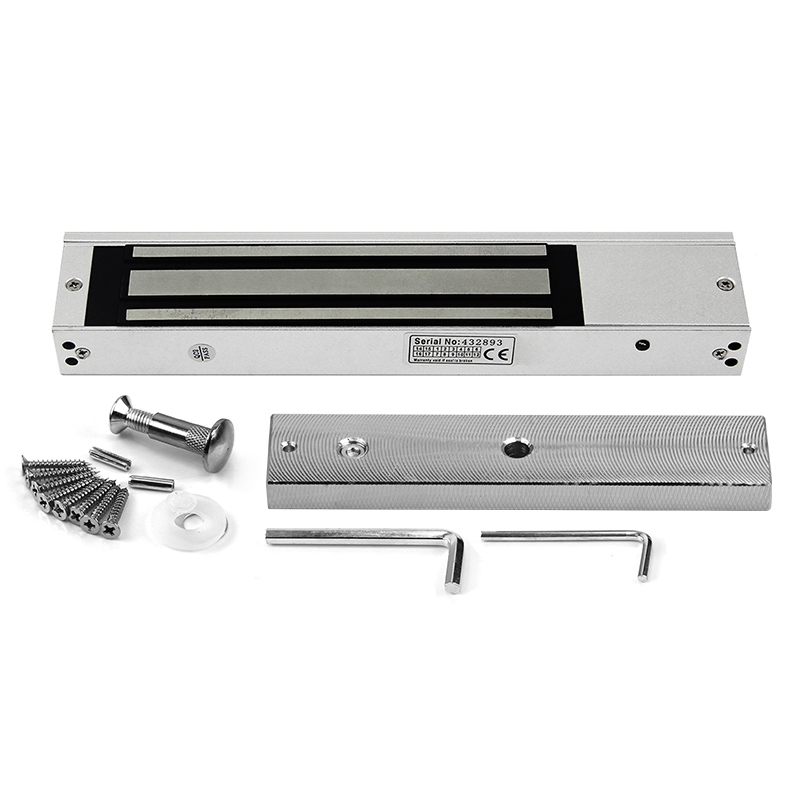

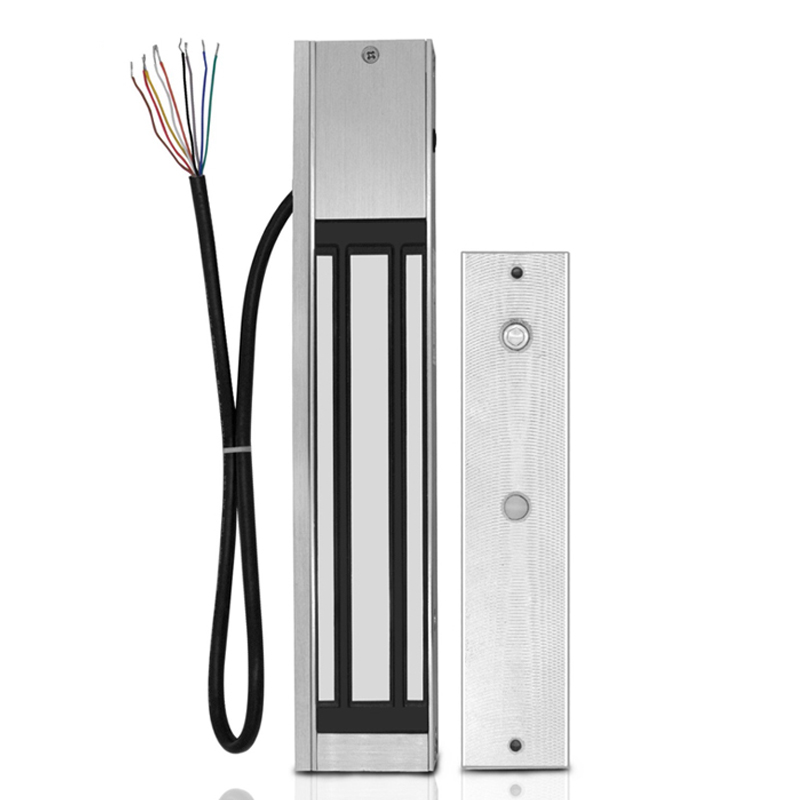

280KG Magnetic Locks Built in Access Control Pcb Board with 9wires

280KG Magnetic Locks Built in Access Control Pcb Board with 9wires

Model No.: EL-600SA 9Wires

What is Electromagnetic Lock?

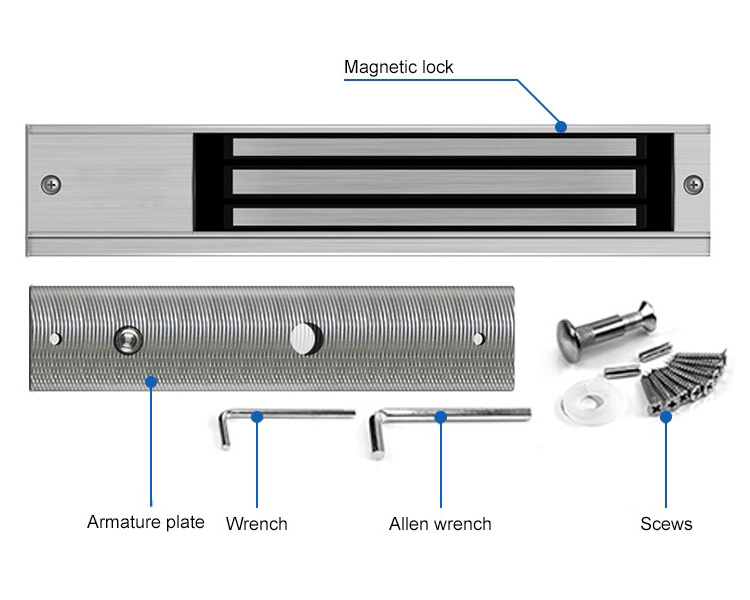

Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.

How to Enroll and program new users, as below:

Available to enroll 2 types of cards:

1: Master Card

2: Security Card

1. How to register the Master Card?

After the lock installed, we hear di-di beeps.it keeps beeping around 20 seconds, meanwhile, we punch the blank card on the reader until the beeps stop.

Then remove Master Card, power off, and re-power on. Setting to Succeed.

2. If the Master card lost, how to register a new one?

Move the jumper to Delete Position, register new blank cards  as new Master Card(follow step1)

3. How to register a new user?

Punch Master Card, we hear di beeping for 1 time and hold it until getting the 2nd di beeps,

remove Master Card and punch blank user's card, then punch Master Card to exit.

4. How to setup Security Card?

Punch Master Card and keep it for 5seconds, after hearing di beeps, remove Master Card,

then punch the security card and keep it for 5seconds. Then punch Master Card to exit.

S4A Instruction_EL-600SA_280KG Magnetic Locks Built-In Access Control Pcb Board with 9wires
