600lbs Electromagnetic Lock Holding Force for Access Control Single Door 12V and 24V

> LED, door sensor and time delay

> Holding Force: 280KG (600Lbs)

> Voltage: DC12V and DC24V

> Lock Size: 250Lx48.5Wx25H(mm)

> Current Draw: 12V/500mA 24V/250mA

  • Brand:

    S4A
  • Item NO.:

    EL-600ST
  • Specifications
  • Wiring Diagram
  • Package
  • Download

600lbs Electromagnetic Lock Holding Force for Access Control Single Door 12V and 24V

Model No.: EL-600ST


EL-600

Without indicator lights

EL-600S

With LED (Red only)

EL-600SD

LED, door sensor

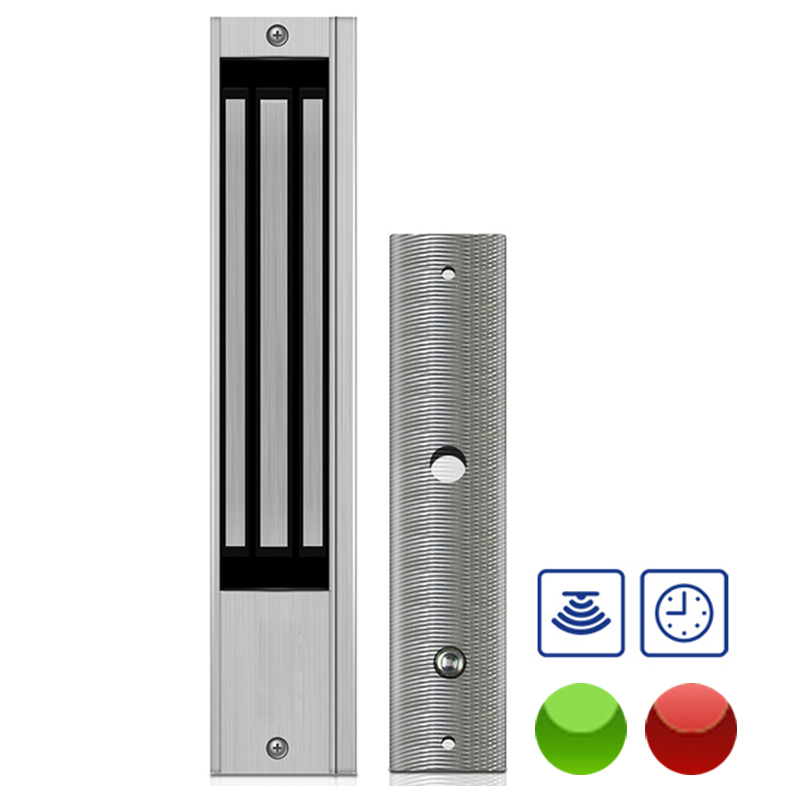

EL-600ST

LED, door sensor, Time delay

EL-600SZ

LED, door sensor, Buzzer

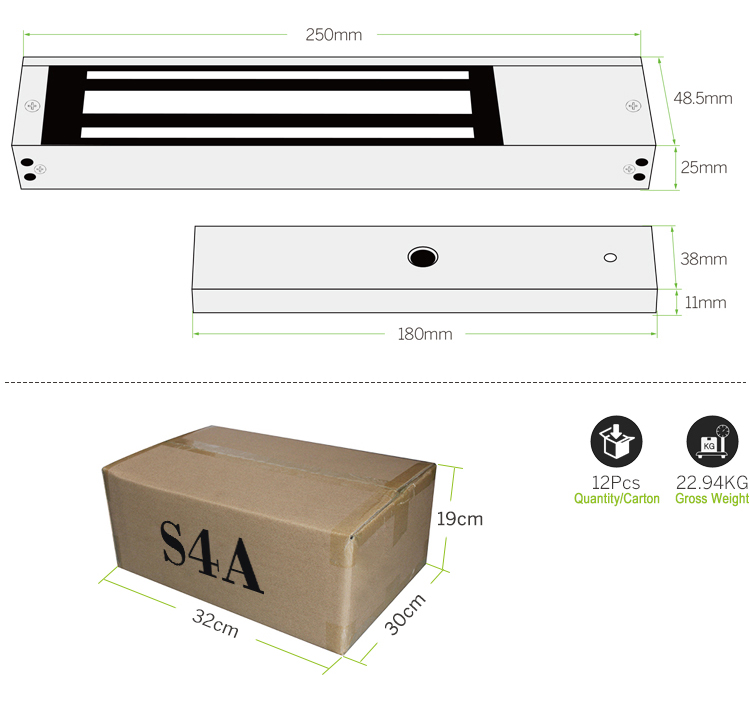

Lock size

250Lx48.5Wx25H(mm)

Plate

180Lx38Wx11H(mm)

Holding Force

280kg (600Lbs)

Voltage

DC12V or DC24V (adjustable)

Current Draw

12V/500mA 24V/250mA

Signal Output

Dry Contact, Max Rating of Contact Current 3A

Surface Temp

≤20°C

Operating Temp

-10℃ ~ 55℃ (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

2kg

Standard Packing

10pcs


Electromagnetic LockElectromagnetic LockElectromagnetic Lock

Electromagnetic Lock

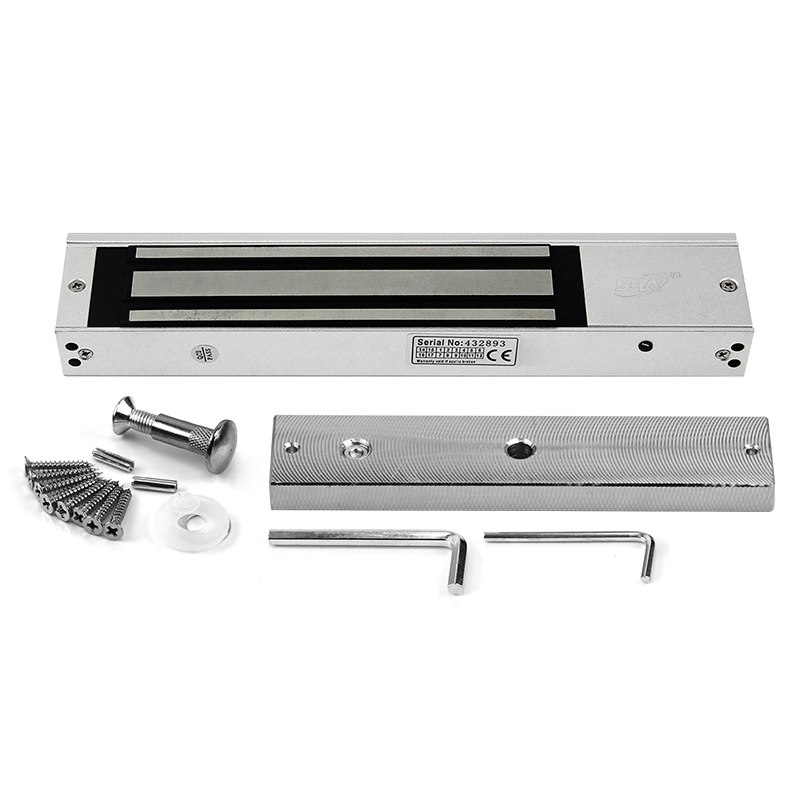

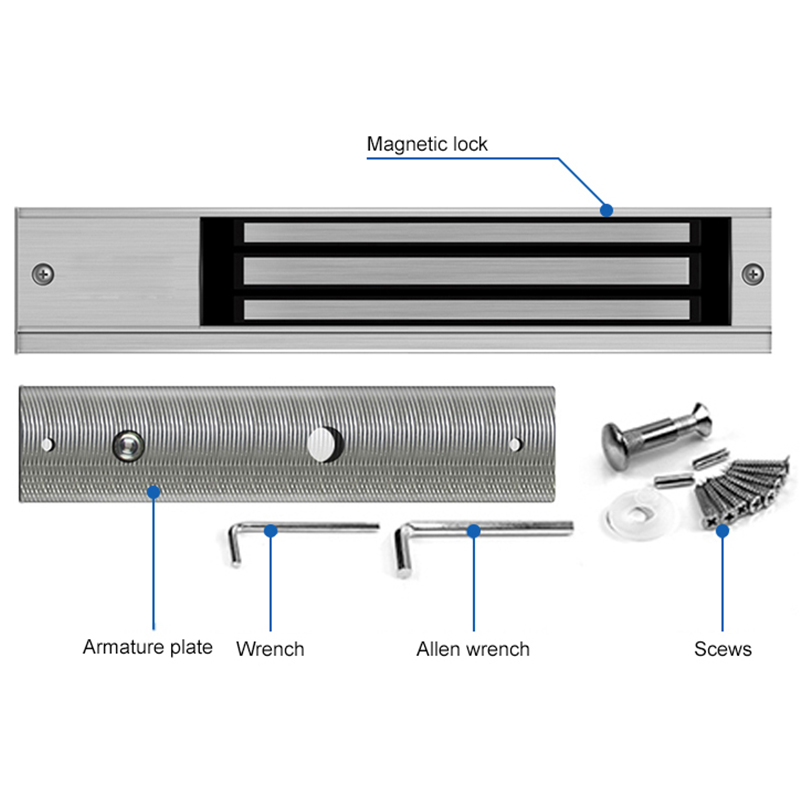

Single Electromagnetic Lock Series (600Lbs)

Standard Carton box

Unit Size

Gross Weight /pcs

Gross Weight /Carton

10pcs

250Lx48.5Wx25H(mm)

2kg

20.5KG

Electromagnetic Lock

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
electric lock for swing gate
Electric Magnetic lock for swing gate

> Without indicator lights> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA

 Electromagnetic Lock 600lb
Electromagnetic Lock 600lb Holding Force Fail Safe with LED Sensor for Out-Swing Door

> With LED (Red only)> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA

 Electromagnetic Lock
Electromagnetic Lock 600lb Holding Force Fail Safe with LED Sensor for Out-Swing Door

> LED, door sensor> Voltage: DC12V and DC24V> Holding Force: 280KG> Built in LED and door sensor

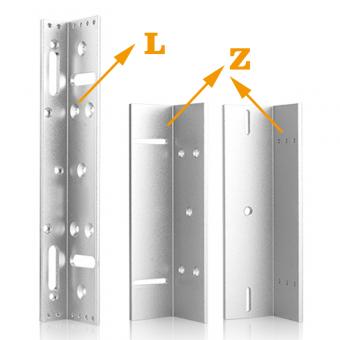

S4A LZ Bracket is for Inward Door
