> LED, door sensor and time delay
> Holding Force: 280KG (600Lbs)
> Voltage: DC12V and DC24V
> Lock Size: 250Lx47Wx25H(mm)
> Current Draw: 12V/500mA 24V/250mA
Brand:
S4AItem NO.:

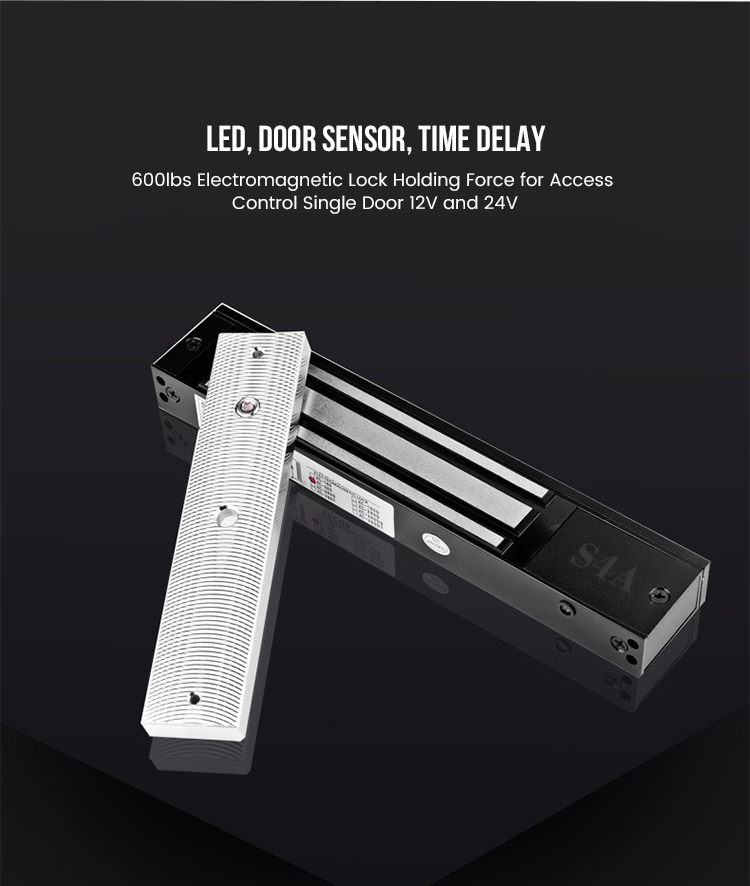

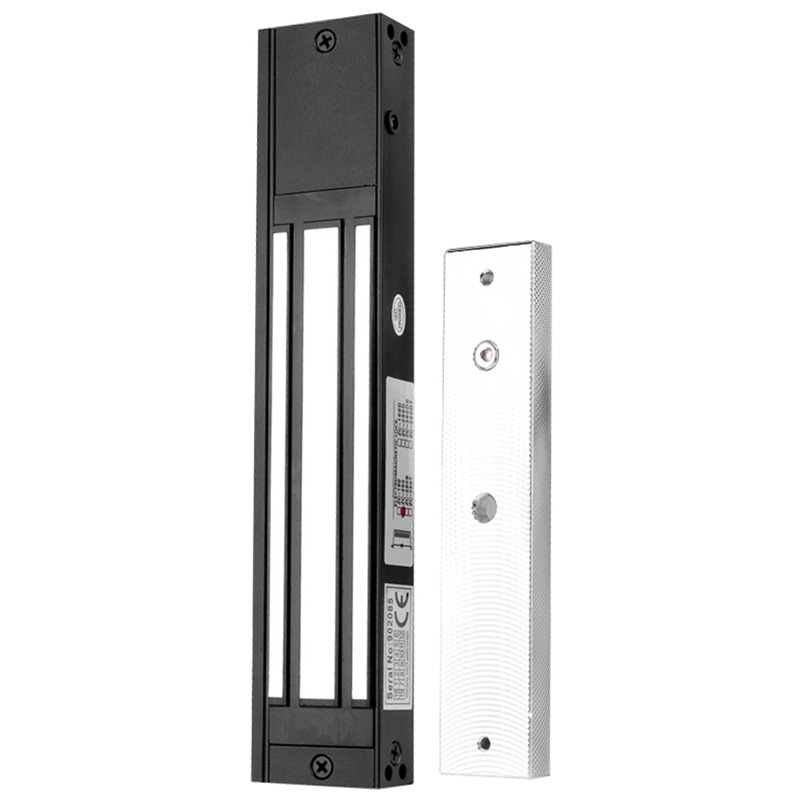

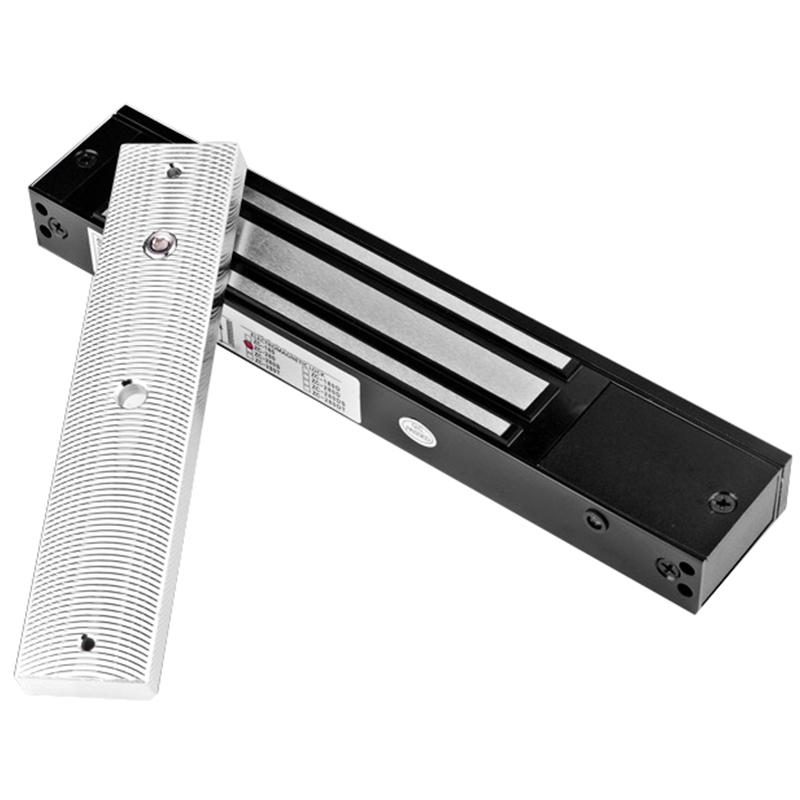

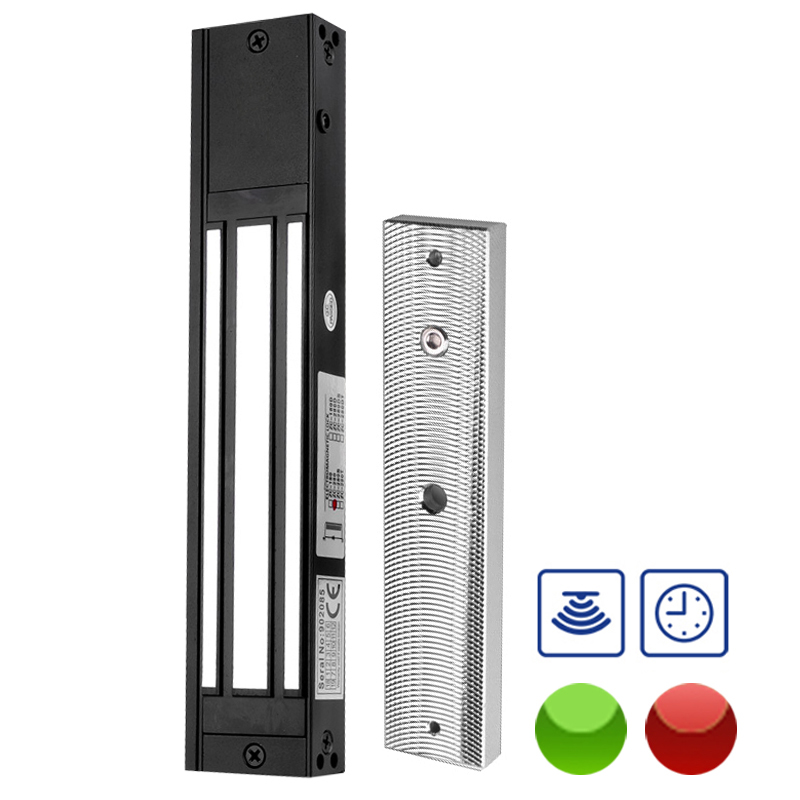

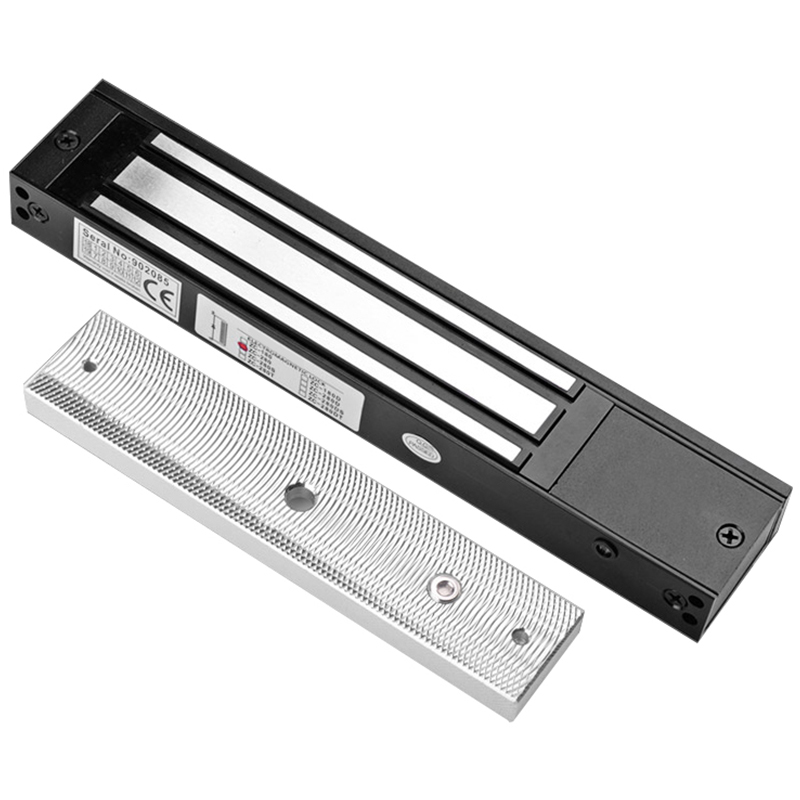

EL-600ST-BlackSingle Door Electromagnetic Locks 600lbs with Led-time Delay-door Sensor
Model No.: EL-600ST-Black
What is Electromagnetic Lock?

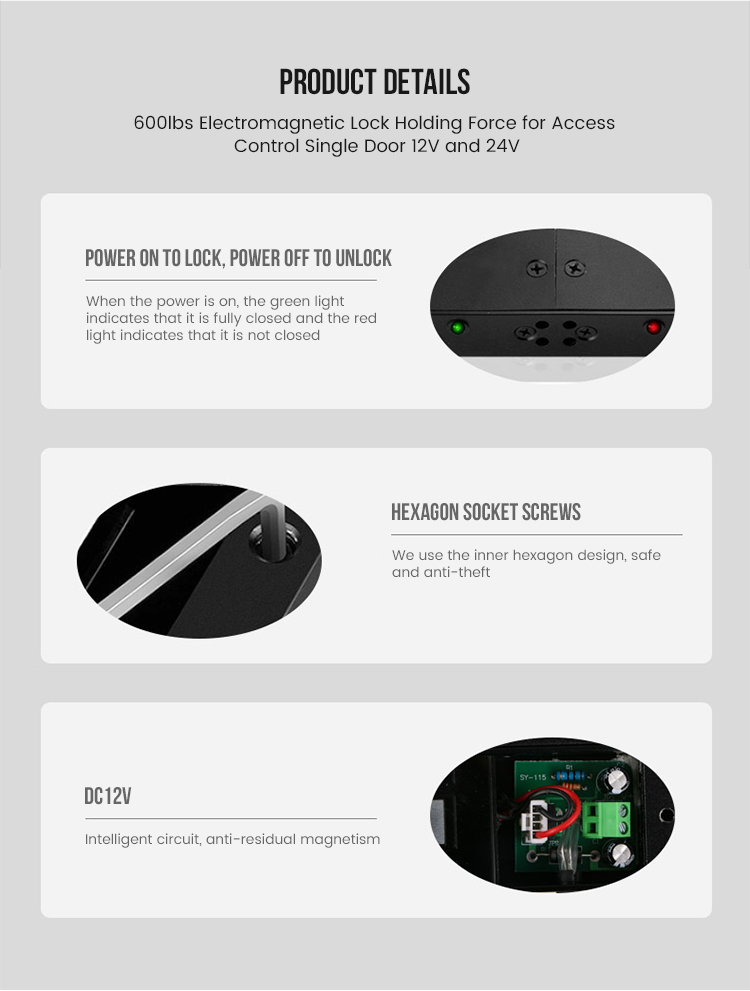

The design of the magnetic lock (or electromagnetic lock) is the same as that of the electromagnet. It uses the principle of electromagnetism. When the electric current passes through the silicon steel plate, the electromagnetic lock will generate powerful magnetism and tightly attract the iron plate to lock the door. As long as a small electric current electromagnetic lock will generate a powerful magnetic force, the access control system that controls the power supply of the electromagnetic lock will cut off the power after identifying the authorized users and the electromagnetic lock can open the door after power off.
EL-600ST-Black | LED, door sensor and time delay |

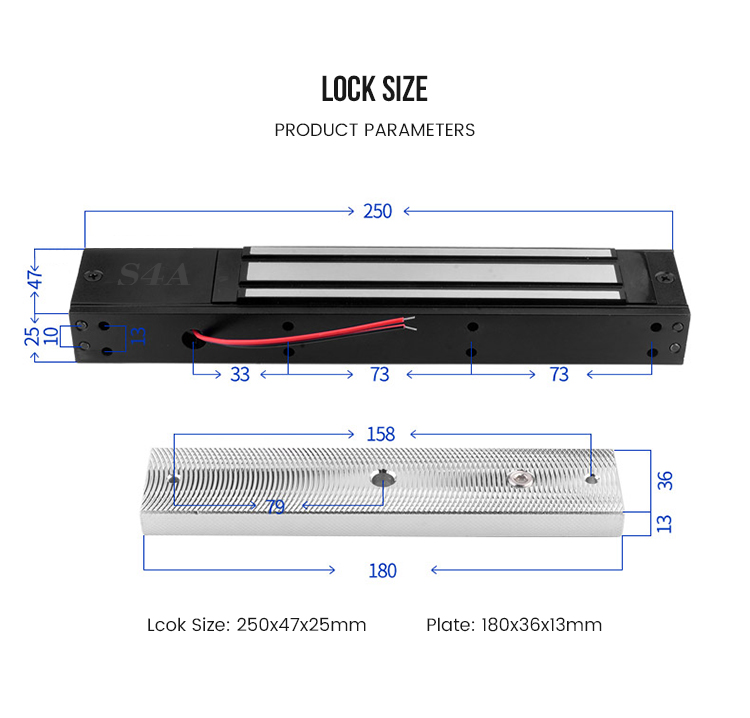

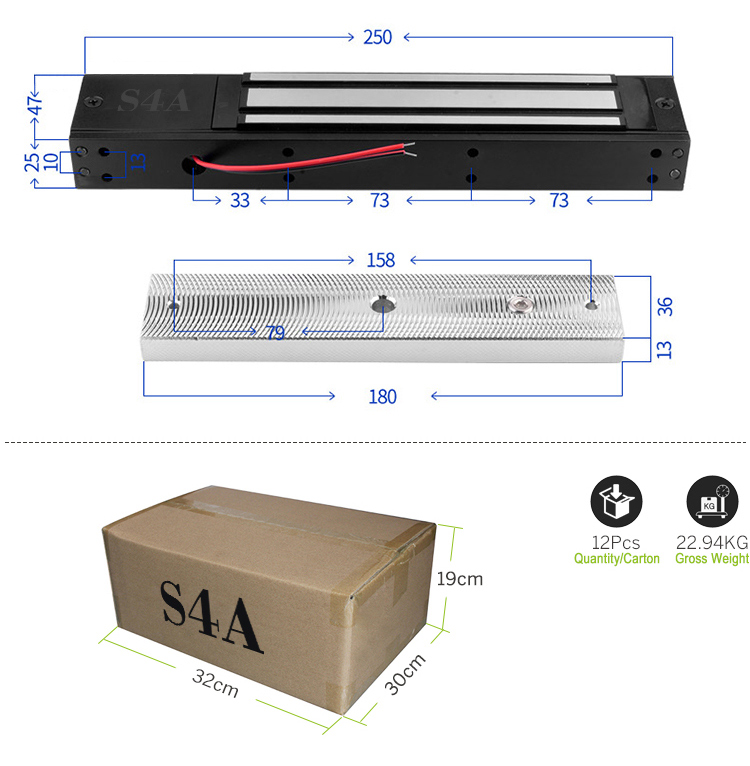

Lock size | 250Lx47Wx25H(mm) |
Plate | 180Lx38Wx13H(mm) |
Holding Force | 280kg (600Lbs) |
Voltage | DC12V or DC24V (adjustable) |
Current Draw | 12V/500mA 24V/250mA |
Signal Output | Dry Contact, Max Rating of Contact Current 3A |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55℃ (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |

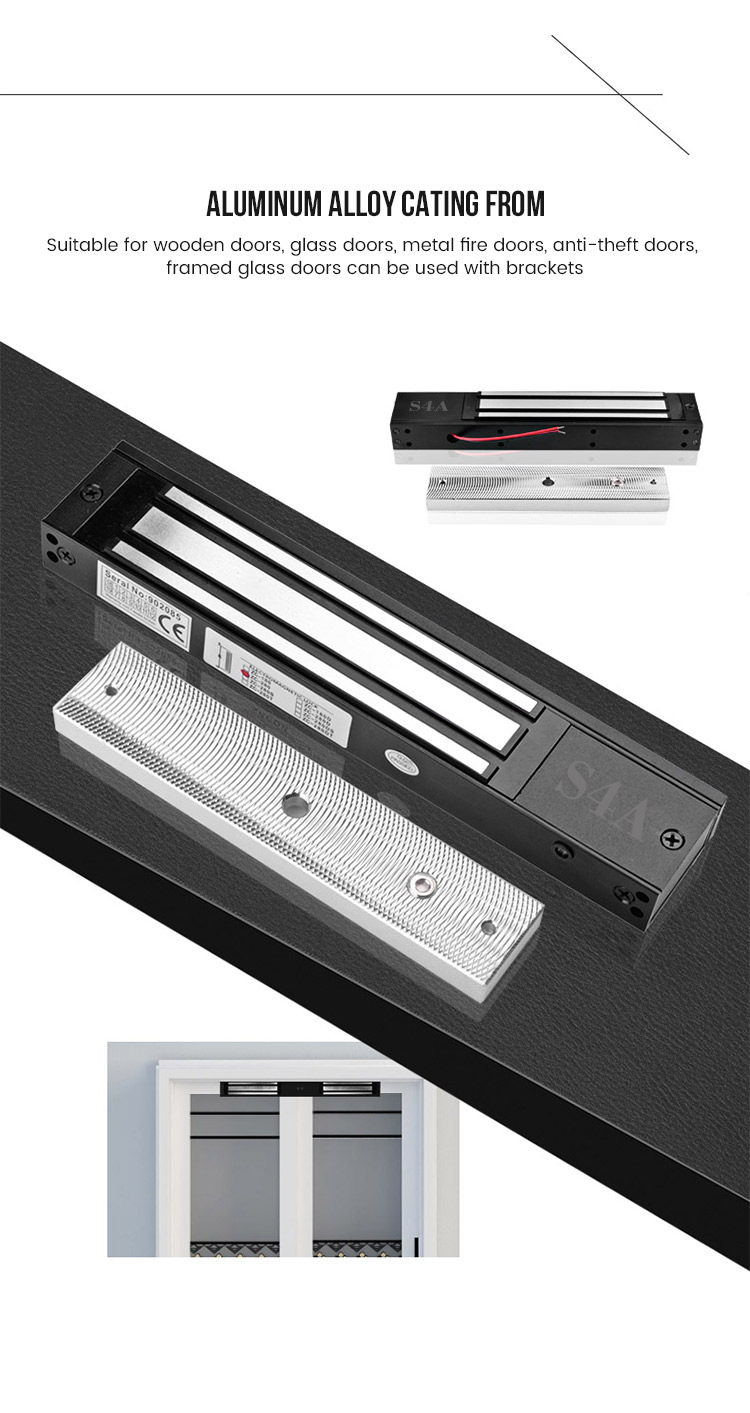

Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 2kg |
Standard Packing | 12pcs |
Single Door Electromagnetic Locks 600lbs with Led-time Delay-door Sensor | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-600ST-Black | 250x47x25mm | 12pcs | 22.94KG | 32x30x19cm |
S4A Instruction_EL-600ST-Black_Single Door Electromagnetic Locks 600lbs with Led-time Delay-door Sensor
> Without indicator lights> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> With LED (Red only)> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> LED, door sensor> Voltage: DC12V and DC24V> Holding Force: 280KG> Built in LED and door sensor
> Material Selection: High Strength Aluminum, Sandblast Finished> Suitable for Door: In-swing Door> Opening Mode: 90° Degrees Door> Finished for Shell: Anodized aluminum
> Built in LED, door sensor and buzzer> Holding Force: 280KG (600Lbs)> Voltage: DC12V and DC24V> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> LED, door sensor and time delay> Holding Force: 280KG (600Lbs)> Voltage: DC12V and DC24V> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
100% Cooper Material and built-in Standalone access control function> No Need to order standalone control> Connect it with our reader-ID-WG26. then it works> User Capacity: 1364> Voltage: 7-18V
> EL-W600 4Wires> Waterproof IP66> Holding Force: 280KG(600Lbs)> Voltage: DC12V> Lock Size: 225Lx45Wx25H(mm)
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
