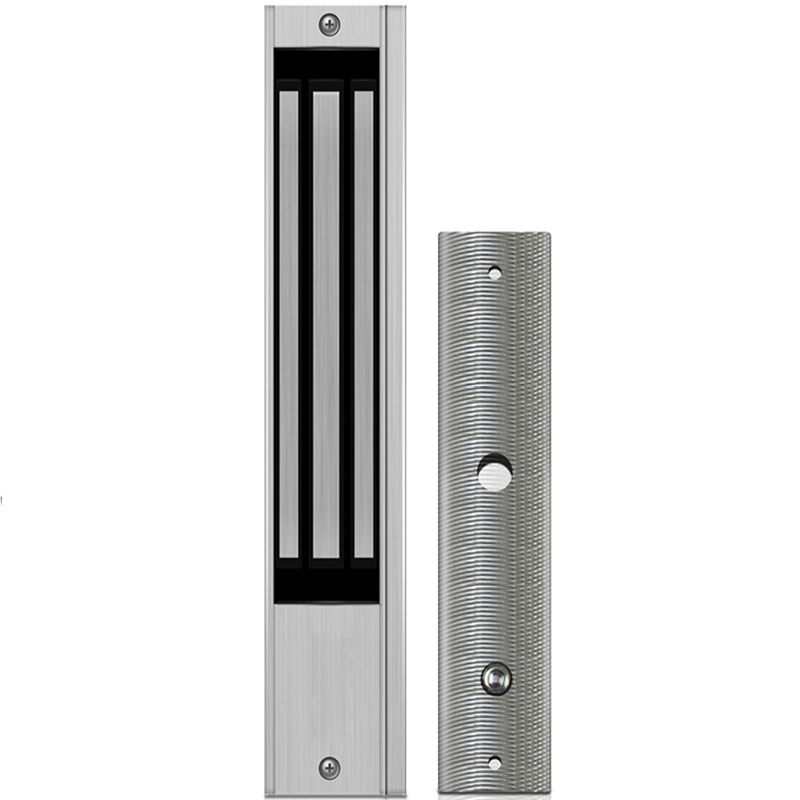

Single Door Electric Magnetic Door Locks with LED, Door Wensor and Buzzer Functions for Door Access

> Built in LED, door sensor and buzzer

> Holding Force: 280KG (600Lbs)

> Voltage: DC12V and DC24V

> Lock Size: 250Lx48.5Wx25H(mm)

> Current Draw: 12V/500mA 24V/250mA

  • Brand:

    S4A
  • Item NO.:

    EL-600SZ
  • Specifications
  • Wiring Diagram

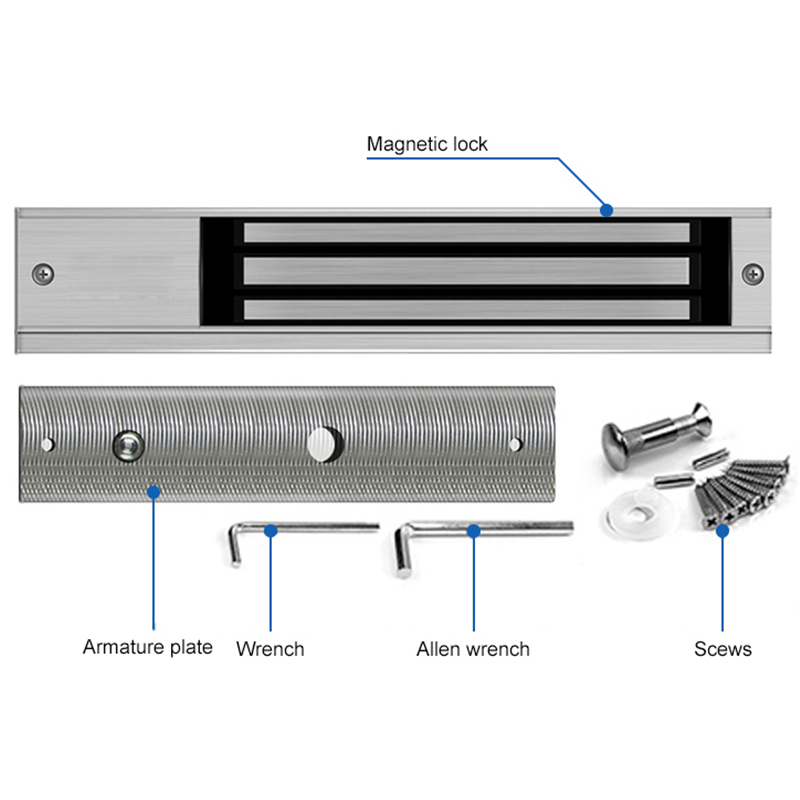

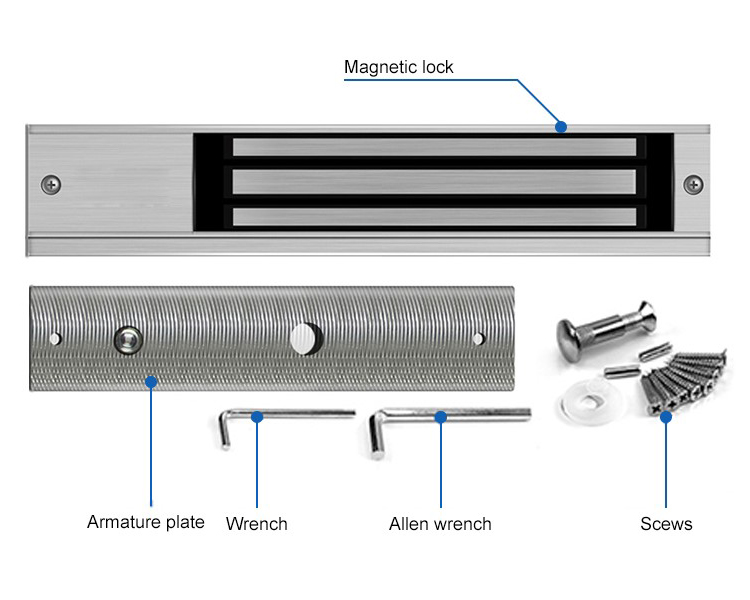

  • Package
  • Download

Single Door Electric Magnetic Door Locks with LED, Door Wensor and Buzzer Functions for Door Access

Model No.: EL-600SZ


What is Electromagnetic Lock?


Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.


EL-600

Without indicator lights

EL-600S

With LED (Red only)

EL-600SD

LED, door sensor

EL-600ST

LED, door sensor, Time delay

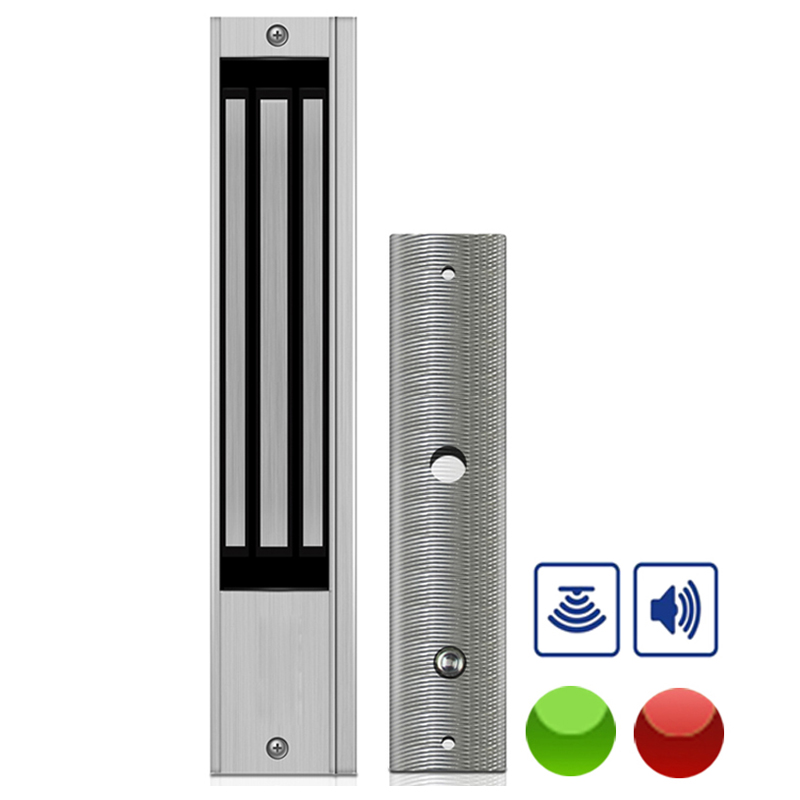

EL-600SZ

LED, door sensor, Buzzer

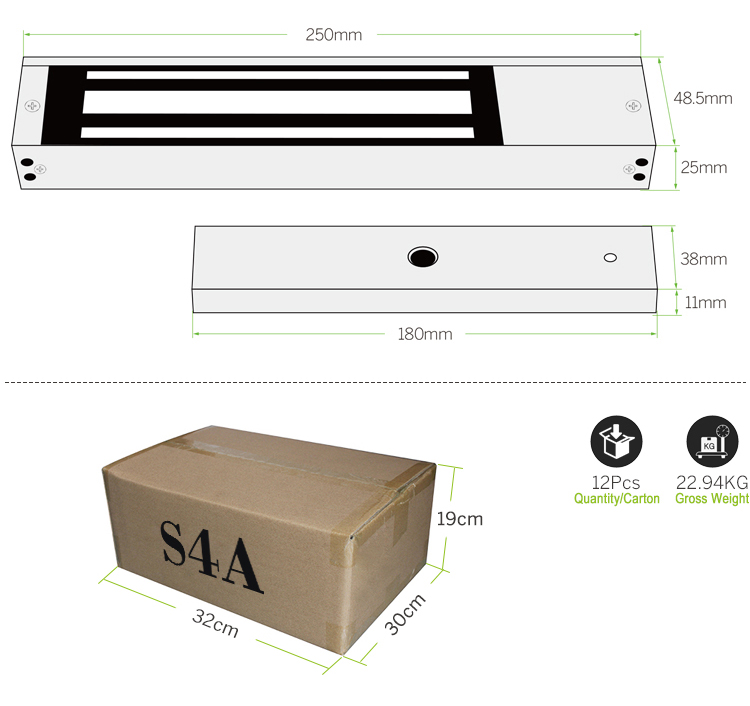

Lock size

250Lx48.5Wx25H(mm)

Plate

180Lx38Wx11H(mm)

Holding Force

280kg (600Lbs)

Voltage

DC12V or DC24V (adjustable)

Current Draw

12V/500mA 24V/250mA

Signal Output

Dry Contact, Max Rating of Contact Current 3A

Surface Temp

≤20°C

Operating Temp

-10℃ ~ 55℃ (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum surface texture processing

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

2kg

Standard Packing

10pcs

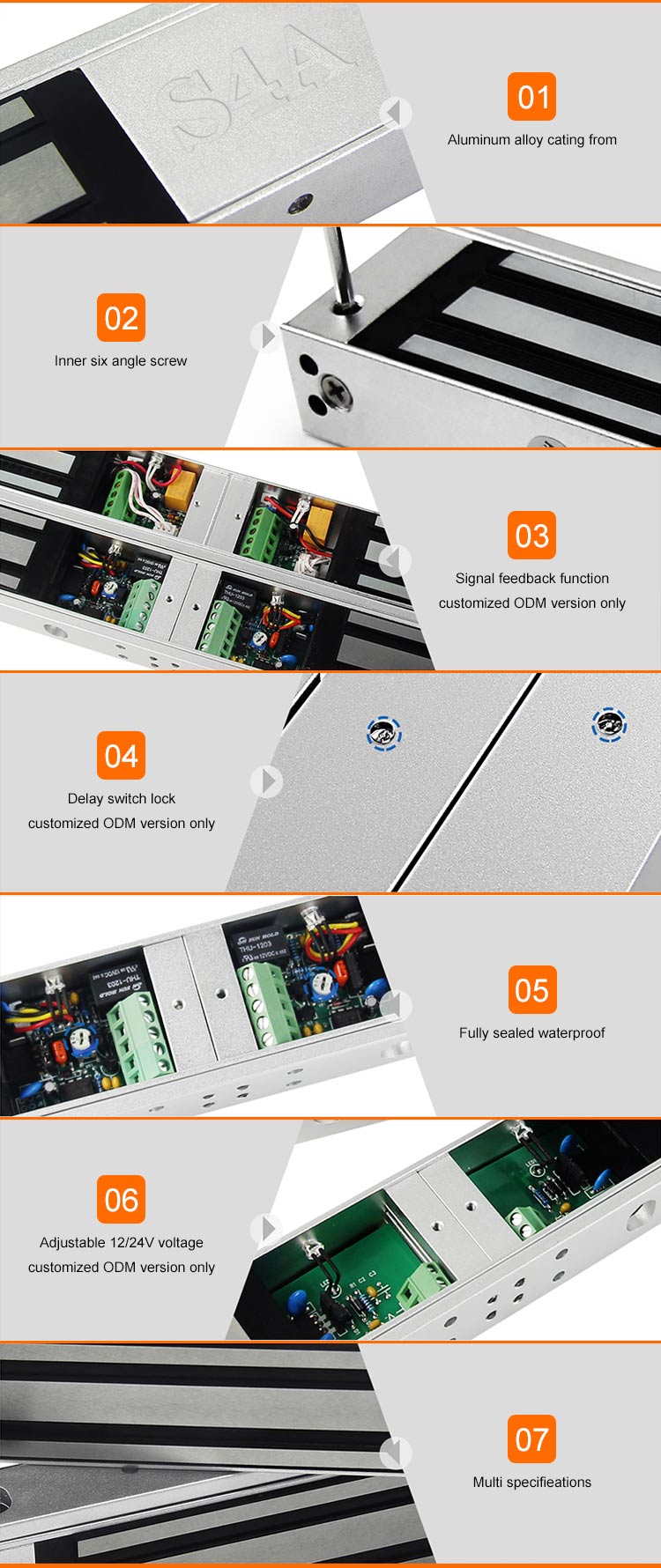

Electric Magnetic Door LocksElectric Magnetic Door LocksElectric Magnetic Door Locks

Electric Magnetic Door Locks

Single Door Electric Magnetic Door Locks with LED, Door Wensor and
Buzzer Functions for Door Access

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

EL-600SZ

250x48.5x25mm

12pcs

22.94KG

32x30x19cm

Electric Magnetic Door Locks

S4A Instruction_EL-600SZ_Single Door Electric Magnetic Door Locks with LED, Door Wensor and Buzzer Functions for Door Access
