Electromagnetic Lock

/

280KG-600LBS

/280kg 600lbs Holding Force NC Waterproof Electric Magnetic Lock/electromagnetic Door Lock

New Products

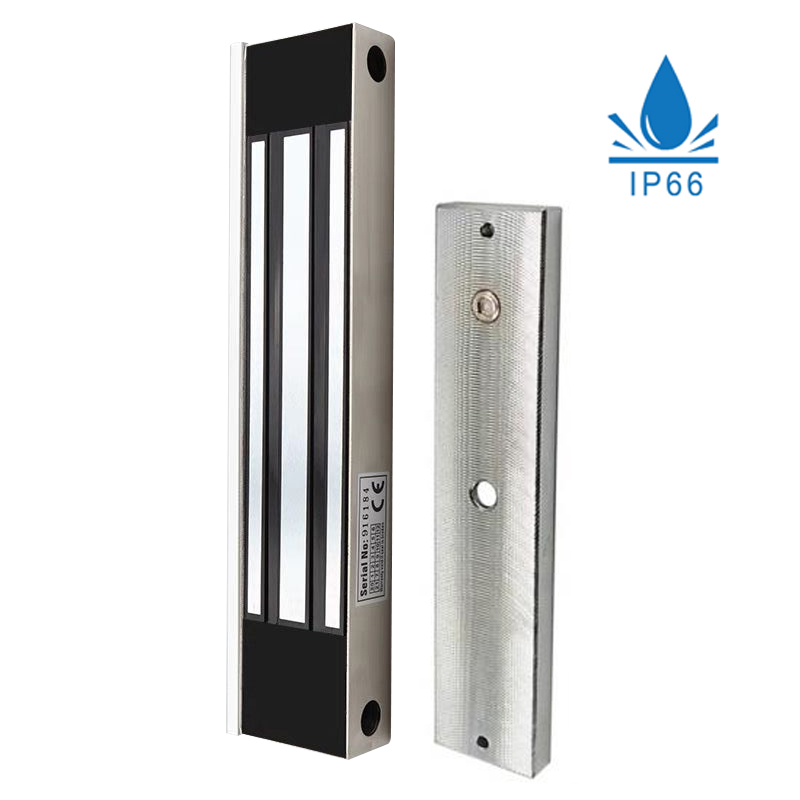

280kg 600lbs Holding Force NC Waterproof Electric Magnetic Lock/electromagnetic Door Lock

> EL-W600S 4Wires

> Waterproof IP66

> Holding Force: 280KG(600Lbs)

> Voltage: 12V & 24V adjustable

> Lock Size: 220Lx47Wx28H(mm)

  • Brand:

    S4A
  • Item NO.:

    EL-W600S 4Wires
  • Specifications
  • Wiring Diagram
  • Package
  • Download

280kg 600lbs Holding Force NC Waterproof Electric Magnetic Lock/electromagnetic Door Lock

Model No.: EL-W600S 4Wires


EL-W600S 4Wires

12V & 24V adjustable

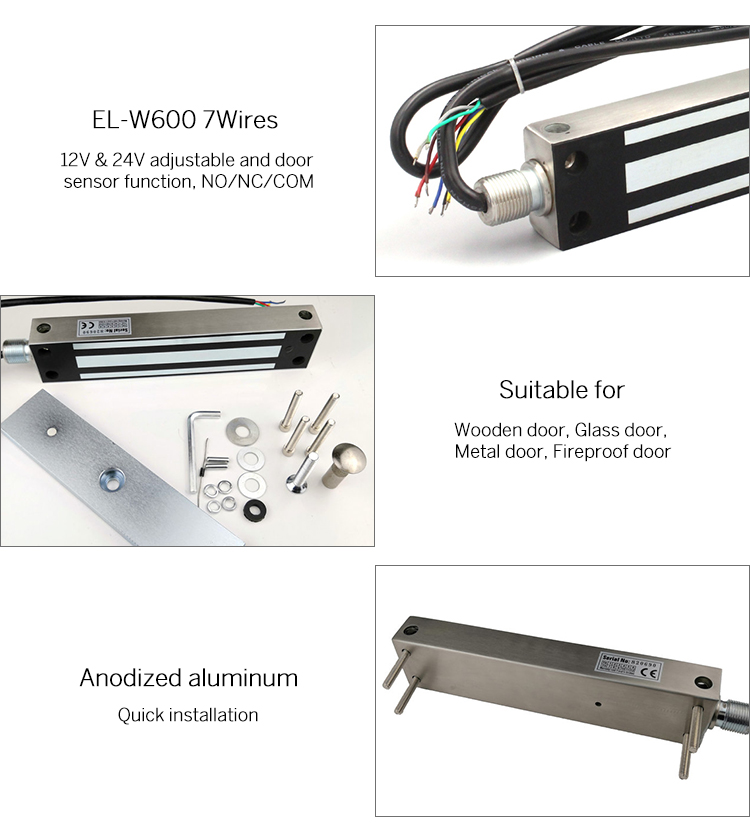

EL-W600SD 7Wires

12V & 24V adjustable and door sensor function, NO/NC/COM

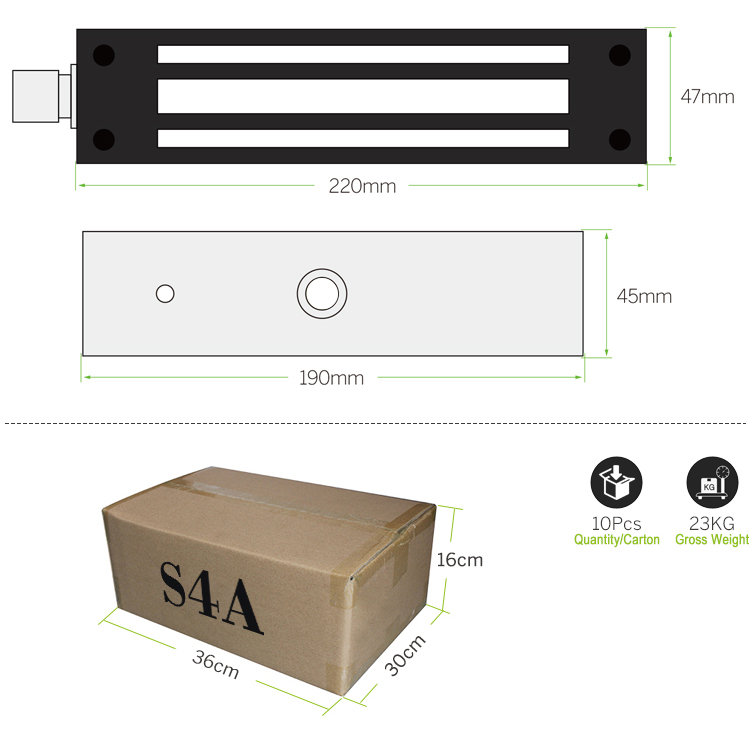

Lock Size

220Lx47Wx28H(mm)

Armature plate

190Lx45Wx13H(mm)

Holding Force

280kg(600Lbs)

Voltage

DC12V or DC24V(adjustable)

Current Draw

12V/500mA  24V/250mA

Optional Bracket

LZ-W600

Suitable for

Wooden door, Glassdoor, Metal door, Fireproof door

Signal Output

Need to order EL-W600S

Surface Temp

≤20°C

Operating Temp

-10°C ~ 55°C (14°F-131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

2.5kg

Waterproof Lock

Waterproof Lock

Single Electromagnetic Lock Series (600Lbs)

Standard Carton box

Unit Size

Gross Weight /pcs

Gross Weight /Carton

10pcs

220Lx47Wx28H(mm)

2.5kg

25.5KG

Waterproof Lock
