> With Signal Output
> Voltage: DC12V or DC24V
> Holding Force: 280kg(600Lbs)
> Current Draw: 12V/500mA 24V/250mA
> Lock Size: 258Lx42Wx26H(mm)
> Armature plate: 180x38x11mm
Brand:
S4AItem NO.:

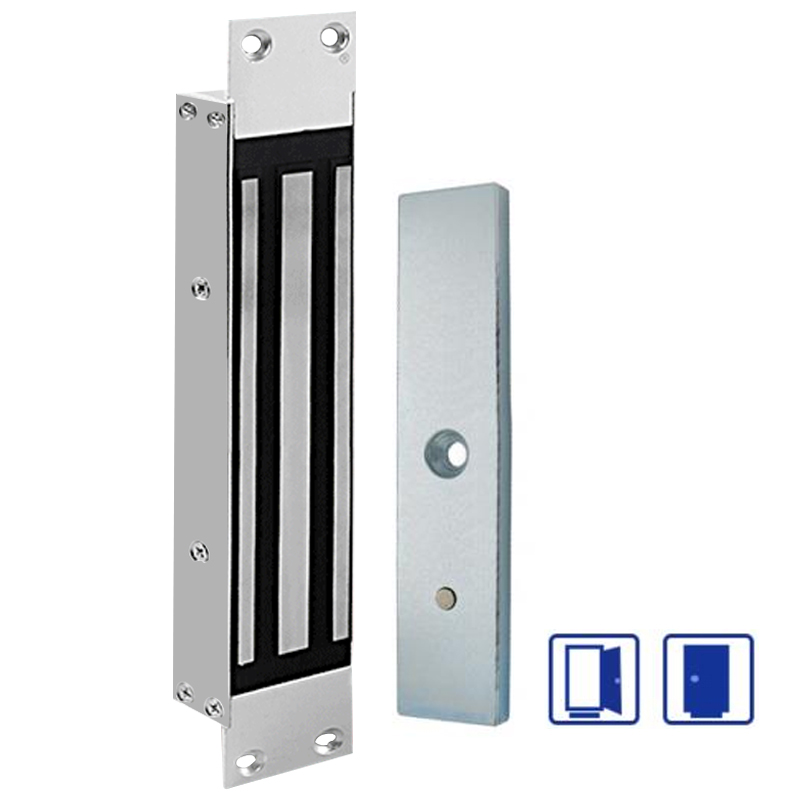

EM-600TSMortise Mount Lock 280KG (600Lbs)
Model No.: EM-600TS
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
EL-600T | Without Signal Output |
EL-600TS | With Signal Output |
Lock size | 258Lx42Wx26H(mm) |
Armature Plate | 180Lx38Wx11H(mm) |
Working voltage | DC12V or DC24V |
Current Draw | 12V/500mA 24V/250mA |
Surface Temp | ≤20℃ |
Operating Temp | -10℃ ~ 55℃（14°F-131°F） |
Finishes for shell | Anodized Aluminum |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 1.9KG |

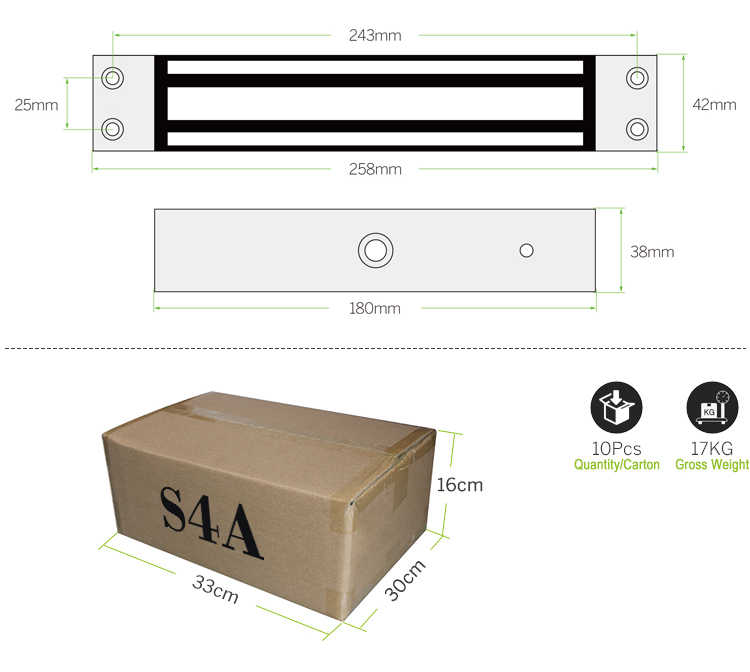

Hidden Magnetic Lock 600lbs | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EM-600T | 258x42x26mm | 10pcs | 17KG | 33x30x16cm |
EM-600TS | 10pcs | 17KG | ||

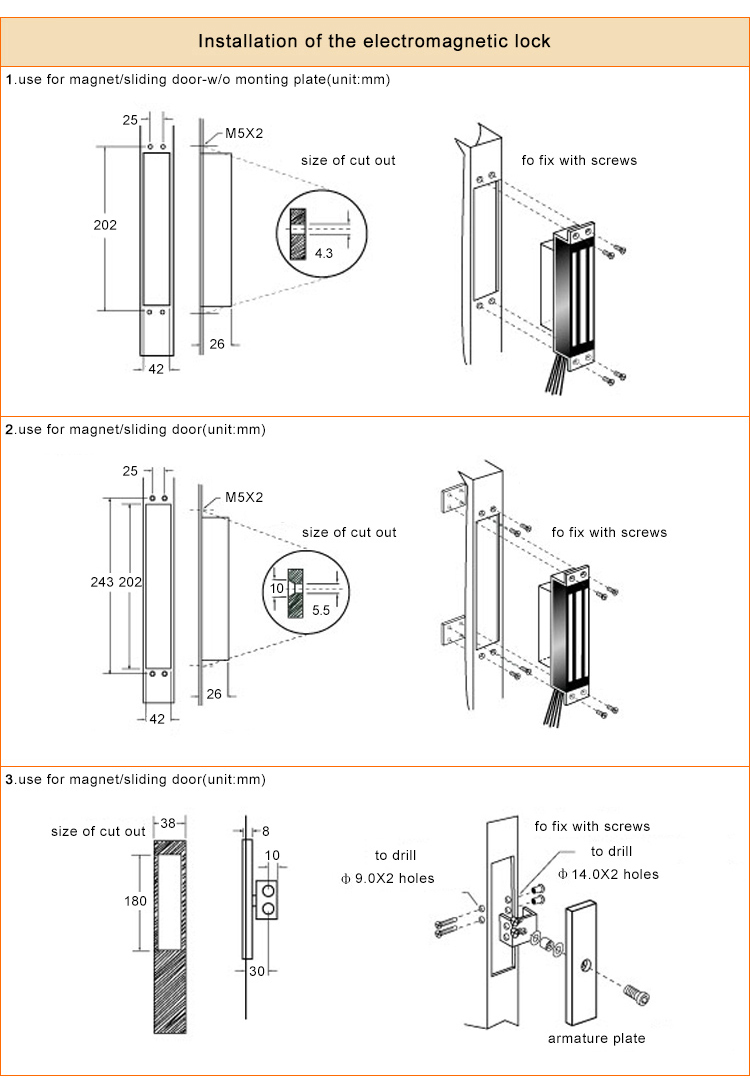

S4A Instruction_EM-600TS_Hidden Magnetic Lock 600lbs

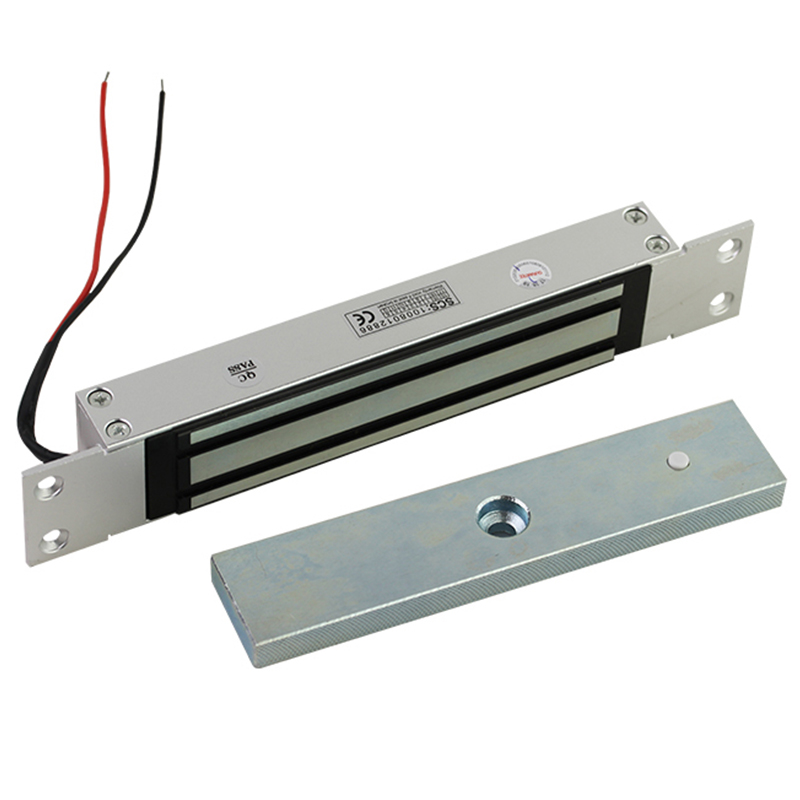

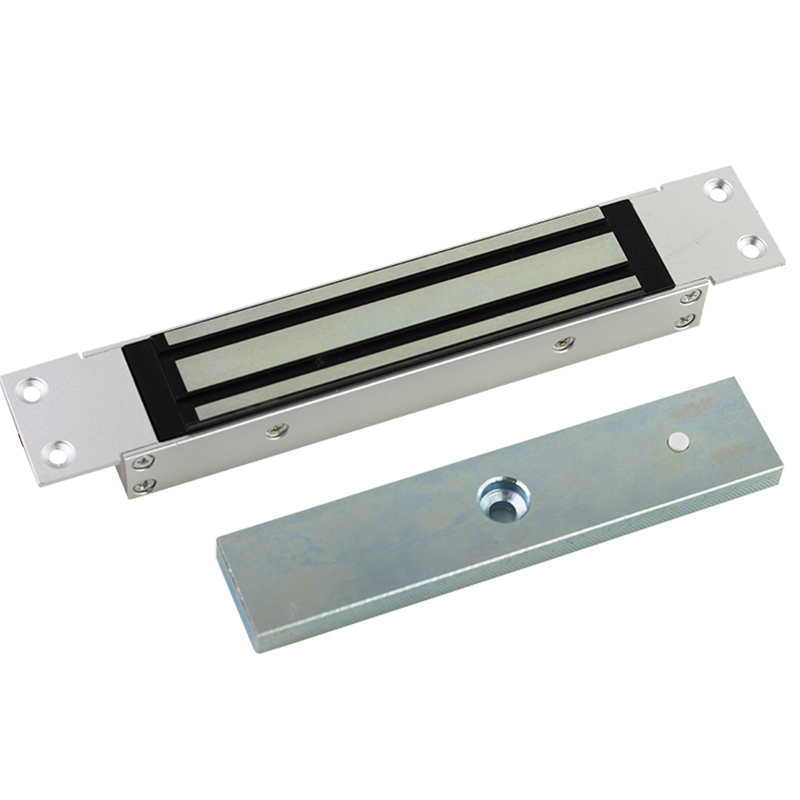

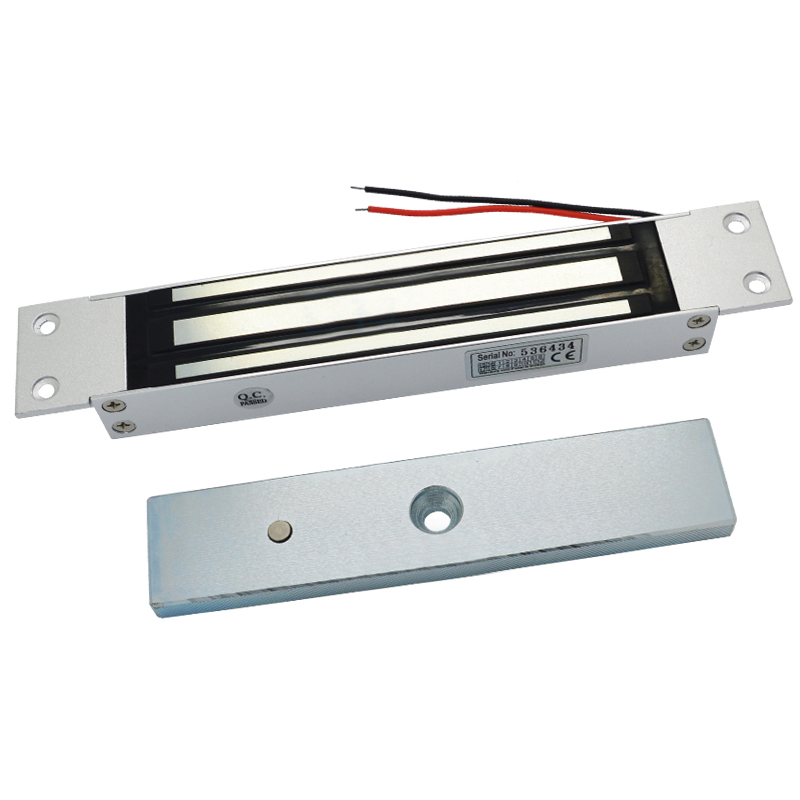

> Without indicator lights> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> With LED (Red only)> Voltage: DC12V and DC24V> Holding Force: 280KG (600Lbs)> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> LED, door sensor> Voltage: DC12V and DC24V> Holding Force: 280KG> Built in LED and door sensor
> Material Selection: High Strength Aluminum, Sandblast Finished> Suitable for Door: In-swing Door> Opening Mode: 90° Degrees Door> Finished for Shell: Anodized aluminum
> Built in LED, door sensor and buzzer> Holding Force: 280KG (600Lbs)> Voltage: DC12V and DC24V> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
> LED, door sensor and time delay> Holding Force: 280KG (600Lbs)> Voltage: DC12V and DC24V> Lock Size: 250Lx48.5Wx25H(mm)> Current Draw: 12V/500mA 24V/250mA
100% Cooper Material and built-in Standalone access control function> No Need to order standalone control> Connect it with our reader-ID-WG26. then it works> User Capacity: 1364> Voltage: 7-18V
> EL-W600 4Wires> Waterproof IP66> Holding Force: 280KG(600Lbs)> Voltage: DC12V> Lock Size: 225Lx45Wx25H(mm)
