Categories
> Control 2 door, 4 readers
> Communication Protocol: TCP/IP
> Door control: 2 doors, 2pcs relay
> Power Supply Input: 12V DC
Brand:
S4AItem NO.:

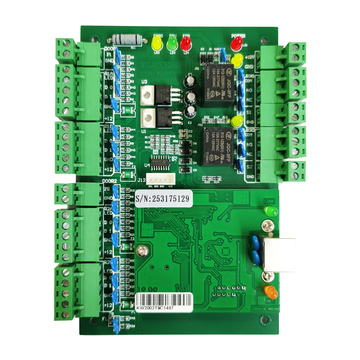

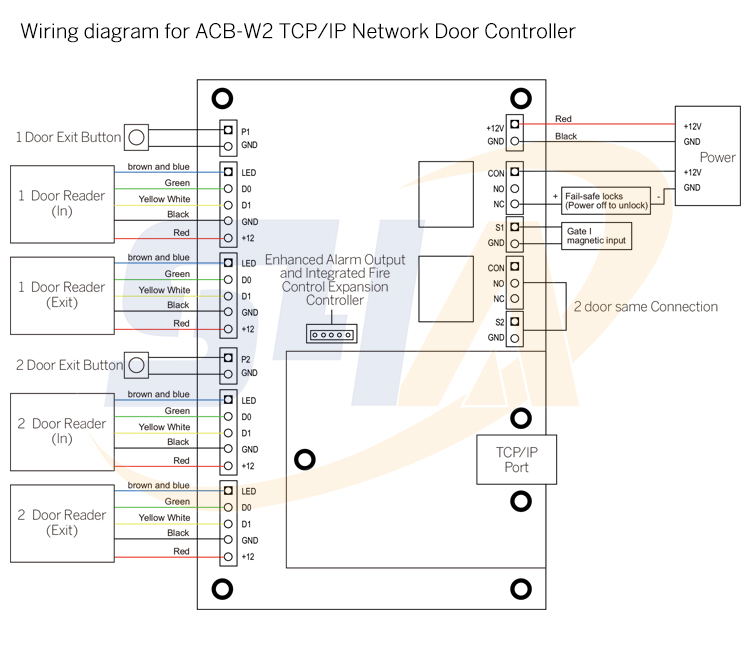

ACB-W2Two Doors TCP/IP Network Access Control Panel Wiegand Access Control
Model No.: ACB-W2
What is Access Control?
Access control is focused on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control, and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely.

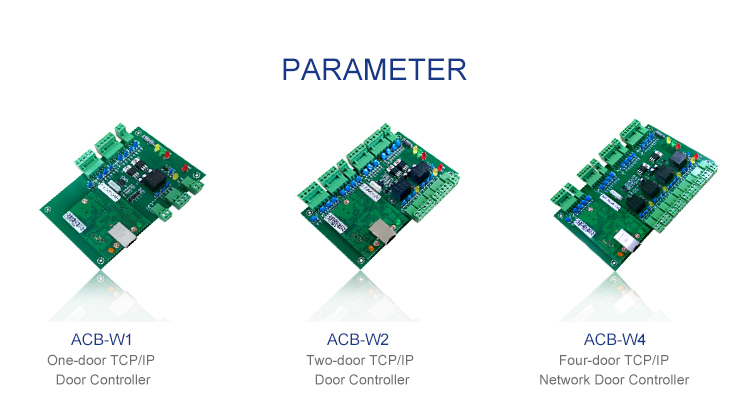

Parameter | One-door TCP/IP Network Door Controller | Two-door TCP/IP Network Door Controller | Four-door TCP/IP Network Door Controller |
Model # | ACB-W1 | ACB-W2 | ACB-W4 |
Communication | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive | TCP/IP 10M/100M adaptive |
Description | Control 1 door, get in and out the door by swiping card or get in by swiping the card and get out the door by button | Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button | Control 4 doors, get in the door by swiping the card and get out the door by button |
Size of PCB board | 160mm *106mm | 160mm *106mm | 218mm *106mm |
Size of Case | 273mm*228mm*65mm | ||
Power Supply | 12VDC 4-7A | ||
Power Consumption of Circuit Board | Less than 100mA | ||
Input Format of Reader | Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc) | ||
Quantity of Readers | 2pcs | 4pcs | 4 pcs |
Door Controlled | 1door | 2 Doors | 4 Doors |
Door opening time extending setting | 1-600 seconds(adjustable) | ||
Max q ' ty of controller | No limit | ||

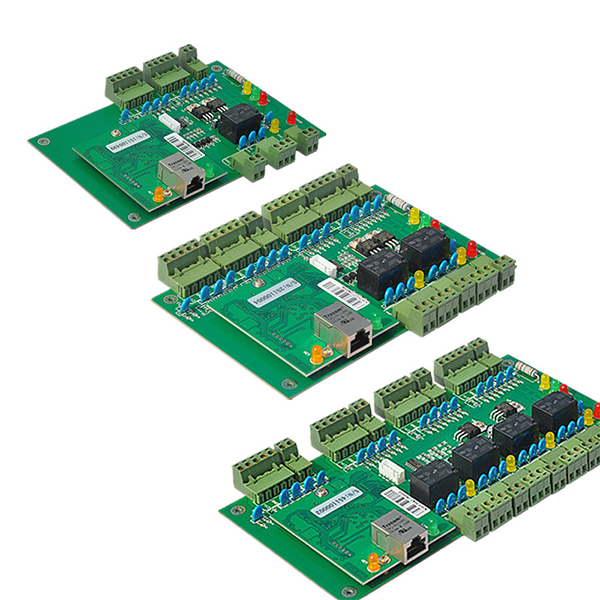

Here are all available powerful functions for our ACB-W1,ACB-W2, and ACB-W4
Two Doors TCP/IP Network Access Control Panel Wiegand Access Control | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
ACB-W2 | 80pcs | 20.9KG | 21.22KG | 63x52x32cm |
ACB-W2 Four Doors TCP/IP Network Access Control Panel Wiegand Access Control

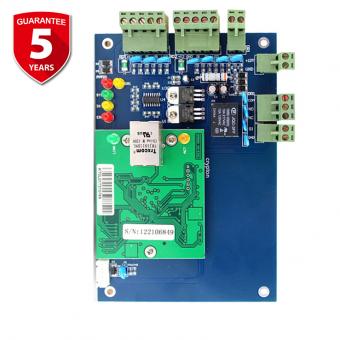

> Control 1 door, 2 readers> Communication Protocol: TCP/IP> Door control: 1 door, 1pcs relay> Power Supply Input: 12V DC
> Control 4 door, 4 readers> Communication Protocol: TCP/IP> Door control: 4 doors, 4pcs relay> Power Supply Input: 12V DC
>Dimensions: 86x86x35mm>Output Contact: +12V GND NO NC COM>Suitable for Door: Hollow Door>Standard Structure: Stainless steel Panel, Steel Button

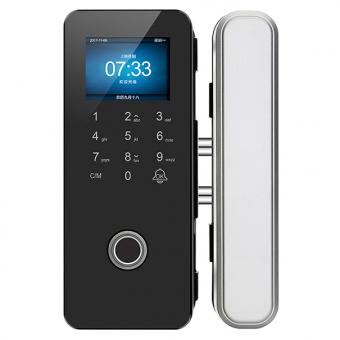

>Shell material: ABS flame retardant material >Fingerprint capacity: 50 pieces >How to open the door: Swipe/Password/Fingerprint >Swipe module: ID card/IC card (optional) >Operating Voltage: DC12V-18V
79 GHz High-Stability Imported Chip: Built with an imported core chip delivering superior interference immunity and long-term operational stability. Vehicle & Pedestrian Detection: Specifically designed for full-boom and fence gates, accurately identifying both large vehicles and individual pedestrians. Adjustable Detection Distance: Configurable range settings with a default distance of 3m and a maximum reach of up to 6m. High Precision & Small Target Recognition: Features extremely high sensitivity to reliably recognize small targets and prevent accidental gate closing. Bluetooth App & RS485 Configuration: Easily manage, calibrate, and adjust settings via the Radar assistant Bluetooth mobile application or RS485 interface.
>Operating Voltage:DC 12-24V >Operating Humidity:0%~95% >Door Relay Time:0～99s(adjustable)
Dimension: 80x30x25mm
24.125Ghz Doppler Microwave Technology: Ensures fast and accurate motion detection for automatic door systems. Flexible 0° to 90° Angle Adjustment: Easy far or near detection field tuning to suit various entrance layouts. High Mounting Altitude (Up to 4m): Supports higher ceiling or door frame installations up to 4 meters high. IP54 Weather Protection: Durable ABS housing offering IP54 level protection against dust and splashing water. Universal Power Input: Broad AC/DC 12–24V power compatibility for seamless door operator integration.
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
