>Shell material: ABS flame retardant material
>Fingerprint capacity: 50 pieces
>How to open the door: Swipe/Password/Fingerprint
>Swipe module: ID card/IC card (optional)
>Operating Voltage: DC12V-18V
Brand:
S4AItem NO.:
TF1000Touch Type With Backlight Keypad IP65 Waterproof Access Control System Biometric Access Control Machine
Model No.: TF1000
What is Fingerprint Access Control?
With fingerprint access control, you use a fingerprint scanner to create a template for each person you want to authorise for access. Then when they present their finger at a fingerprint reader, for example by a door, it's compared with the stored template in your database. If it's a match, they're given access.
Shell material | ABS flame retardant material |
Fingerprint capacity | 50 pieces |
common password | 1 set of |
How to open the door | Swipe/Password/Fingerprint |
Swipe module | ID card/IC card (optional) |
Operating Voltage | DC12V-18V |
Numeric keys | touch button |
Card reading capacity | 500 user cards |
personal password | 500 |
combination unlock | Fingerprint + Card + Password |

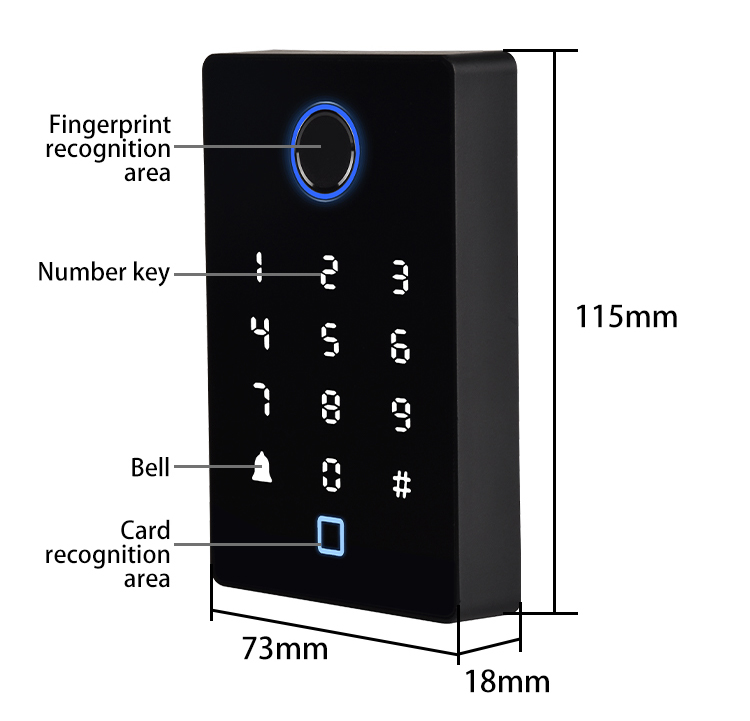

Product Size | 114X18X74mm |
Working current | Working < 0.15A, Standby < 0.05A |
S4A Datesheet_Touch Type With Backlight Keypad IP65 Waterproof Access Control System Biometric Access Control Machine
> Card type: EM Card> User Capacity: 2,000> Communication: USB/U Disk> Dimensions: 170x76x20mm
> Card type: EM, HID, MF, CPU Card (Factory default: EM 125KHz) > Metal backlight keypad > User capacity: 10,000 users > Dimensions: 152x60x24mm > Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 152x60x24mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x22mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 135x47x23mm> Waterproof IP68
> Two Accesses: Fingerprin, Pincode> Waterproof, up to IP66> Metal Design & Anti-Vandal> Standalone, one relay> 1,000 fingerprints, 2,000 PIN users> Supports 4-6 digits PIN> Wiegand 26-44 output> Pulse mode, toggle mode> Multi fingerprints/PINs access > Interlock, Support Principal Use
> Two Accesses: Fingerprin, Pincode> Waterproof, conforms to IP66 > Metal case, anti-vandal > One Programming relay output > Multi-color LED Status Display> PIN length: 4~6 digits> Integrated alarm & Buzzer output> Capacitive Fingerprint Sensor>1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
> Two Accesses: Fingerprin, Pincode> Hardware Platform: ARM9> Wiegand: WG26 output> Finger Capacity: 500 users
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
