>Dimensions: 86x86x35mm
>Output Contact: +12V GND NO NC COM
>Suitable for Door: Hollow Door

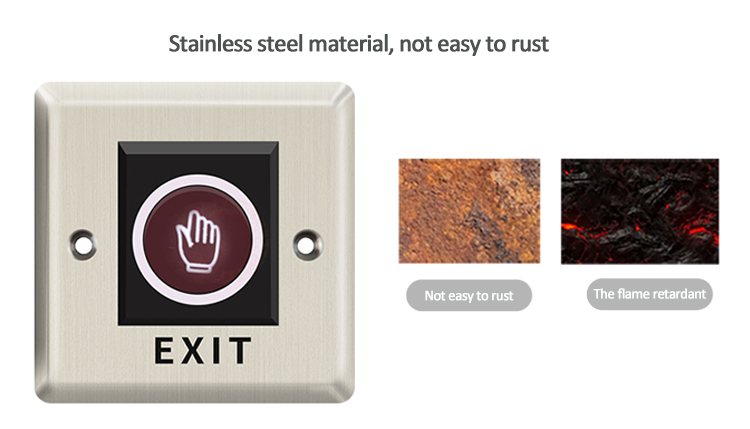

>Standard Structure: Stainless steel Panel, Steel Button
Brand:
S4AItem NO.:
EB-17Exit Button And Switches For For Access Control
Model No: EB-17

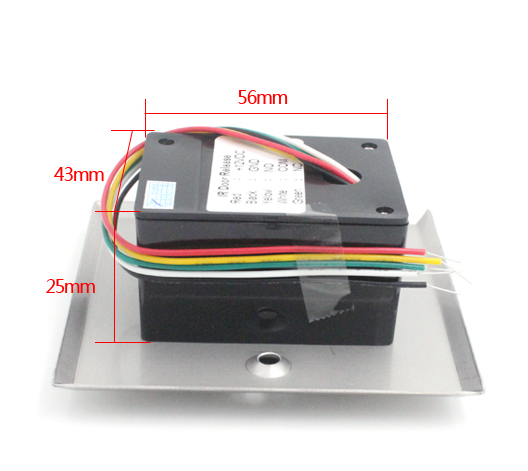

Dimensions | 86 X 86 X 35mm |
Standard Structure | Stainless steel Panel, Steel Button |
Current Rating | 3A,36VDC Max |

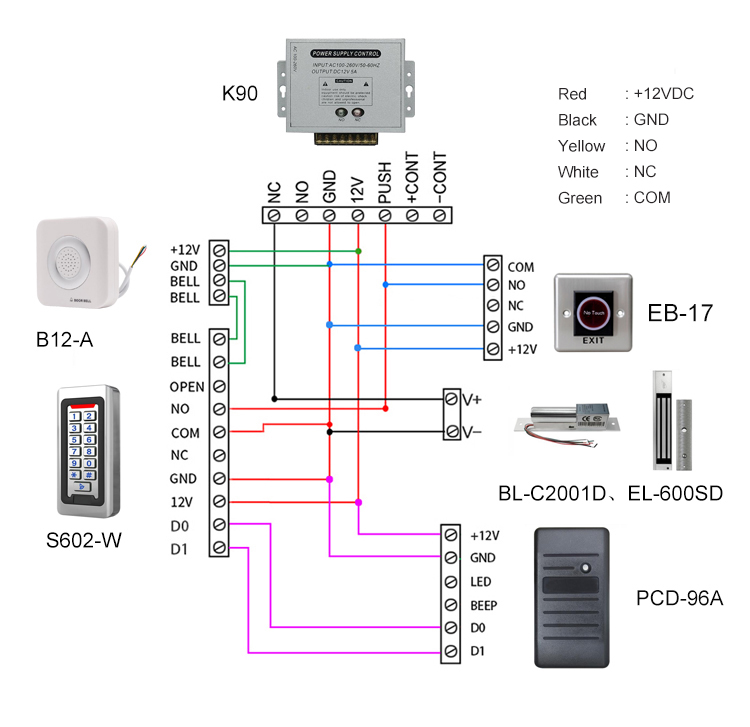

Output Contact | +12V GND NO NC COM |
Mechanical Life | 1000000 tested |
Suitable for Door | Hollow Door |
Operating temp | -10℃ ~ 55°C (14°F-131°F) |
Operating Humidity | 0-95% (non- condensing) |
Detection range | 0.1-10cm |
LED Indicator
White LED indicator | Power OFF |
Blue LED indicator | Power ON(standby) |
Red LED indicator | Power ON(sensation) |
Weight | 0.25kg |
Standard Packing | 70pcs |
Exit Button And Switches For For Access Control | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
EB-17 | 100PCS | 12.19KG | 10.44KG | 53x46x25cm |
S4A User Manual EB-17_No Touch Exit Button Contactless Infrared Door Button Switch for Access Control
