No Touch Exit Button Switch With Remote Control

>Dimension: 86x86x35mm

> Current Rating: 3A,36VDC Max
>Output Contact:+12V GND NO NC COM
>Suitable for Door:Hollow Door
>Operating temp: -10℃ ~ 55°C (14°F-131°F)

  • Brand:

    S4A
  • Item NO.:

    EB-17-R
  • Specifications

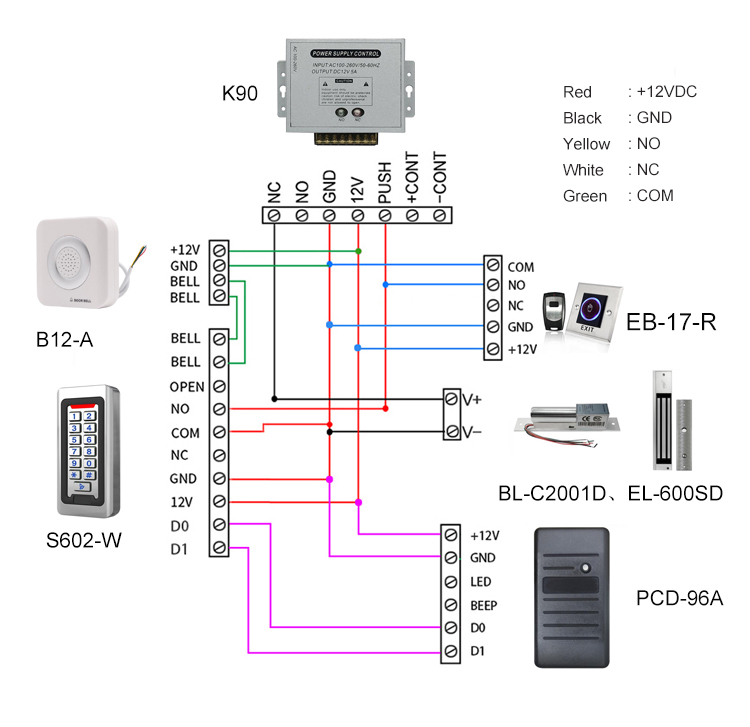

  • Wiring Diagram

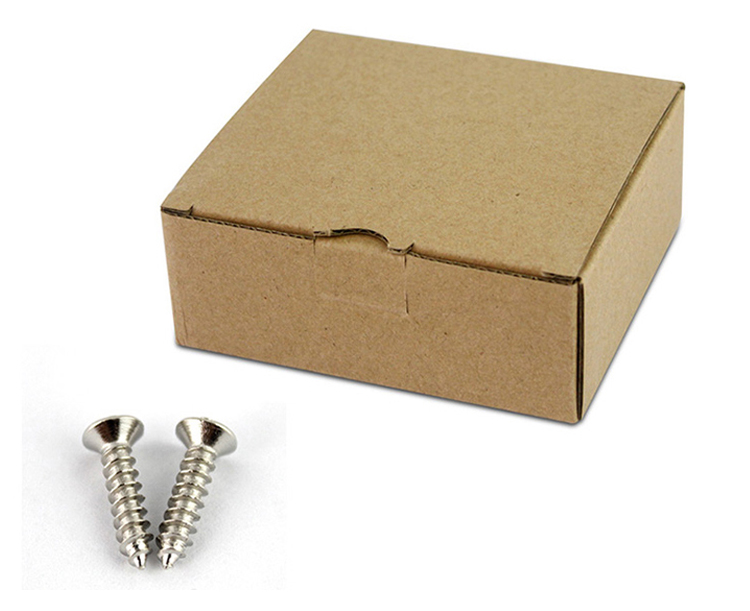

  • Package
  • Download

No Touch Exit Button Switch With Remote Control

Model No: EB-17-R

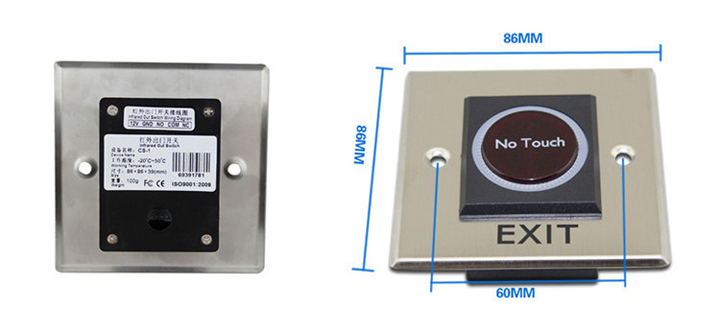

Dimensions

86 X 86 X 35mm

Standard Structure

Stainless steel Panel, Steel Button

Current Rating

3A,36VDC Max

Output Contact

+12V GND NO NC COM

Mechanical Life

1000000 tested

Suitable for Door

Hollow Door

Operating temp

-10℃ ~ 55°C (14°F-131°F)

Operating Humidity

0-95% (non-condensing)

Detection range

0.1-10cm

LED Indicator

White LED indicator

Power OFF

Blue LED indicator

Power ON(standby)

Red LED indicator

Power ON(sensation)

Weight

0.25kg

Standard Packing

70pcs

Remote Control Button

Remote Control Button

Remote Control Button

Remote Control Button

 No Touch Exit Button Switch With Remote Control

Model No.

Quantity/Carton

Gross Weight

Carton Size

EB-17-R

100pcs

11.9KG

50X45X24cm

Remote Control Button

S4A User Manual EB-17-R_Infrared Sensor Button Integrated Machine with Remote Control
