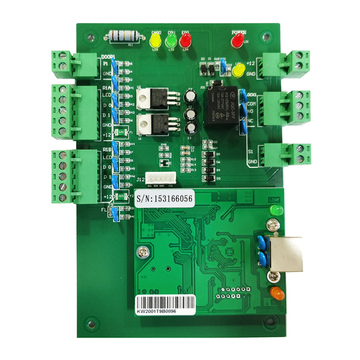

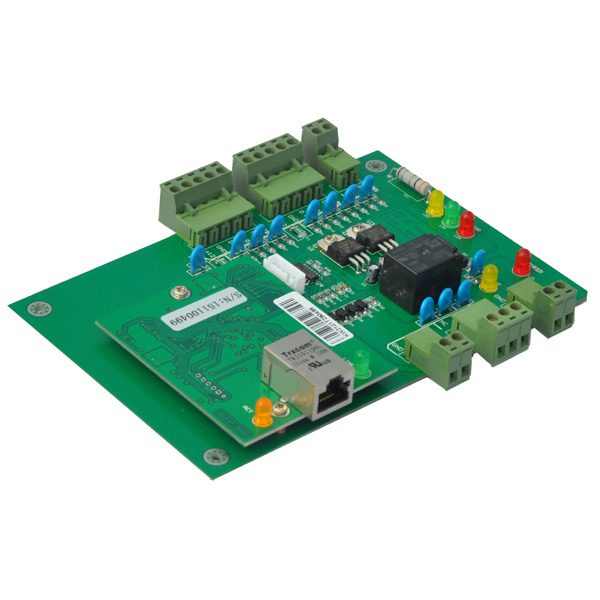

One Door TCP/IP Network Access Control Panel Wiegand Controller,Computer Based Software with Remote Open

> Control 1 door, 2 readers

> Communication Protocol: TCP/IP

> Door control: 1 door, 1pcs relay

> Power Supply Input: 12V DC

  • Brand:

    S4A
  • Item NO.:

    ACB-W1
  • Specifications

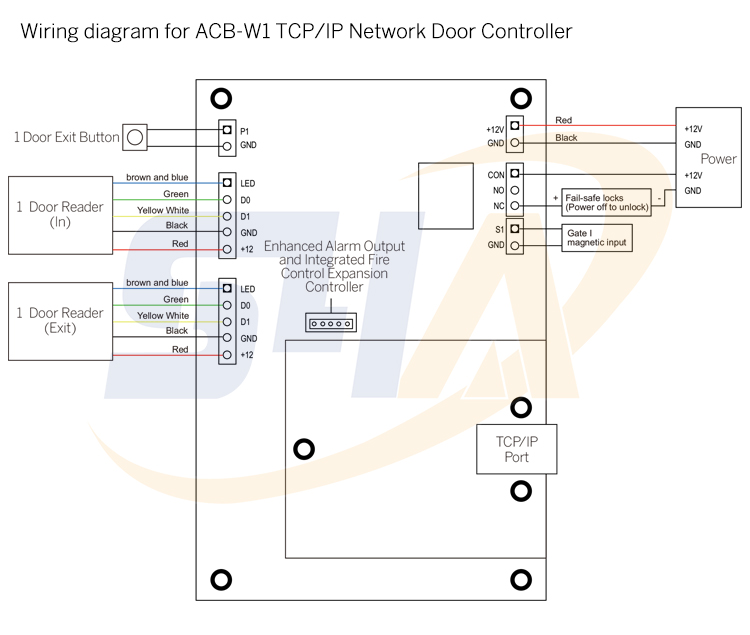

  • Wiring Diagram
  • Package
  • Download

One Door TCP/IP Network Access Control Panel Wiegand Controller, Computer-Based Software with Remote Open

Model No.: ACB-W1


What is Access Control?

Access control is focused on controlling who has access, e.g. to an office or facility. This is typically achieved by restricting access by certain types of groups or access levels. With access control visitors, employees, executives, freelancers or employees can easily and securely access.
There are different fields of access control such as network access control, web-server access control, and standalone access control. Unlike open access, access control provides control and security to address security and convenience to keep your business running securely.

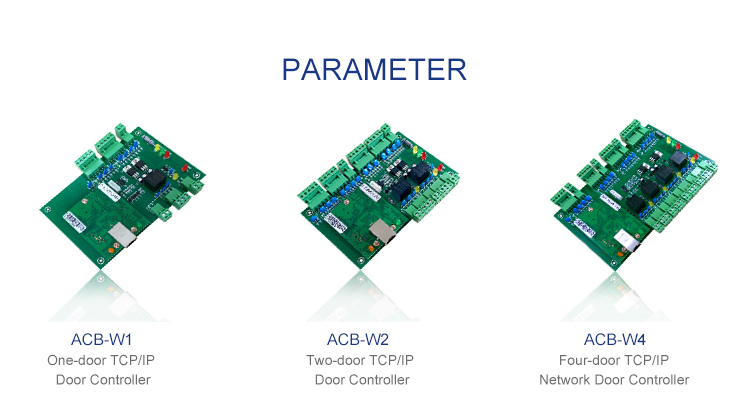

Parameter

One-door TCP/IP Network Door Controller

Two-door TCP/IP Network Door Controller

Four-door TCP/IP Network Door Controller

Model #

ACB-W1

ACB-W2

ACB-W4

Communication

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

TCP/IP 10M/100M adaptive

Description

Control 1 door, get in and out the door by swiping a card or get in by swiping the card and get out the door by button

Control 2 doors, get in and out the door by swiping the card or get in by swiping the card and get out the door by button

Control 4 doors, get in the door by swiping the card, and get outdoor by button

Size of PCB board

160mm *106mm

160mm *106mm

218mm *106mm

Size of Case

273mm*228mm*65mm

Power Supply

12VDC 4-7A

Power Consumption of Circuit Board

Less than 100mA

Input Format of Reader

Wiegand 26 (All card reader with compatible protocol, such as Motorola, HID, EM, Mifare one, etc)

Quantity of Readers

2pcs

4pcs

4 pcs

Door Controlled

1door

2 Doors

4 Doors

Door opening time extending setting

1-600 seconds(adjustable)

Max q ' ty of controller

No limit


Network ControllerNetwork Controller

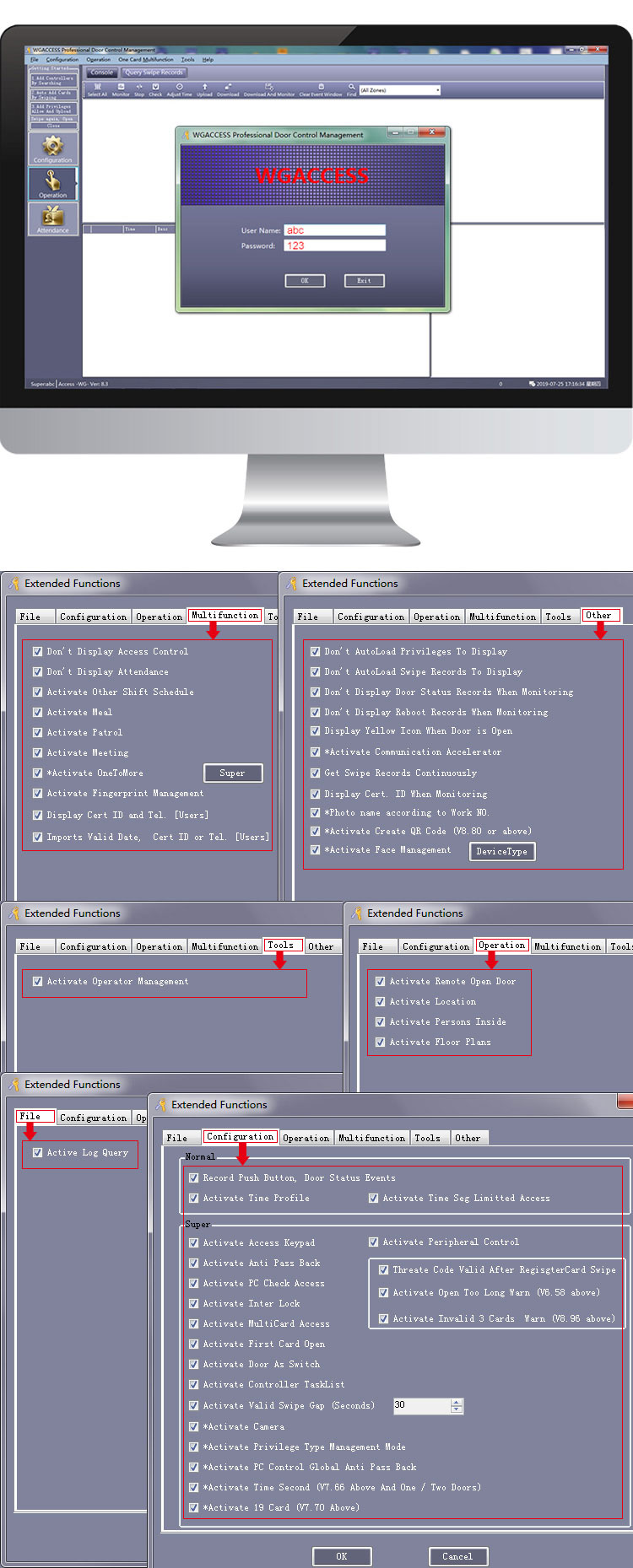

Here are all available powerful functions for our ACB-W1,ACB-W2 and ACB-W4

Network Controller

Network Controller

One Door TCP/IP Network Access Control Panel Wiegand Controller,Computer Based Software With Remote Open

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

ACB-W1

80pcs

20.9KG

21.22KG

63x52x32cm


ACB-W1 One Door TCP/IP Network Access Control Panel Wiegand Controller,Computer-Based Software with Remote Open

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
Access Control Solution
Two Doors TCP/IP Network Access Control Panel Wiegand Access Control

> Control 2 door, 4 readers> Communication Protocol: TCP/IP> Door control: 2 doors, 2pcs relay> Power Supply Input: 12V DC

Ip Access Control
Access Controller, Network TCP/IP Access Control Panel Board Reader for Wiegand 4 Door Use

> Control 4 door, 4 readers> Communication Protocol: TCP/IP> Door control: 4 doors, 4pcs relay> Power Supply Input: 12V DC

Smoke Detector Fire Alarm
Wireless Fire Alarm Smoke Heat Detector

>lnput Voltage:DC3V LR03>Installation Method:Ceiling Mounted

Smart Sensor
360 Degree Ceiling Mount Occupancy Sensor, 110-240V PIR Motion Sensor Switch

>USB input voltage:DC5V/2A(USB cannot be used with dry battery, only rechargeable battery)>Battery:DC3V LRO3*2>Standby current:≤75uA>Alarming current:≤60mA

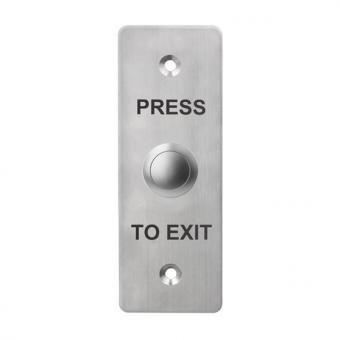

Push Exit Button
