> With Signal Output (need to customized)
> Voltage: DC12V or DC24V
> Holding Force: 180KG(350Lbs)
> Lock Size: 170Lx41Wx21H(mm)
> Current Draw: 12V/300mA 24V/150mA
Brand:
S4AItem NO.:

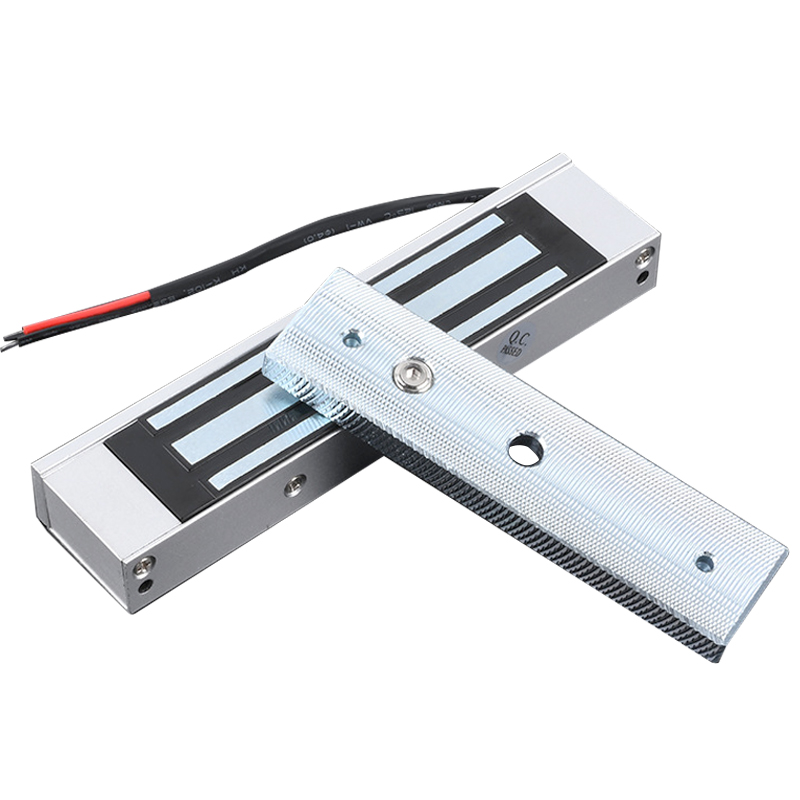

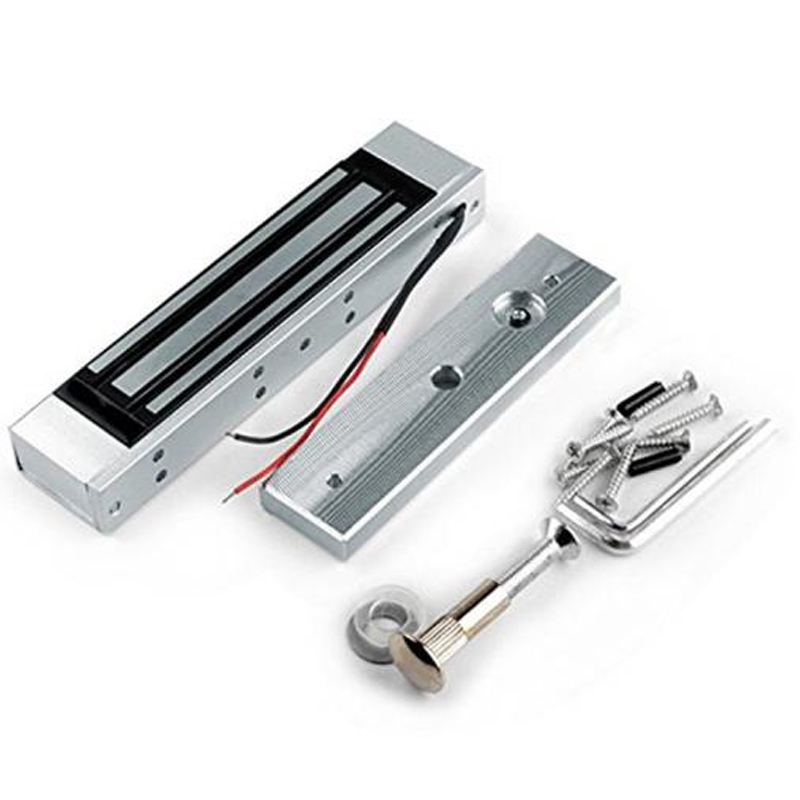

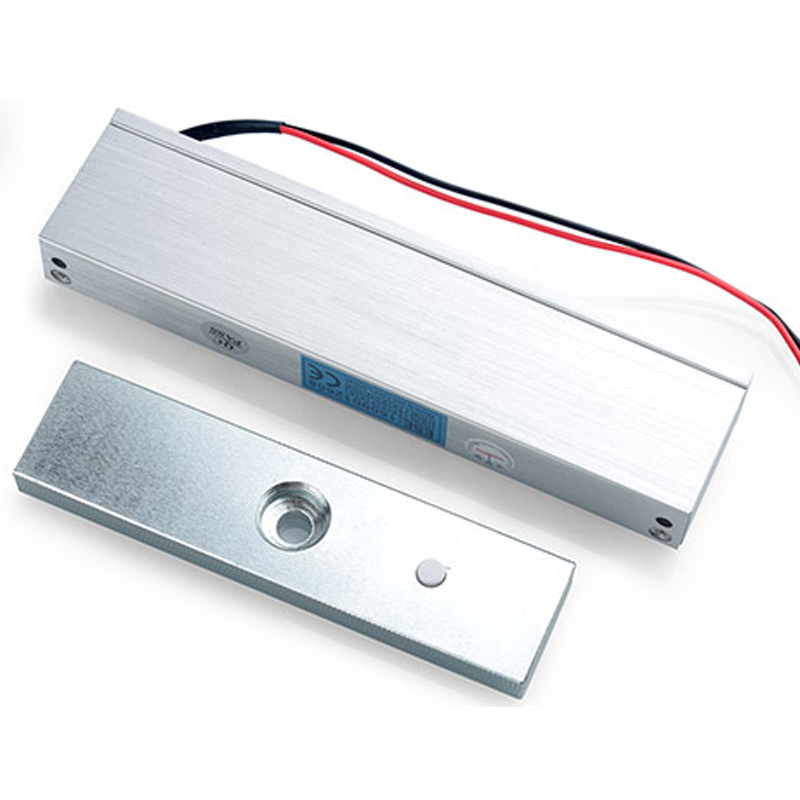

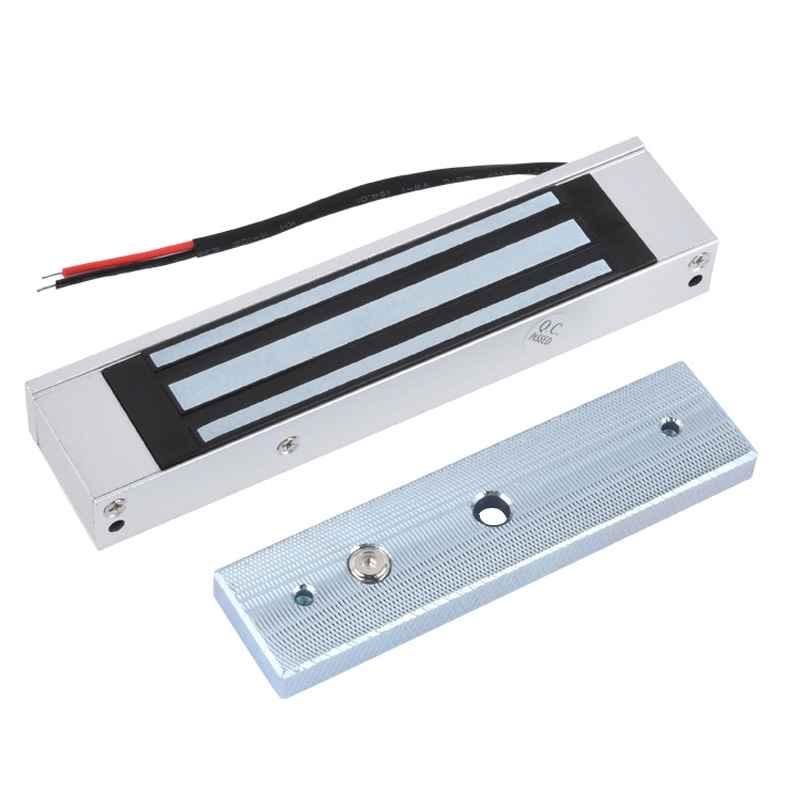

EL-350STSingle Door 180KG Electromagnetic Lock
Model No.: EL-350ST
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
EL-350 | Without Signal Output |
EL-350ST | With Signal Output |
Lock Size | 170Lx41.5Wx20.5H(mm) |
Armature plate | 130Lx33Wx9.3H(mm) |
Holding Force | 180KG(350Lbs) |
Voltage | DC12V or DC24V (24V need to customize) |
Current Draw | 12V/280mA 24V/150mA |
Signal Output | Pls see EL-350TS |
Suitable for | Wooden door, Glassdoor, Metal door, Fireproof door |
Surface Temp | ≤20°C |
Operating Temp | -10℃ ~ 55℃ (14°F~131°F) |
Suitable Humidity | 0~90%(non-condensing) |
Finishes for Shell | Anodized aluminum surface texture processing |
Finishes for Magnetic | Zinc |
Finishes for Armature | Zinc |
Weight | 1.2kg |
Standard Packing | 20pcs |
180kg Force Magnetic Lock | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-350 | 170x41.5x20.5mm | 30pcs | 30.8KG | 50x26x24cm |
EL-350ST | 30pcs | 30.8KG | ||
S4A Instruction_EL-350ST 180kg Force Magnetic Lock
EL-350D (Without Signal Output)> Voltage: DC12V and DC24V (adjustable)> Current Draw: 12V/300mAx2 24V/150mAx2> Lock Size: 340Lx41Wx21H(mm)> Armature plate: 130Lx33Wx9.3H(mm)> Holding force: 180KGx2 (350lbsx2)
Fine iron electro plating> Holding force: 220lbs (110KG)> Voltage: 12V or 24V
> Without Signal Output> Voltage: DC12V or DC24V> Holding Force: 180KG(350Lbs)> Lock Size: 170Lx41Wx21H(mm)> Current Draw: 12V/300mA 24V/150mA
> Voltage: DC12V or DC24V> Holding Force: 180KG(350Lbs)> Lock Size: 200Lx41.7Wx21.7H(mm)> Current Draw: 12V/300mA 24V/150mA
> Without door position detection output> Voltage: DC12V or DC24V> Holding Force: 180kg(350Lbs)> Current Draw: 12V/480mA 24V/240mA
> With Signal output> Voltage: DC12V or DC24V> Holding Force: 180kg(350Lbs)> Current Draw: 12V/480mA 24V/240mA
EL-350DS (With LED)> Voltage: DC12V and DC24V (adjustable)> Current Draw: 12V/300mAx2 24V/150mAx2> Lock Size: 340Lx41Wx21H(mm)> Armature plate: 130Lx33Wx9.3H(mm)> Holding force: 180KGx2 (350lbsx2)
EL-350DST (LED, door sensor and time delay)> Voltage: DC12V and DC24V (adjustable)> Current Draw: 12V/300mAx2 24V/150mAx2> Lock Size: 340Lx41Wx21H(mm)> Armature plate: 130Lx33Wx9.3H(mm)> Holding force: 180KGx2 (350lbsx2)> With Singal output (need to customized)> LED, door sensor and time delay
