Time Delay Magnetic Lock 180KG

EL-350DST (LED, door sensor and time delay)

> Voltage: DC12V and DC24V (adjustable)

> Current Draw: 12V/300mAx2  24V/150mAx2

> Lock Size: 340Lx41Wx21H(mm)

> Armature plate: 130Lx33Wx9.3H(mm)

> Holding force: 180KGx2 (350lbsx2)

> With Singal output (need to customized)

> LED, door sensor and time delay

  • Brand:

    S4A
  • Item NO.:

    EL-350DST
  • Specifications
  • Wiring Diagram
  • Package
  • Download

Residential Door Electromagnetic Lock 350LBS

Model No.: EL-350DST


What is Electromagnetic Lock?


Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.

Electromagnetic locks are fail-safe by design.


EL-350D

Without Signal Output

EL-350DS

With LED (Red only)

EL-350DST

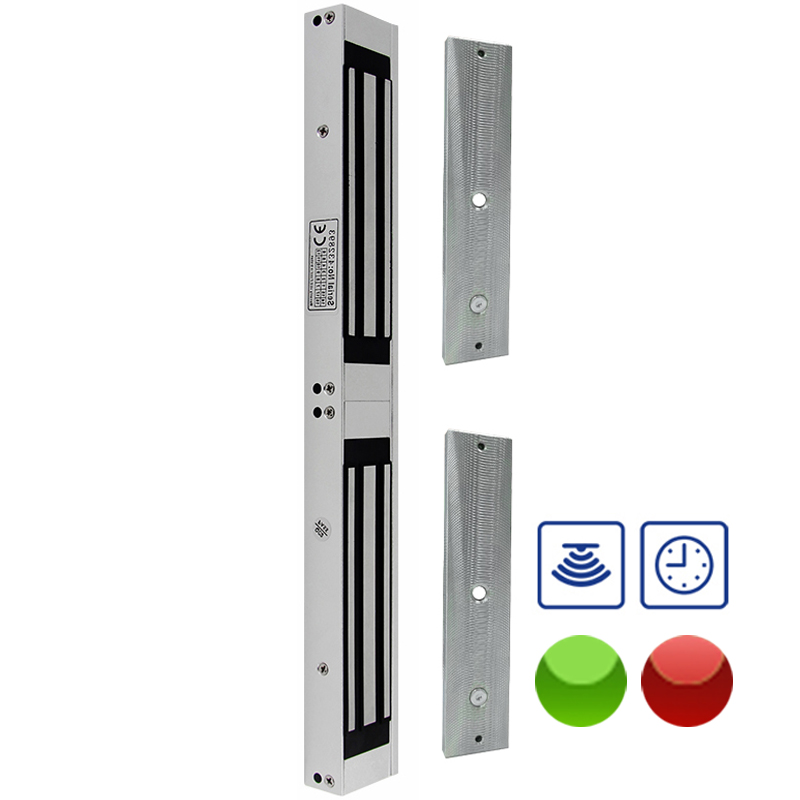

LED, door sensor, and time delay

Lock Dimension

340Lx41.4Wx20.5H(mm)

Armature Plate Dimension

130Lx33Wx9.3H(mm)

Holding Force

180kgx2 (350Lbsx2)

Input Voltage

12V/300mAx2  24V/150mAx2

Current Draw

12V/300mAx2  24V/150mAx2

Suitable for

Wooden door, Glassdoor, Metal door, Fireproof door

Signal Output

Need to order EL-D350S

Surface Temp

≤20℃

Operating Temp

-10℃ ~ 55℃ (14°F~131°F)

Suitable Humidity

0~90%(non-condensing)

Finishes for Shell

Anodized aluminum

Finishes for Magnetic

Zinc

Finishes for Armature

Zinc

Weight

2.4 KG

Standard Packing

6pcs

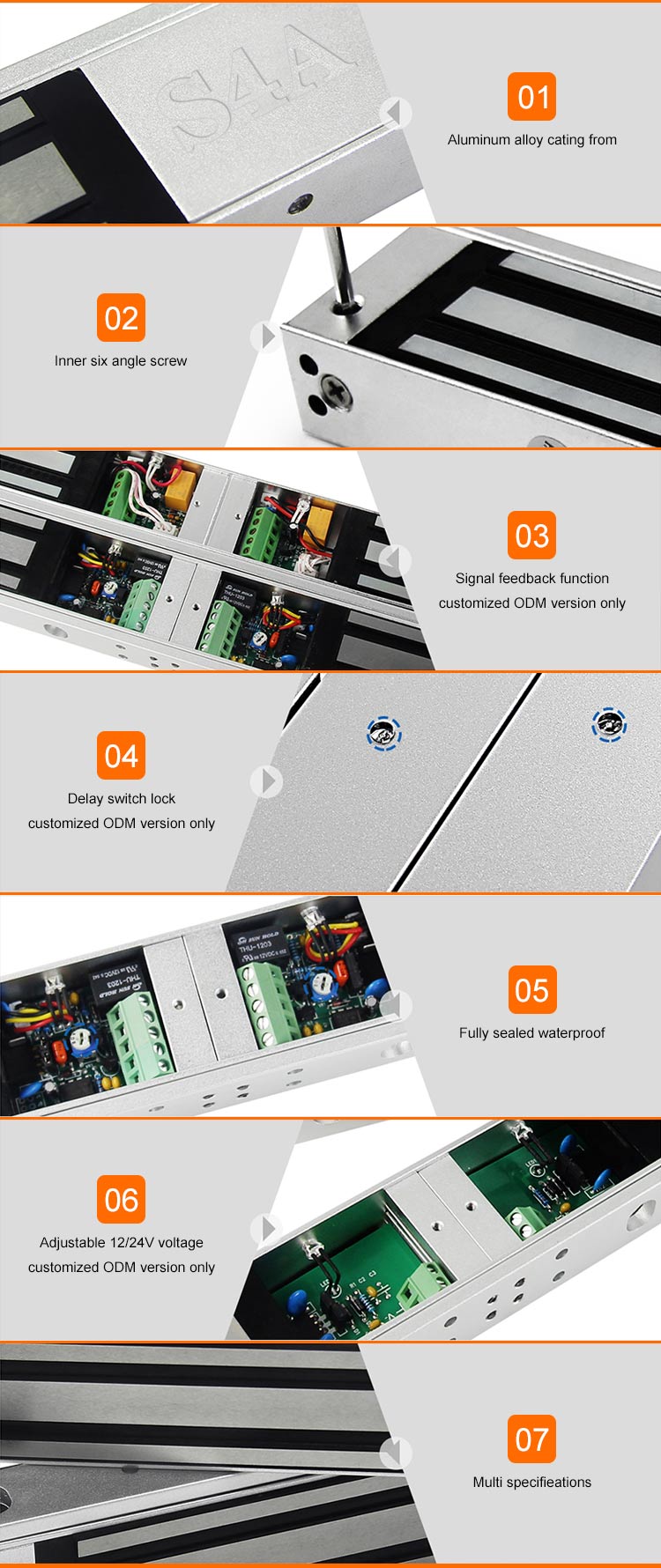

magnetic lock time delaymagnetic lock time delaymagnetic lock time delay

Time delay magnetic lock 180KG

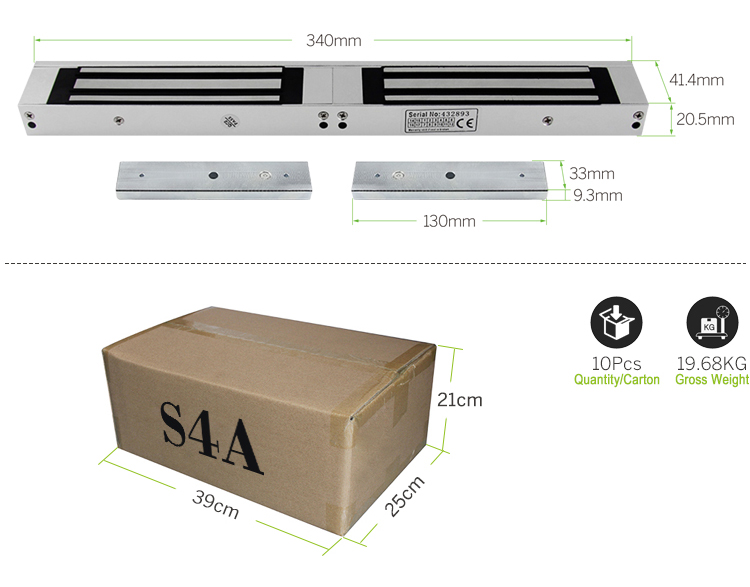

Time Delay Magnetic Lock 180KG

Model No.

Dimension

Quantity/Carton

Gross Weight

Carton Size

EL-350D

340x41.4x20.5mm

10pcs

19.68KG

39x25x21cm

EL-350DS

10pcs

19.68KG

EL-350DST

10pcs

19.68KG

magnetic lock time delay

S4A Instruction_EL-350DST_Residential Door Electromagnetic Lock 350LBS
