Fine iron electro plating
> Holding force: 220lbs (110KG)
> Voltage: 12V or 24V
Brand:
S4AItem NO.:

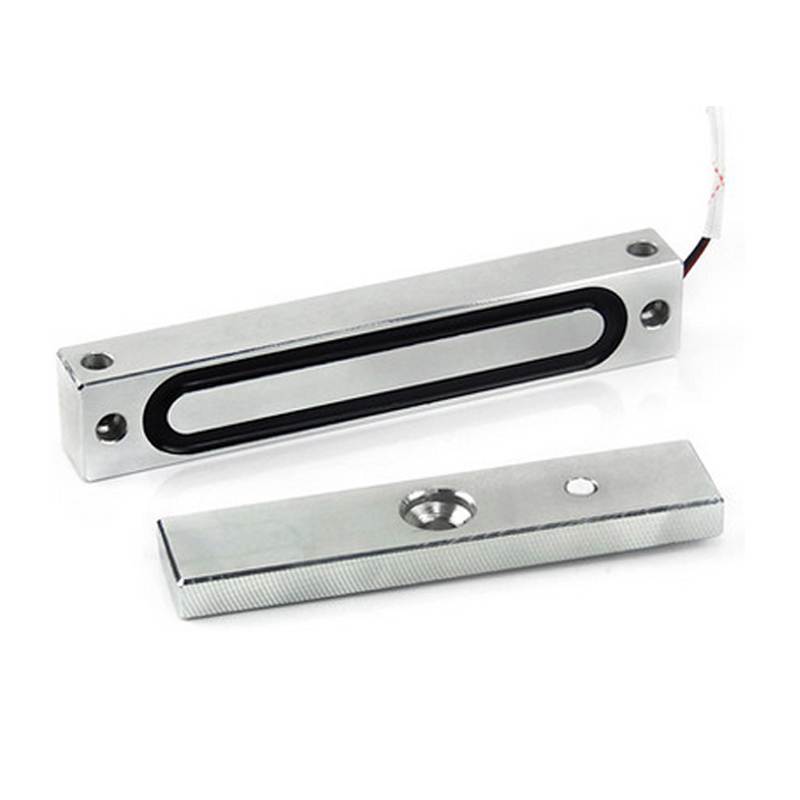

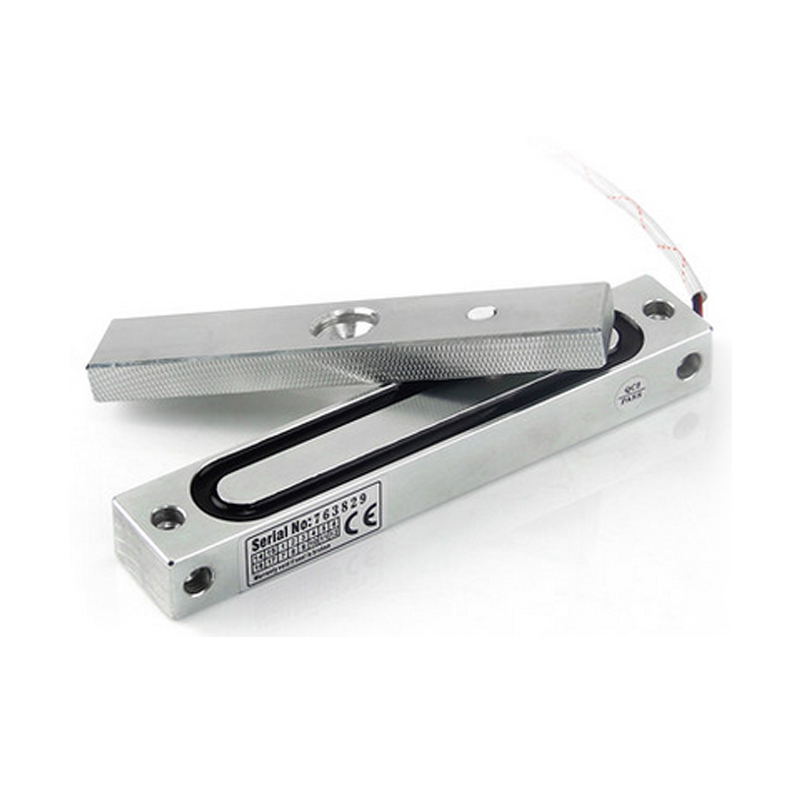

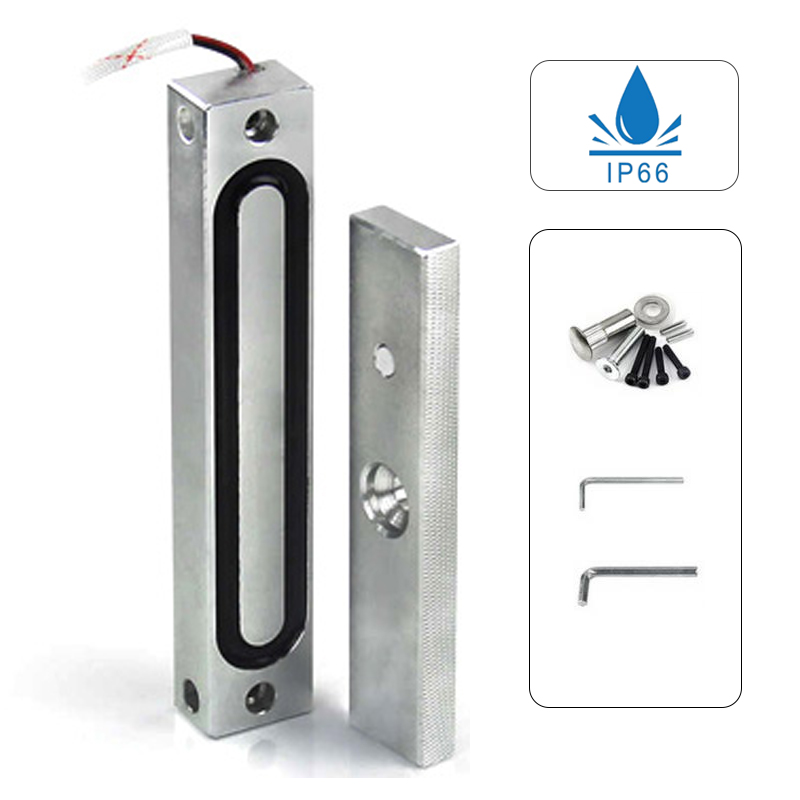

EL-W220110kg Door Gate Access Electric Outdoor Magnetic Lock Waterproof 12VDC
Model No.: EL-W220
What is Electromagnetic Lock?
Electromagnetic locks consist of an armature and a coil assembly, which become magnetized when an electric current passes through them. This magnetic field secures the door and electronically controls when doors are locked and unlocked.
Electromagnetic locks are fail-safe by design.
Fail-Safe | Power on to lock |

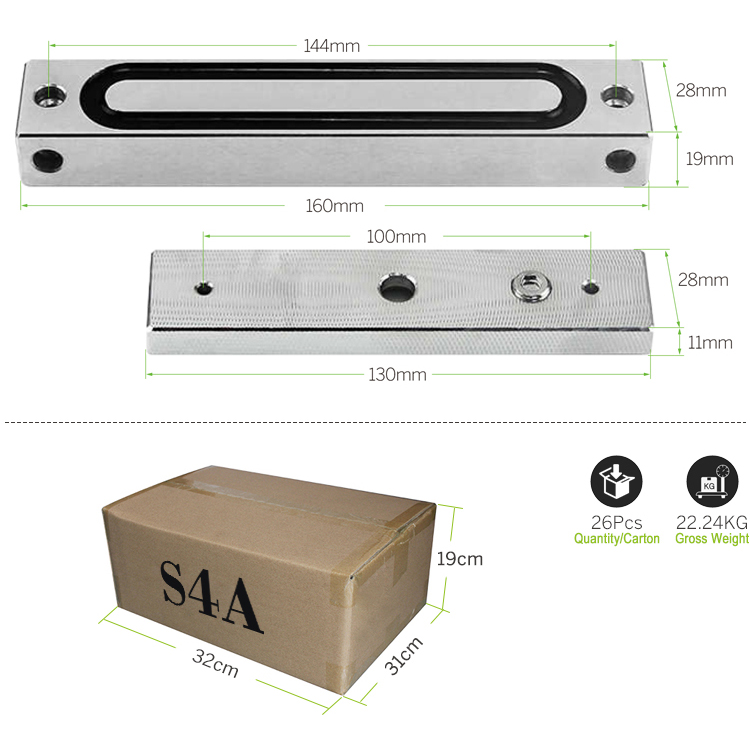

Lock dimensions | 160L x 28W x 19H mm |
Armature plate dimensions | 130L x 28W x 11H mm |
Holding force | 110Kg(220Lbs) |
Current Draw | 12V200mA, 24V/100mA |
Cover Finish | Anodized aluminum housing |
Lock Finish | Zinc |
Armature Plate Finish | Zinc |
Weight | 1.0 KG |
Surface Temp | ≤20℃ |
Operating Temp | -10℃ ~ 55℃ (14°F~131°F) |
Humidity | 0~95%(non-condensing) |
Application | Wooden door, Glassdoor, Metal door, Fireproof door |
110kg Door Gate Access Electric Outdoor Magnetic Lock Waterproof 12VDC | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
EL-W220 | 160x28x19mm | 26pcs | 22.24KG | 32x31x19cm |
S4A User Manual_110KG Outdoor Magnetic Lock Waterproof 12VDC
EL-350D (Without Signal Output)> Voltage: DC12V and DC24V (adjustable)> Current Draw: 12V/300mAx2 24V/150mAx2> Lock Size: 340Lx41Wx21H(mm)> Armature plate: 130Lx33Wx9.3H(mm)> Holding force: 180KGx2 (350lbsx2)
> Without Signal Output> Voltage: DC12V or DC24V> Holding Force: 180KG(350Lbs)> Lock Size: 170Lx41Wx21H(mm)> Current Draw: 12V/300mA 24V/150mA
> With Signal Output (need to customized)> Voltage: DC12V or DC24V> Holding Force: 180KG(350Lbs)> Lock Size: 170Lx41Wx21H(mm)> Current Draw: 12V/300mA 24V/150mA
> Voltage: DC12V or DC24V> Holding Force: 180KG(350Lbs)> Lock Size: 200Lx41.7Wx21.7H(mm)> Current Draw: 12V/300mA 24V/150mA
> Without door position detection output> Voltage: DC12V or DC24V> Holding Force: 180kg(350Lbs)> Current Draw: 12V/480mA 24V/240mA
> With Signal output> Voltage: DC12V or DC24V> Holding Force: 180kg(350Lbs)> Current Draw: 12V/480mA 24V/240mA
EL-350DS (With LED)> Voltage: DC12V and DC24V (adjustable)> Current Draw: 12V/300mAx2 24V/150mAx2> Lock Size: 340Lx41Wx21H(mm)> Armature plate: 130Lx33Wx9.3H(mm)> Holding force: 180KGx2 (350lbsx2)
EL-350DST (LED, door sensor and time delay)> Voltage: DC12V and DC24V (adjustable)> Current Draw: 12V/300mAx2 24V/150mAx2> Lock Size: 340Lx41Wx21H(mm)> Armature plate: 130Lx33Wx9.3H(mm)> Holding force: 180KGx2 (350lbsx2)> With Singal output (need to customized)> LED, door sensor and time delay
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
