>User capacity:1000 cards, passwords
>Fingerprint:200
>Video:Video intercom (Tuya APP)
Brand:
S4AItem NO.:

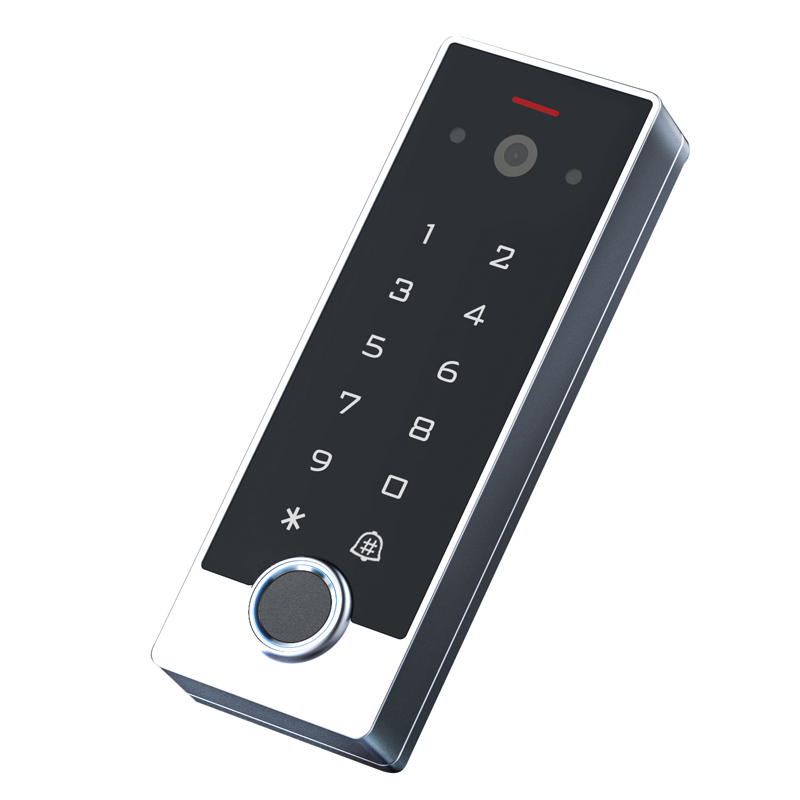

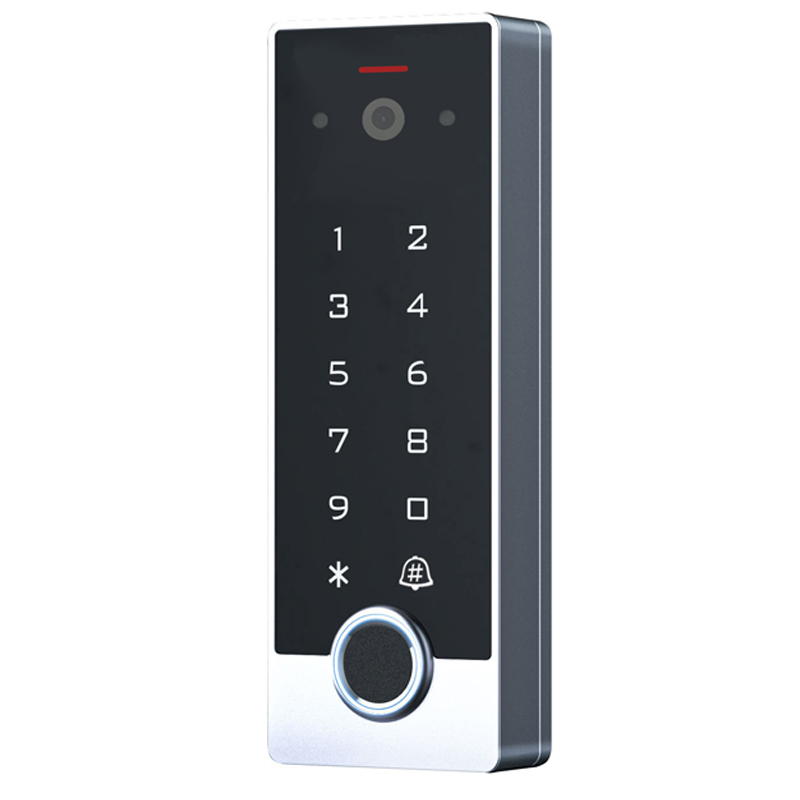

VF2Tuya Video Intercom With Fingerprint Access Control System
Model No.: VF2
Features
Zinc alloy shell, acrylic panel
Multifunctional machine, Wiegand 26/34 input and output
Remote unlocking via mobile phone, video surveillance intercom to view visitor records
Temporary password and public password can be set
Supports data mutual guidance and data backup
Fingerprint, password, card, mobile phone remote, multiple combination unlocking methods
APP can be used to adjust basic machine parameters and manage user data
Card reading type | ID, IC, NFC |
Working voltage | DC12V-24V |
Waterproof grade | IP65 |
Electric lock output | ≤1A |
Ambient humidity | 10%-50% |
Card reading distance | 3-8cm |
Wide-angle camera | 100W (pixels) |
User capacity | 1000 cards, passwords; 200 fingerprints |
Quiescent current | ≤65mA |
Output short circuit protection time | ≤100μS |
Ambient temperature | -25～55℃ |
Overall dimensions | 150x52x25mm |
Video | Video intercom (Tuya APP) |
> Card type: EM Card> User Capacity: 2,000> Communication: USB/U Disk> Dimensions: 170x76x20mm
> Card type: EM, HID, MF, CPU Card (Factory default: EM 125KHz) > Metal backlight keypad > User capacity: 10,000 users > Dimensions: 152x60x24mm > Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 152x60x24mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x22mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 135x47x23mm> Waterproof IP68
> Two Accesses: Fingerprin, Pincode> Waterproof, up to IP66> Metal Design & Anti-Vandal> Standalone, one relay> 1,000 fingerprints, 2,000 PIN users> Supports 4-6 digits PIN> Wiegand 26-44 output> Pulse mode, toggle mode> Multi fingerprints/PINs access > Interlock, Support Principal Use
> Two Accesses: Fingerprin, Pincode> Waterproof, conforms to IP66 > Metal case, anti-vandal > One Programming relay output > Multi-color LED Status Display> PIN length: 4~6 digits> Integrated alarm & Buzzer output> Capacitive Fingerprint Sensor>1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
> Two Accesses: Fingerprin, Pincode> Hardware Platform: ARM9> Wiegand: WG26 output> Finger Capacity: 500 users
