>Working voltage: DC-12V-10%
>Power supply requirements: DC-12V 3-5A
>Face registration: 2000
>Password registration:2000
>Card registration:2000
Brand:
S4AItem NO.:

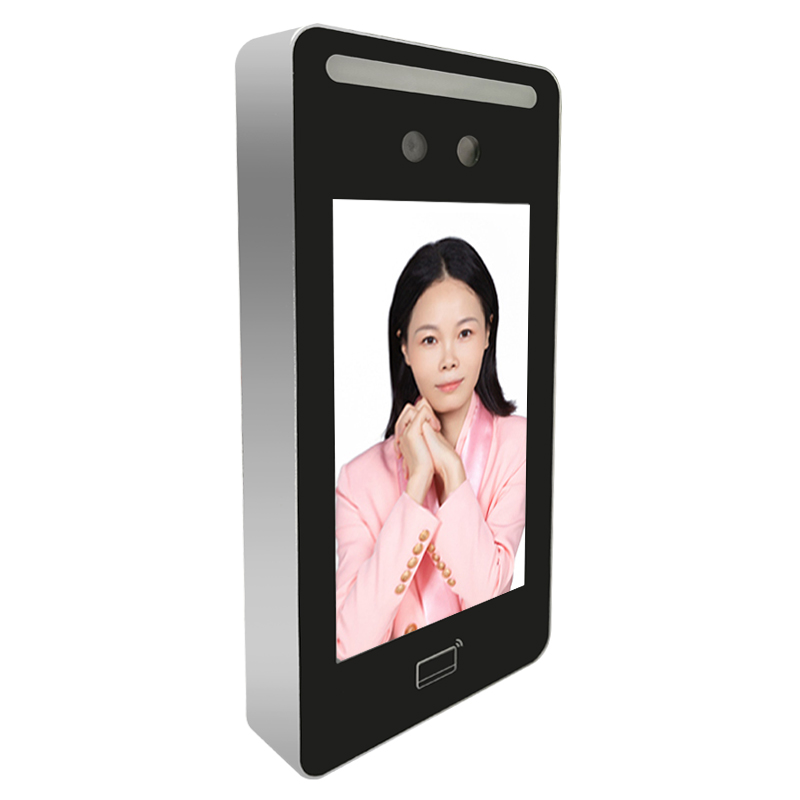

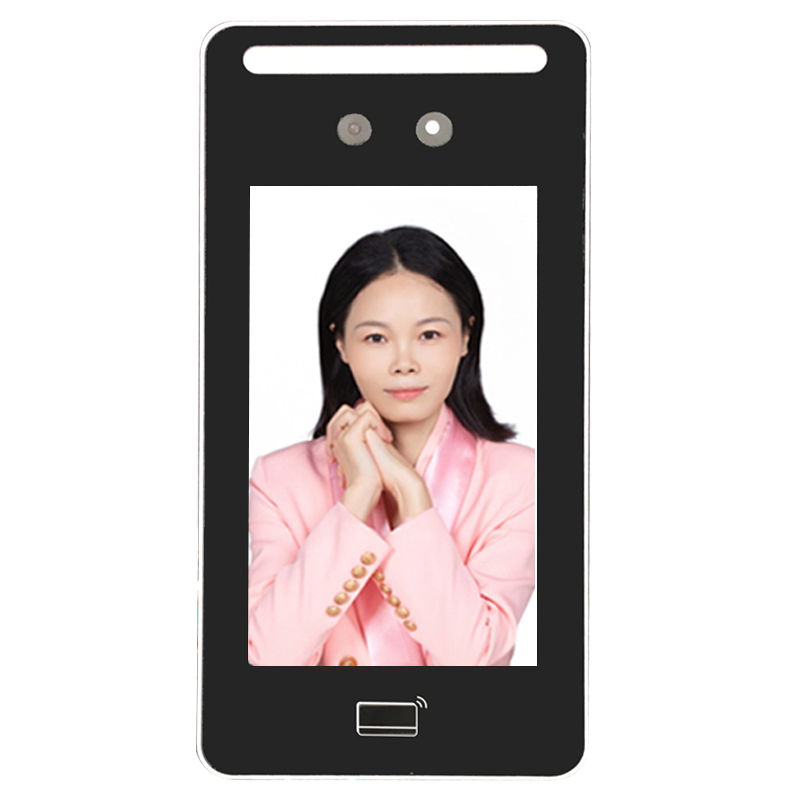

DT035 Inch Biometric Face Identification Access Controller with USB port
Model No.:DT03
Product introduction
This series of products is designed with a new AI processor and uses RTOS intelligent operating system. It is powerful, stable and reliable. It is a new generation of multi-functional face recognition access control all-in-one machine. It can include card reader mode, all-in-one machine mode and other functions. Used in different occasions, widely used in offices, homes, villas, banks, prisons and other places.
operating system | RTOS intelligent operating system |
Camera | 200W pixel high-definition color camera\200W infrared signature camera |
fill light | LED high-brightness fill light (automatically controlled according to ambient light) |
Operating Voltage | DC-12V-10% |
Power supply requirements | DC-12V 3-5A |
LCD | 5-inch LCD screen, capacitive touch screen 272*480 |
Operating temperature | -15℃～+45℃ (storage temperature -10℃～+65℃) |
Working relative humidity | 20%～90% (storage humidity 20%～90±2%) |
Face registration | 2000 |
Password registration | 2000 |
Card registration | 2000 |
user record | 100000 |
keyboard | Touch screen virtual buttons |
Ways of identifying | Face/card/password, card+password, password+face, card+face (with ID card) |
recognition distance | Pure dynamic face recognition-0.5-3 meters, open living body 0.5-1.5 meters |
Smart functions | Infrared living identification |
Door magnetic signal | One door sensor signal input |
doorbell control | 1 set of signals |
Relay output | Door opening signal control 1 channel |
Wiegand signal input | 1 set of WG26\34 (external reading head can be connected) |
Wiegand output | 1 set of WG26\34 output (can be used as a reading head externally connected to the controller) |
weight | 500g |

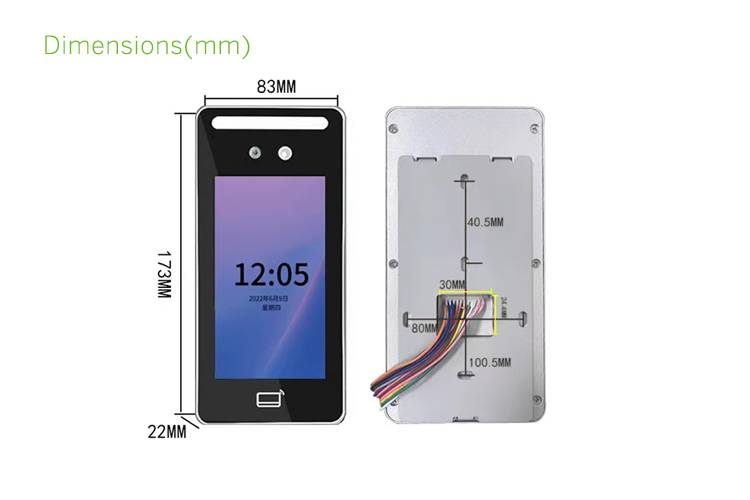

Equipment size (mm) | 173*83*22mm |
> Card type: EM Card> User Capacity: 2,000> Communication: USB/U Disk> Dimensions: 170x76x20mm
> Card type: EM, HID, MF, CPU Card (Factory default: EM 125KHz) > Metal backlight keypad > User capacity: 10,000 users > Dimensions: 152x60x24mm > Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 152x60x24mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x22mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 135x47x23mm> Waterproof IP68
> Two Accesses: Fingerprin, Pincode> Waterproof, up to IP66> Metal Design & Anti-Vandal> Standalone, one relay> 1,000 fingerprints, 2,000 PIN users> Supports 4-6 digits PIN> Wiegand 26-44 output> Pulse mode, toggle mode> Multi fingerprints/PINs access > Interlock, Support Principal Use
> Two Accesses: Fingerprin, Pincode> Waterproof, conforms to IP66 > Metal case, anti-vandal > One Programming relay output > Multi-color LED Status Display> PIN length: 4~6 digits> Integrated alarm & Buzzer output> Capacitive Fingerprint Sensor>1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
> Two Accesses: Fingerprin, Pincode> Hardware Platform: ARM9> Wiegand: WG26 output> Finger Capacity: 500 users
