Stainless Steel Exit Button

Dimension: 91x30x20mm

  • Brand:

    S4A
  • Item NO.:

    EB-12
  • Specifications

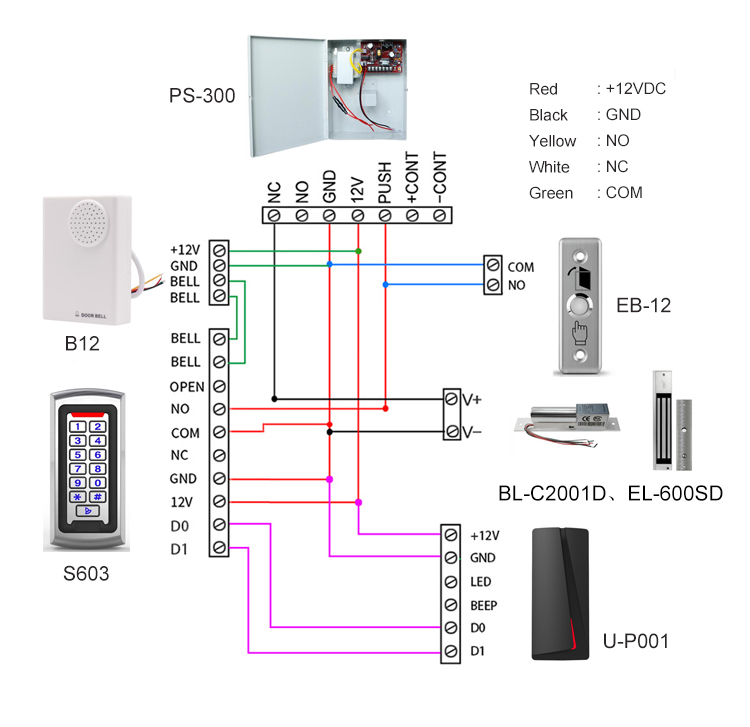

  • Wiring Diagram
  • Package
  • Download

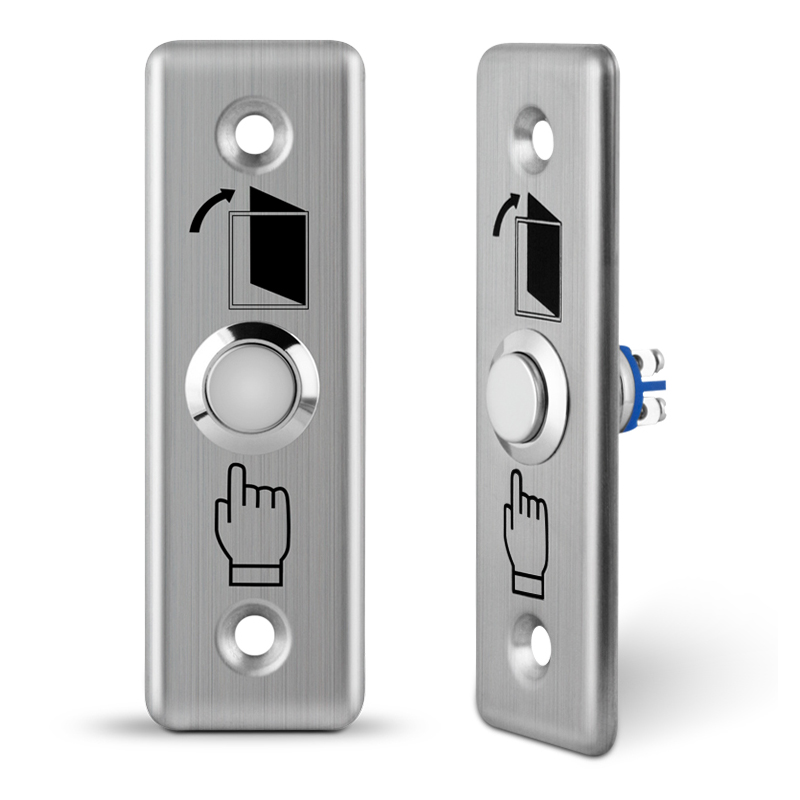

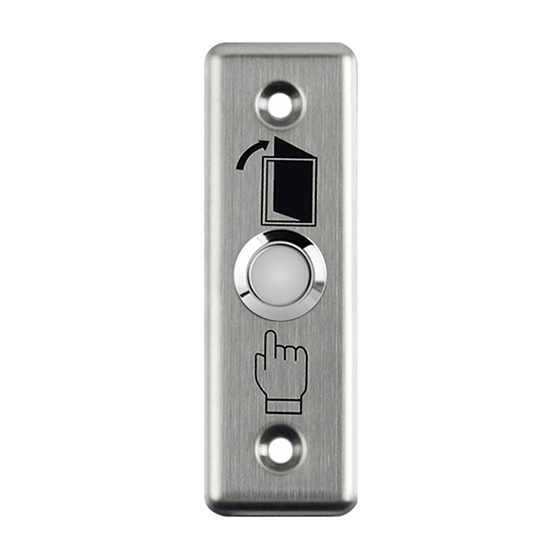

Stainless Steel Exit Button

Model No: EB-12


EB-12

Without LED

EB-12A

With LED

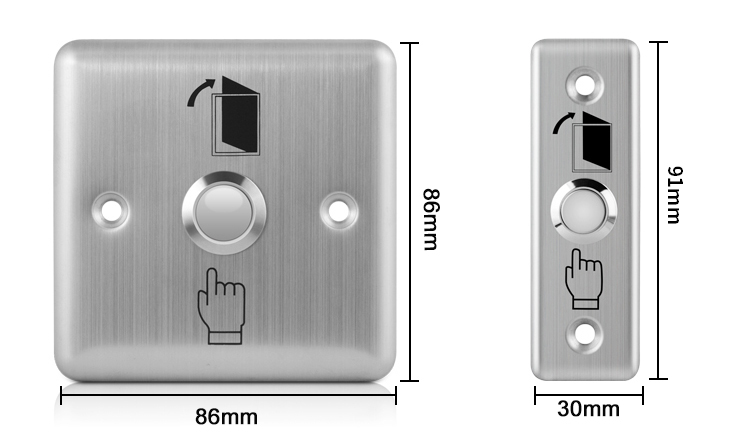

Dimensions

91Lx30Wx20H(mm)

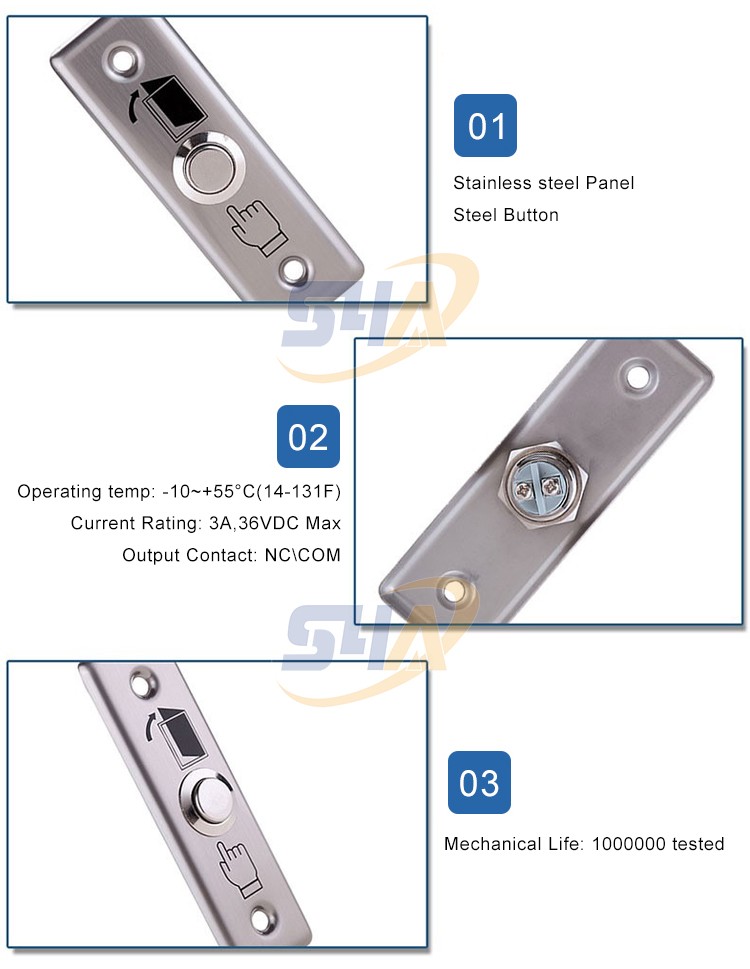

Standard Structure

Stainless steel Panel, Steel Button

Current Rating

3A,36VDC Max

Output Contact

NC\COM

Mechanical Life

1000000 tested

Suitable for Door

Hollow Door

Operating temp

-10℃ ~ 55°C (14°F-131°F)

Operating Humidity

0-95% (non- condensing)

Weight

0.1kg

Standard Packing

70pcs

Stainless Steel Exit Button- EB-12


Exit Button

Exit Button

5 Line Electric Bolt Lock with Door Feedback and Timer

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

EB-12

200 PCS

7.5 KG

7.75 KG

39X39X23 cm

300 PCS

10 KG

10.3 KG

39X39X31 cm

Exit Button

S4A_Datesheet_Stainless Steel Exit Button
