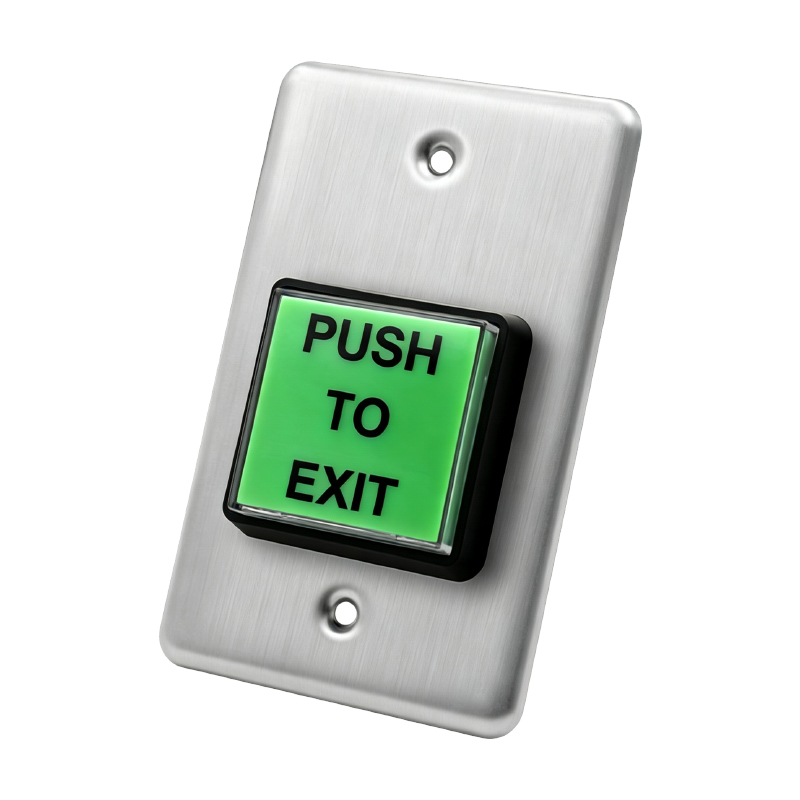

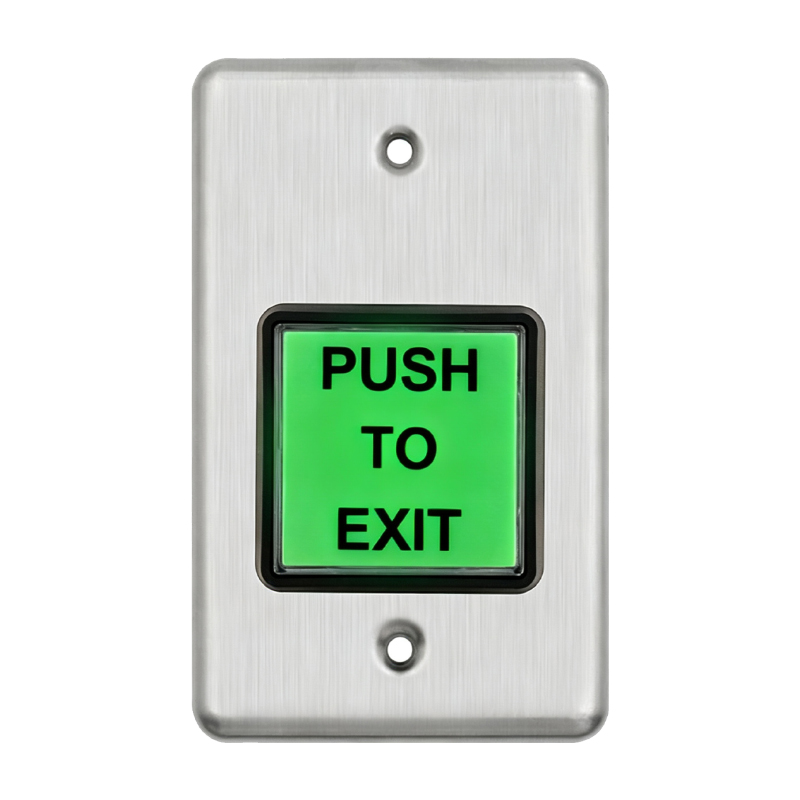

P1-1 Stainless Steel Push to Exit Button with Large LED Backlight

Large LED Illuminated Button: Equipped with a large, highly visible LED backlit display to guarantee effortless, quick locate-and-press utility in low-light areas.
Premium 304 Stainless Steel: Constructed from a robust, 0.9mm thick brushed 304 stainless steel faceplate designed to resist wear, corrosion, and everyday commercial impact.
High-Durability Cycle Tested: Successfully passed a 500,000-cycle endurance test, ensuring long-term mechanical reliability under continuous use.
Versatile Output Signaling: Features standard NO/NC/COM contact outputs to ensure universal compatibility with electric locks and access control systems.
Customizable Faceplate Layouts: The integrated panel graphics and text configurations can be fully tailored and customized to match specific client requirements.
  • Brand:

    S4A
  • Item NO.:

    P1-1
  • Specifications
  • Package

P1-1 Stainless Steel Push to Exit Button with Large LED Backlight


The P1-1 is a commercial-grade entry/exit release switch engineered for reliable, high-traffic access control environments. Featuring a heavy-duty, brushed 304 stainless steel panel and a prominent, easy-to-see large LED backlit push button, this switch ensures clear visibility and seamless operation even in completely dark settings. Built to endure, it delivers a clean architectural look alongside outstanding physical longevity.


Product Parameter Parameter Descr1ption
Model P1-1
Working Voltage DC 12V / 24V

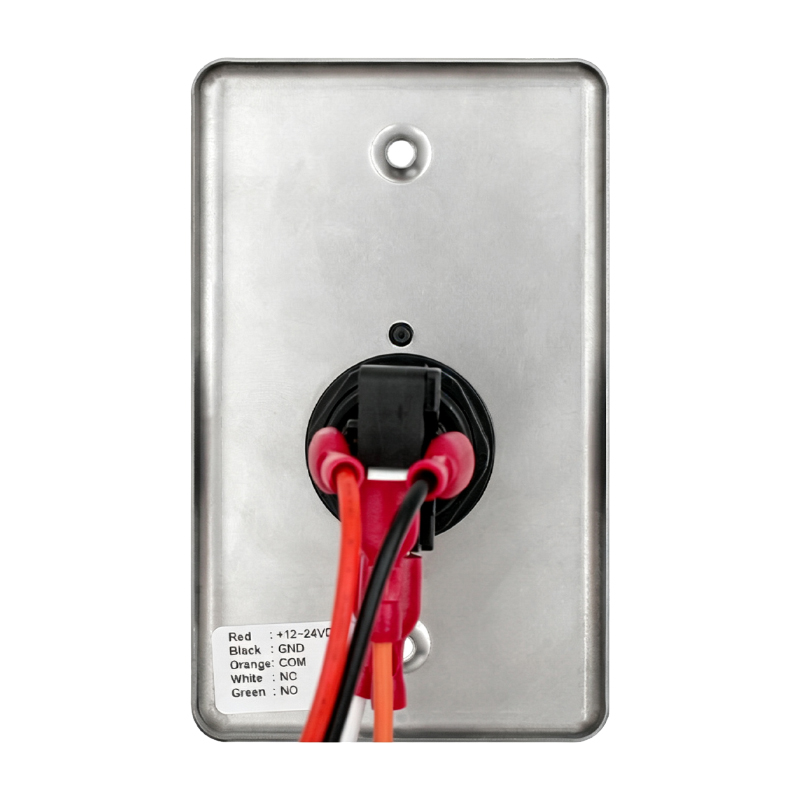

Contact Output NO / NC / COM
Indicator Light Large LED Button
Panel Hole Diameter 25 mm
Panel Material 0.9mm Thick 304 Brushed Stainless Steel
Panel Graphics Customizable upon customer request
Durability Test Passed 500,000 presses
Operating Temperature -20°C to 55°C (-4°F to 131°F)
Operating Humidity 0 - 95% (Relative Humidity)
Product Weight 0.118 kg

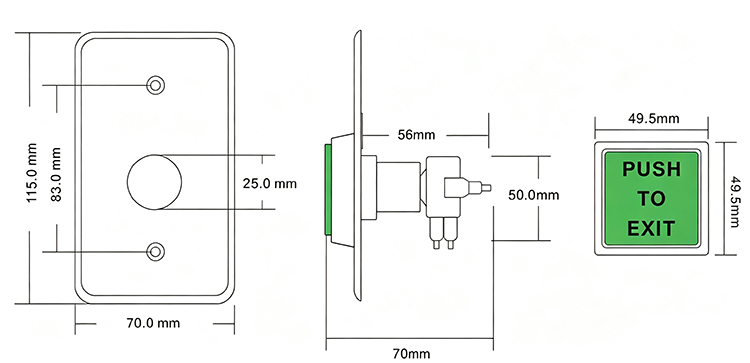

Dimensions
115mm L * 70mm W * 70mm H (Button depth: 56mm)
