Stainless Steel Door Button

Dimension: 115x70x25mm

  • Brand:

    S4A
  • Item NO.:

    EB-1401A
  • Specifications

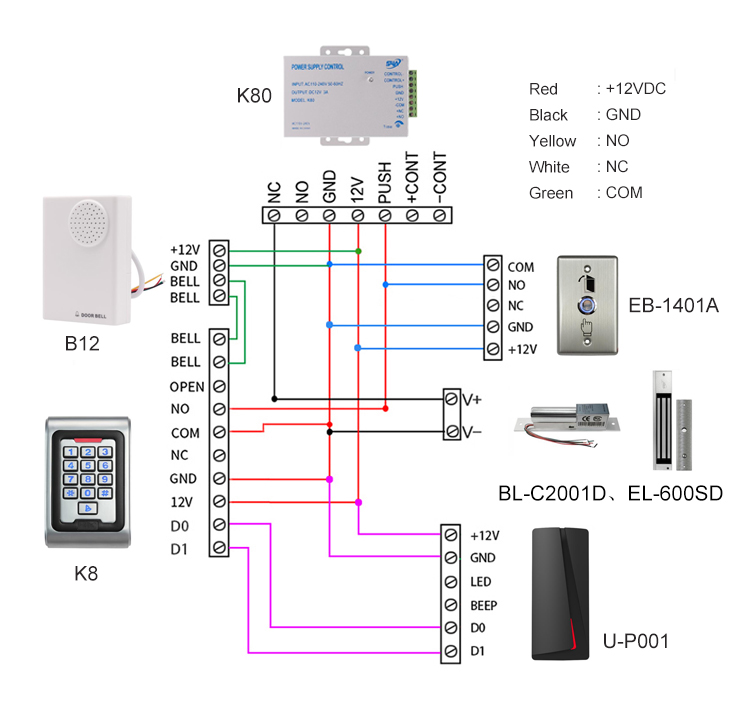

  • Wiring Diagram

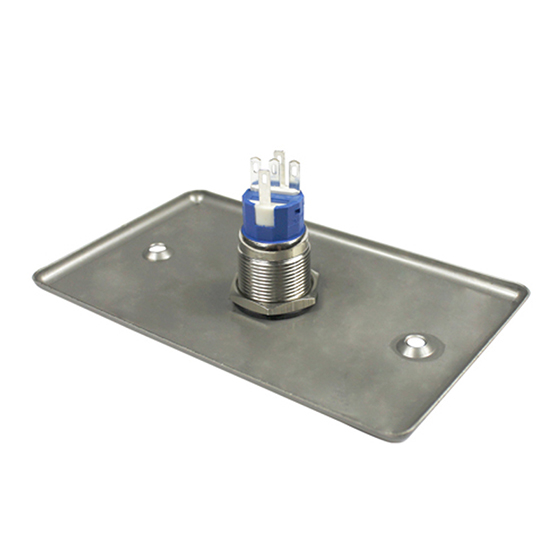

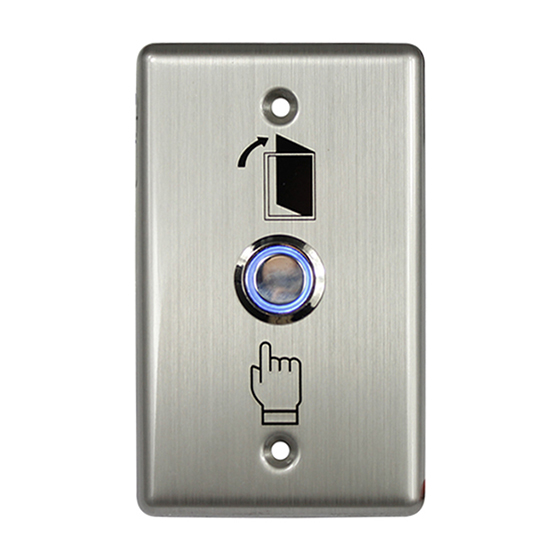

Stainless Steel Door Button

Model No: EB-1401A


EB-1401

Without LED

EB-1401A

With LED

Dimensions

115L X 70W X 25H

Standard Structure

Stainless steel Panel, Steel Button

Current Rating

3A,36VDC Max

Output Contact

+12V GND NO NC COM

Mechanical Life

1000000 tested

Suitable for Door

Hollow Door

Operating temp

-10℃ ~ 55°C (14°F-131°F)

Operating Humidity

0-95% (non- condensing)

Weight

0.15kg

Standard Packing

70pcs


Stainless steel door button- EB-1401A
