Access Control Exit Button

/

0.8mm Stainless Steel Exit Button

/S86L Square Exit Switch Button Stainless

New Products

S86L Square Exit Switch Button Stainless

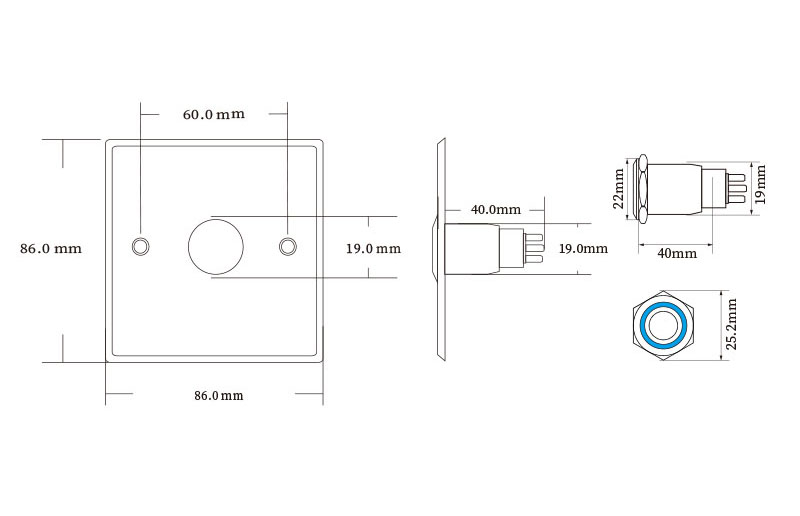

Dimension: 86x86mm

  • Brand:

    S4A
  • Item NO.:

    S86L
  • Specifications
  • Package

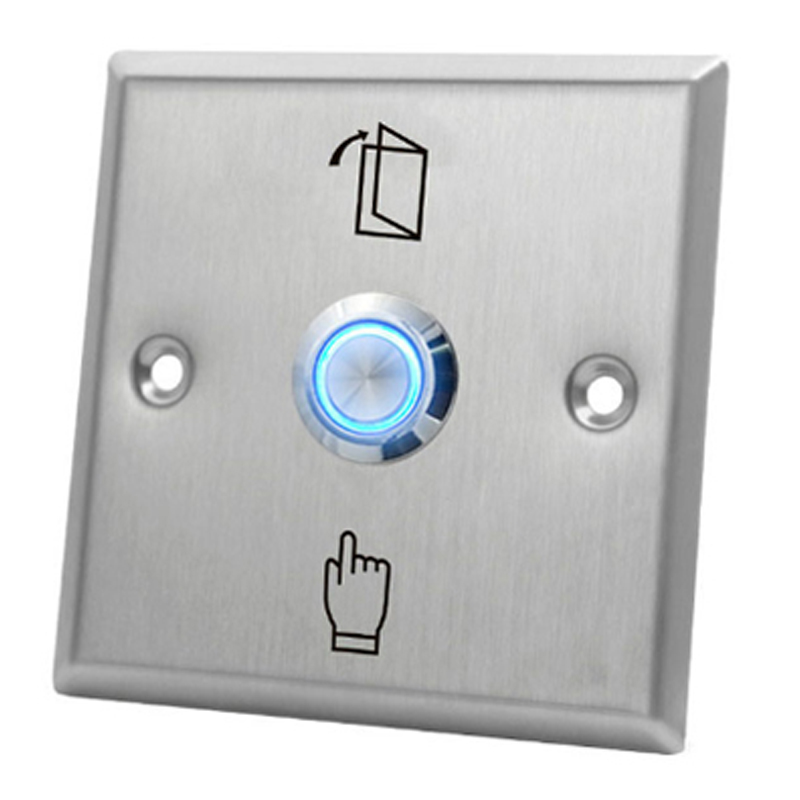

S86L Square Exit Switch Button Stainless

Model No: S86L


Product ParameterParameter Description
S4A ModelS86L
Product NameStainless Steel Exit Button with LED

Dimensions86Lx86W(mm)
Panel0.9mm Thick 304 Stainless steel (Wire Drawing)
Power12VDC or 24VDC
Contact Rating3A/125-250VAC
Output ContactNO/NC/COM/+12V/GND
Mechanical Life100,000 Tests
Suitalbe for DoorHollow Door
Operating Temperature-20℃~+55℃(14-131F)
Suitable Humidity0-95% (relative humidity)
Installation Diameter19mm
Led ColourDefault Blue,Optional Green/Red
Button ColourSilvery
LogoS4A Customizable

Unit Weight0.085KG
Packing Quantity100 PCS/CTN
Packing Size(L*W*H)50*45*24 (cm)
Gross Weight9.5KG
