Stainless Steel Switch Button

Dimension: 91x30x20mm

  • Brand:

    S4A
  • Item NO.:

    EB-12A
  • Specifications
  • Wiring Diagram
  • Package
  • Download

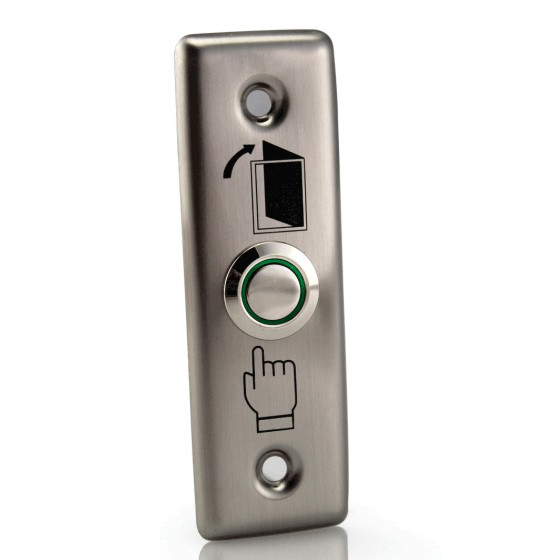

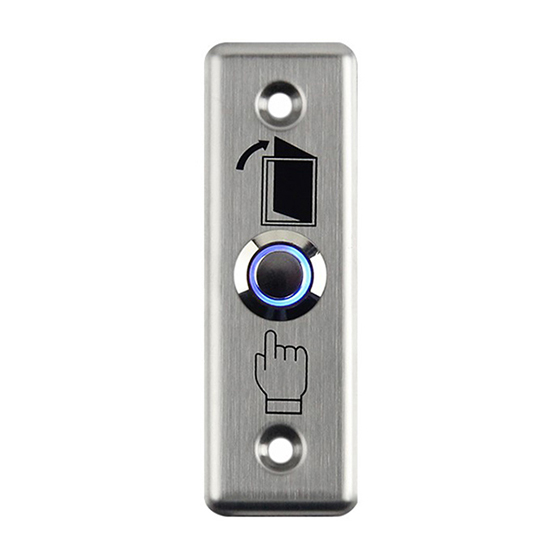

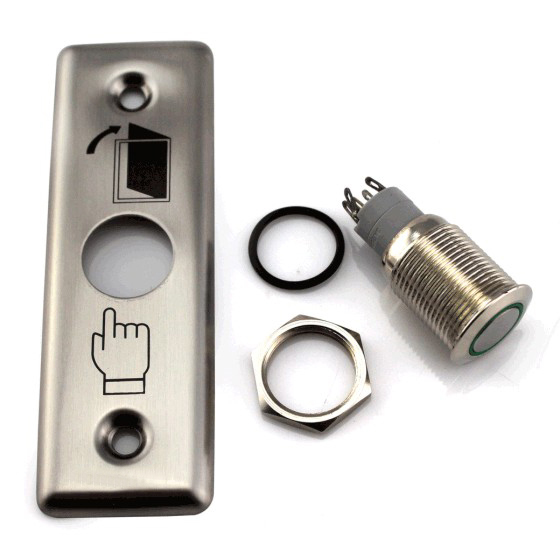

Stainless Steel Switch Button

Model No: EB-12A


EB-12

Without LED

EB-12A

With LED

Dimensions

91Lx30Wx20H(mm)

Standard Structure

Stainless steel Panel, Steel Button

Current Rating

3A,36VDC Max

Output Contact

+12V GND NO NC COM

Mechanical Life

1000000 tested

Suitable for Door

Hollow Door

Operating temp

-10℃ ~ 55°C (14°F-131°F)

Operating Humidity

0-95% (non- condensing)

Weight

0.1kg

Standard Packing

70pcs

Stainless steel switch button-EB-12A

Stainless steel switch button-EB-12A

Stainless steel switch button-EB-12A

Exit Button

Exit Button

Stainless Steel Switch Button

Model No.

Quantity/Carton

Net Weight

Gross Weight

Carton Size

EB-12A

50PCS

5.20KG

3.2KG

39x29x23cm




S4A_Datesheet_Stainless Steel Switch Button
