SL-1300 Concealed Magnetic Shear Lock 1200KG Holding Force

1200KG Heavy-Duty Holding Force: Provides exceptional shear strength up to 1300KG to ensure maximum entry prevention and high-level door security.
Concealed Flush Mount Design: Recessed embedded installation maintains clean door aesthetics while keeping locking mechanisms hidden and tamper-proof.
Versatile Mounting Options: Flexible architecture supports both top-mounted and side-mounted configurations tailored to different door frame types.
Dual Voltage Adaptability: Operates efficiently across DC 12V to DC 24V power systems with standard 1.5A operating current.
Durable Aluminum Alloy Build: Constructed from robust aluminum alloy materials for enhanced structural longevity and steady performance.

Brand:
S4A
Item NO.:
SL-1300

Inquire Now

Specifications
Package

SL-1300 Concealed Magnetic Shear Lock (1200KG / 1300KG)

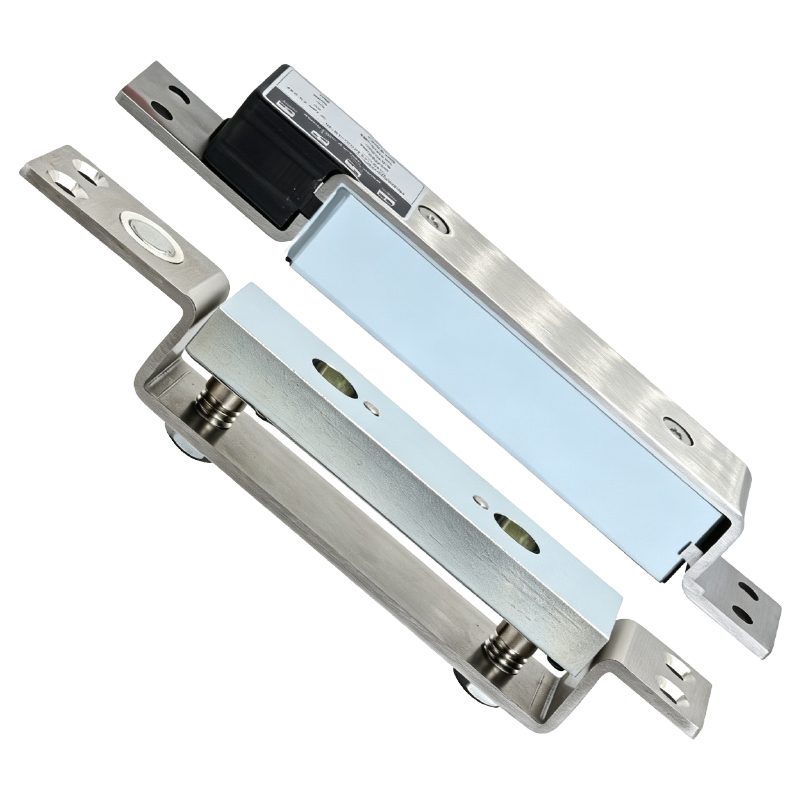

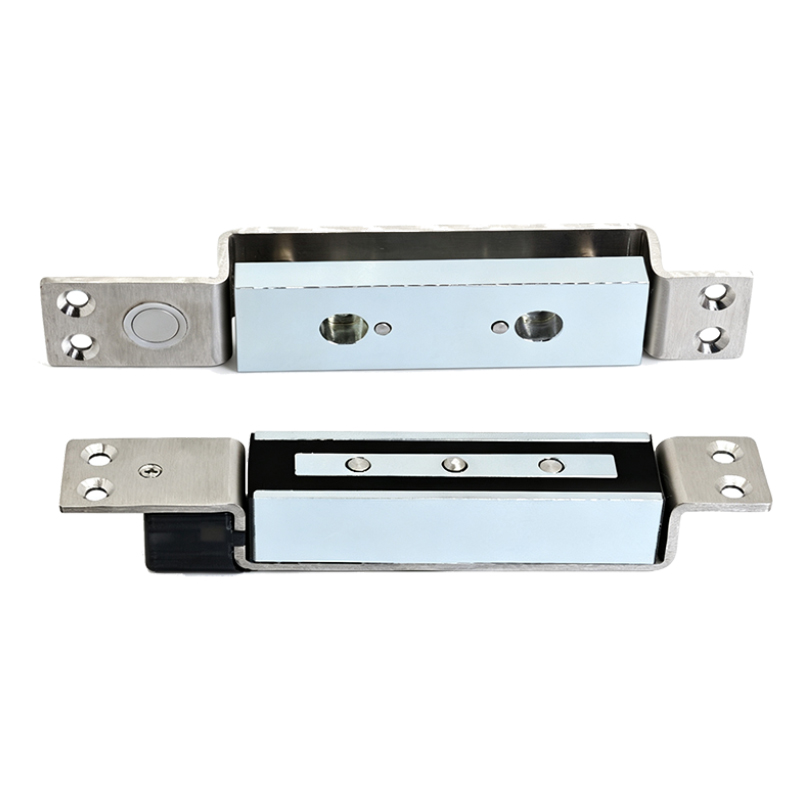

The SL-1300 Concealed Magnetic Shear Lock is a heavy-duty, embedded security solution designed for seamless architectural integration. Engineered with durable aluminum alloy construction, it delivers up to 1200KG (1300KG shear capacity) holding force for maximum resistance against forced entry. Ideal for courtyard gates, villa art doors, wooden doors, framed glass doors, and security doors, this versatile lock supports flexible flush-mounting options, including top and side installations.

Product Parameter	Parameter Descr1ption
Model	SL-1300
Lock Type	Concealed Magnetic Shear Lock
Holding Force / Shear Capacity	1200KG / 1300KG
Working Voltage	DC 12V - 24V
Working Current	1.5A
Material Aluminum	Alloy
Installation Type	Embedded Flush Mount / Top & Side Mount

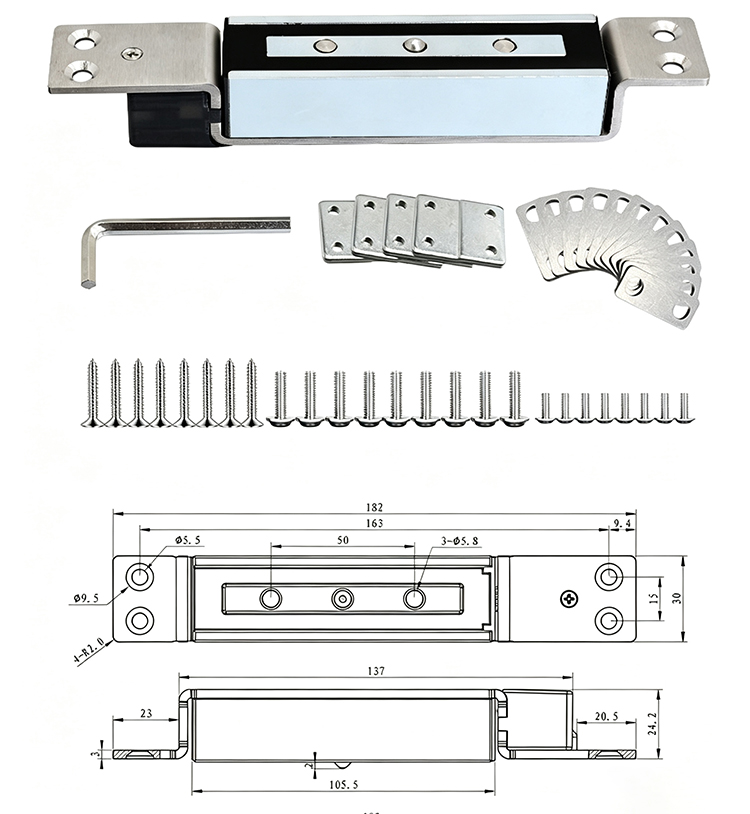

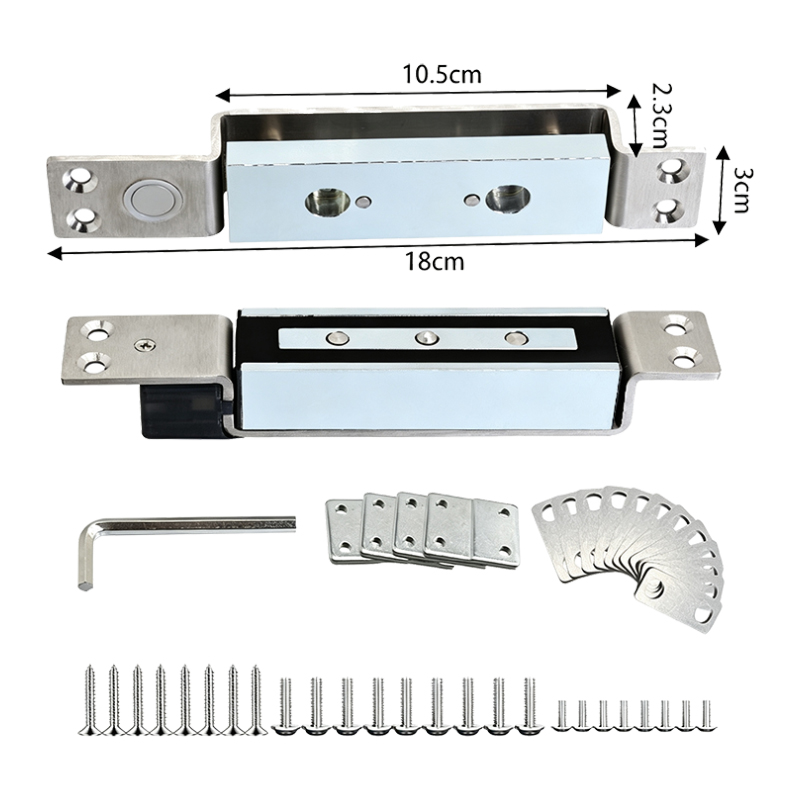

Package Dimensions	25cm (L) * 5cm (W) * 3cm (H)
Package Weight	2000g

Related Tags : SL 1300 Magnetic Lock Concealed Shear Lock 1200KG Holding Force Lock Embedded Electromagnetic Lock Recessed Magnetic Door Lock
