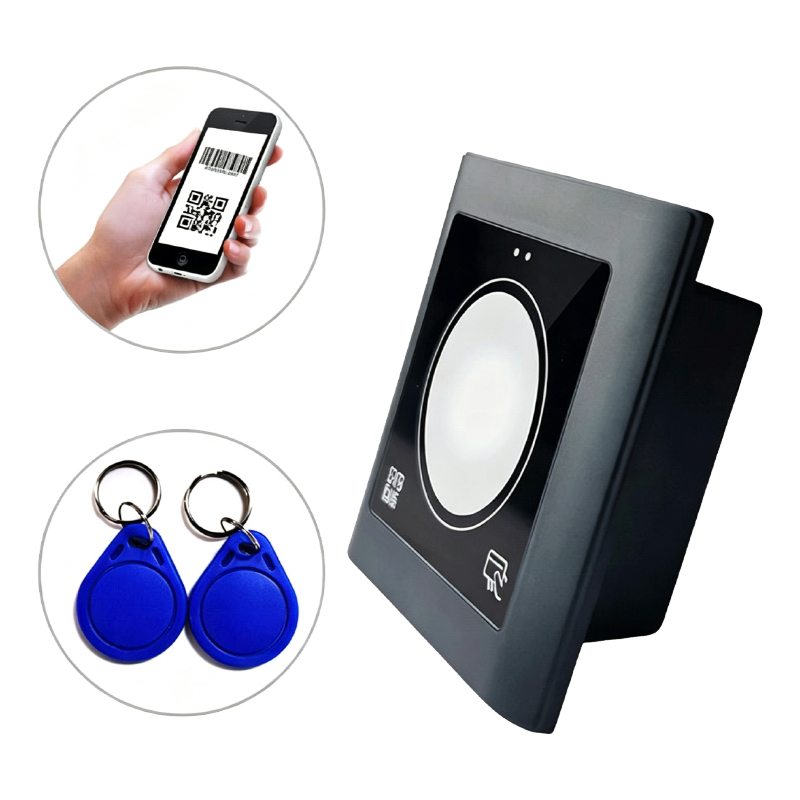

S4A-QR704 QR Code Access Card Reader

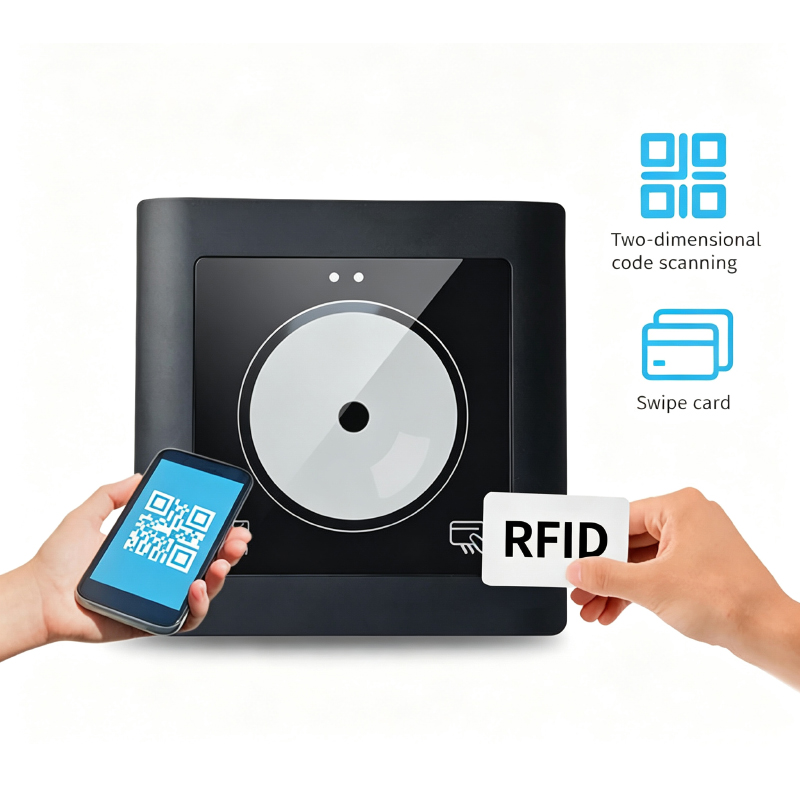

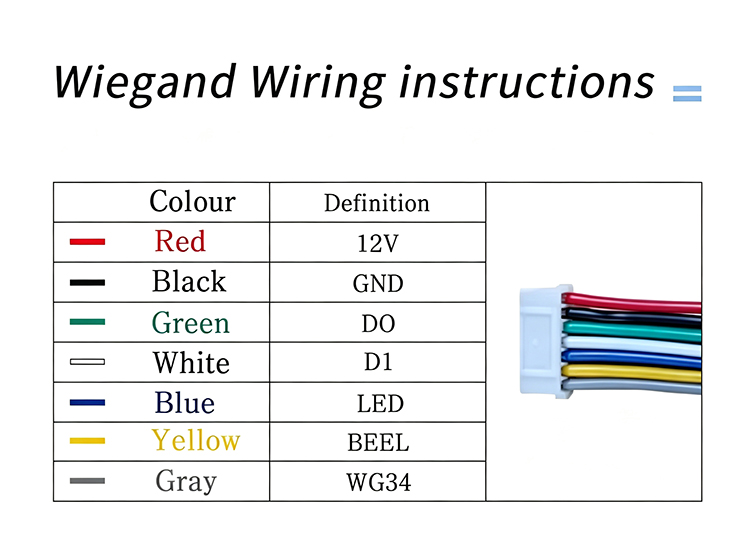

Dual QR Code & RFID Recognition: Fast image decoding for QR codes alongside 125KHz (EM) and 13.56MHz card sensing. Multiple Communication Interfaces: Supports international standard Wiegand 26/34, RS232, RS485, and TTL serial protocols. Wide Operating Power: Operates reliably across a DC 9V–24V range with efficient low standby current (< 30mA). Enhanced Scanning Range: Offers up to 30 cm QR code reading distance and 3–5 cm card sensing distance with 360° rotation coverage. Durable Tempered Glass Design: Built with a sleek tempered glass code window and integrated fill light for reliable operation.

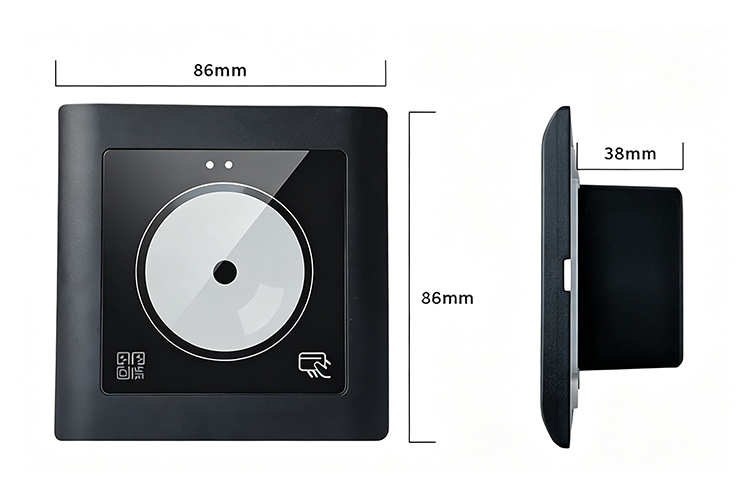

> IC 13.56MHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm

>Swipe speed:<200 milliseconds>Wiegand output: 26 bits/34 bits>Software version: V7.107 or above>Hardware driver: V8.92 or above>Output power: DC12v 10OomA (power supply lock and card reader)

> ID 125KHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm

> ID 125KHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm

> IC 13.56MHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm

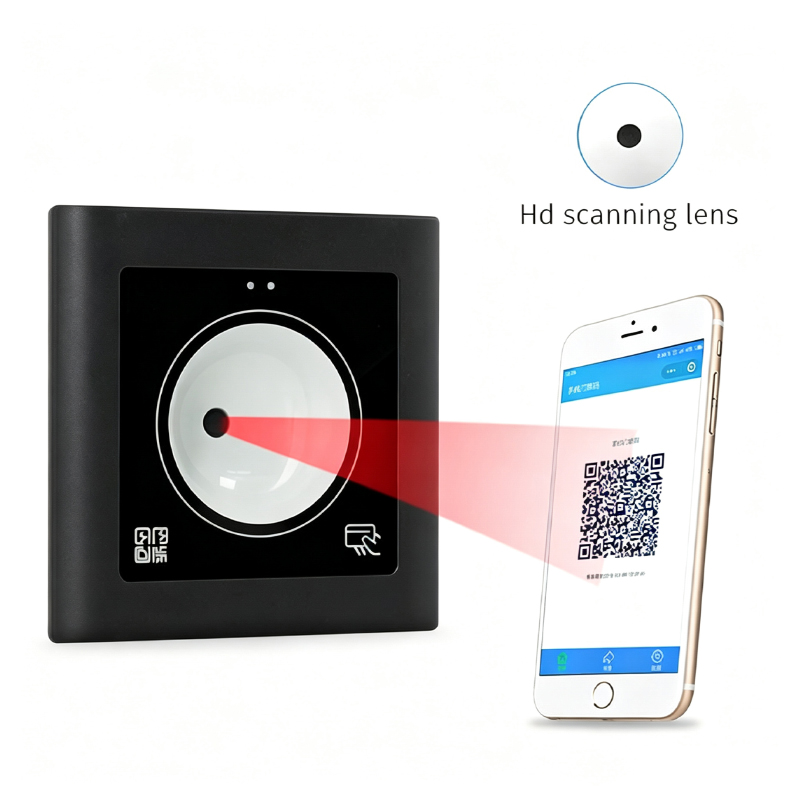

Dual Scanning & Card Recognition: Reads QR codes and barcodes up to 30 cm, and RFID cards (125KHz/13.56MHz) up to 5 cm. Multi-Protocol Communication: Supports international Wiegand 26/34, RS232, RS485, and TTL serial port protocols. IP68 Waterproof & Rugged Build: Constructed with tempered glass and metal housing for full outdoor durability. Wide-Angle 360° Scanning: Features a 360° rotation angle, 84° diagonal scan angle, and integrated night fill light. Flexible Power Supply: Supports DC 9V–24V input with low standby power consumption (< 30mA).

Plug-and-Play USB Interface: Drives via standard USB DC 5V with HID keyboard output for driverless setup and fast data transmission. Dual-Frequency RFID Support: Compatible with both 125KHz and 13.56MHz card protocols (EM, M1, Desfire, 15693, SONY card, NFC). Comprehensive Barcode & QR Scanning: Reads 2D QR codes and standard barcodes at distances from 5 to 30 cm with rapid response time (< 100ms). Wide-Angle Coverage: Offers 360° rotation, 84° diagonal scanning angle, and integrated fill light for reliable performance in low-light environments. Compact & OEM Ready: Lightweight 100g design with full support for OEM customization.
