/RS232/Mifare 1D 2D QR Code Reader Programmable Auto Scan Barcode Reader

New Products

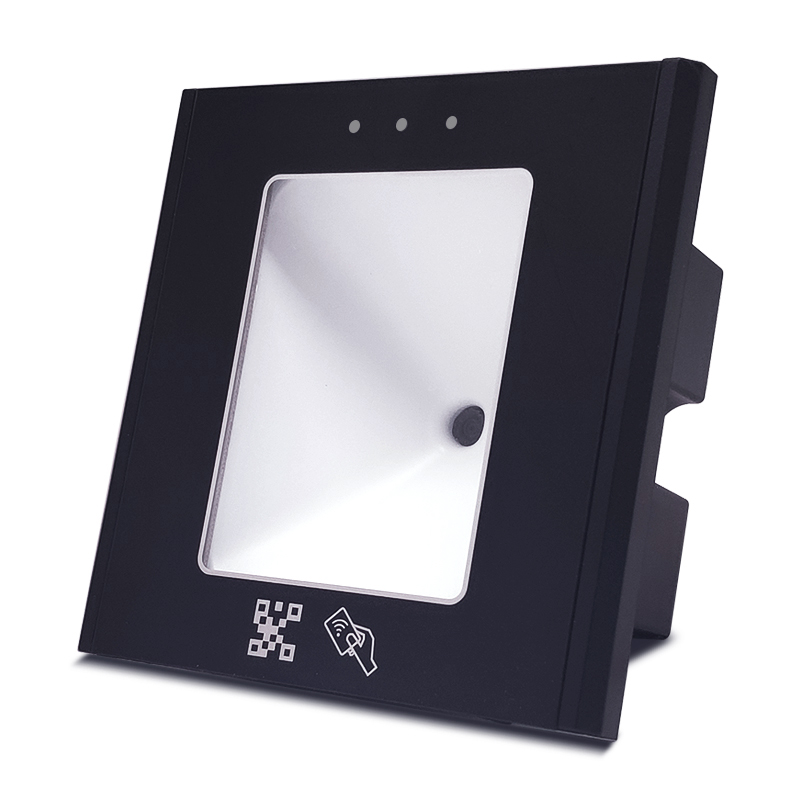

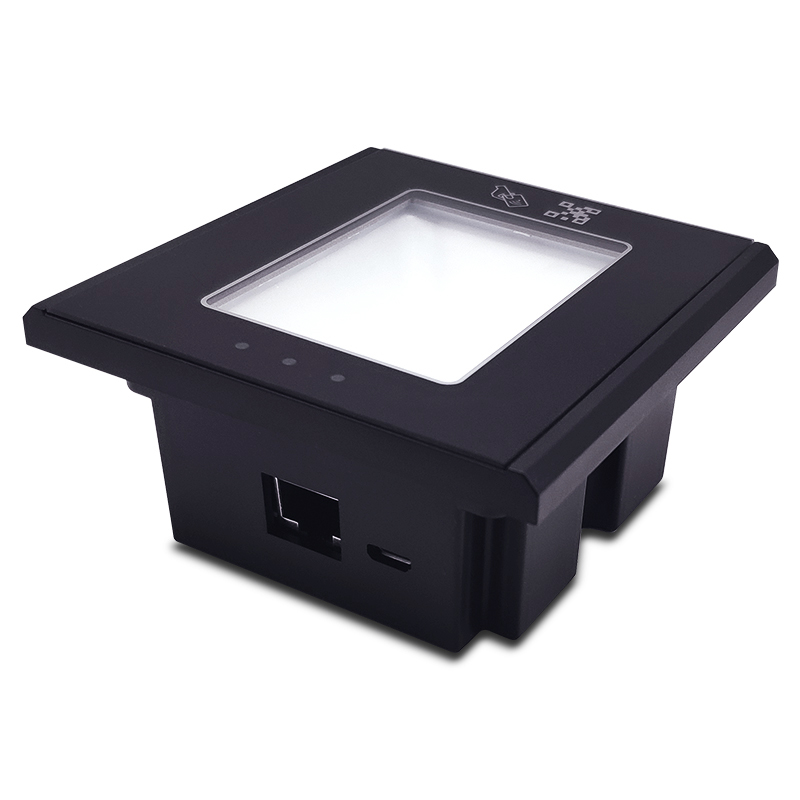

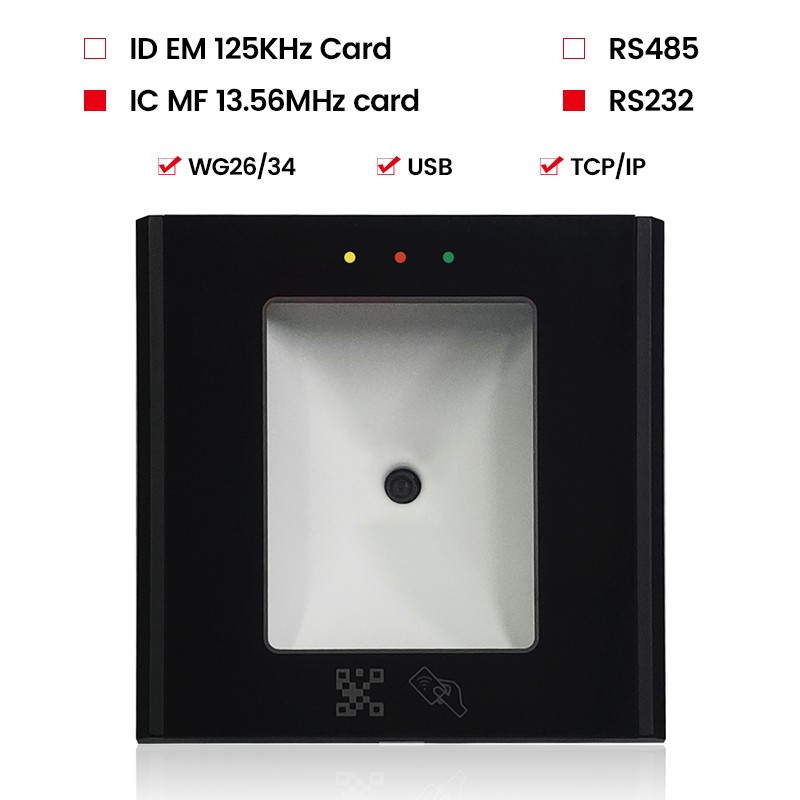

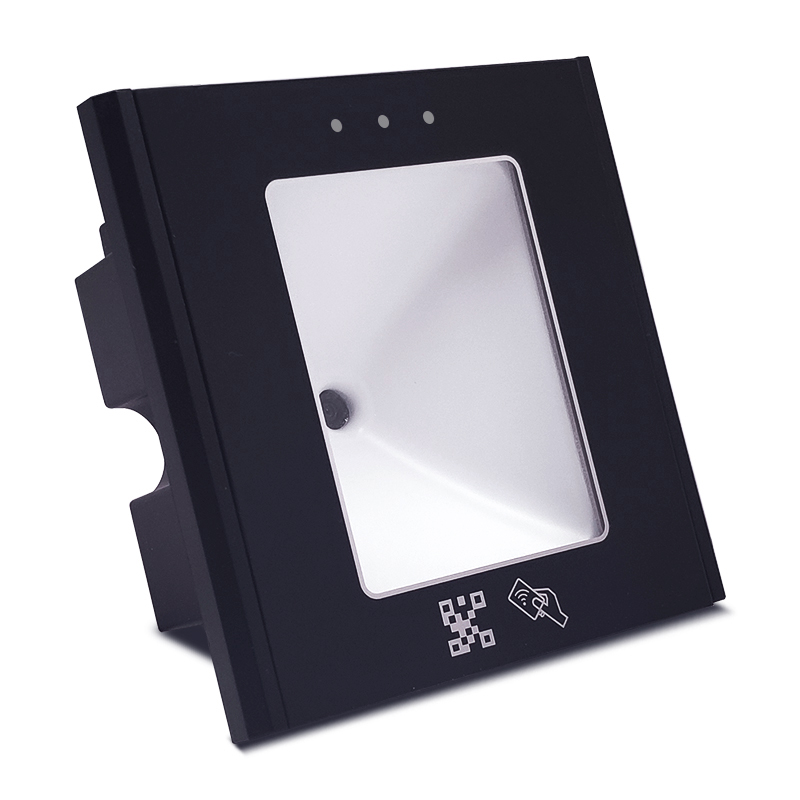

RS232/Mifare 1D 2D QR Code Reader Programmable Auto Scan Barcode Reader

> IC 13.56MHz Cards+QR code (Wiegand 26/34output)

> Built-in TCP/IP and USB port

> Material: PC and Tempered glass

> Voltage: 4~15V

> Dimension: 86x86x42mm

  • Brand:

    S4A
  • Item NO.:

    QR-86 (IC+RS232)
  • Specifications

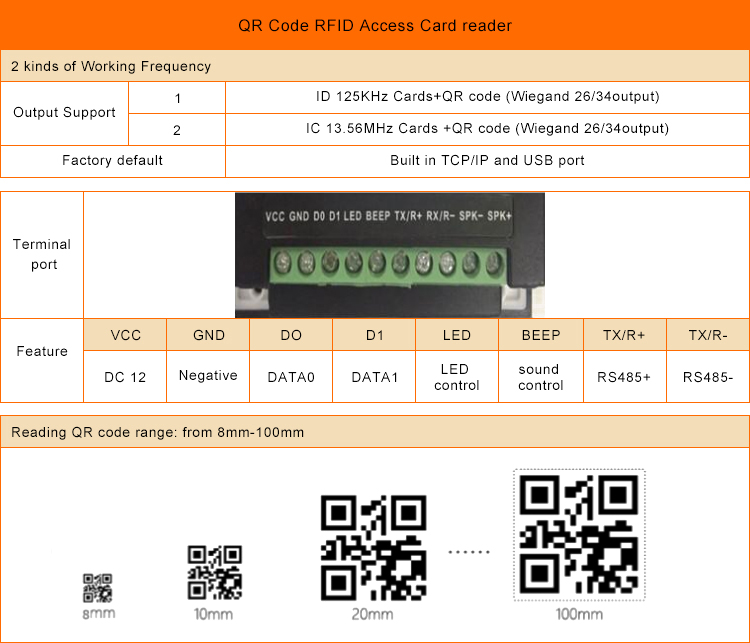

  • Wiring Diagram
  • Package
  • Download

RS232/Mifare 1D 2D QR Code Reader Programmable Auto Scan Barcode Reader

Model No.: QR-86 (IC+RS232)

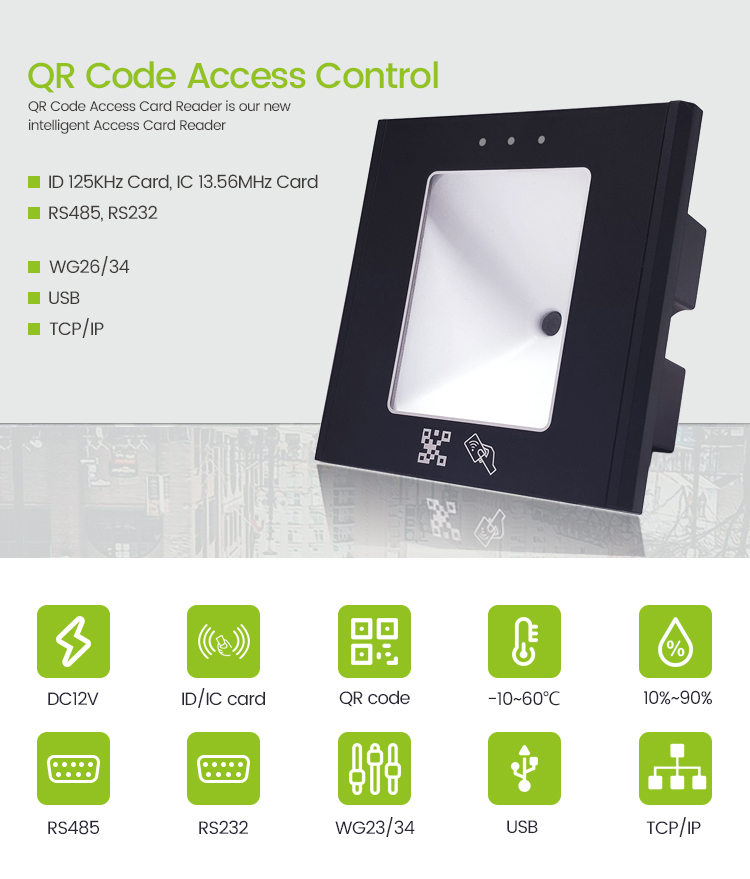

QR Code Access Card Reader is our new intelligent Access Card Reader, Fast reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input controller,widely used at Office access management, Tourism management, Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.

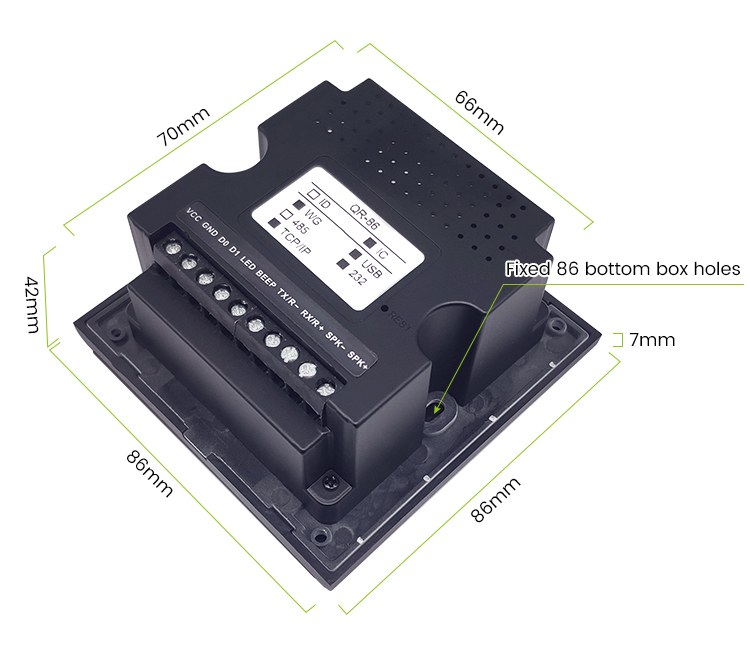

Dimension

86L X 86W X42H (mm)

Material

PC and Tempered glass

Interface

Wiegand26/34, RS485, RS232, USB, TCP/IP optional

Decoding support

QR and One dimensional code

Voltage support

4~15V Wide voltage input

Current

800mA

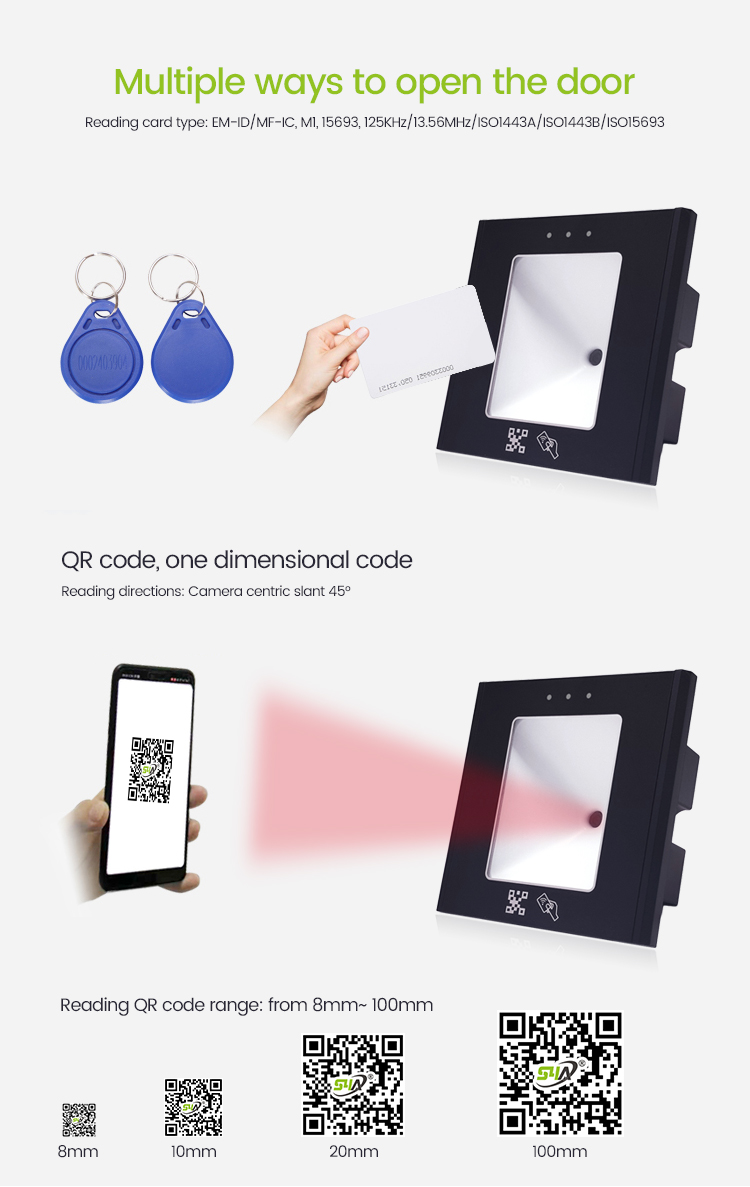

Reading directions

Camera centric slant 45°

Reading speed

<200ms

Reading range

0~20CM

Reading feature

Auto-induction, beep hint

Light source

With LED light source itself, Anti-highlight interference

Decode mode

Image decoding

Application environment

Temperature: -20°C~70°C

Humidity

10%~90%

Operate system

Windows(XP7, 8, 10), Linux

Indicating status light

Red-Work, Green- Feedback, Light Green-Internet

Reading range

3~6CM

Reading card type

EM or Mifare card

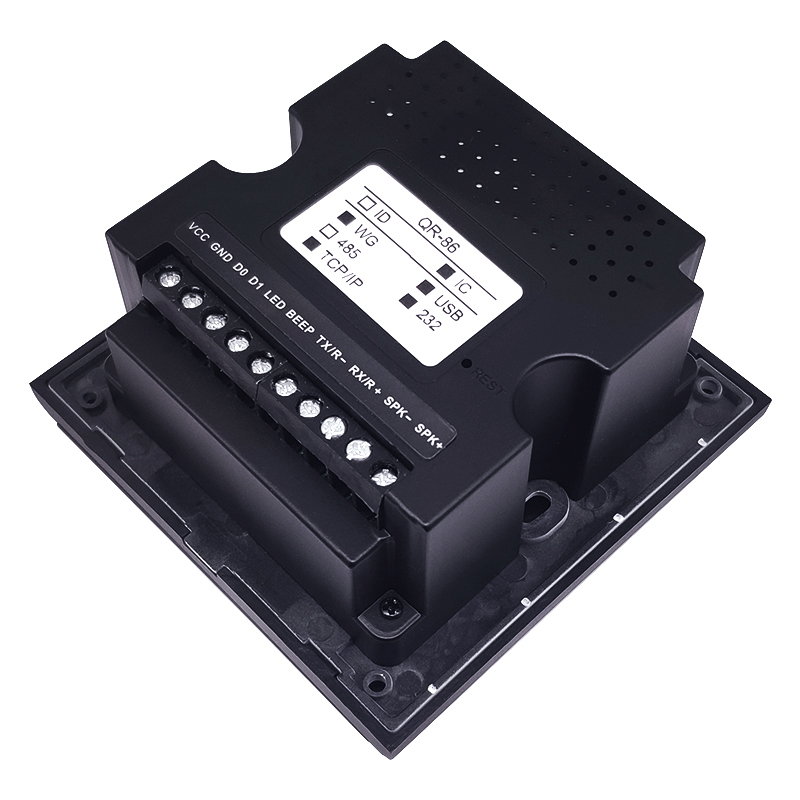

Restore Factory Settings: Use sharp objects insert into REST hole of QR code reader backside, release till the QR code reader automatically restart.


QR Code ReaderQR Code ReaderQR Code Reader

QR Code Reader

QR Code Reader

1D 2D QR Code Reader Programmable Auto Scan Barcode Reader

Model No.

Quantity/Carton

Gross Weight

Carton Size

QR-86

50 PC

8.3 KG

50x21x39 CM

100 PC

16 KG

59x49x24 CM

QR Code Reader

S4A User Manual QR-86_RS232/Mifare 1D 2D QR Code Reader Programmable Auto Scan Barcode Reader
