S4A-QR702S4A-QR702 QR Code Access Card Reader

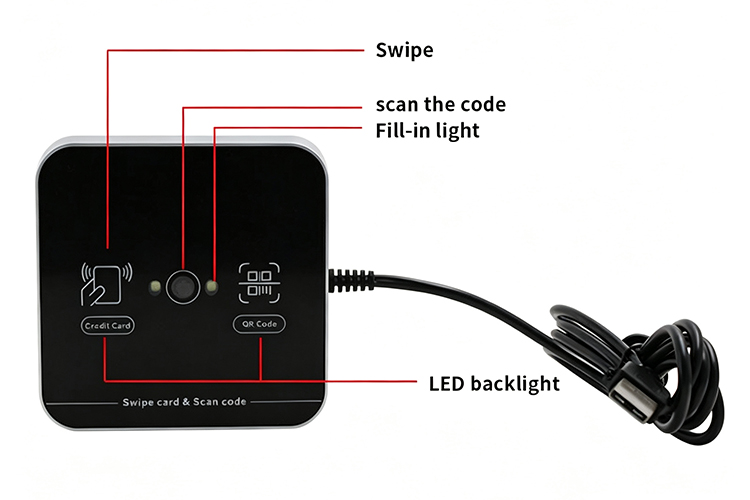

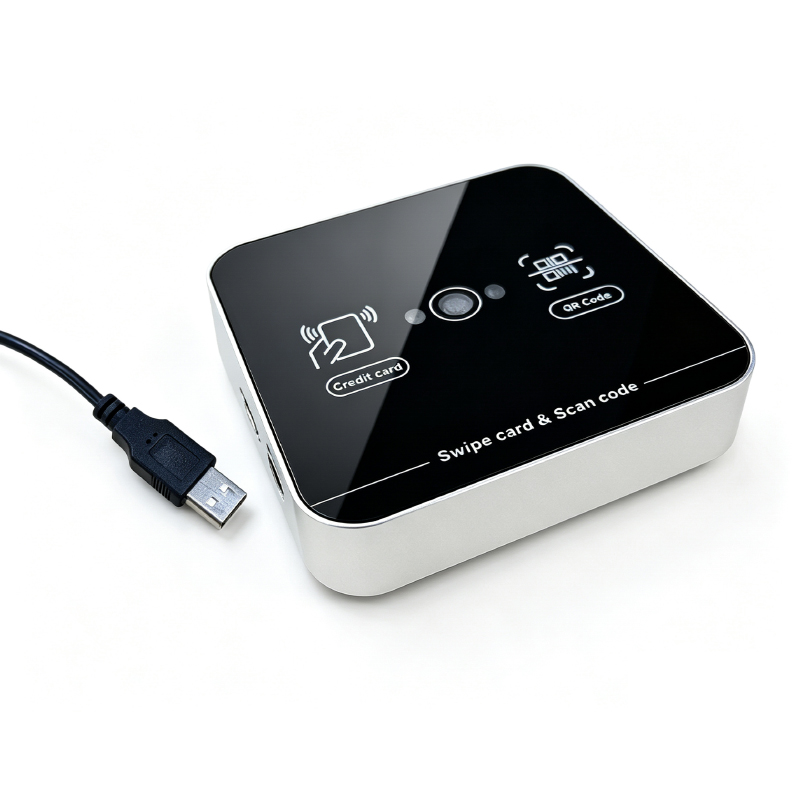

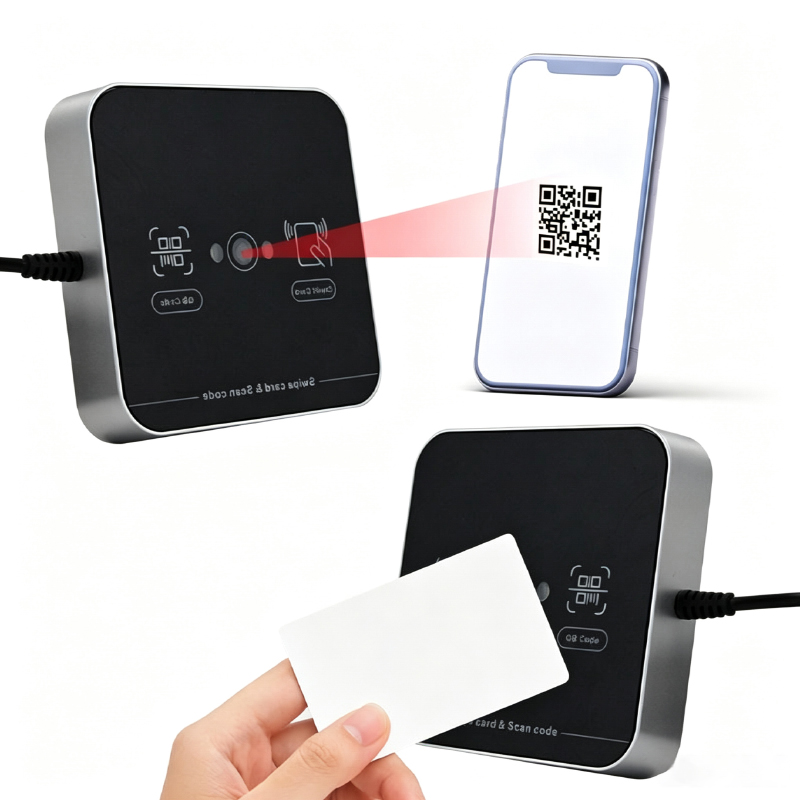

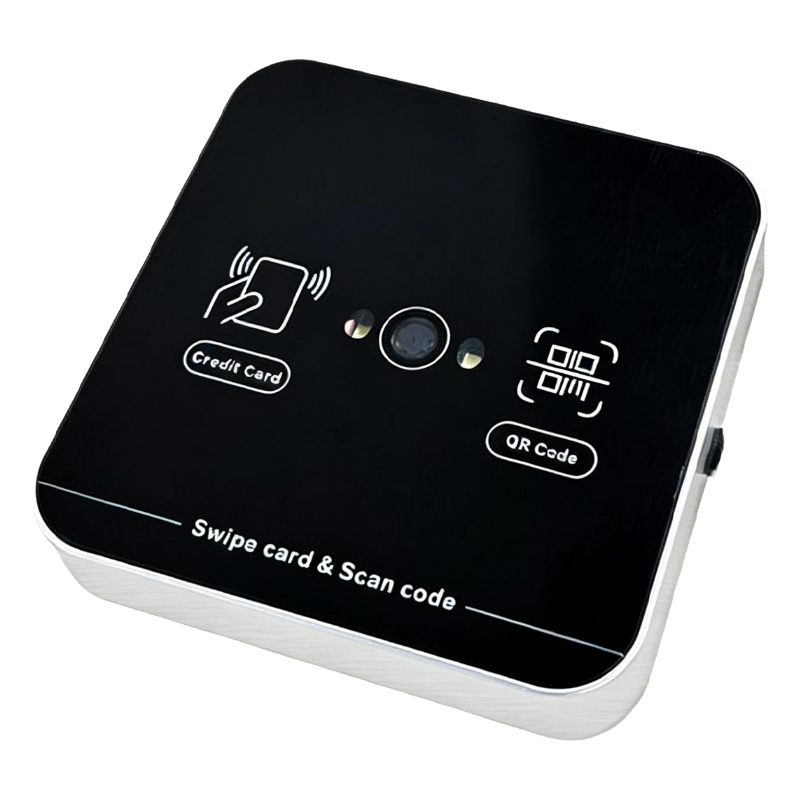

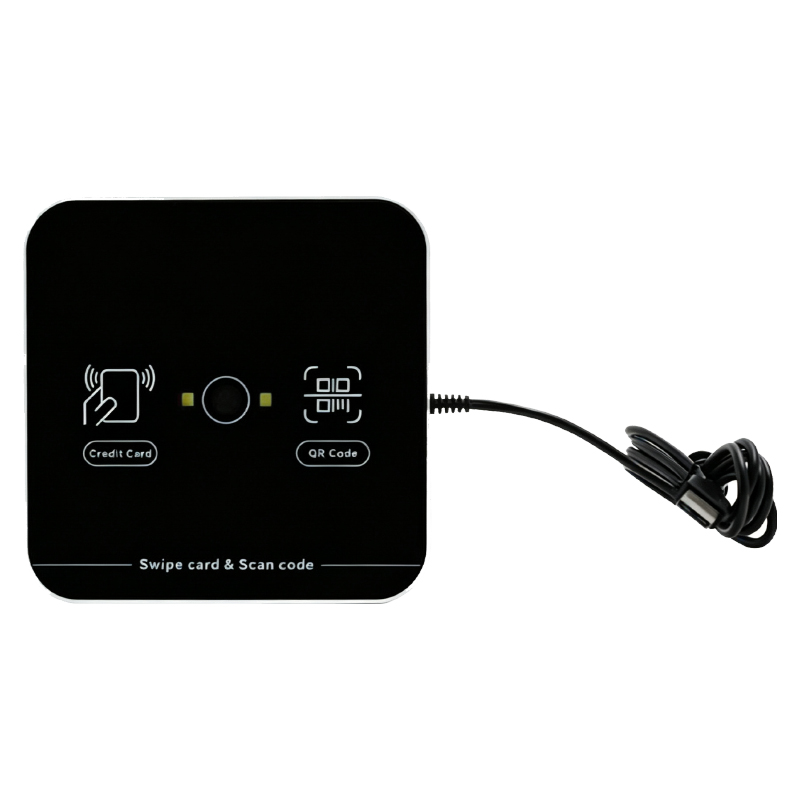

The S4A-QR702 is a high-performance USB QR Code Access Card Reader designed for seamless plug-and-play access control integration. Powered by USB DC 5V with HID keyboard output, it supports fast scanning of 2D QR codes and barcodes as well as dual-frequency RFID cards (125KHz ID + 13.56MHz IC). Compact and efficient, the S4A-QR702 features high-speed card sensing (< 100ms), wide-angle scanning, and OEM customization support for modern security deployment.
Parameter
Specification
Model Number
S4A-QR702
Product Name
QR Code Access Card Reader
Power Supply
USB DC 5V
Current Consumption
Standby < 30mA; Fill Light ≤ 100mA
Communication Interface
USB No-drive / HID Keyboard Output
RFID Frequency
125KHz + 13.56MHz (ID + IC)
Supported Protocols / Cards
ISO14443A/B, EM, M1, Desfire, 15693, SONY card, NFC
Scan Type
Two-dimensional (2D) QR Code, Barcode
Sensing Distance
Card: 3–5 cm | QR Code: 5–30 cm
Card Sensing Speed
< 100 ms
Reading Angle
360° Rotation; Elevation ±55°; Deflection ±55°
Scanning Angle
72° (Horizontal), 54° (Vertical), 84° (Diagonal)
Weight
100 g
Operating Temperature
-20°C to 60°C
Customization
Support OEM Customization
Dual QR Code & RFID Recognition: Fast image decoding for QR codes alongside 125KHz (EM) and 13.56MHz card sensing. Multiple Communication Interfaces: Supports international standard Wiegand 26/34, RS232, RS485, and TTL serial protocols. Wide Operating Power: Operates reliably across a DC 9V–24V range with efficient low standby current (< 30mA). Enhanced Scanning Range: Offers up to 30 cm QR code reading distance and 3–5 cm card sensing distance with 360° rotation coverage. Durable Tempered Glass Design: Built with a sleek tempered glass code window and integrated fill light for reliable operation.
> IC 13.56MHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
>Swipe speed:<200 milliseconds>Wiegand output: 26 bits/34 bits>Software version: V7.107 or above>Hardware driver: V8.92 or above>Output power: DC12v 10OomA (power supply lock and card reader)
> ID 125KHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
> ID 125KHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
> IC 13.56MHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
Dual Scanning & Card Recognition: Reads QR codes and barcodes up to 30 cm, and RFID cards (125KHz/13.56MHz) up to 5 cm. Multi-Protocol Communication: Supports international Wiegand 26/34, RS232, RS485, and TTL serial port protocols. IP68 Waterproof & Rugged Build: Constructed with tempered glass and metal housing for full outdoor durability. Wide-Angle 360° Scanning: Features a 360° rotation angle, 84° diagonal scan angle, and integrated night fill light. Flexible Power Supply: Supports DC 9V–24V input with low standby power consumption (< 30mA).
> Display: 4.3 inches> Face Capacity: 1500> Fingerprint Capacity: 5000> Communication: USB, R485, TCP/IP, (Optional WIFI)> Dimension: 170*140*35mm
