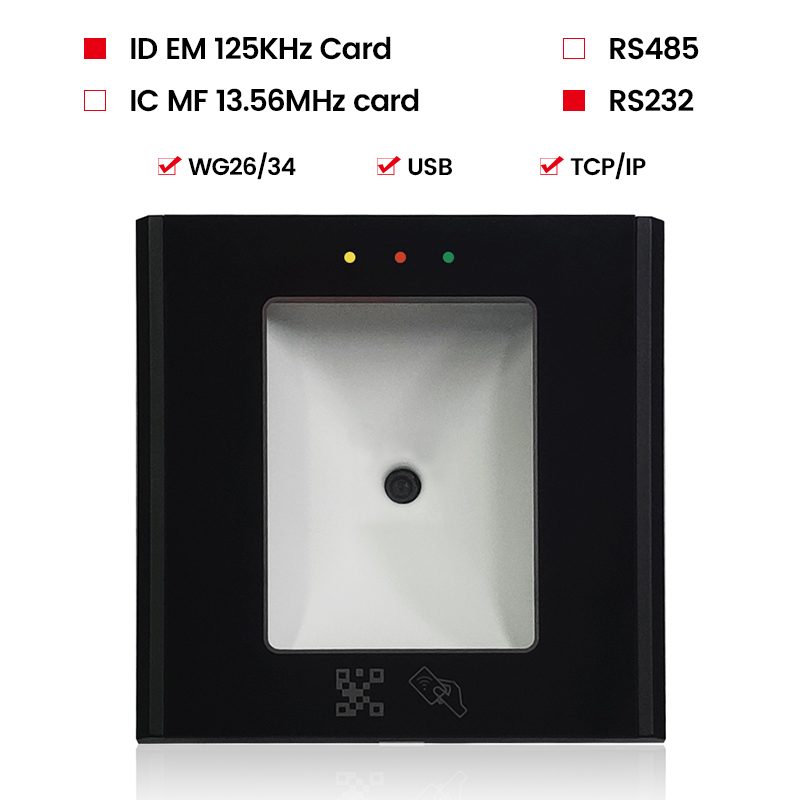

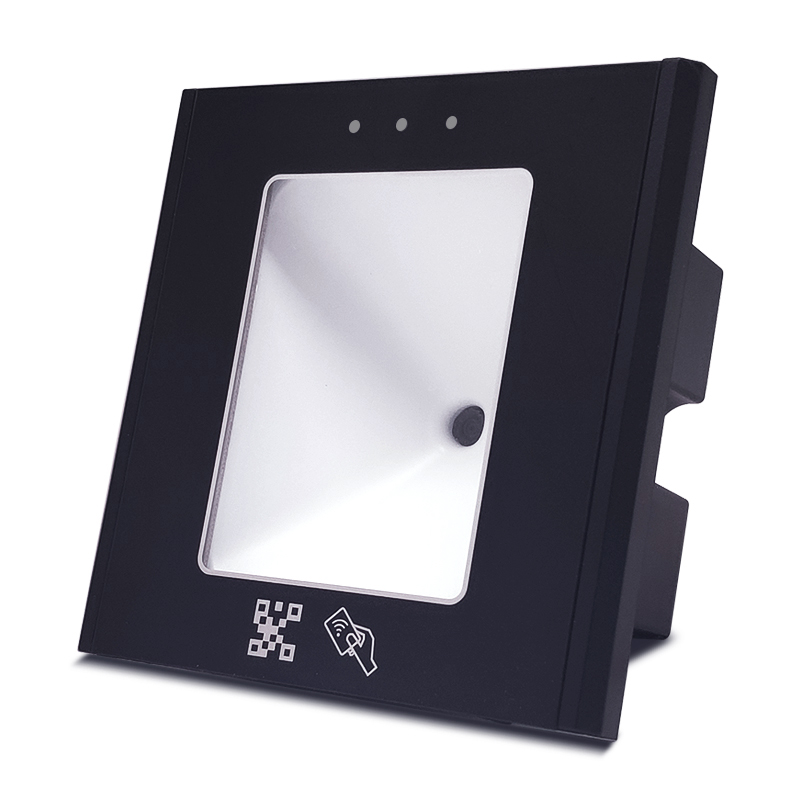

QR-86 (ID+RS232)RS232/EM 125KHz QR Code Reader and QR Code Scanner
Model No.: QR-86 (ID+RS232)

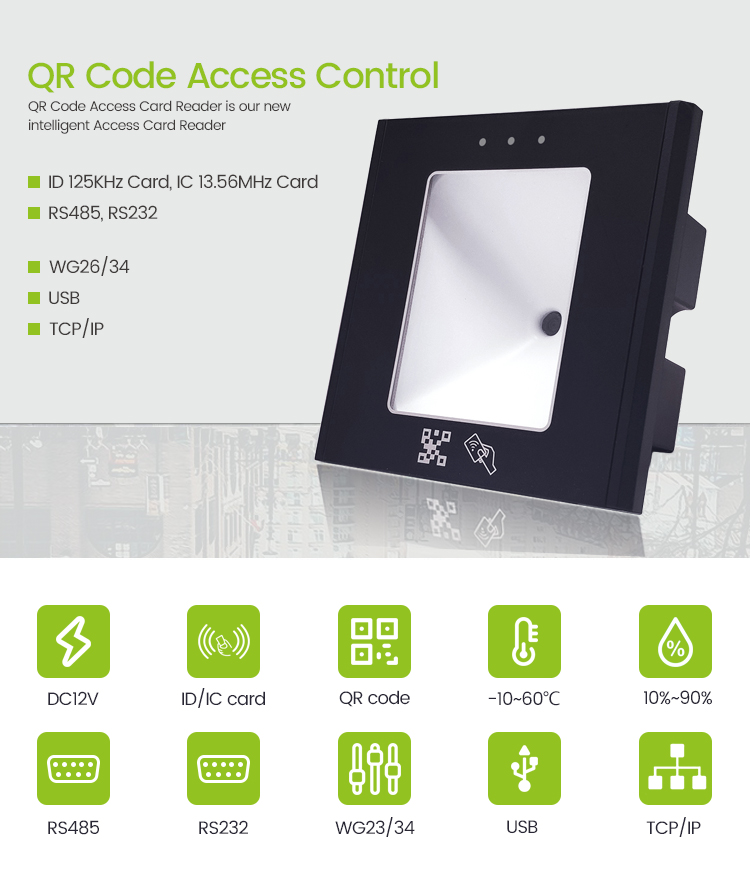

QR Code Access Card Reader is our new intelligent Access Card Reader, Fast reading speed, High recognition rate, Strong compatibility, can connect to any Wiegand input controller,widely used at Office access management, Tourism management, Community visitor access management, Administration Service Hall management, Gates access control, Visitors intelligent machines, Smart home; Upgrade old access control systems etc.

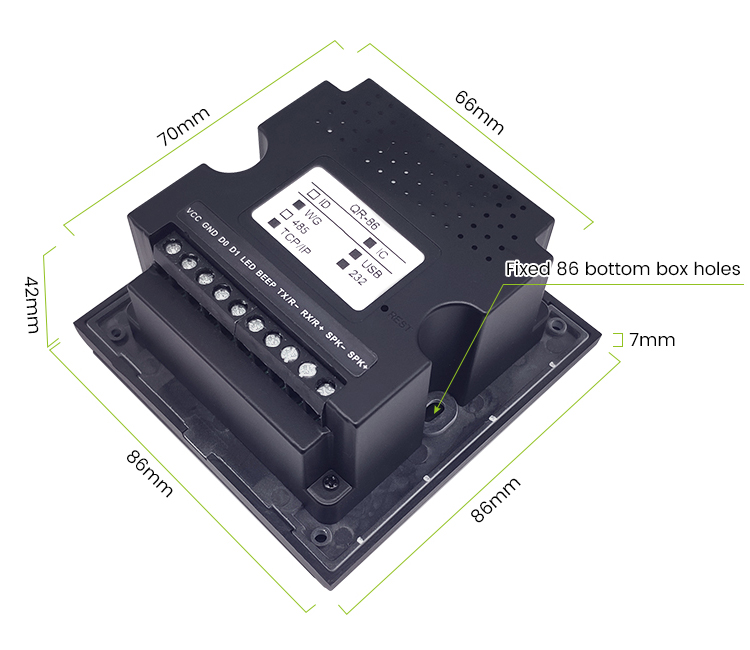

Dimension | 86L X 86W X42H (mm) |
Material | PC and Tempered glass |

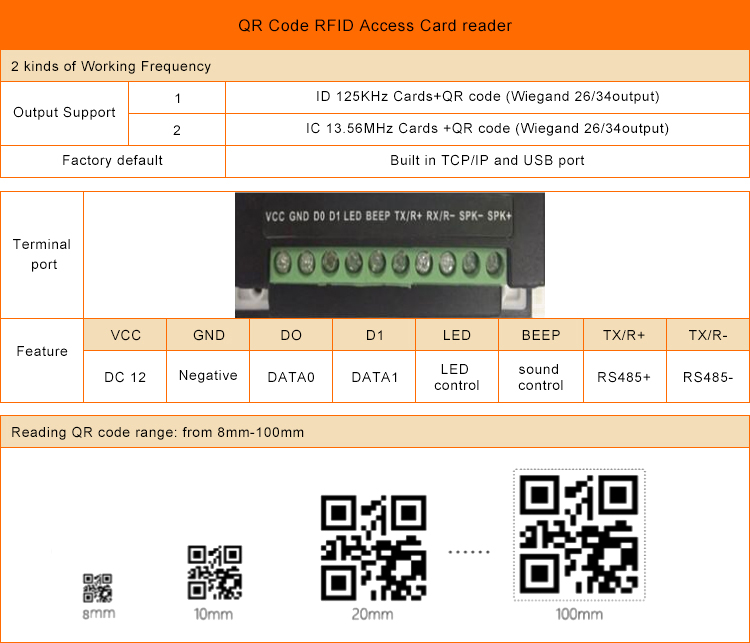

Interface | Wiegand26/34, RS485, RS232, USB, TCP/IP optional |
Decoding support | QR and One dimensional code |
Voltage support | 4~15V Wide voltage input |
Current | 800mA |
Reading directions | Camera centric slant 45° |
Reading speed | <200ms |
Reading range | 0~20CM |
Reading feature | Auto-induction, beep hint |
Light source | With LED light source itself, Anti-highlight interference |
Decode mode | Image decoding |
Application environment | Temperature: -20°C~70°C |
Humidity | 10%~90% |
Operate system | Windows(XP7, 8, 10), Linux |
Indicating status light | Red-Work, Green- Feedback, Light Green-Internet |
Reading range | 3~6CM |
Reading card type | EM or Mifare card |

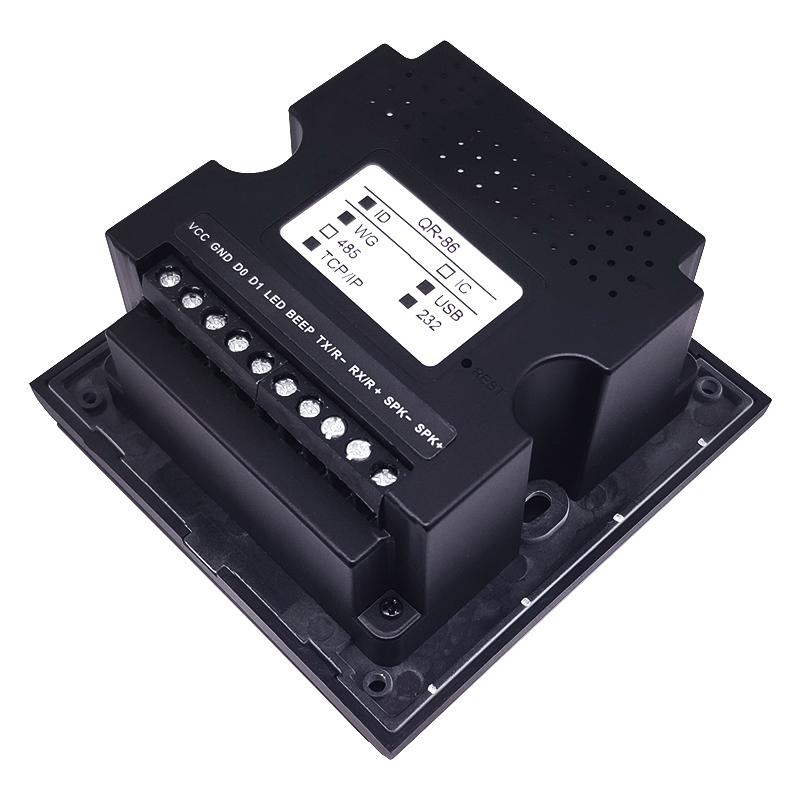

Restore Factory Settings: Use sharp objects insert into REST hole of QR code reader backside, release till the QR code reader automatically restart.
1D 2D QR Code Reader Programmable Auto Scan Barcode Reader | |||
Model No. | Quantity/Carton | Gross Weight | Carton Size |
QR-86 | 50 PC | 8.3 KG | 50x21x39 CM |
100 PC | 16 KG | 59x49x24 CM | |
