>Swipe speed:<200 milliseconds
>Wiegand output: 26 bits/34 bits
>Software version: V7.107 or above
>Hardware driver: V8.92 or above
>Output power: DC12v 10OomA (power supply lock and card reader)
Brand:
S4AItem NO.:

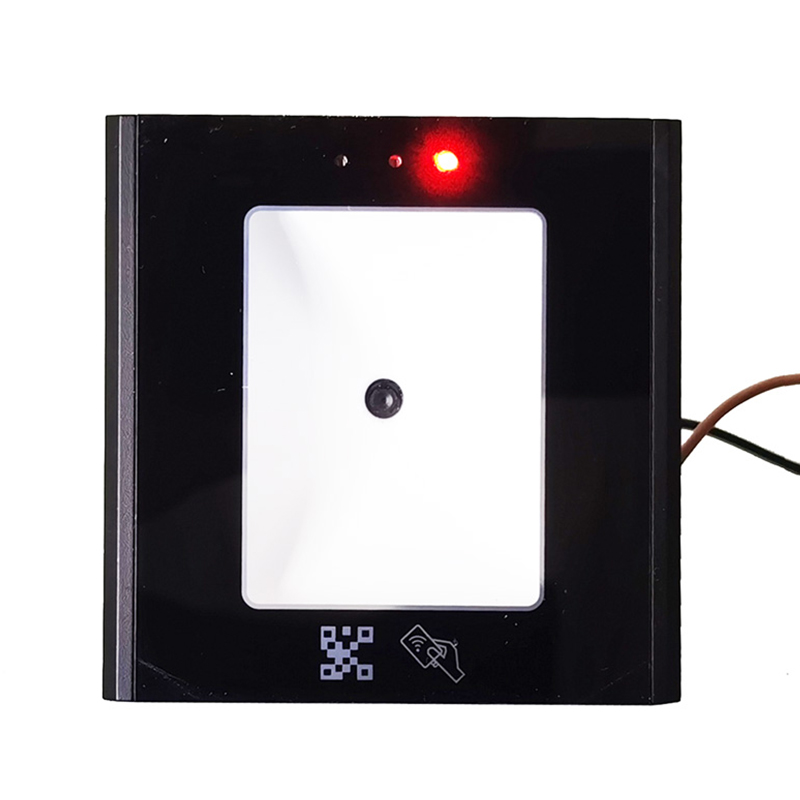

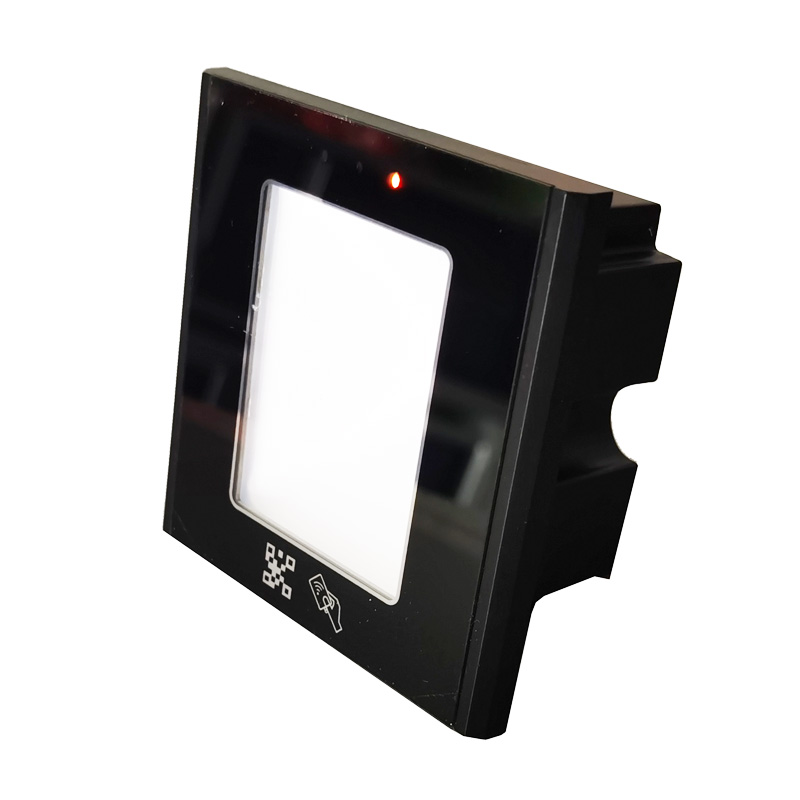

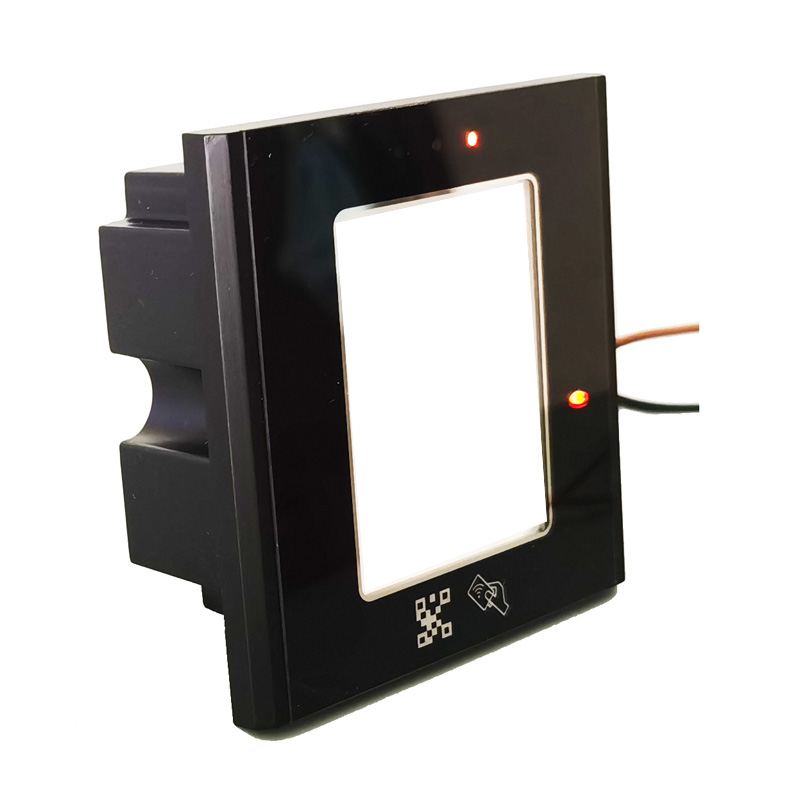

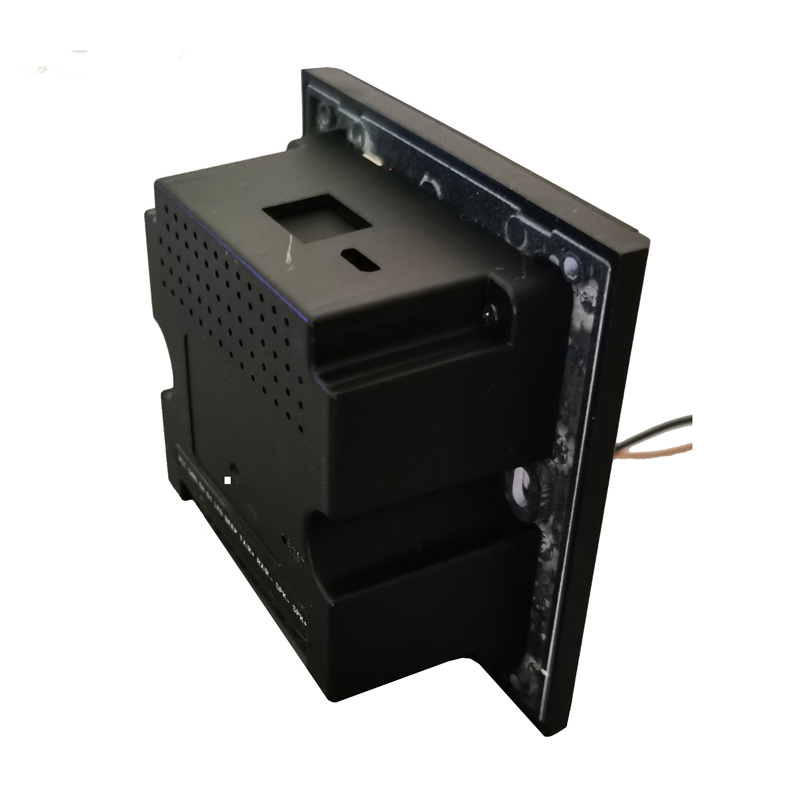

QR-86DAccess controller Dynamic QR code reader with Wiegand output

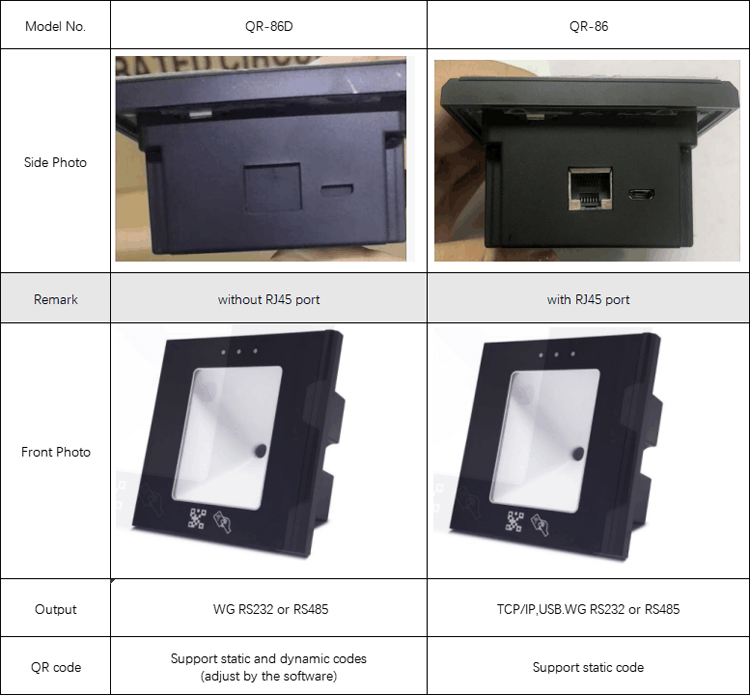

Model No.: QR-86D
Functions and features

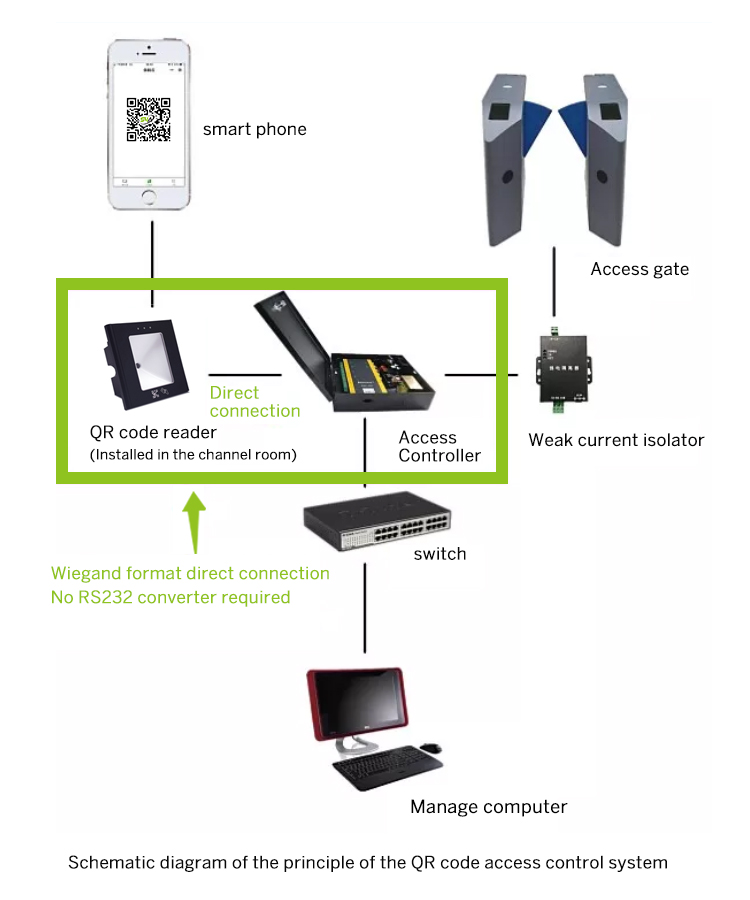

1. Wiegand signal QR code, simple wiring and long distance (up to 100 meters);
2. The mobile phone number is used as the card number, which is more convenient to set;

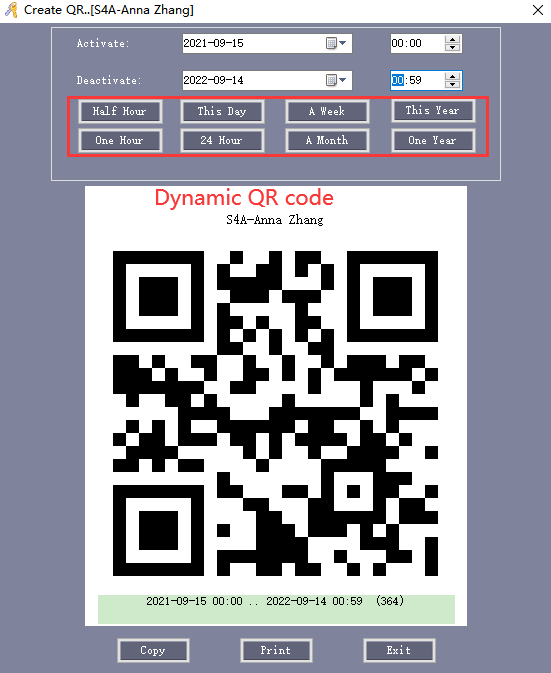

3. The WeChat applet generates a new dynamic QR code every 1 minute;
4. A screenshot of the QR code can be shared with visitors via WeChat and QQ with one click;
5. The shared QR code is valid for a short time;

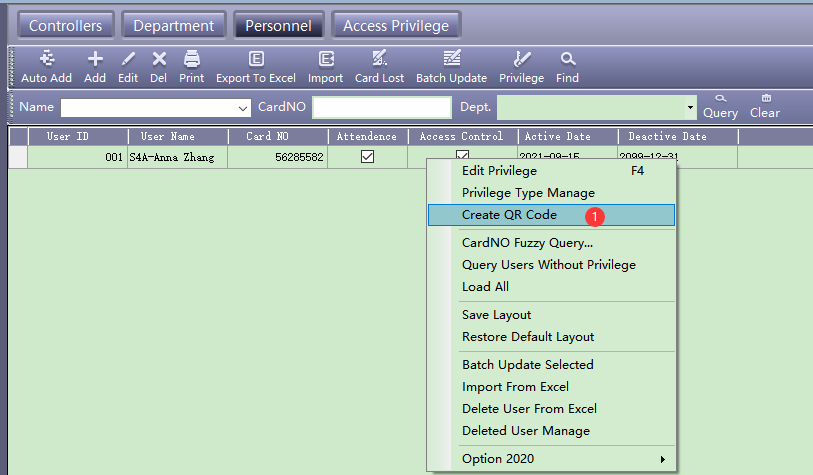

6. The two-dimensional code opening permission can be flexibly set through the access control software: which phones can be opened and which doors can be opened during which time periods;
7. There will be records and inquiries when opening the door with the QR code!

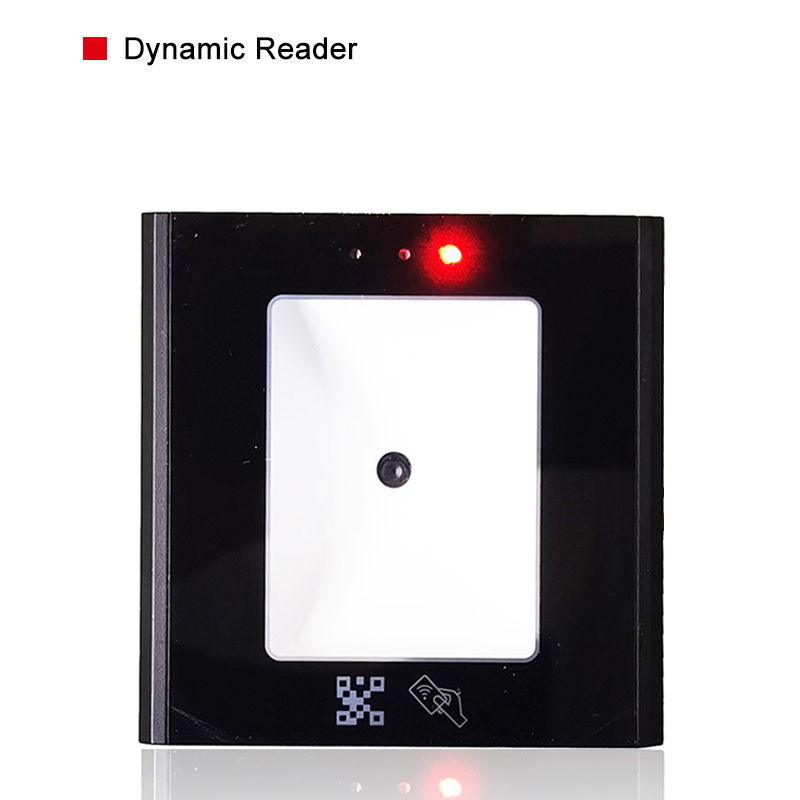

What is meant by dynamic QR code?
A dynamic QR code provides the ability to change thedestination address to which the QR code redirects to. Withdynamic QR codes, reprinting of the code is not necessaryafter changing the address. Unlike dynamic QR codes, staticQR codes point to a fixed address.
Volume | 86*86*42mm |
Material | PC material |
Reading window | tempered glass |
System interface | Wiegand, RS485, RS232 |
Decoding support | QR, one-dimensional code |
Working voltage | Support 4-15V wide voltage input |
Working current | 800mA |
Reading speed | <200ms |
Reading distance | 0-20CM |
Scan code features | automatic induction, buzzer prompt |
Light source | Built-in LED light source, anti-glare interference |
Card reading distance | 3-6CM |
Operating system | Windows (xp 7810), Linux |
Indicating status light | red work light, green feedback light, emerald green network light |
Card reader type | non-contact IC card, ID card |
Access controller Dynamic QR code reader with Wiegand output | ||||
Model No. | Quantity/Carton | Net Weight | Gross Weight | Carton Size |
QR-86D | 100PCS | 17KG | 17.5KG | 35x16x25cm |
S4A Datesheet_Access Controller Dynamic QR Code Reader With Wiegand Output
Dual QR Code & RFID Recognition: Fast image decoding for QR codes alongside 125KHz (EM) and 13.56MHz card sensing. Multiple Communication Interfaces: Supports international standard Wiegand 26/34, RS232, RS485, and TTL serial protocols. Wide Operating Power: Operates reliably across a DC 9V–24V range with efficient low standby current (< 30mA). Enhanced Scanning Range: Offers up to 30 cm QR code reading distance and 3–5 cm card sensing distance with 360° rotation coverage. Durable Tempered Glass Design: Built with a sleek tempered glass code window and integrated fill light for reliable operation.
> IC 13.56MHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
> ID 125KHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
> ID 125KHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
> IC 13.56MHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
Dual Scanning & Card Recognition: Reads QR codes and barcodes up to 30 cm, and RFID cards (125KHz/13.56MHz) up to 5 cm. Multi-Protocol Communication: Supports international Wiegand 26/34, RS232, RS485, and TTL serial port protocols. IP68 Waterproof & Rugged Build: Constructed with tempered glass and metal housing for full outdoor durability. Wide-Angle 360° Scanning: Features a 360° rotation angle, 84° diagonal scan angle, and integrated night fill light. Flexible Power Supply: Supports DC 9V–24V input with low standby power consumption (< 30mA).
Plug-and-Play USB Interface: Drives via standard USB DC 5V with HID keyboard output for driverless setup and fast data transmission. Dual-Frequency RFID Support: Compatible with both 125KHz and 13.56MHz card protocols (EM, M1, Desfire, 15693, SONY card, NFC). Comprehensive Barcode & QR Scanning: Reads 2D QR codes and standard barcodes at distances from 5 to 30 cm with rapid response time (< 100ms). Wide-Angle Coverage: Offers 360° rotation, 84° diagonal scanning angle, and integrated fill light for reliable performance in low-light environments. Compact & OEM Ready: Lightweight 100g design with full support for OEM customization.
Dual Scanning & Card Recognition: Reads 2D QR codes/barcodes up to 30 cm and RFID cards (125KHz/13.56MHz) up to 5 cm. Versatile Communication Protocols: Supports international standard Wiegand 26/34, RS232, RS485, TTL, and USB communication. Flexible Dual Power Options: Compatible with DC 9V–24V external supply or USB 5V input with low standby power (< 30mA). IP65 Waterproof & Durable Build: Features a rugged tempered glass code window paired with PVC plastic housing for reliable protection. Wide-Angle 360° Scanning: Equipped with a 360° rotation angle, 84° diagonal scan angle, and integrated night fill light.
