>Voltage:DC12V
>Electric current:<60mA
>Size:120*72*18mm
Brand:
S4AItem NO.:

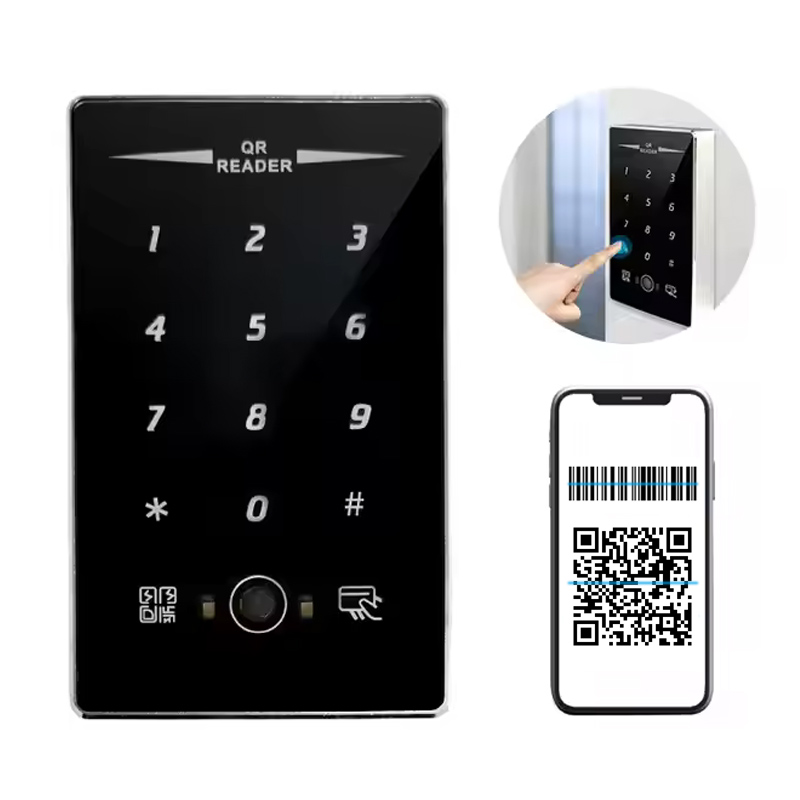

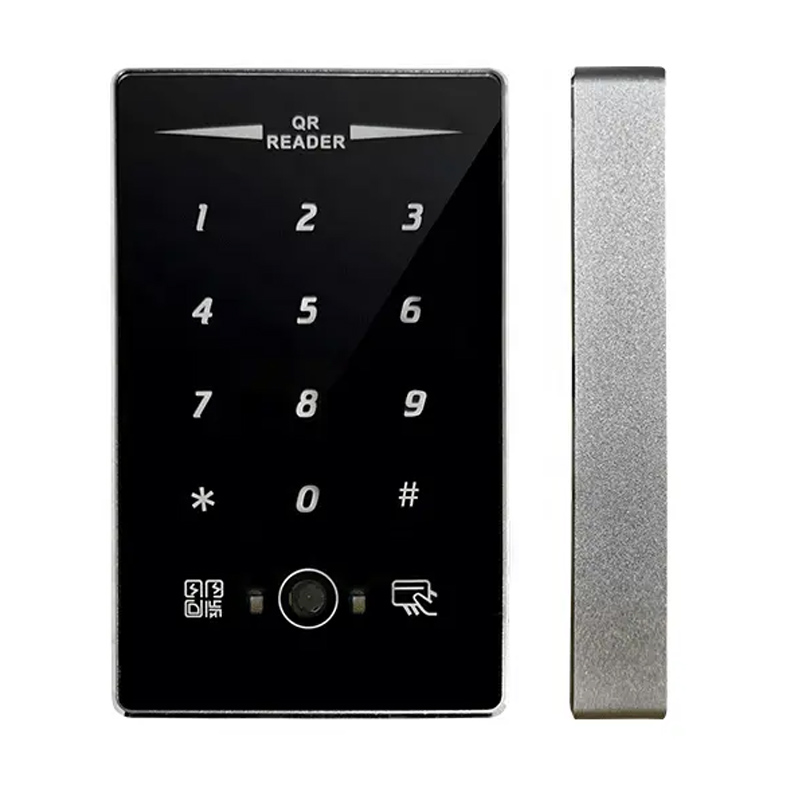

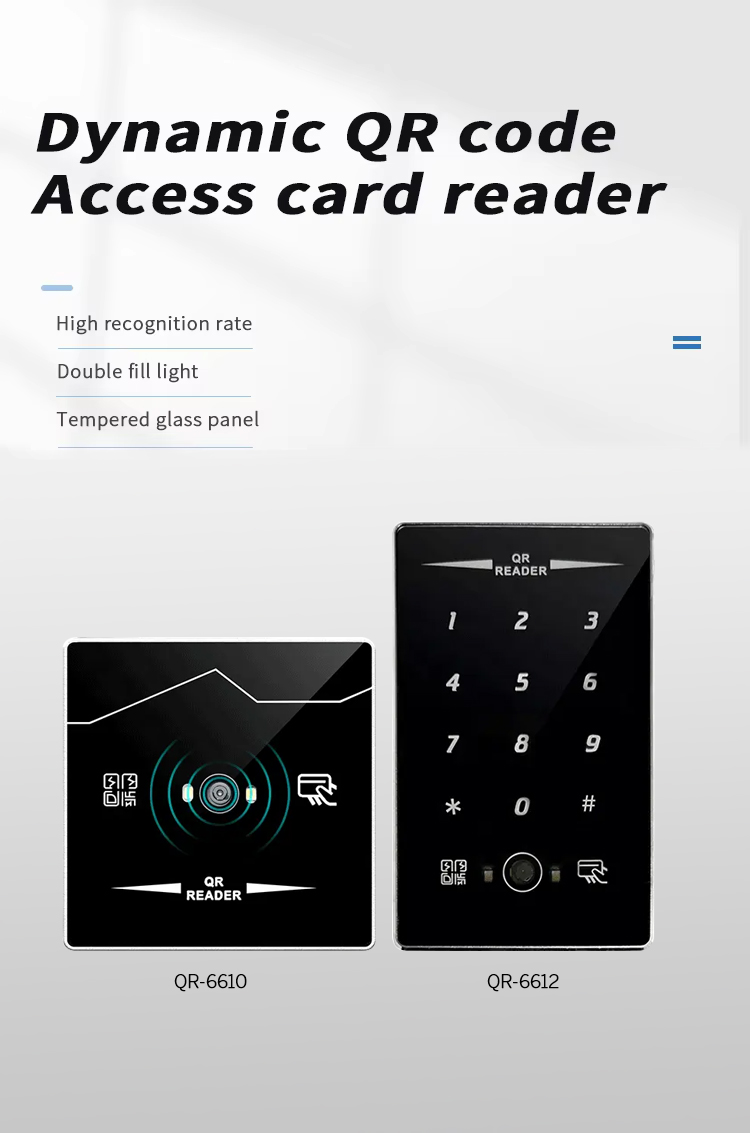

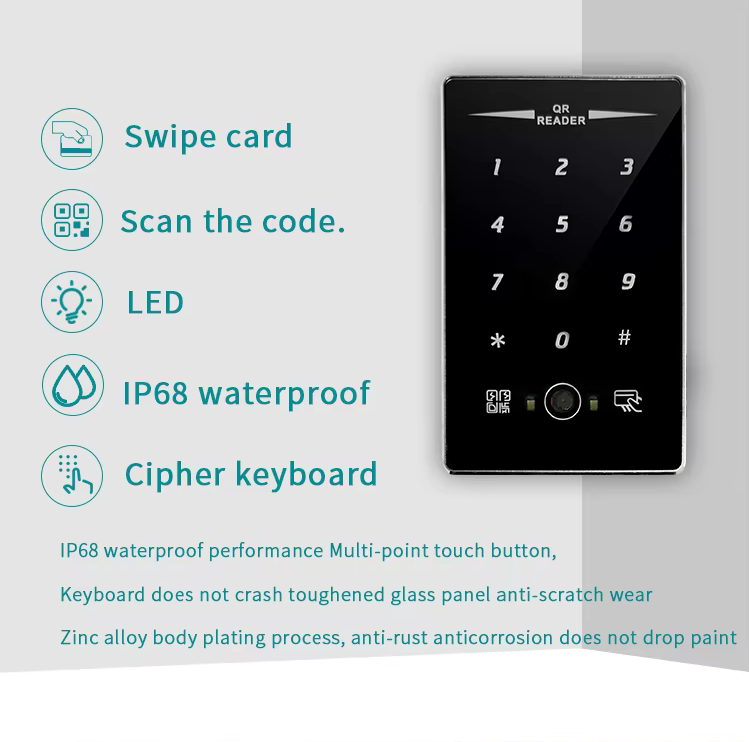

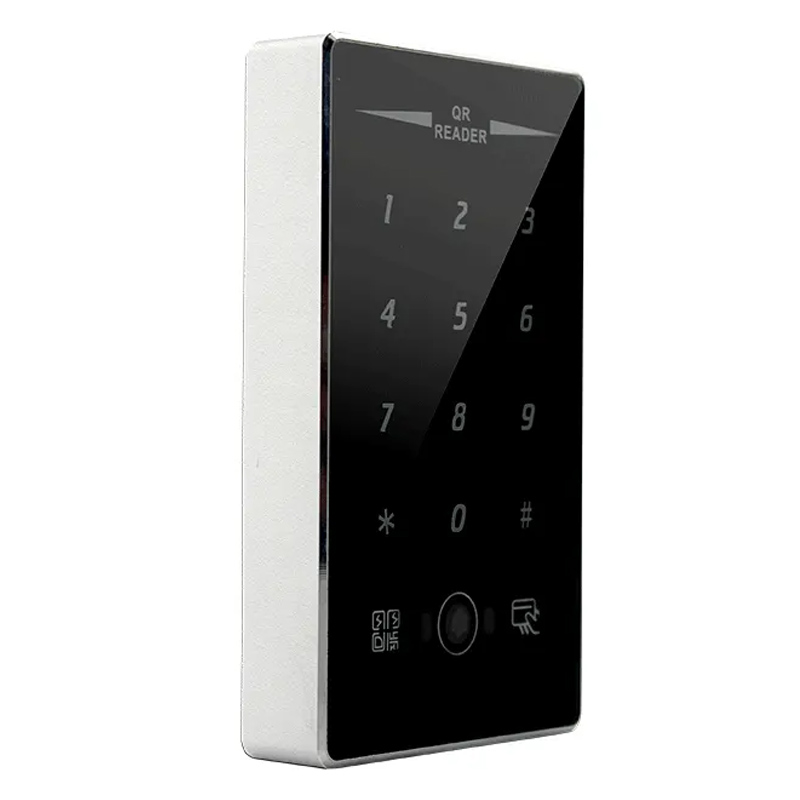

S4A-QR701QR Code and Card Reader for Access Control
Model No.:S4A-QR701
What is an access control QR code?
Access control QR code is a QR code technology used in access control systems. It usually encodes the user's identity information, authorization information, etc. into a QR code pattern, which is scanned and identified by a mobile phone application or a special access control device to achieve the permission management of people entering and exiting a specific area.
What is access control for?
Access control is a data security process that enables organizations to manage who is authorized to access corporate data and resources. Secure access control uses policies that verify users are who they claim to be and ensures appropriate control access levels are granted to users.
Voltage | DC12V |
Electric current | <60mA |
Temperature | -40°-+85° |
Humidness | 10%~90% RH(non-condensing) |

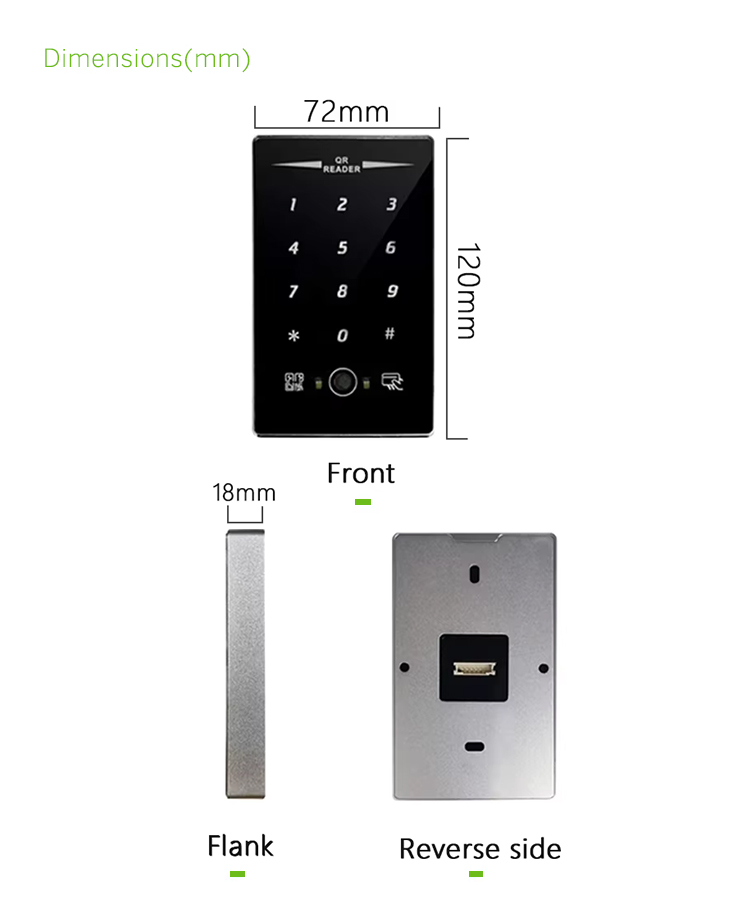

Size | 120*72*18mm |
Read card type | EM、Mifare、15693、desfire(Options) |
Scan type | Bar code、QR code |

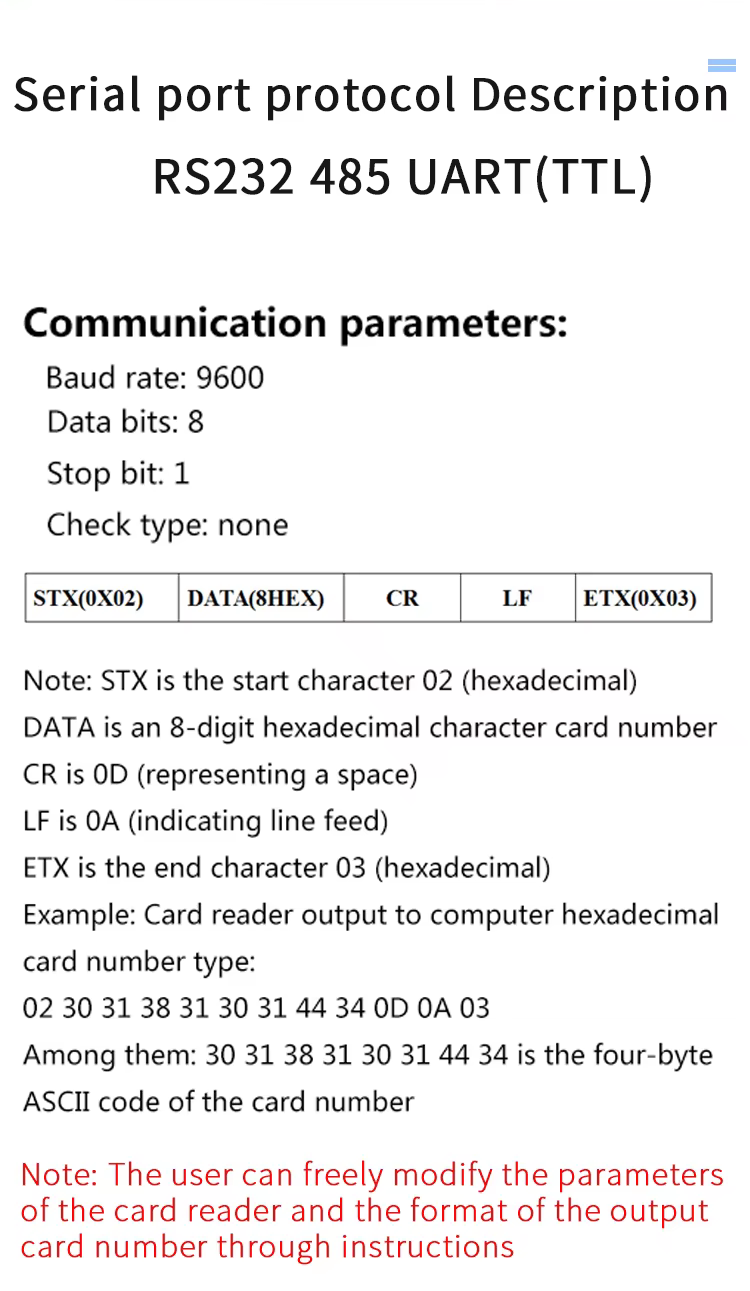

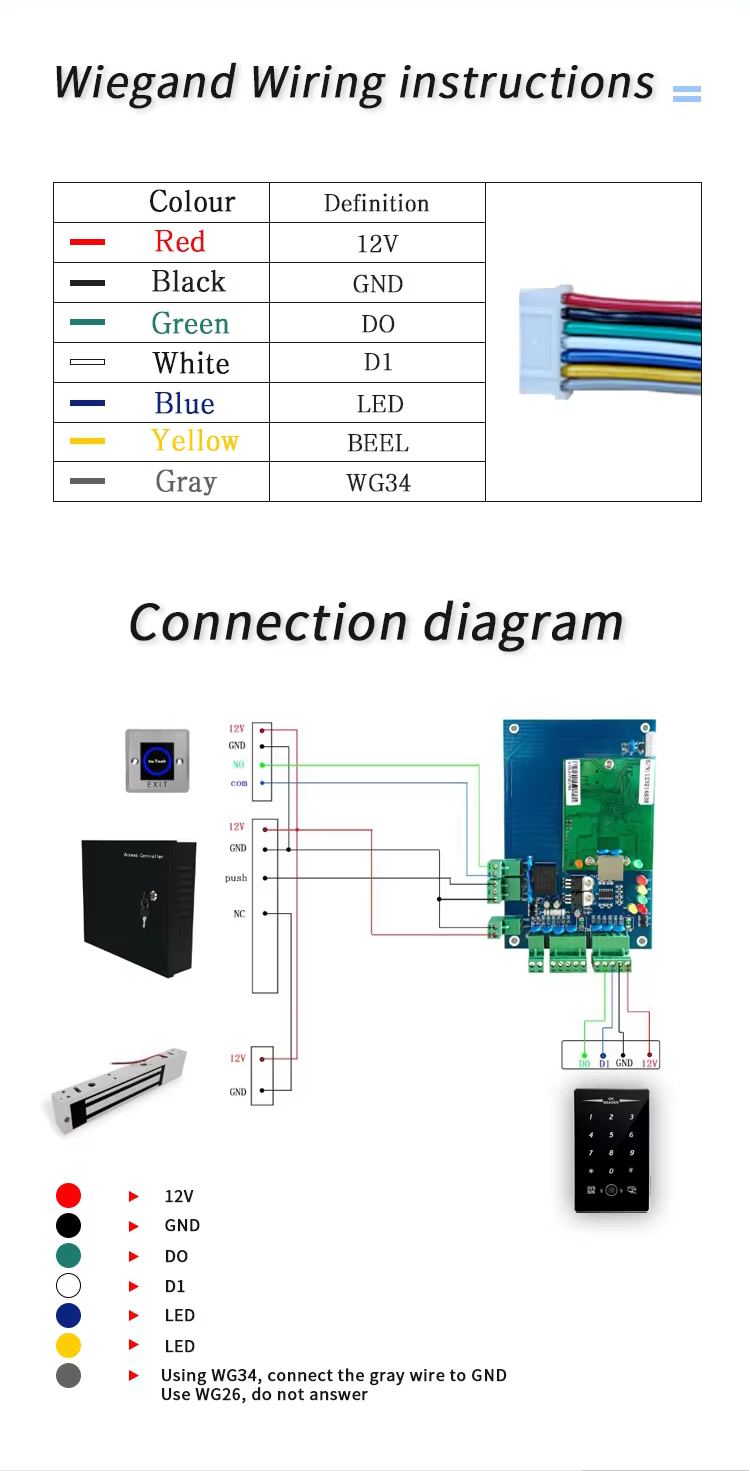

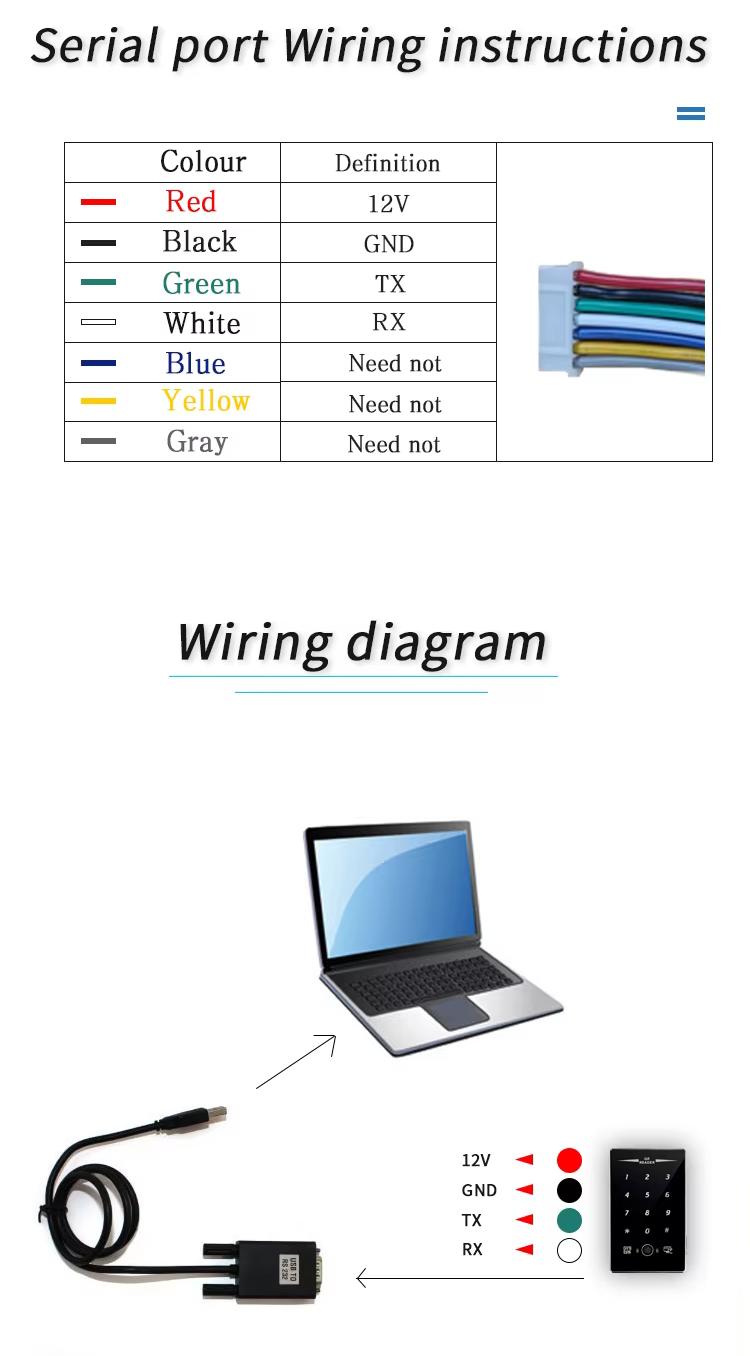

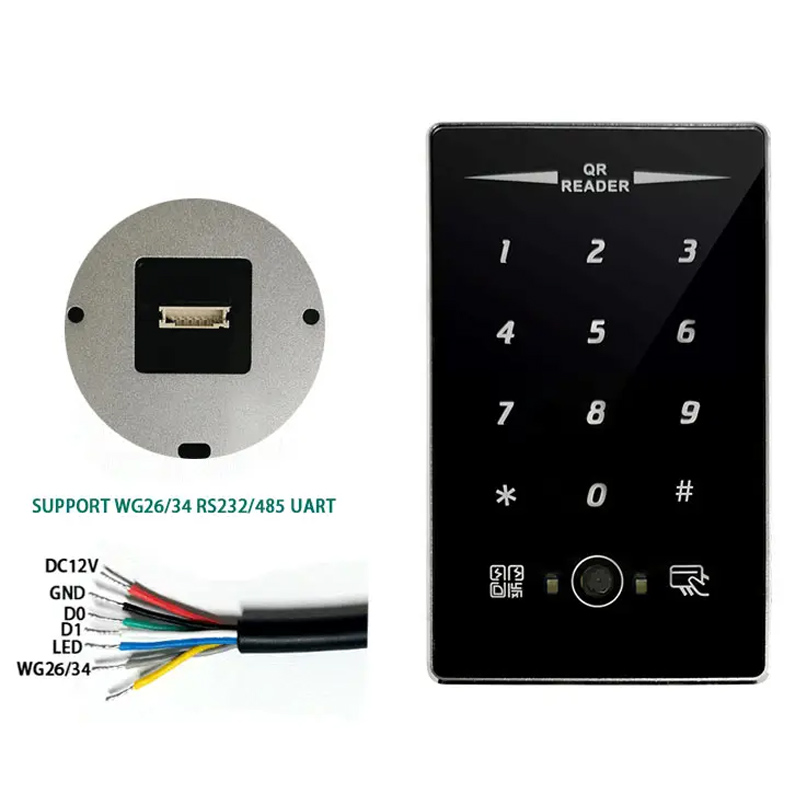

Interface type | Wiegand、RS232、RS485、TTL |

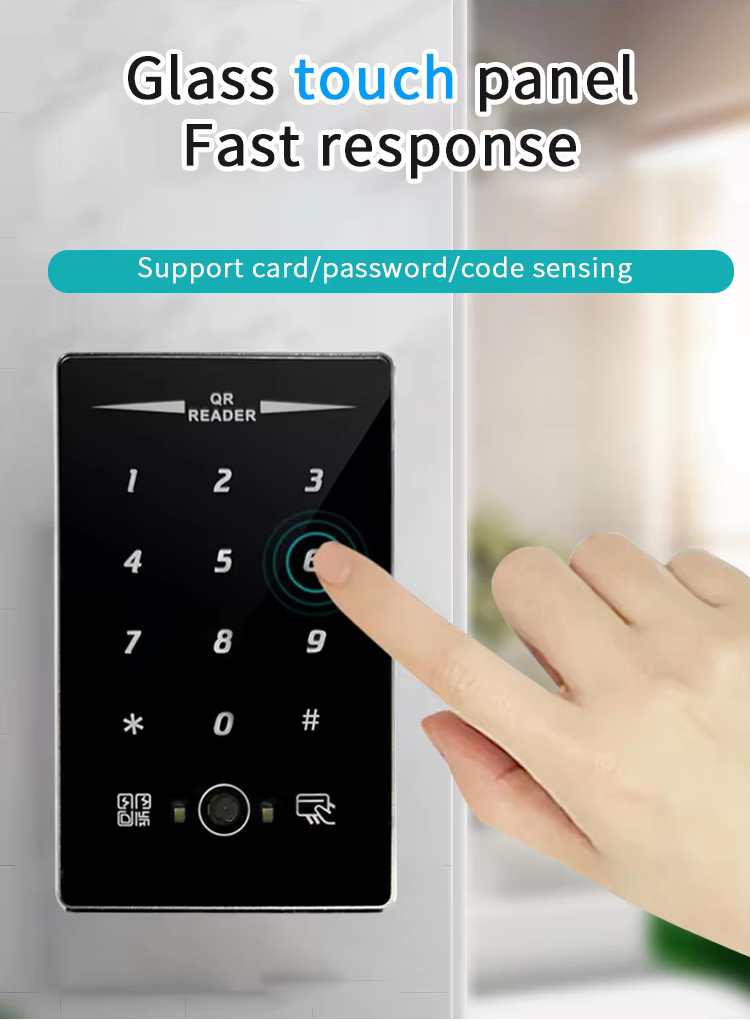

Material | Tempered glass+Metal |
Waterproof | IP68 |
Night lamp | Yes |
>Operating Voltage:DC 9V-12V>Frequency:125KHz>Read Range:3-6 Cm
> IC 13.56MHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
>Swipe speed:<200 milliseconds>Wiegand output: 26 bits/34 bits>Software version: V7.107 or above>Hardware driver: V8.92 or above>Output power: DC12v 10OomA (power supply lock and card reader)
> ID 125KHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
> ID 125KHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
> IC 13.56MHz Cards+QR code (Wiegand 26/34output)> Built-in TCP/IP and USB port> Material: PC and Tempered glass> Voltage: 4~15V> Dimension: 86x86x42mm
>Operating Voltage:12V/24VDC>Working frequency:Default 315MHz, optional 433MHz>Encoding type: Rolling code, fixed code, learning code
> Card type: 125KHz or 13.56MHz Card> PCD-96A EM: 125KHz (WG26 output)> PCD-96A Mifare: 13.56MHz (WG34 output)
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
