Categories
> Card type: EM, HID, MF, CPU Card
(Factory default: EM 125KHz)
> Operate by infrared remote
> 10,000 card users and 300 fingerprint users
> Relay NO/NC/COM output
Brand:
S4AItem NO.:
F601Fingerprint Standalone Access Controller
Model No.: F601 EM, HID, MF, CPU
The series of product is a new generation of multi-functional standalone access control. It adopts new ARM core 32-bit microprocessor design, which is powerful, stable and reliable. It contains reader mode and standalone access control mode etc.. It's widely applied to different occasions, such as office, residential communities, villa etc..
> Read 125KHz EM / HID Card / 13.56MHz Mifare / CPU Card (Factory default: EM 125KHz)
> Operate by infrared remote
> Contain reader mode, the transmission format could be adjusted by users.
> Support multi-access ways: Card+Fingerprint, multi cards or multi fingerprints
> Support admin card/admin fingerprint
> 10,000 card users and 300 fingerprint users
> Relay NO/NC/COM output
Card type | EM / HID / MF / CPU |
User Capacity | 10,000 card |
Fingerprint Capacity | 300 |
Operating Voltage | DC 12-24V |
Standby Current | ≤35mA |
Operating Current | ≤100mA |
Operating Temperature | -20℃~60℃ |
Operating Humidity | 0%~95% |
Electric lock signal relay contact current | ≤1A |
Alarm signal MOS tube output current | ≤1A |
Unlocking time | 0~300s adjustable |

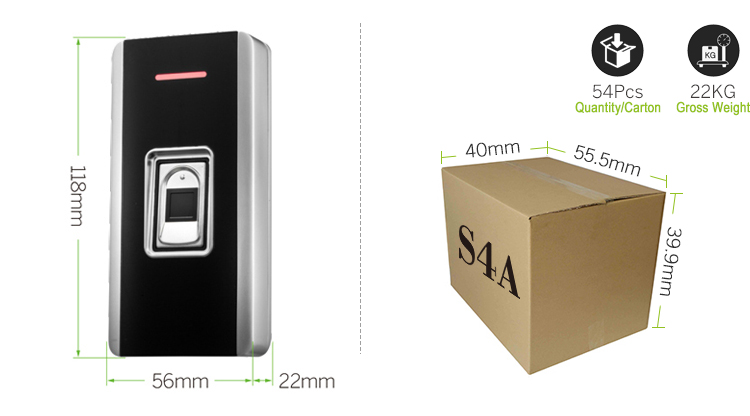

Size | 118x56x22mm |
Fingerprint Reader Access Control System with Relay | ||||
Model No. | Dimension | Quantity/Carton | Gross Weight | Carton Size |
F601EM | 118x56x22mm | 54pcs | 22KG | 55.5x40x39.9cm |
F601MF | 54pcs | 22KG | ||
F601EM-W | 118x56x22mm | 54pcs | 23.7KG | |
F601MF-W | 54pcs | 23.7KG | ||

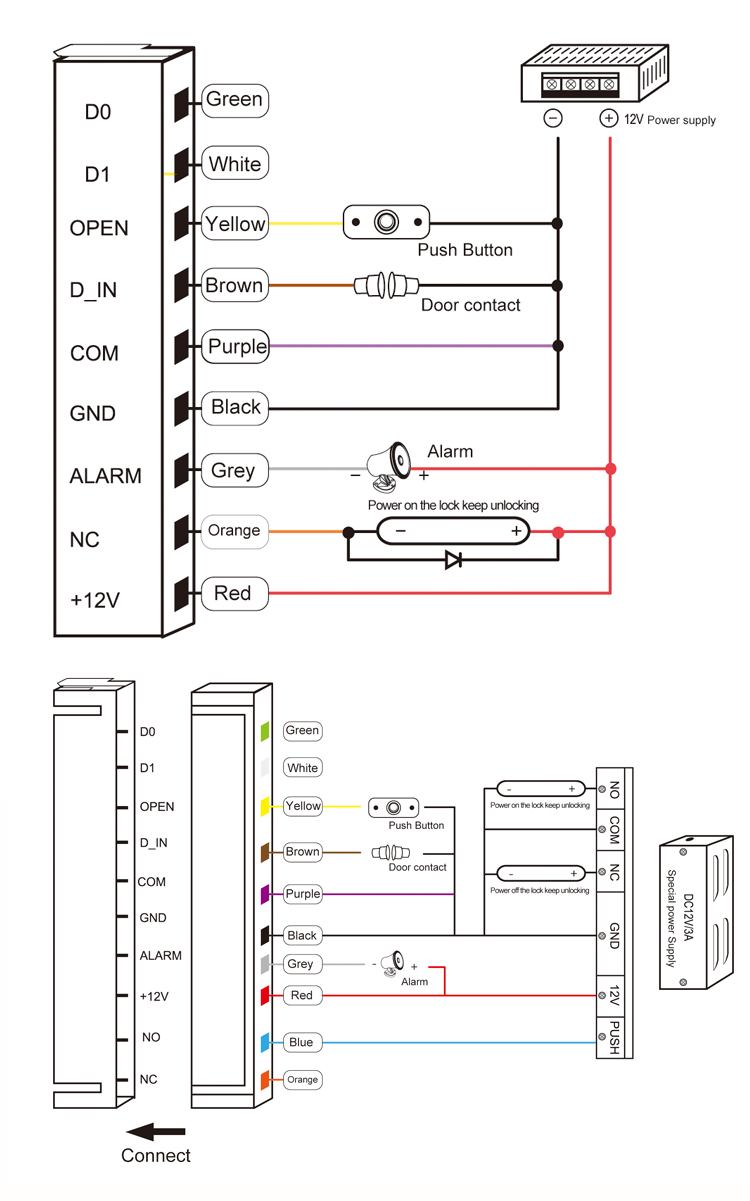

S4A User Manual F601_Fingerprint Reader Access Control System with Relay NO/NC/COM Output
> Card type: EM Card> User Capacity: 2,000> Communication: USB/U Disk> Dimensions: 170x76x20mm
> Card type: EM, HID, MF, CPU Card (Factory default: EM 125KHz) > Metal backlight keypad > User capacity: 10,000 users > Dimensions: 152x60x24mm > Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 152x60x24mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 139x70x22mm> Waterproof IP68
> Card type: EM, HID, MF, CPU Card(Factory default: EM 125KHz)> Metal backlight keypad> User capacity: 10,000 users> Dimensions: 135x47x23mm> Waterproof IP68
> Two Accesses: Fingerprin, Pincode> Waterproof, up to IP66> Metal Design & Anti-Vandal> Standalone, one relay> 1,000 fingerprints, 2,000 PIN users> Supports 4-6 digits PIN> Wiegand 26-44 output> Pulse mode, toggle mode> Multi fingerprints/PINs access > Interlock, Support Principal Use
> Two Accesses: Fingerprin, Pincode> Waterproof, conforms to IP66 > Metal case, anti-vandal > One Programming relay output > Multi-color LED Status Display> PIN length: 4~6 digits> Integrated alarm & Buzzer output> Capacitive Fingerprint Sensor>1000 Users: 100 Fingerprint, 890 PIN, 10 Visitor Users
> Two Accesses: Fingerprin, Pincode> Hardware Platform: ARM9> Wiegand: WG26 output> Finger Capacity: 500 users
S4A appreciate any of your inquiries and sincerelyhope to enjoy a fruitful long-term business relationship with youto share in the mutual benefits, If you have any questions, please feel free to contact us.
